Radial JS2 Mic Splitter

ITEM #: RAD-JS2 MFG #: R800 1022

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$330.00

Our Price:

$274.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    R800 1022 - Overview

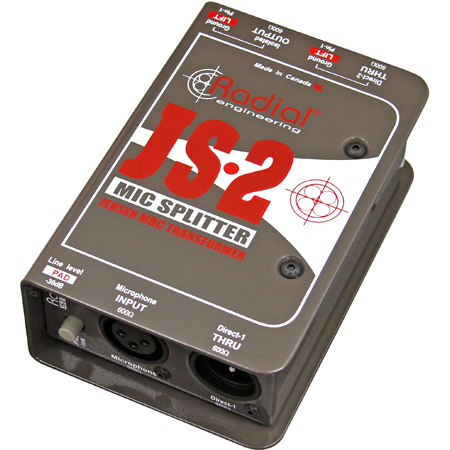

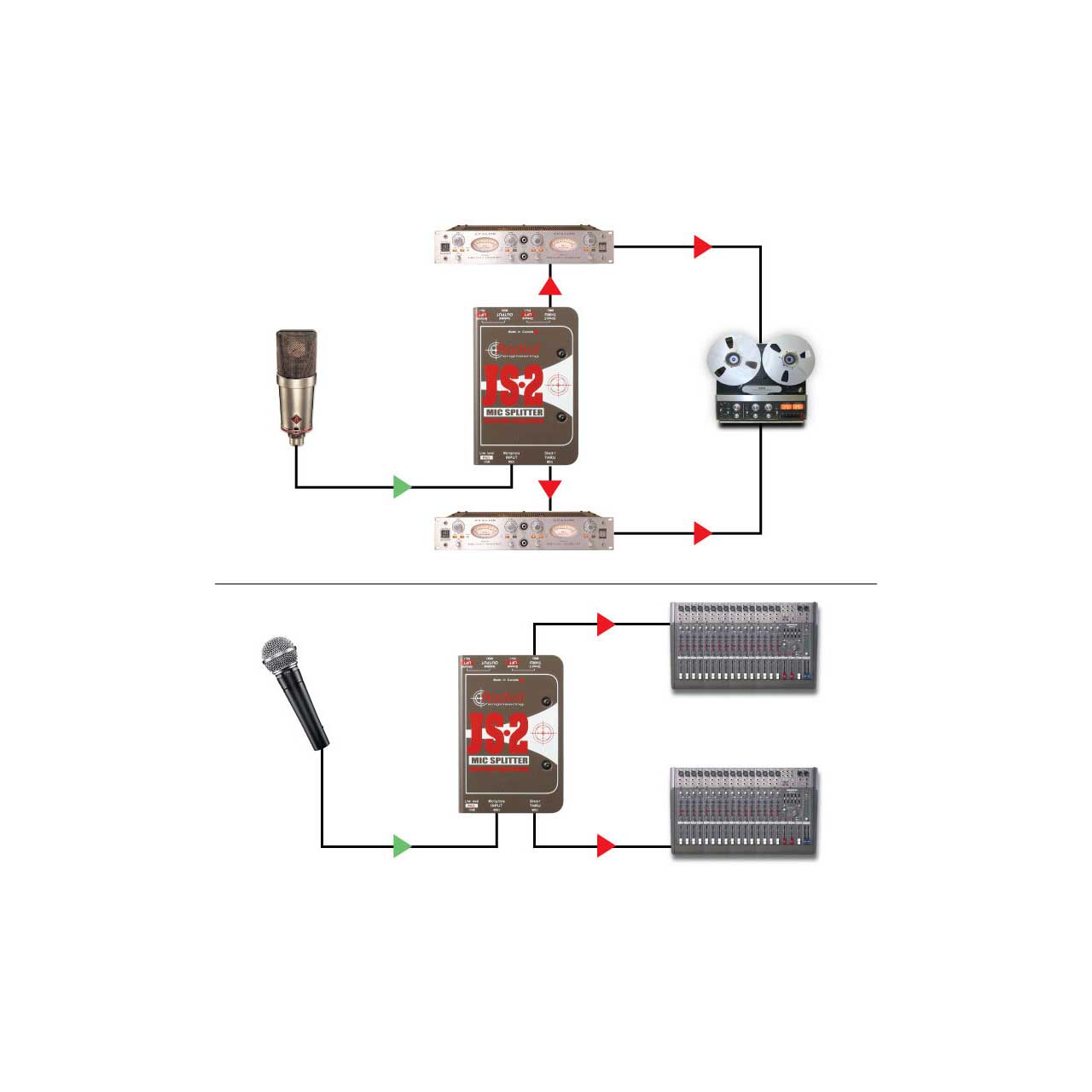

    The Radial JS2 and JS3 are Jensen Transformer equipped mic splitters that allow a balanced source to drive multiple destinations via standard XLR connectors. These passive devices feature a premium nickel laminated core transformer for exceptionally low harmonic distortion without the usual phase shift caused by lesser steel core transformers.

    The undisputed benefit of 100% transformer isolation provides better than -90dB common mode noise rejection (CMR), thus eliminating troublesome hum & buzz caused by stray voltage and ground loops. These `problem-solvers' offer a simple yet highly effective interface for microphones or direct boxes, and with the addition of the -30dB pad, consumer and line level devices may be employed without distortion or fear of overload due to saturation.

    The Radial JS2 and JS3 mic splitters feature a rugged 14-gauge steel construction for maximum durability. A unique book-end design creates a protective zone for switches and connectors against the harsh environment of concert touring. An internal welded I-beam skeleton houses the PC board, creating a virtually indestructible monocoque design that makes it impossible to torque the circuitboard. This eliminates stress on the solder points which can cause cold solder joints to develop. This innovative design also has the unique advantage of allowing up to 8 units to be rack-mounted using the Radial J-Rak. The J-Rak is a heavy-duty rack shelf that allows the splitters to span across a vertical array using only two 19" rack spaces.

    The Radial JS2 and JS3 mic splitters are easy to use, flexible and sound great

    • Features:

      • 100% isolation to eliminate ground loops
      • Jensen transformer-equipped for best sound
      • Choice of 2 or 3 way designs for flexibility
      • Microphone or line level signal handling
      • Compact design - may be J-Rak mounted
      • Ultra rugged 14-gauge steel construction

    • Specifications:

      • Audio circuit type: Passive mic/line splitter, transformer based
      • Number of channels: Three-way splitter (one in/three out)
      • Frequency response: 20Hz ~ 20KHz (+0dB/ -2dB)
      • Dynamic range: 140dB
      • Maximum input: +25dBu @ 1kHz
      • Total harmonic distortion: 0.0005% @ 1kHz
      • Phase deviation: 0.7° @ 100Hz; 2.8° @ 20Hz
      • Common mode rejection ratio:
      • Input impedance: 2.4k Ohms, unbalanced
      • Output impedance: 150 Ohms, balanced
      • JS2 transformer: JT-MB-CPC, 1:1 ratio
      • JS3 transformer: JT-MB-DPC, 1:1:1 ratio
      • Shield: Dual Faraday, MuMETAL can

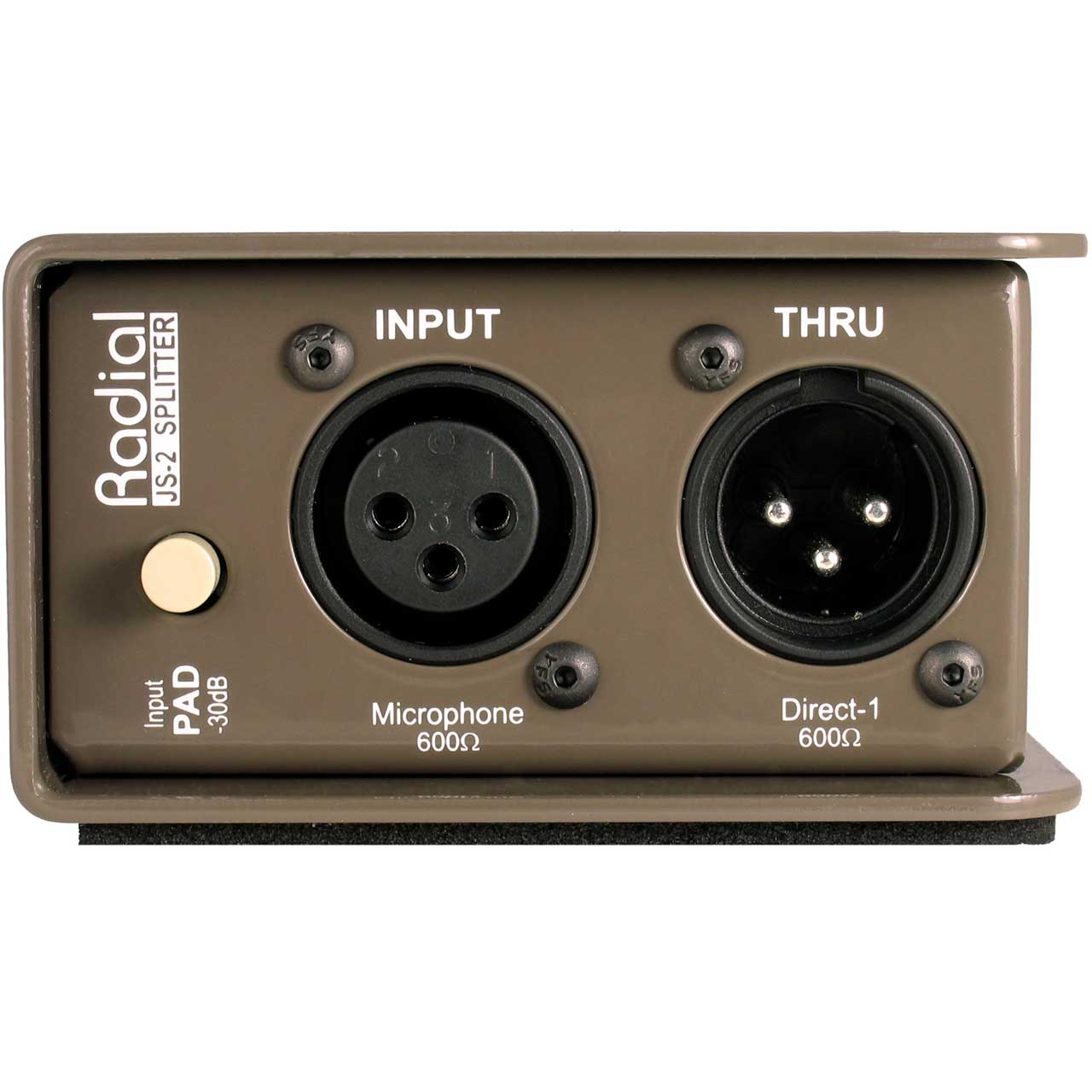

      • Input pad: -30dB (allows line-level sources)

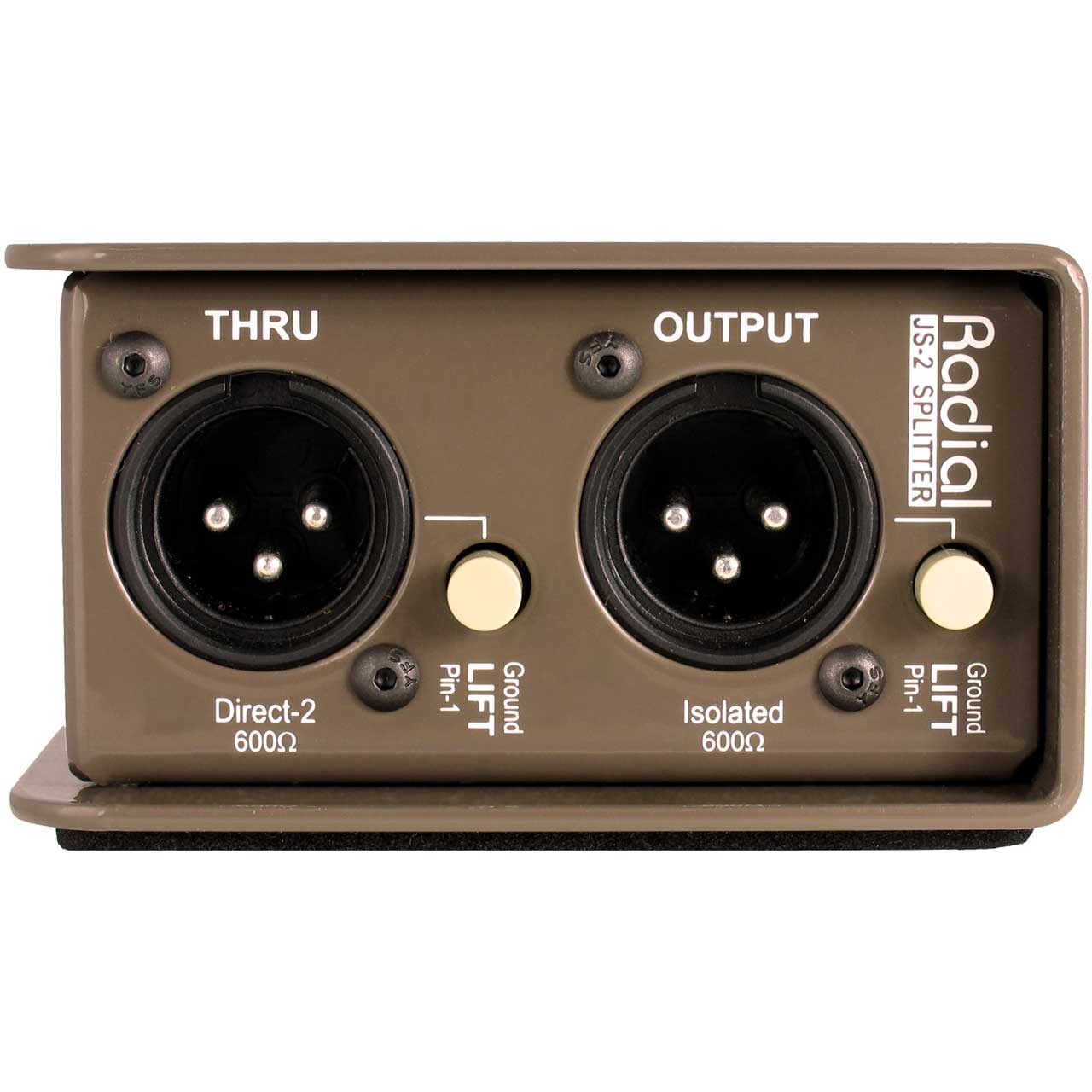

      • Ground lift: Disconnects XLR pin-1 at direct-2 and isolated output
      • XLR configuration: AES standard (pin-2 hot)
      • Connectors: XLR-F in, XLR-M direct; direct-2; isolated outputs
      • Construction: 14 gauge steel chassis & outer shell
      • Finish: Durable powder coat
      • Size: (W x H x D) 84 x 127 x 48mm (3.3" x 5.0" x 2")
      • Weight: 0.70 kg (1.55 lbs)
      • Shipping size: W x H x D: 102 x 76 x 165mm (4" x 3" x 6.5")
      • Shipping weight: .87 kg (1.92 lbs)
      • Power: Passive, no power required
      • Conditions: For use in dry locations only between 5°C and 40°C
      • Warranty: Radial 3-year, transferable

    • GTIN:

      0676101034918
