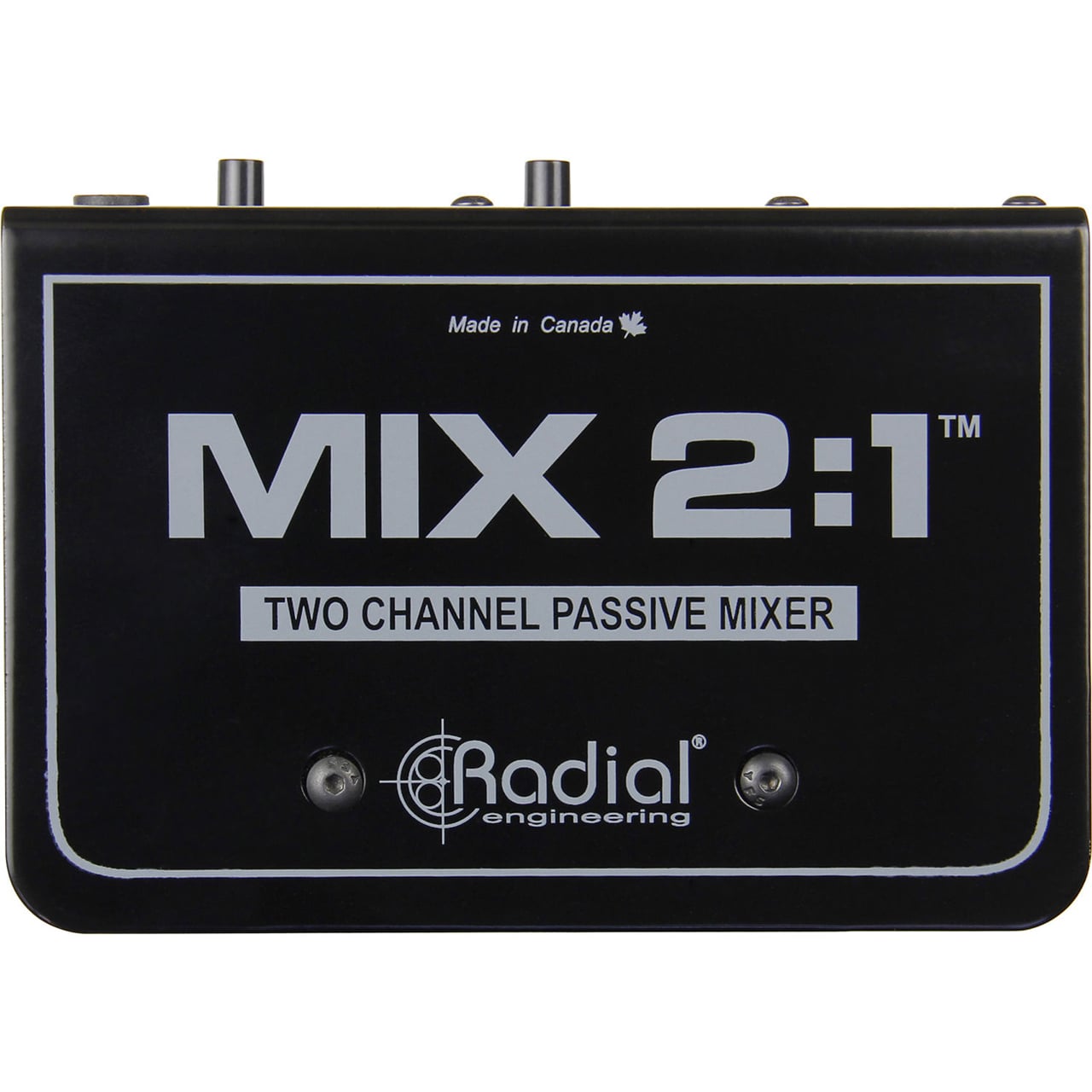

Radial Engineering Mix 2:1 2-Channel Passive Stereo to Mono Mixer

ITEM #: RAD-MIX-21 MFG #: R800 1036

free ship

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    R800 1036 - Overview

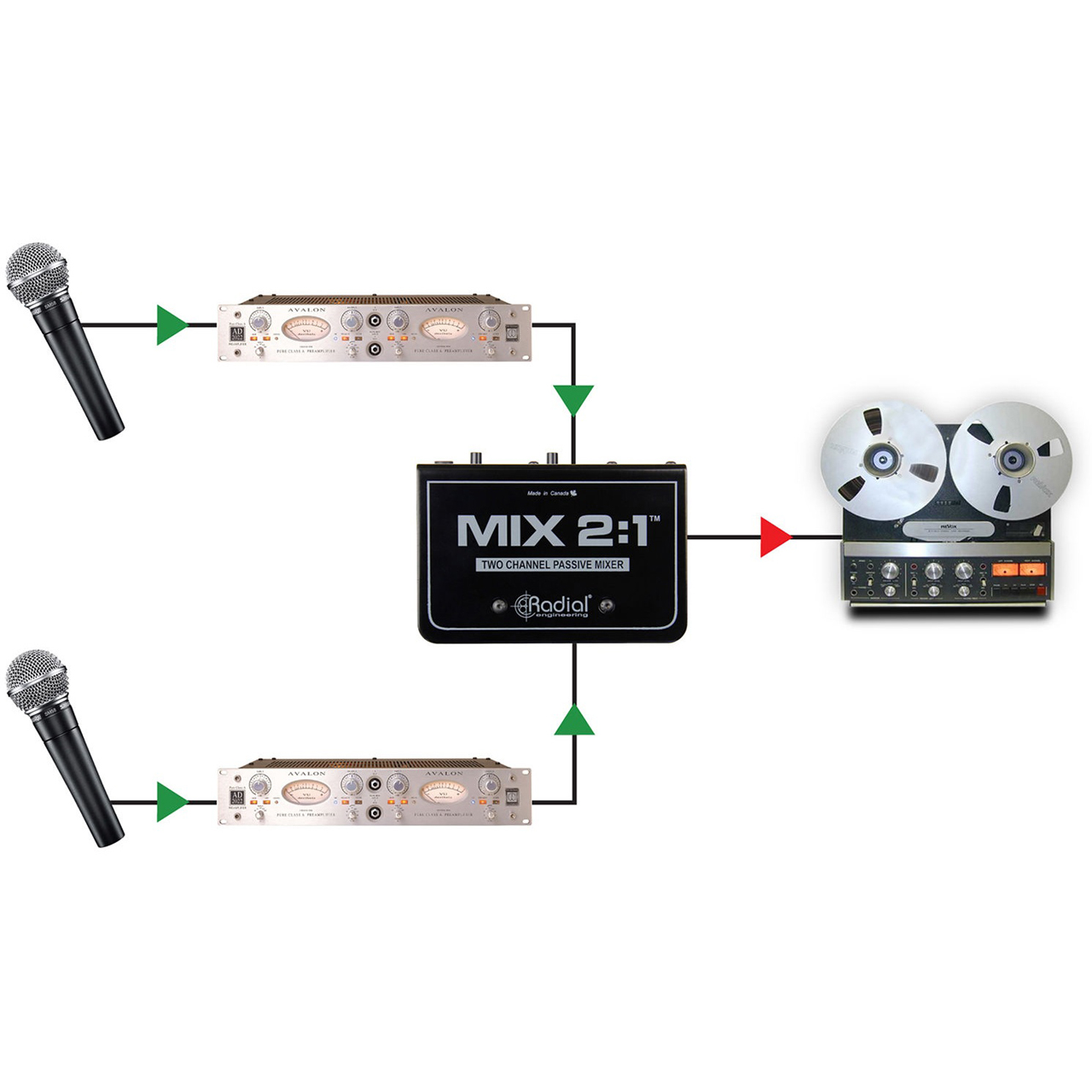

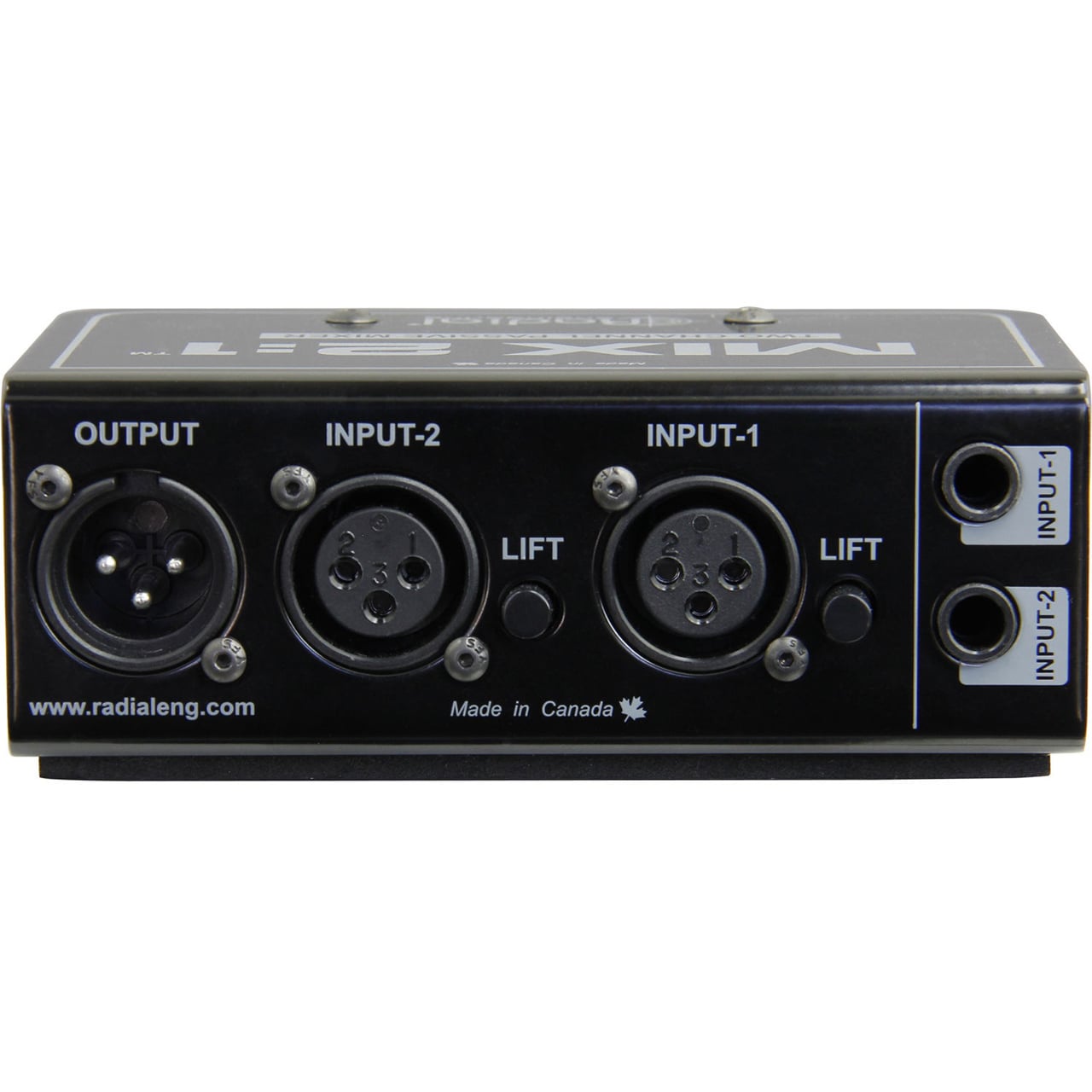

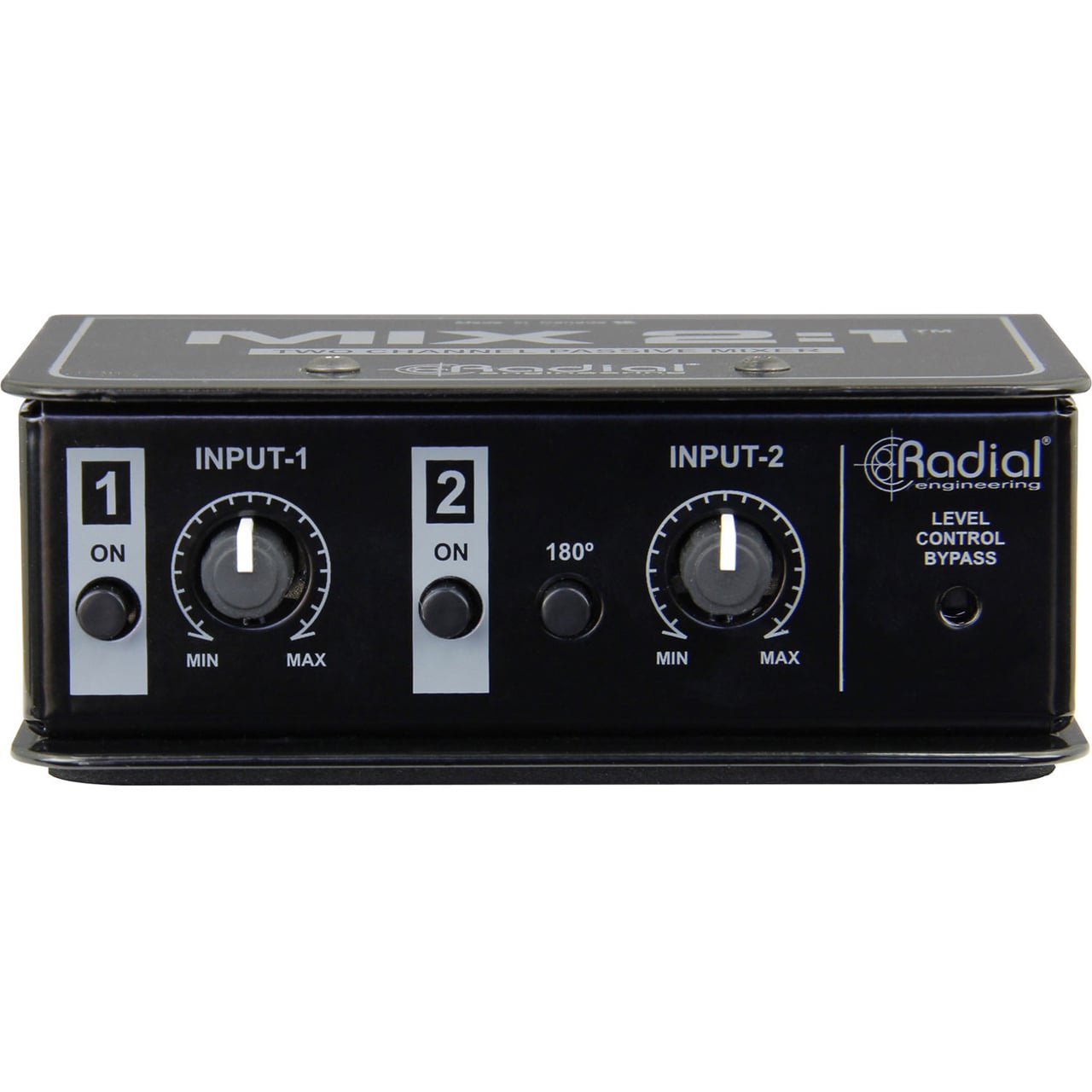

    The MIX2:1 is a simple yet highly useful mixer that passively sums two audio channels down to one. This enables you to easily sum the stereo outputs of a console, recording interface, or portable playback device down to mono. You can also combine two separate signals, matching the input levels between them. Inputs can be accessed via XLR or ¼" connectors, allowing you to use balanced or unbalanced sources. Each input features an on/off switch, variable level control, and a ground lift to prevent buzz and hum, should the inputs come from two separately powered sources. Input-2 also has a polarity reverse switch to eliminate cancellation if the two signals are out of phase. Should level adjustments be unnecessary or unwanted, a level control bypass switch is available to defeat both level controls. The MIX2:1 maintains the integrity of your audio quality, with minimal insertion loss, no phase shift, and completely passive summing.

    R800 1036 - Required Accessories

      R800 1036 - Recommended Accessories
