Radial OX8-r Mic Splitter - Passive w/ 8-input to 8-direct out & 8-isolated out - Radial Transformers

Manufacturer: Radial Engineering

Item #: RAD-OX8-R   •   MFG #: OX8-R




Share!

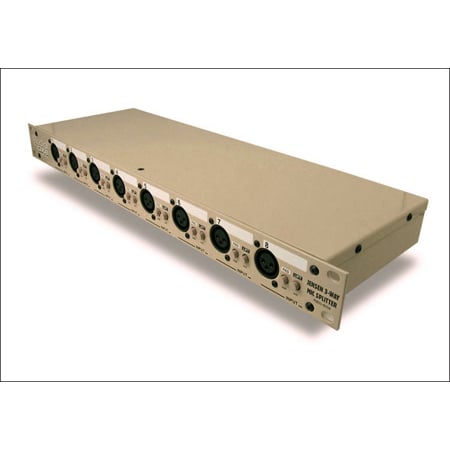

The Radial OX8 is a high-performance 8-channel 3-way mic splitter that is equipped with an input and three outputs: a direct feed for 48V phantom return, an auxiliary feed with ground lift switch and a transformer isolated output.

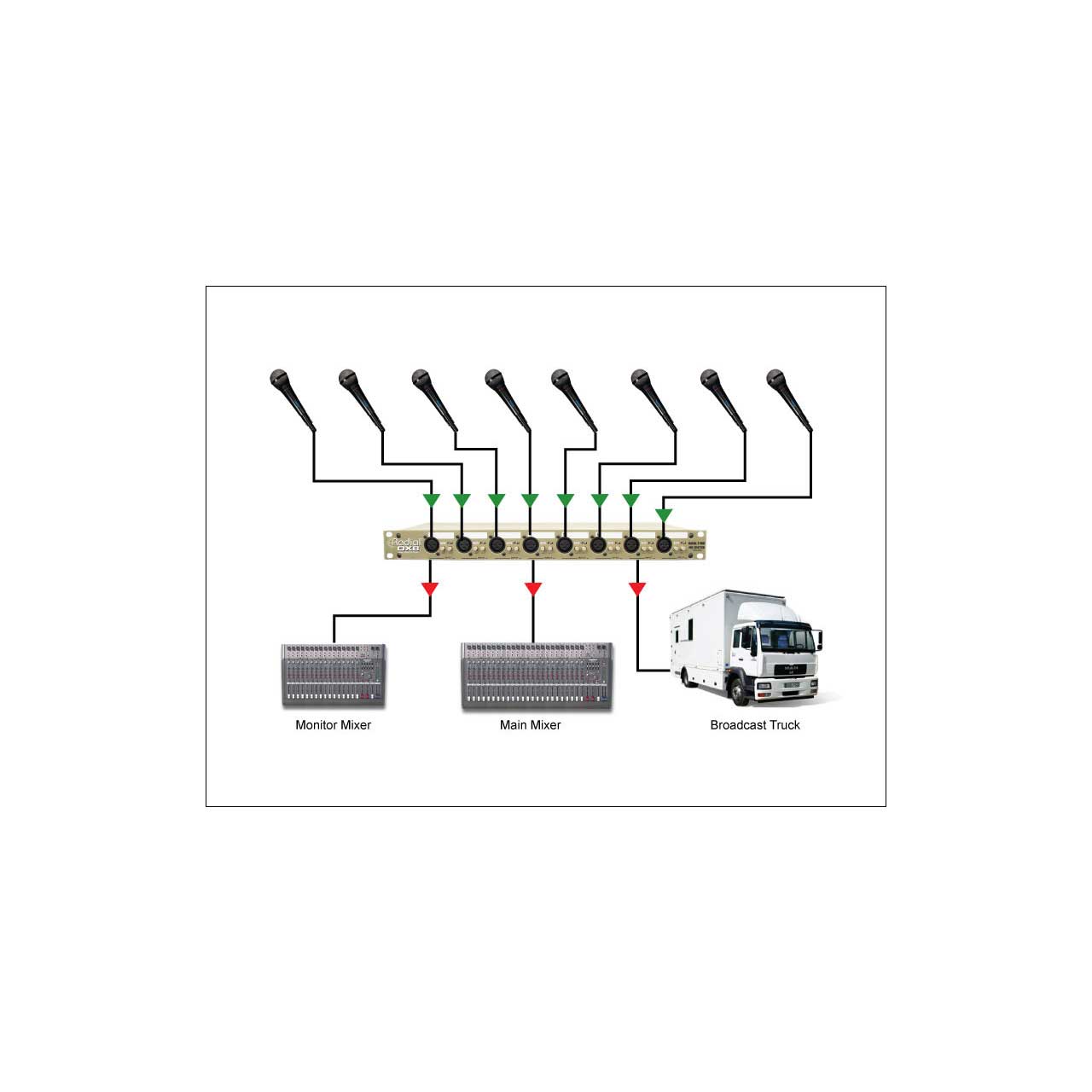

Although primarily designed for mic signals, the OX8 is equipped with a -36dB pad for line level sources, making the OX8 highly adaptable for all types of signal splitting. The OX8 is particularly well suited to accommodate live recording by delivering a transformer isolated audio signal path for the recording engineer while providing a direct feed to the front of house and monitor consoles.

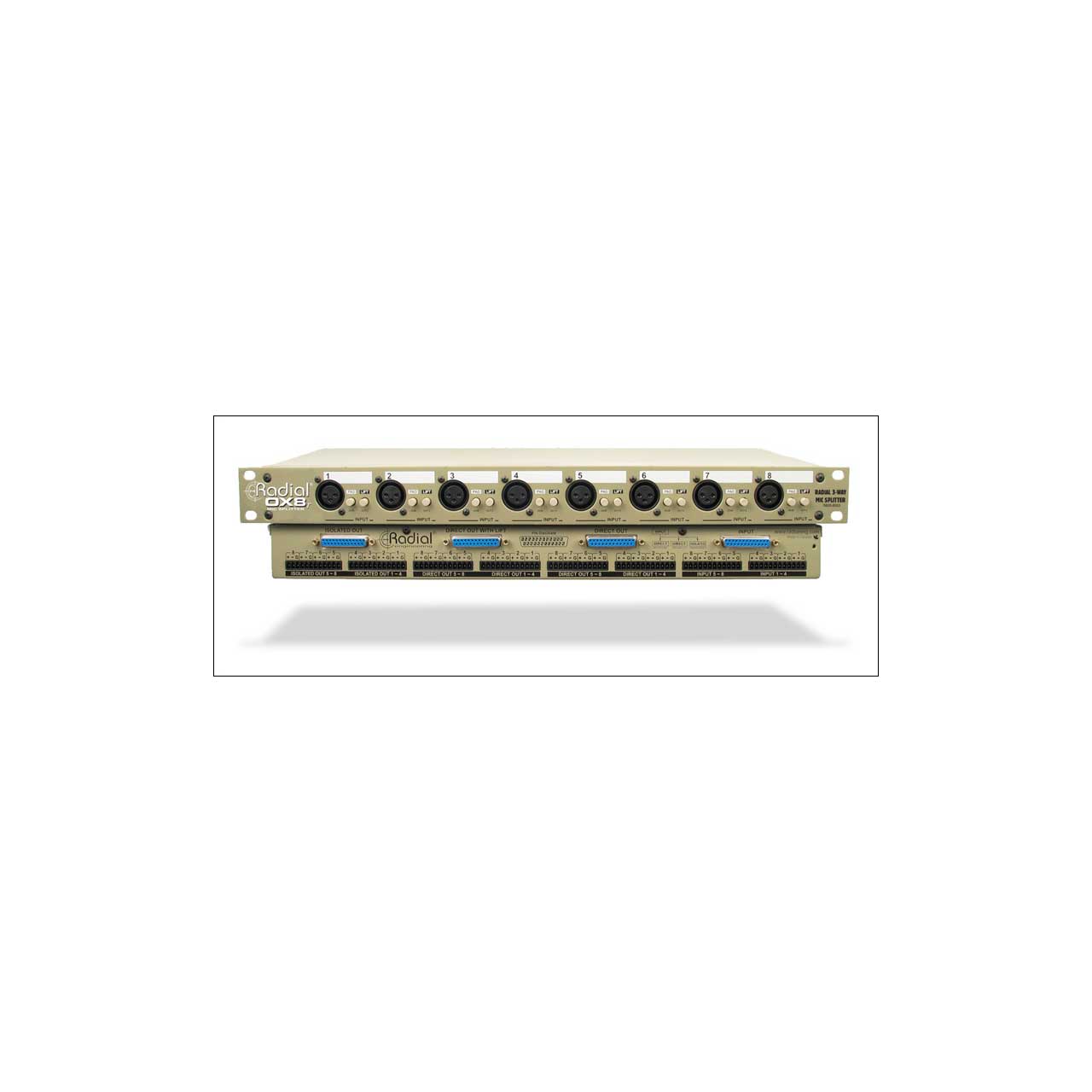

For maximum flexibility, several connector options are available. Inputs may be accessed via the front panel, using standard XLRs, or the rear panel, with a choice of either 25 pin D-subs (wired to the Tascam standard) or Euro screw-down terminal connectors (Note: Wire-end terminal blocks are sold separately). Outputs include D-subs and Euro connectors, which are also located on the rear panel. These make it easy to connect to popular multi-track recording systems while providing easy termination for permanent installations.

Because it is 100% passive, the OX8 does not require any power to make it work. Maximum durability is ensured with heavy duty 14 gauge steel construction throughout. The OX8 can be ordered with our own custom wound Radial transformers or may be ordered with Jensen Transformers.

Also available is the LX8, a +4dB balanced line level version of the OX8. The LX8 comes with Jensen audio transformers only.

The Radial OX8 and LX8 - great sounding splitters that that are easy to use, compact and convenient.


  • Features

    • Compact 8-channel multi-purpose splitter
    • Rear panel D-sub and Euro (Phoenix) screw terminals
    • Ideal for live recording and signal distribution
    • Choice of custom Radial or Jensen transformers
    • Choice of mic splitter (OX8) or line splitter (LX8) designs

  • Specifications

    • Audio circuit type: Passive transformer based mic level splitter
    • Number of channels: 8 channel 3-way splitter (1-in/3-out)
    • Frequency response: 20Hz ~ 18KHz (+0dB/-3dB)
    • Dynamic range: 140dB
    • Maximum input: +2dBu @ 20Hz
    • THD +noise: 0.005% @ 1kHz
    • Phase deviation: 1° @ 100Hz; 5° @ 20Hz
    • CMRR: 114dB @ 60Hz
    • Input impedance: 150 Ohms, balanced
    • Output impedance: 150 Ohms, balanced
    • Transformer: Radial RT-DBS, 1:1 ratio
    • Shield: Dual Faraday, MuMETAL can
    • Input pad: -36dB (allows line-level sources)
    • Ground lift: Disconnects XLR pin-1 at direct-2 and isolated output
    • XLR configuration: AES standard (pin-2 hot)
    • DB-25 configuration: Tascam analog audio standard
    • Construction: 14 gauge steel
    • Finish: Durable powder coat
    • Size: (W x H x D) 19" x 6" x 1.75" (48.25 x 15.25 x 4.45cm)
    • Weight: 7.5 lb (3.4 kg)
    • Shipping size: W x H x D: 22" x 10" x 4.5" (55.9 x 25.4 x 11.4cm)
    • Shipping weight: 8lbs (3.63kg)
    • Power: Passive, no power required
    • Conditions: For use in dry locations only between 5°C and 40°C
    • Warranty: Radial 3-year, transferable



REVIEW SNAPSHOT®

by PowerReviews
RADIAL ENGINEERINGRadial OX8-r Mic Splitter - Passive w/ 8-input to 8-direct out & 8-isolated out - Radial Transformers

4.0

(based on 1 review)

Ratings Distribution

  • 5 Stars



    (0)

  • 4 Stars



    (1)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

Reviewed by 1 customer

Displaying review 1

Back to top


4.0

Great unit

By Dirt Road

from Flyover, USA

About Me Audio Engineer

Pros

  • Durable
  • Good Audio
  • Heavy Duty

Cons

  • No Phoenix connectors

Best Uses

  • Live sound
  • Recording

Comments about RADIAL ENGINEERING Radial OX8-r Mic Splitter - Passive w/ 8-input to 8-direct out & 8-isolated out - Radial Transformers:

Radial makes GREAT stuff. This splitter is very heavy duty and sounds great. My only complaint is that they don't include the phoenix connectors with the purchase. You have to buy them separately for way too much money. After looking around I found compatible connectors (Google #158-P12EC381VP-E) for less than half the cost.
