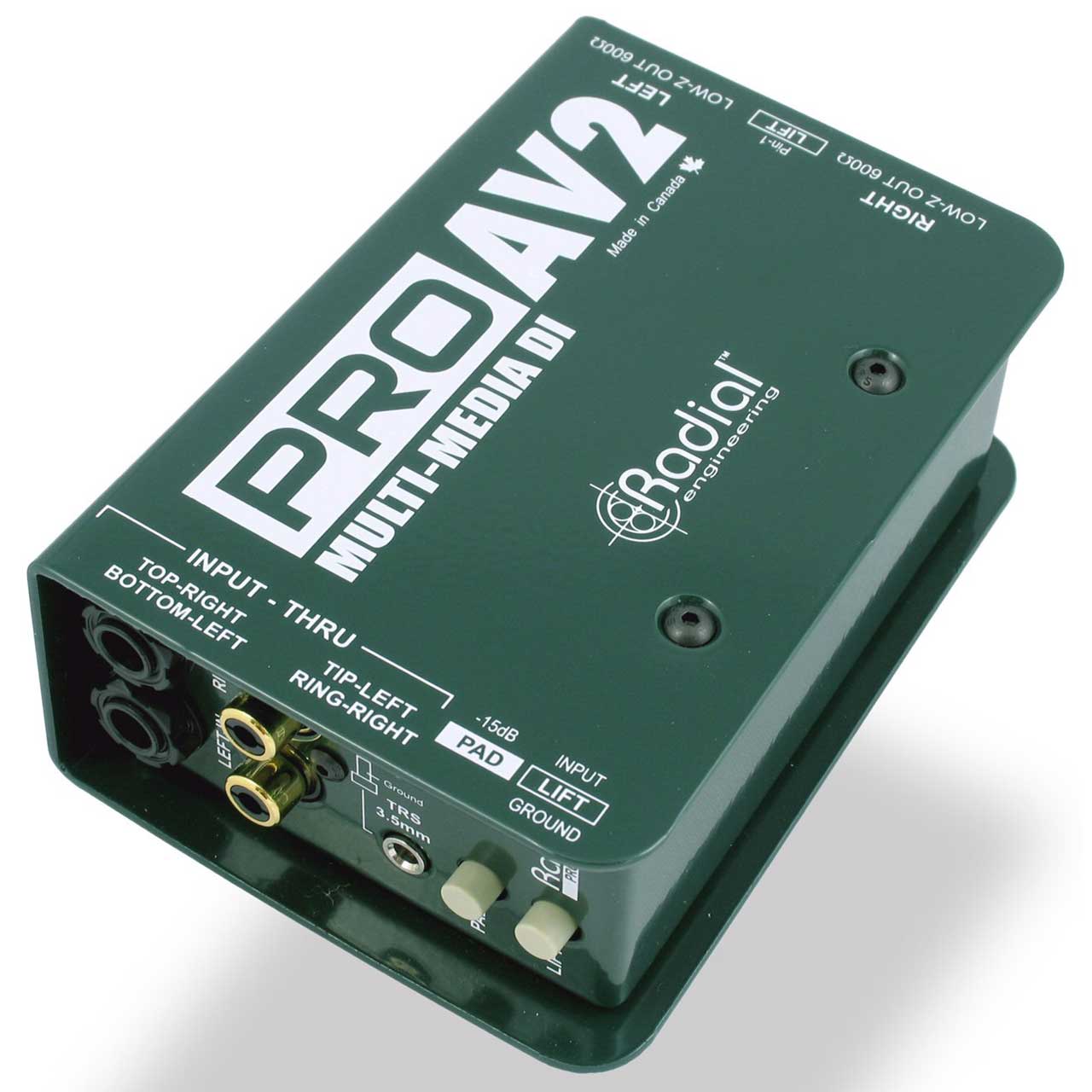

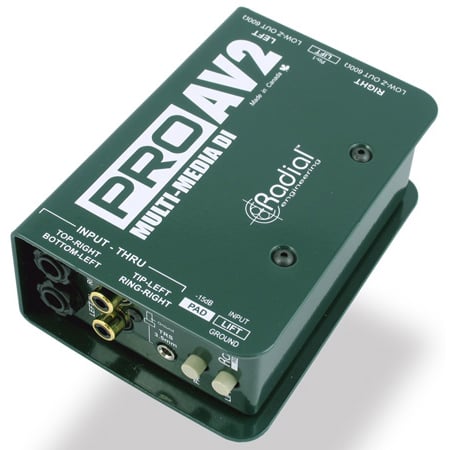

Radial ProAV2 Passive Stereo DI with RCA 3.5mm XLR and 1/4in Inputs

ITEM #: RAD-PROAV2 MFG #: R800 1115

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    R800 1115 - Overview

    The Radial ProAV1 and ProAV2 are passive direct boxes specifically developed with the audi-video integrator in mind. The ProAV1 features a variety of stereo inputs that are merged via a resistive mixer to mono, greatly simplifying signal management and the ProAV2 has full two-channel stereo functionality. To eliminate the need for various adapter, a 'Swiss Army' array of connections are provided. including 1/4" for instruments, RCA and 1/8" connectors for consumer electronics and computers and a +4dB XLR input(s) for professional systems. Front panel connectors can also be used as thru-puts to allow multiple patch points. Custom wound transformers are employed that are able to withstand exceptionally hot levels while maintaining linearity from 20Hz to 18.5kHz. The resulting smooth Bessel curve is warm and natural, making the AV1 particularly adept at handling digital sources that can sound harsh. Transformer isolation adds the benefit of eliminating ground loops that cause audio hum and buzz and video hum bars or snow. The ProAV1 is ideal for events that interlace audio with video where music sources can include iPods, CD players and video decks. The ProAV2 stereo version trades some of the connectivity features for it's full dual-channel stereo operation. Both ProAV1 and ProAV2 will be welcome additions to the AV technician's tool box. ProAV1 Setup: Plug your audio-video device into the ProAV1 using any number of connection options from XLR to 1/8" mini connector. L & R Stereo inputs are paralleled to the unused L & R input connectors so you can use these as thruputs to connect to other devices or destinations. Stereo inputs are summed to mono at the XLR output. See the user manual for complete details about all the connection possibilities. A -15dB pad is provided to tame hot signals and the ground lift eliminates hum and buzz caused by ground loops.

    • Features:

      • Pro 'Swiss Army knife' direct box for multi-media Easy to use passive ultra-quiet design Eliminates ground loops causing hum and buzz Handle huge transients without distortion Mono (ProAV1) and stereo (ProAv2) versions
    • Specifications:

      • Audio circuit type: Passive, transformer based
      • Number of channels: Single channel (mono)
      • Frequency response: 20Hz ~ 18.5KHz (± 0.2dB)
      • Dynamic range: 128dB
      • Maximum input: +18dB @ 20Hz
      • Total harmonic distortion: 0.01% from 20Hz~20kHz @-10dB
      • Phase deviation: 1° @ 100Hz; 8° @ 20Hz
      • CMR ratio: 100dB @ 60Hz
      • Input impedance: 140k Ohms, unbalanced
      • Output impedance: 150 Ohms, balanced
      • Transformer: Eclipse ET-DB2, 12:1 ratio
      • Shield: Faraday, MuMETAL can
      • Input pad: -15dB
      • Merge: Sums left & right to mono
      • 180° polarity reverse: Inverts absolute phase
      • Ground lift: Disconnects pin-1 at XLR output
      • XLR configuration: AES standard (pin-2 hot)
      • Connectors: 1/4", RCA, 3.5mm, in & thru, XLR-F in, XLR-M out
      • Construction: 14 gauge steel chassis & shell
      • Finish: Durable powder coat
      • Size: (W x H x D) 3.25" x 5" x 1.875"
      • Weight: 0.73kg (1.6 lbs)
      • Shipping size: W x H x D: 102 x 76 x 165mm (4.00" x 3.00" x 6.50")
      • Shipping weight: 0.87 kg (1.92 lbs)
      • Power: Passive, no power required
      • Warranty: Radial 3-year, transferable
      • Conditions: For use in dry locations only between 5°C and 40°C
    • Applications


      • Computers CD players DVD and video players iPod and MP3 players Cassette decks Balanced line level sources Keyboards, acoustic guitars, bass, active instruments Drum machines, digital pianos, DJ mixers
