RCF HDL 30-A Active 2200-Watt Dual 10-Inch Compact 2-Way Line Array Module - 137dB Max SPL

ITEM #: RCF-HDL30A MFG #: HDL30A

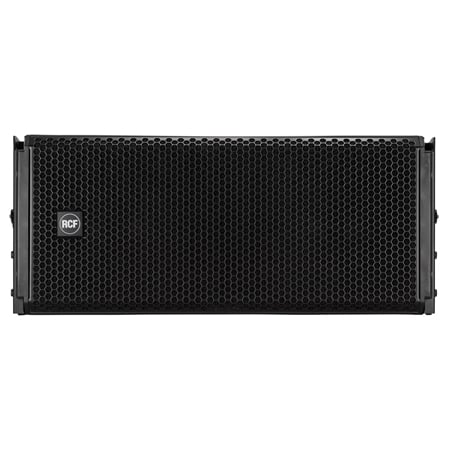

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$7,809.00

Our Price:

$7,799.06

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


HDL30A - Overview

Perfect for indoor or outdoor use for medium to large events

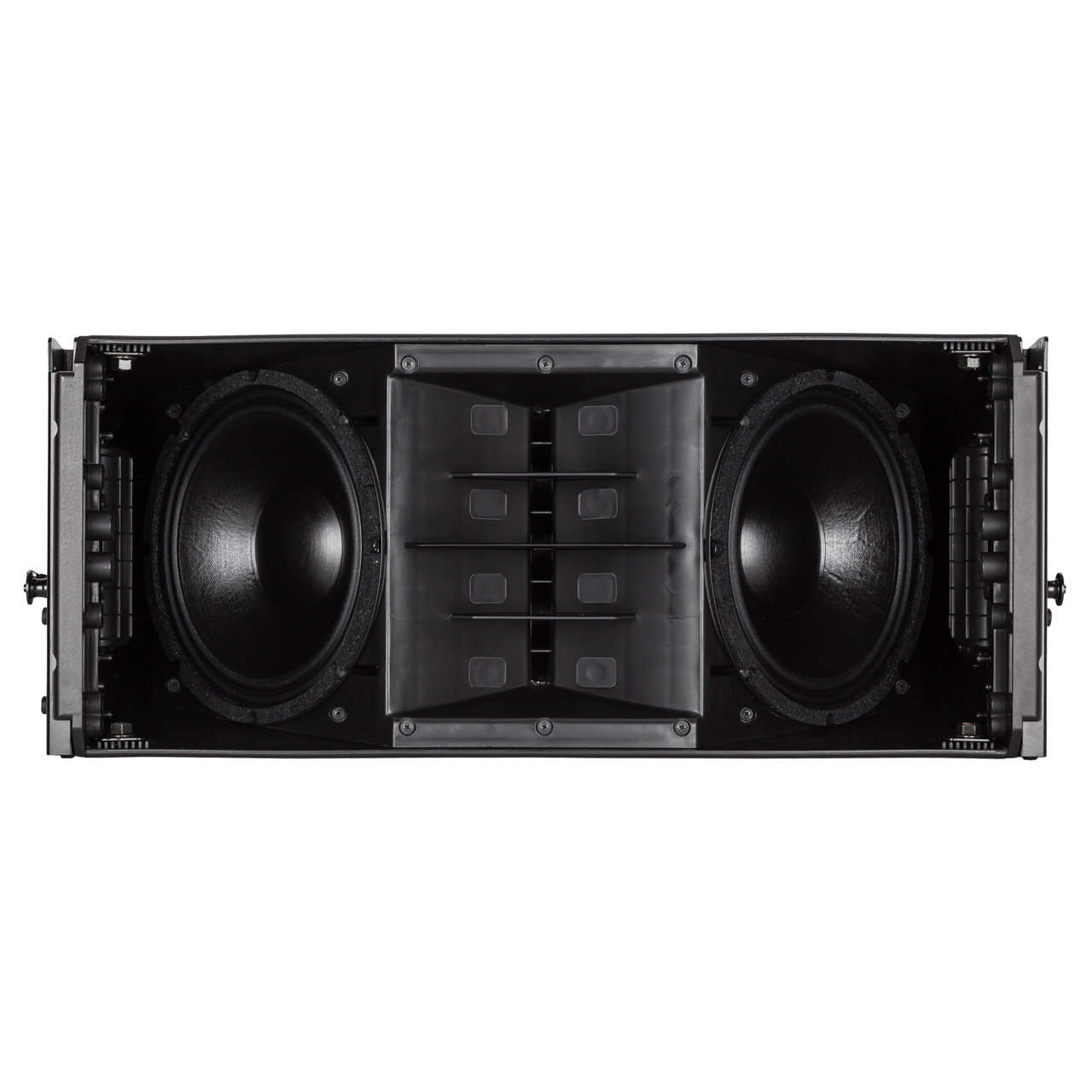

The RCF HDL30-A is a compact bi-amped 2-way active touring system for medium to large events, both indoors and outdoors. It features two 10" woofers and an impressive 4-inch titanium compression driver. The time coherent waveguide is the result of in-depth research and design. HDL 30-A is the first line array in a composite cabinet with zero-degree phase and ultra-linear amplitude response. The built-in 2200W class-D amplifier delivers excellent playback clarity and up to 137dB SPL max. The RCF HDL30 -A features state of the art RCF transducers with neodymium magnets. Considering its acoustical power, it has a remarkably low weight for easy handling and flying. The HDL 38-AS is the ideal flyable bass complement for the HDL 30-A array system.

  • Features:

    • 2200W Two Way Amplifier
    • 137dB Max SPL
    • 48kHz, 32 bit DSP processing
    • 1.4" Titanium Compression Driver, 4.0" voice coil
    • Two 10" Neodymium Woofers, 2.5" voice coil
    • Exclusive FiRPHASE technology on-board
    • RDNet Control and Management
    • 680Hz Crossover Point

  • Specifications:

    • Frequency Response: 50Hz - 20kHz
    • Max SPL @ 1m: 137dB
    • Horizontal Coverage Angle: 100°
    • Vertical Coverage Angle: 15°
    • Compression Driver: 1x 1.4'' neo, 4.0'' v.c
    • Woofer: 2x 10'' neo, 2.5'' v.c

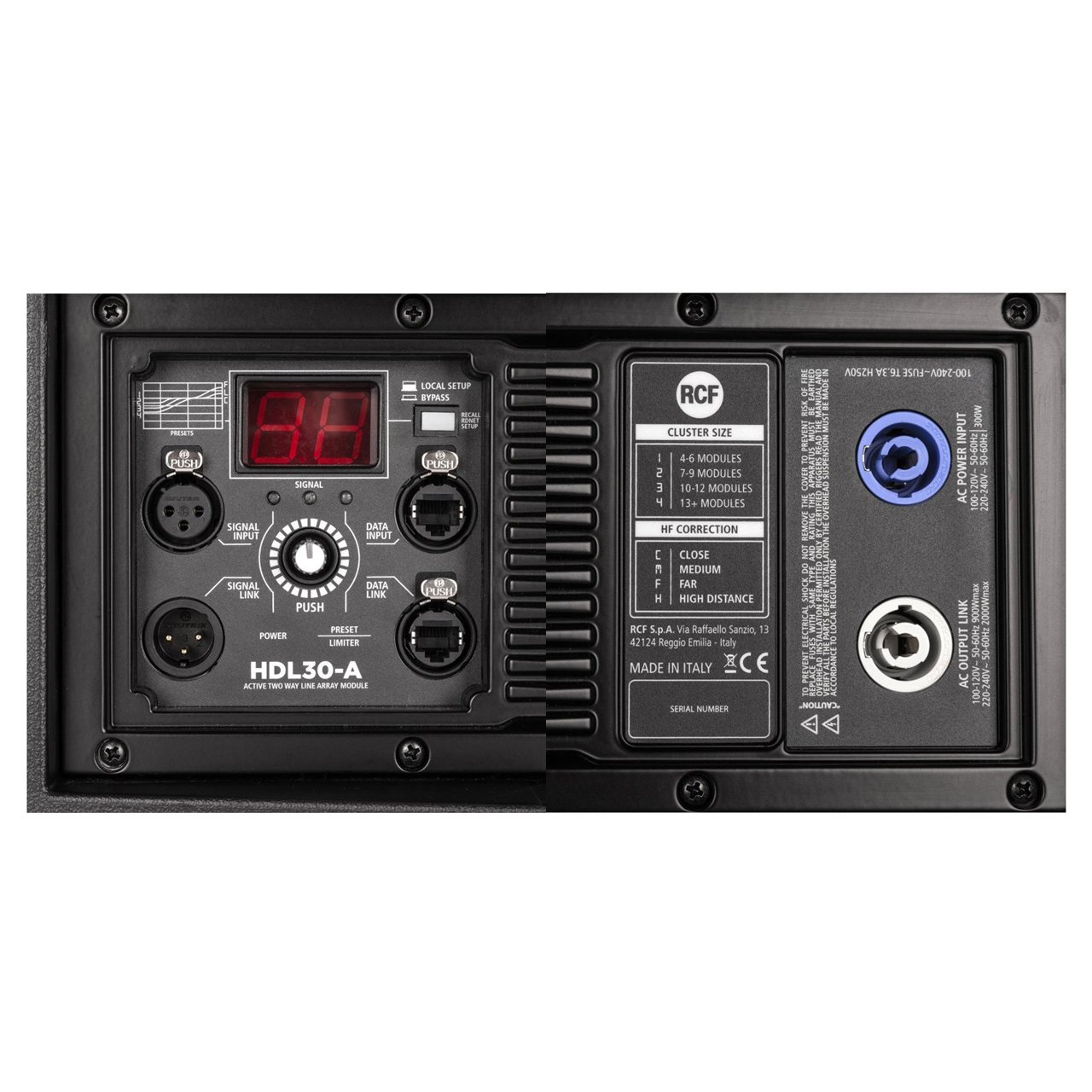

    • Input Signal: Bal/Unbal
    • Input Connectors: XLR, RDNet Ethercon
    • Output Connectors: XLR, RDNet Ethercon
    • Input Sensitivity: +4dBu
    • Crossover Frequencies: 680Hz
    • Protections: Thermal, RMS
    • Limiter: Soft Limiter
    • Controls: Preset, RDNet bypass
    • RDNet: Onboard
    • Total Power: 2200W Peak, 1100W RMS
    • High Frequencies: 600W Peak, 300W RMS
    • Low Frequencies: 1600W Peak, 800W RMS
    • Cooling: Forced
    • Connections: Powercon IN/OUT
    • Cabinet/Case Material: PP Composite
    • Hardware: Array fittings

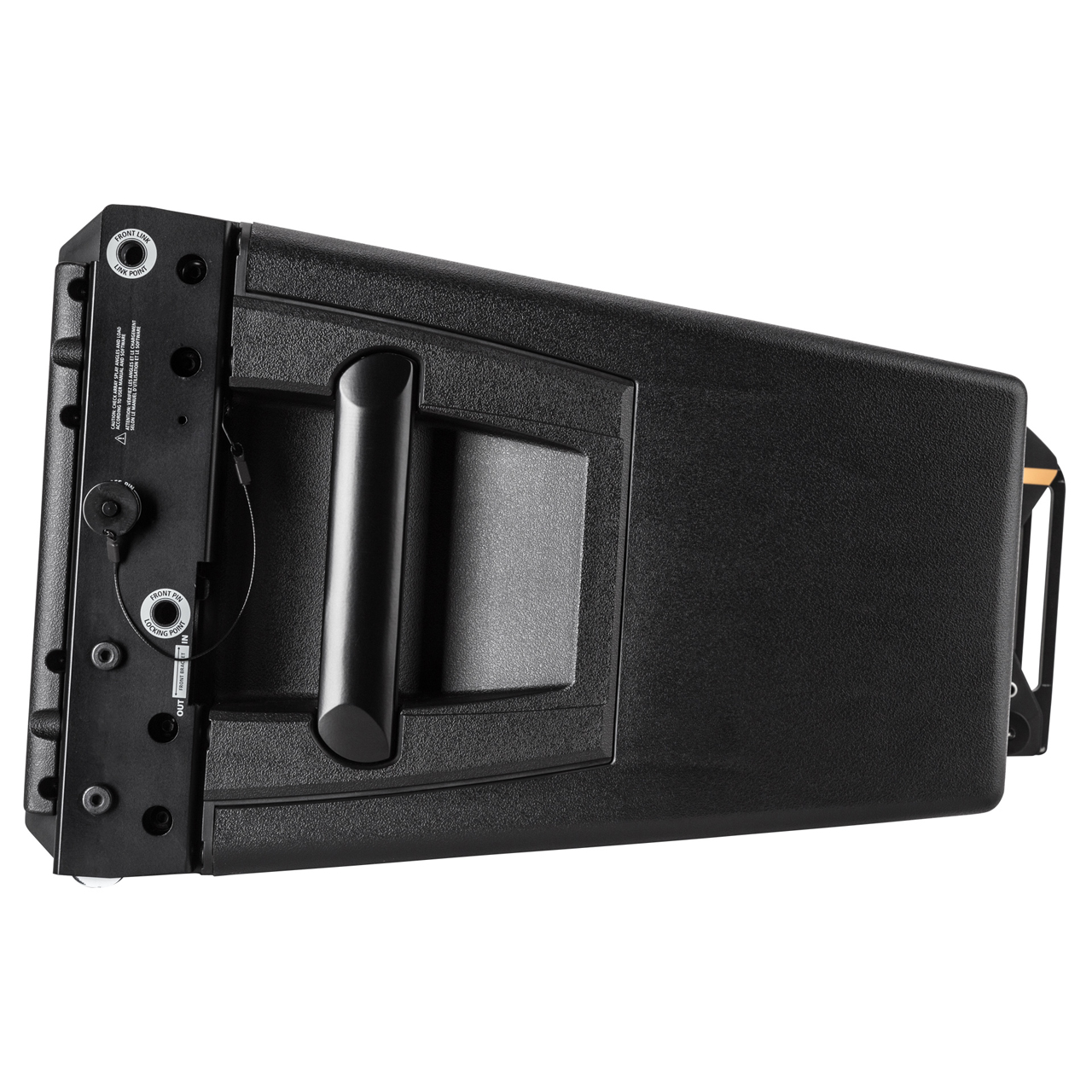

    • Handles: 2 Side
    • Grille: Steel
    • Color: Black
    • Height: 11.54" (293mm)
    • Width: 27.76" (705mm)
    • Depth: 19.76" (502mm)
    • Weight: 55.12lbs (25kg)
    • Package Height: 14.37" (365mm)
    • Package Width: 31.5" (800mm)
    • Package Depth: 21.65" (550mm)
    • Package Weight: 62.17lbs (28.2kg)
