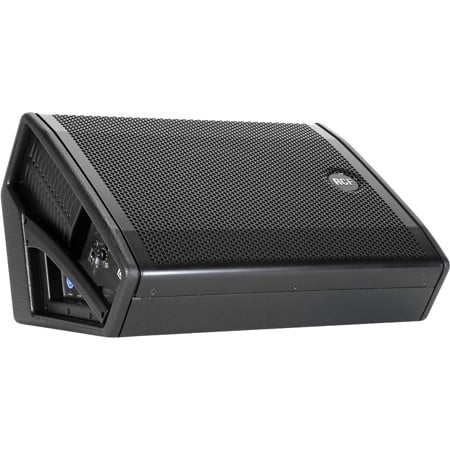

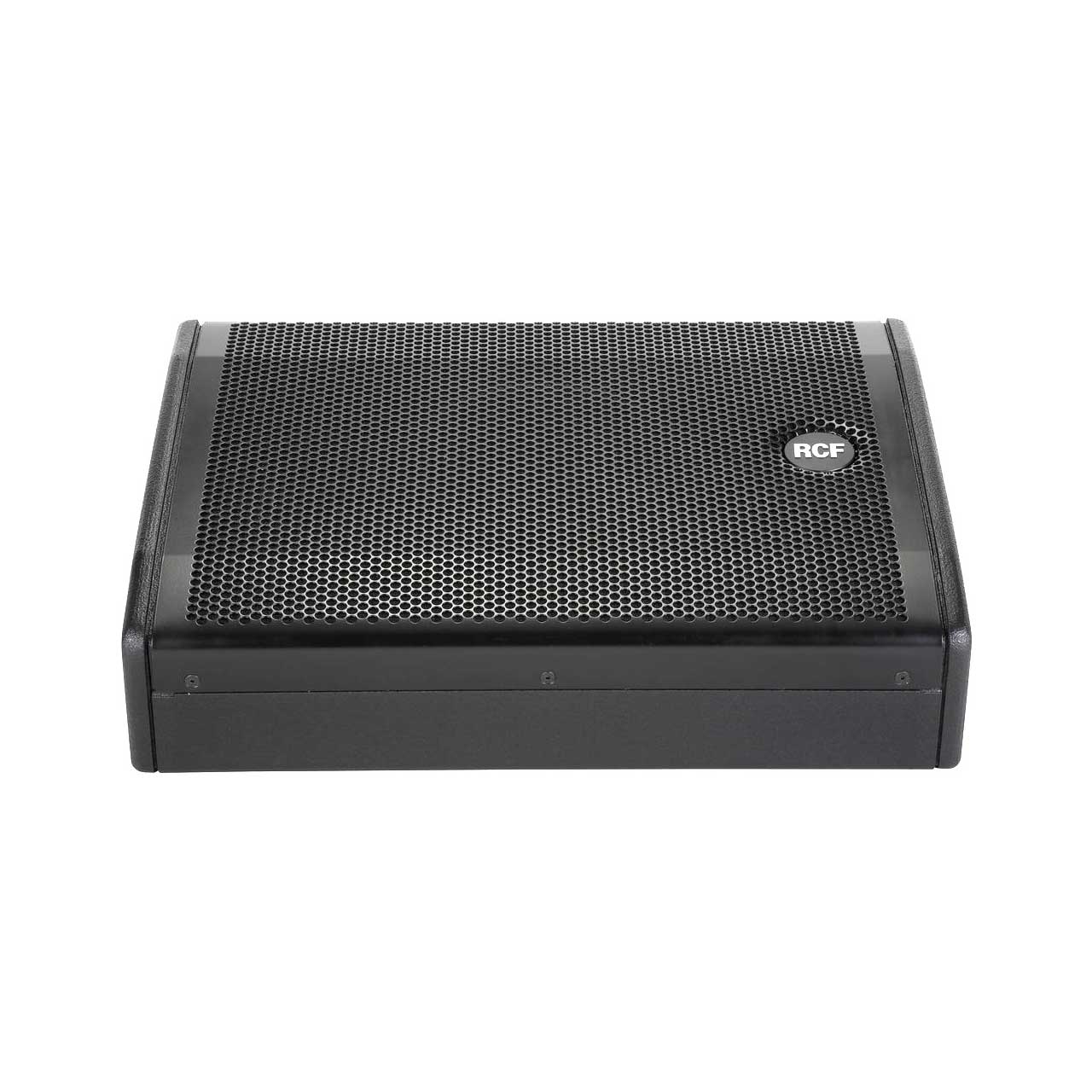

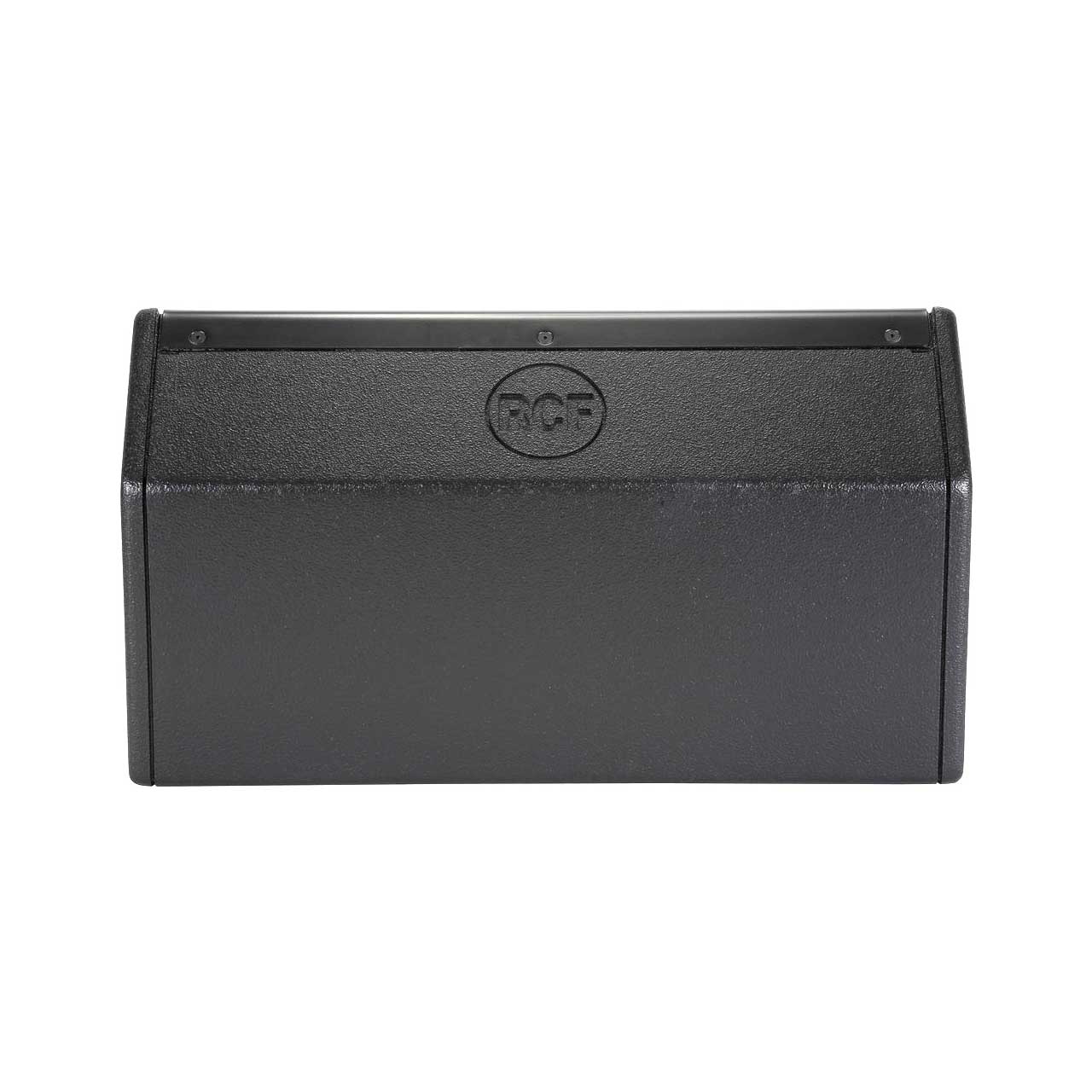

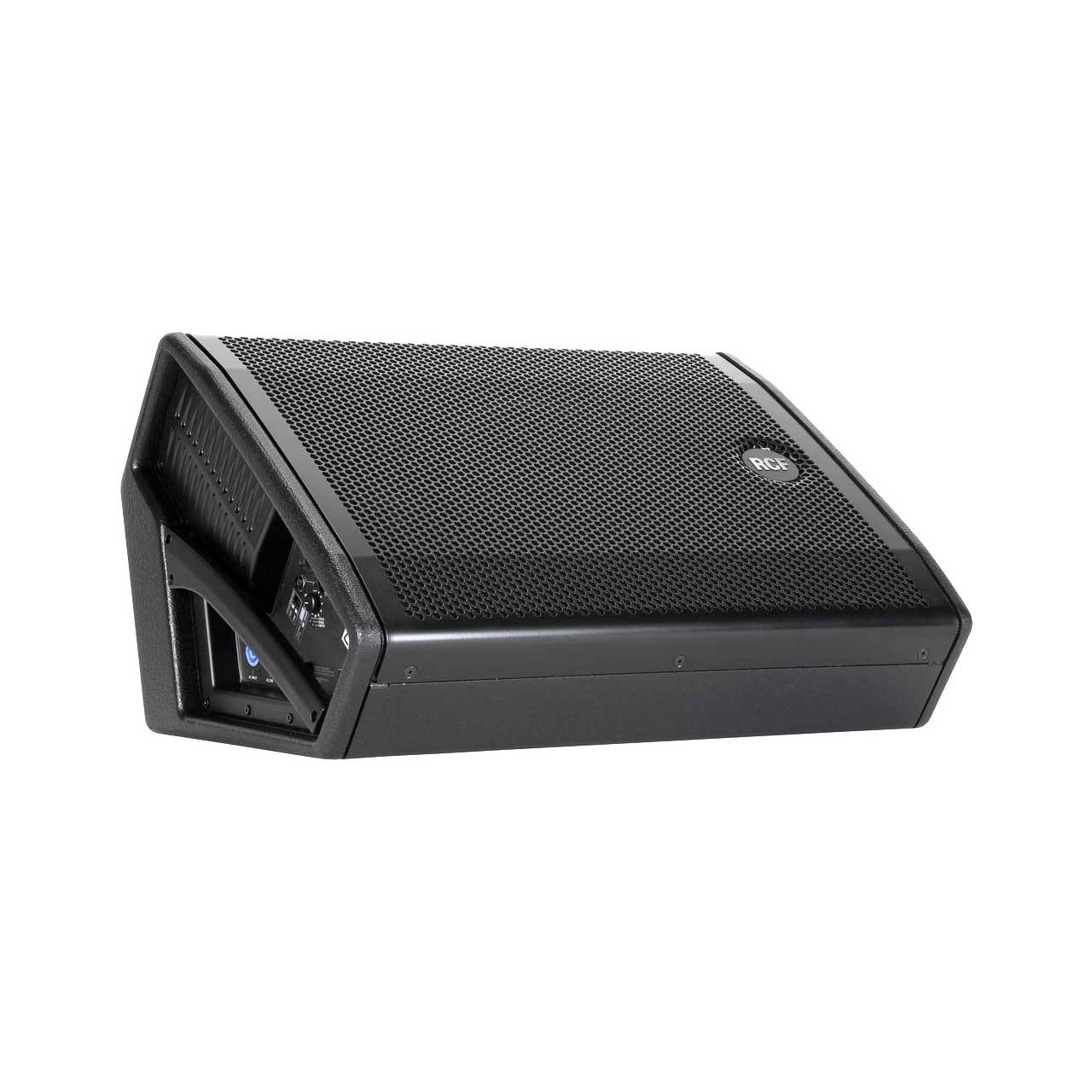

RCF NX12-SMA Active Coaxial Stage Monitor with 12 Inch Woofer
  • RCF NX12-SMA Active Coaxial Stage Monitor with 12 Inch Woofer
  • RCF NX12-SMA Active Coaxial Stage Monitor with 12 Inch Woofer
  • RCF NX12-SMA Active Coaxial Stage Monitor with 12 Inch Woofer
  • RCF NX12-SMA Active Coaxial Stage Monitor with 12 Inch Woofer

Questions? Ask a Markertek Expert:
800-522-2025 Email

RCF NX12-SMA Active Coaxial Stage Monitor with 12 Inch Woofer

Manufacturer: RCF USA Inc.

Item #: RCF-NX12-SMA   •   MFG #: NX12-SMA




Share!

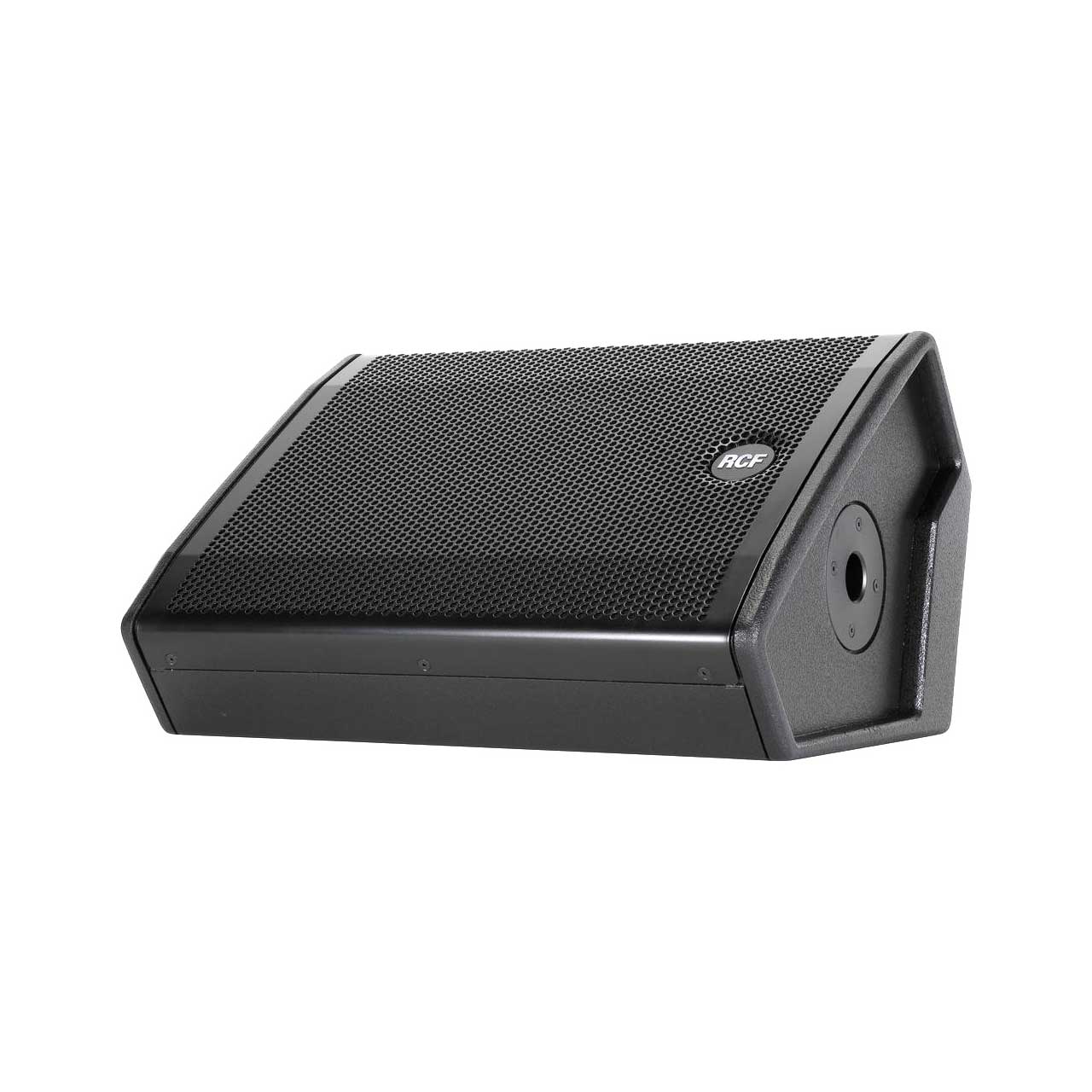

NX Series maximum flexibility philosophy has been maintained for NX12-SMA; it is possible, in fact, to use it as a portable PA system, thanks to the rugged powder coated steel pole mount installed on the side.

The newly designed 12"+1" coaxial neodymium transducers guarantee an outstanding audio quality and definition. The advantages of the coaxial transducers are the complete absence of feedback and thanks to the coherent single spherical wave front with a perfect dispersion control, a perfect listening in every position.

The design is powered from a large sized single neodymium ring magnet that provides an extremely high flux density and BL factor. The new hyper-vented aluminium basket and magnetic assembly design provide an excellent heat dissipation and lower power compression. Special air-forced ventilations are provided for voice coil, magnet assembly and basket.

A 2.5" voice coil combined a strength fiberglass former and aluminium wire drives the mid-bass cone with high efficiency and a good extension. The 1.7" dome compression driver, loaded to a 60° conical waveguide, provides a clear vocal output and a perfect high frequency extension.

The NX Coaxial Stage Monitors are provided with brand new digital amplifiers with powerful DSP processing. The NX 12-SMA is equipped with a 700 W amplifier, 500 W feed the low frequencies and 200 W are used for the high frequencies. In order to control the response of the speakers in such different applications, RCF has incorporated two special Equalization Modes: Floor, for stage monitoring and Free Field, for the use of the speakers as a stand-alone PA system.

The input board is fully equipped in order to configure the stage monitors for any stage situation with XLR Input and Output Link, Jack Input, Volume, Input Sensitivity Switch, Free Field - Floor Switch, Status LEDs, Powercon AC Input and Output Link . Cabinets are made in Baltic Birch plywood, finished with an extremely resistant paint for an extensive use on the road. An ergonomic side handle. integrated with the input panel, is provided for easier transport.


  • Features

    • 1400 Watt Peak, 700 Watt RMS digital bi-amplification
    • 129 dB max SPL
    • 60° x 60° constant directivity horn
    • 12" High power neodymium woofer, 2.5" voice coil
    • 1.7" kapton dome, 1" exit, neodymium high frequency driver
    • DSP processing, floor - fre field equalization, soft limiter and protection
    • Combo XLR/jack input, XLR signal output

  • Specifications

    • ACOUSTICAL
    • Frequency Response: 50 Hz- 20 Khz
    • Max SPL: 129 dB
    • Horizontal coverage angle: 60°
    • Vertical coverage angle: 60°
    • Compression driver: 1" neo, 1.7" voice coil
    • Woofer: 12" neo, 2.5" voice coil
      INPUT
    • Input signal (Impedance): bal/unbal
    • Input/Output connector: XLR, Jack / XLR
    • Input sensitivity: + 4 dBu
      PROCESSOR
    • Crossover frequencies: 1700 Hz
    • Protections: RMS Limiter, HF
    • Limiter: Soft limiter
    • Controls: Freefield, Floor
      AMPLIFIER
    • Total power: Switching 700 W
    • High frequencies: 200 W
    • Low frequencies: 500 W
    • Cooling: Convection
    • Connections: VDE connector
      CABINET
    • Cabinet Material: Baltic birch plywood
    • Handles: 1 Side Aluminum Handle
    • Pole Mount/Cap: Yes
    • Color: Black
      PHYSICAL
    • Height: 12.7 inch
    • Width: 21.6 inch
    • Depth: 16.4 inch
    • Net Weight: 36.3 lbs

  • Item Includes

    • Power Supply

  • Warranty

    • 2 year standard, 3 year with product registration.
