    RD-8C - Overview

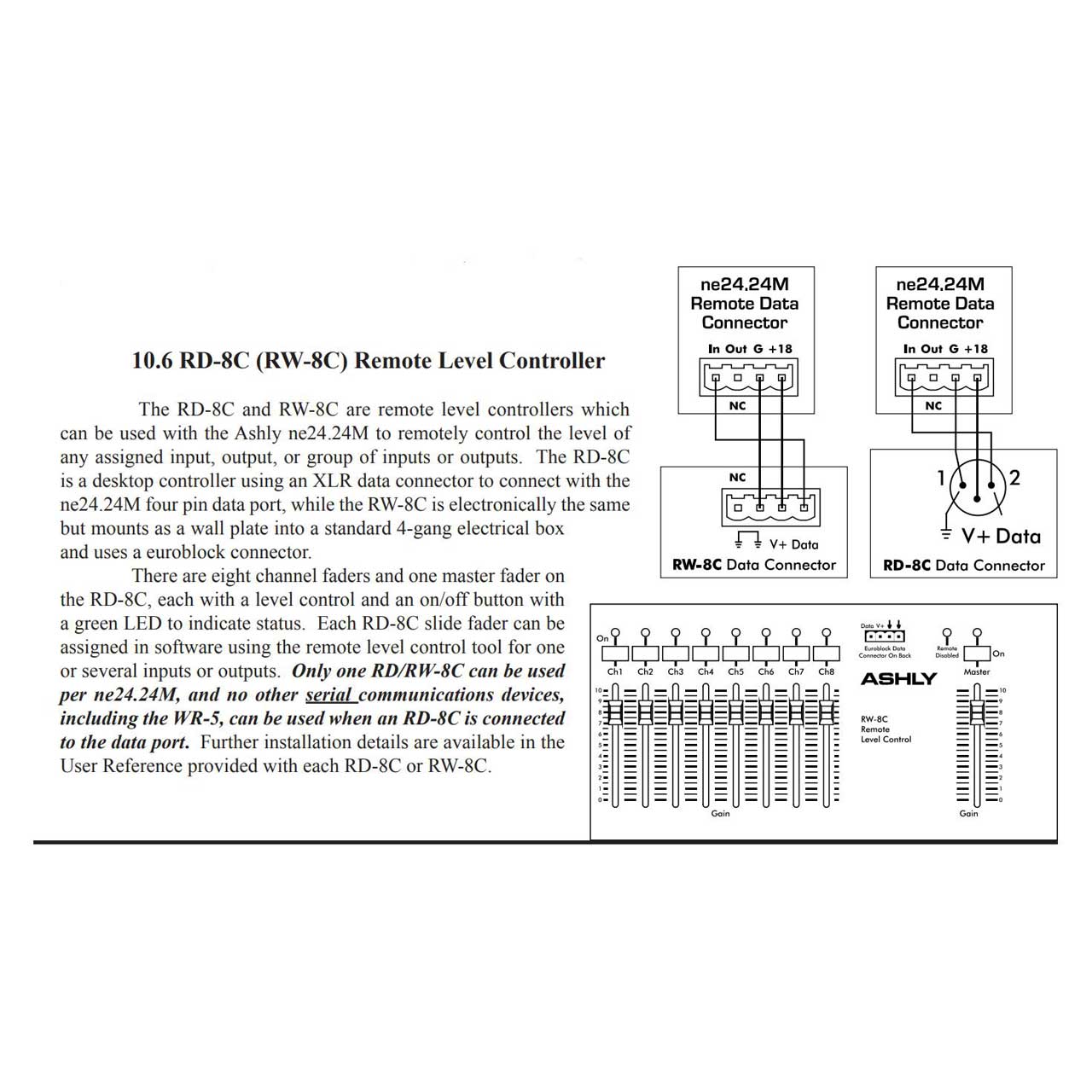

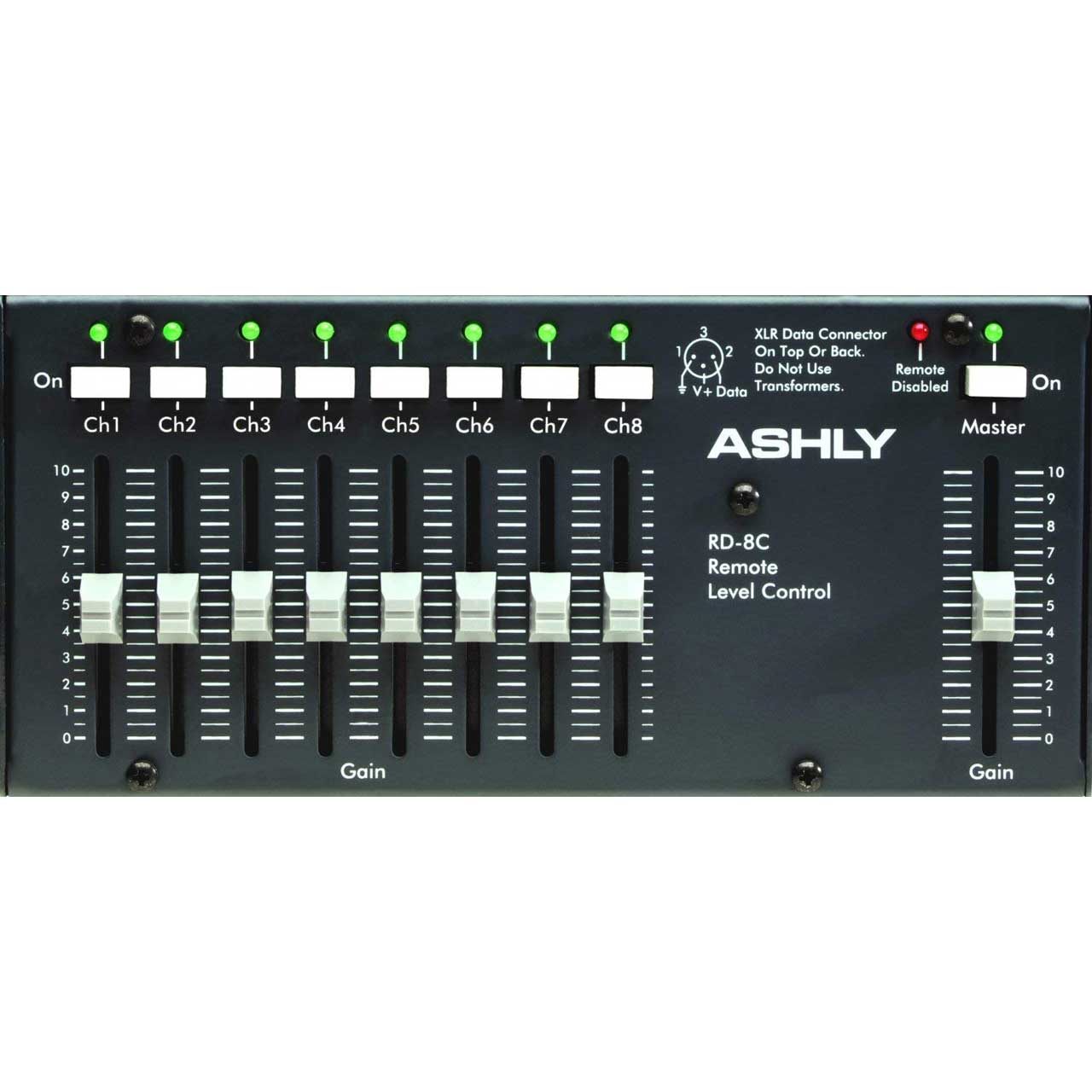

    The Ashly RD-8C is an eight channel programmable remote fader controller for Ashly networkable products that have a remote Data connection. Products include the ne24.24M, ne8800/4800/4400 processors, Pema amplifiers, *NE multichannel amplifiers, and *nXe and nXp amplifiers. The RD-8C is a desktop unit using an XLR data connector. A master gain fader controls all eight channels, and a switch with LED enables each fader. Use Ashly Protea ne software to configure faders for DSP control.There are eight channel faders and one master fader on the RD-8C, each with a level control and an on/off button with a green LED to indicate status. Each RD-8C slide fader can be assigned in software using the remote level control tool for one or several inputs or outputs. Only one RD-8C can be used per ne24.24M, and no other serial communications devices,
    including the WR-5, can be used when an RD-8C is connected
    to the data port.

    • Specifications:

      • Fader Range: +10dB to -75dB
      • Connections: XLR Male
      • Max Data Cable Length: 1000 ft (305m) #24 gauge twisted pair
      • Power Requirements: phantom powered
      • Unit Weight: 1.4 lbs (0.63kg)
      • Shipping Weight: 2 lbs (1kg)
      • Dimensions: 7.3"(185mm)L, 3.4(87)H,1.6(41)D
      • Environmental: 40-120 deg. F.(non-condensing) (4-49 deg, C)

        FCC Compliance
      • This device complies with part 15 of the FCC Rules for class A operation, and is subject to the following two conditions:
      • 1. This device may not cause harmful interference.
      • 2. This device must accept any interference received, including interference that may cause undesired operation.
