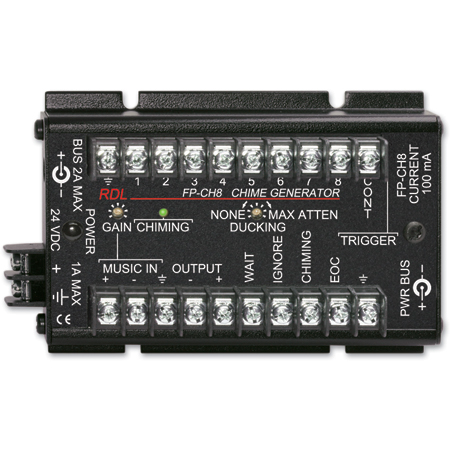

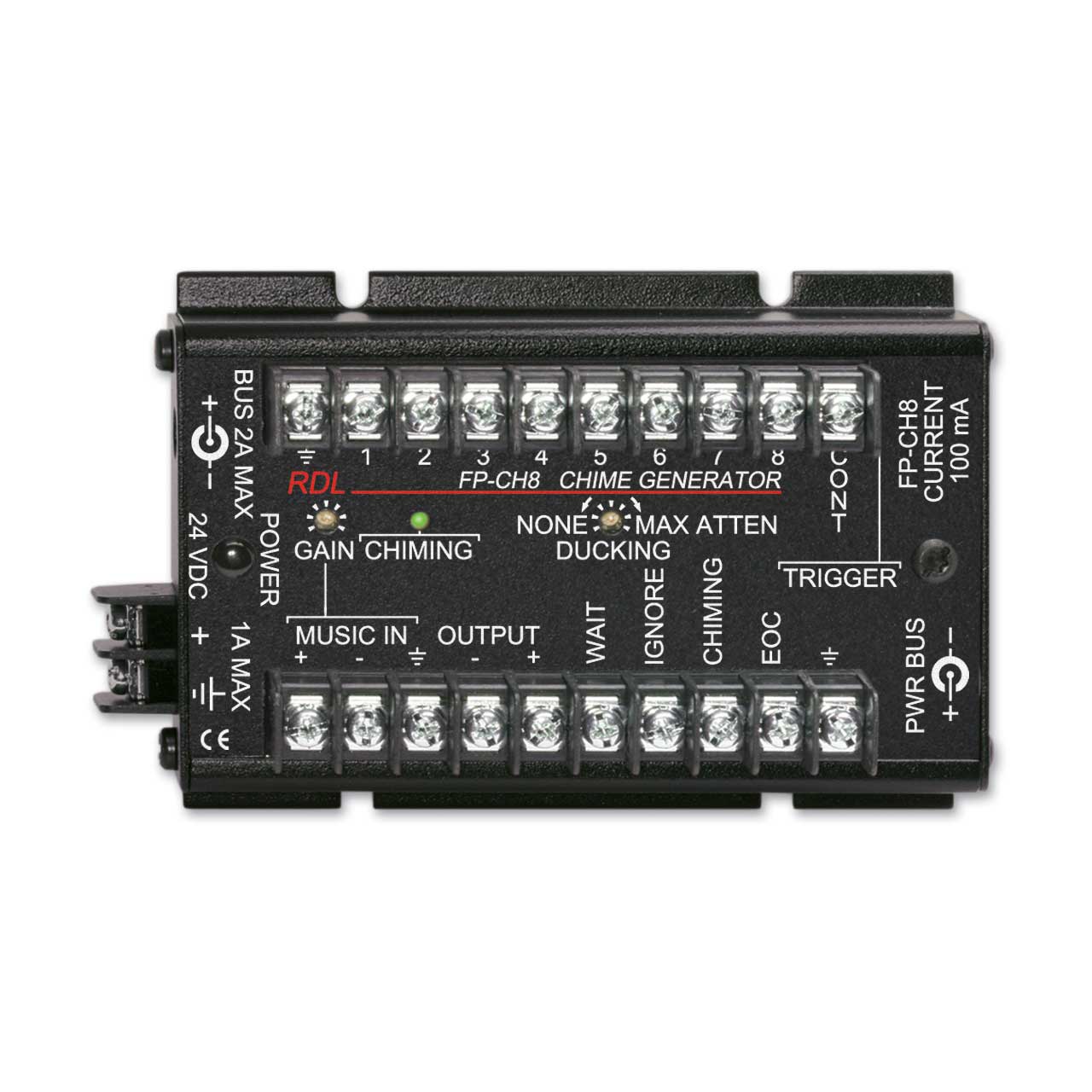

RDL FP-CH8 Chime Generator - 8 Electronic Chimes

ITEM #: RDL-FP-CH8 MFG #: FP-CH8

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$441.50

Our Price:

$331.13

Availability: In Stock
iAvailability Description Popup


    FP-CH8 - Overview

    The RDL FP-CH8 is an electronic chime generator that produces eight different synthesized chimes. Each chime can consist of up to 3 tones and 3 harmonics selected to produce sonically natural effects. Certain chimes are single tones and some are a sequence.

    Each of the 8 chimes is triggered by an individual external closure to ground. A momentary closure to ground is required to start a chime. A single additional CONT (continuous) terminal is also provided. Each chime plays once unless the CONT terminal is grounded. The continuous function causes a chime strike or sequence to repeat until the CONT terminal is ungrounded. This function causes tone chimes (Chimes 4 and 8) to be extended in duration until the CONT terminal is released. Background music or paging audio may be connected to the MUSIC IN input. When a chime plays, the music source will be quickly faded to a level set on the front-panel DUCKING trimmer. The ducking fade depth may be adjusted from 0 dB to fully off, allowing chimes to be mixed with the music or to interrupt the music. The front-panel CHIMING indicator illuminates while music is ducked and a chime is playing. WAIT and IGNORE terminals are provided to prevent or delay chiming action.

    Chime patterns are: single strike, double strike, triple strike, tone ring, manual strike, decending triple strike, eurosiren and multi-tone alert.

    Please note: The PS24V power supply is a required item and not included.

    • Features:

      • 8 Individually Selectable Electronic Chimes
      • Selectable Single or Repeated Chime
      • Synthesized Bell Harmonics for Natural Sound
      • External Chime Actuation
      • Input for Background Music or Paging Audio
      • Automatic Ducking

    • Specifications:

      • Music Input: 50 kΩ balanced or unbal, +22 dBu max.
      • Frequency Response: 20 Hz to 50 kHz (± 0.5 dB)
      • THD+N: < 0.05% (unity gain, 50 Hz to 20 kHz)
      • Noise below +4 dBu: < -70 dB (unity gain)
      • Headroom: > 16 dB (above +4 dBu)
      • Gain: Unity to +22 dB (adjustable)
      • Ducking Fade Depth: 0 dB to fully off (adjustable)
      • Output: 150 Ω balanced, + 4 dBu or 75 Ω unbal.
      • Trigger Inputs (8): Trigger on high to low transition, 0.5 mA
      • Control Inputs (3): WAIT (play delay), IGNORE (no playback), CONT (continuous repeat)
      • Control Outputs (2): CHIMING (Open-collector low @ 25 mA), EOC (low 100 mS at end of chime)
      • Ambient Operating Environment: 0° C to 55° C
      • Power Requirement: GROUND-REFERENCED 24 Vdc @ 100 mA
      • Dimensions: Height: 1.36 in. 3.46 cm; Width: 3.25 in. 8.26 cm; Length: 5.0 in. 12.7 cm
      • Package Type: Cardboard Box
      • Package Dimensions: 4.375 x 7 x 2.25 in.
      • Shipping Weight: 0.905 lbs.
      • WEEE weight: 0.65 lbs.

    • GTIN:

      0813721012555
