Introduction to RDL Dante / Format-A Networked Audio Products


RDL FP-NML2V Network to Mic/Line Interface with VCA
  • RDL FP-NML2V Network to Mic/Line Interface with VCA
  • RDL FP-NML2V Network to Mic/Line Interface with VCA

Questions? Ask a Markertek Expert:
800-522-2025 Email

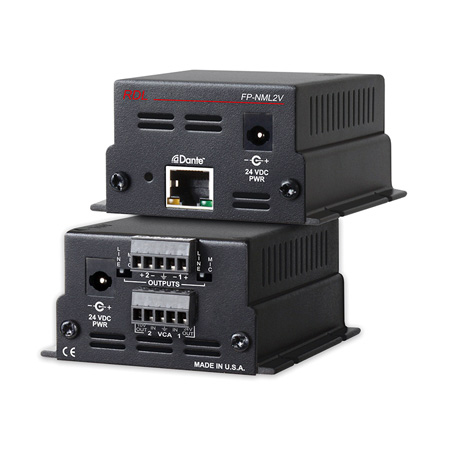

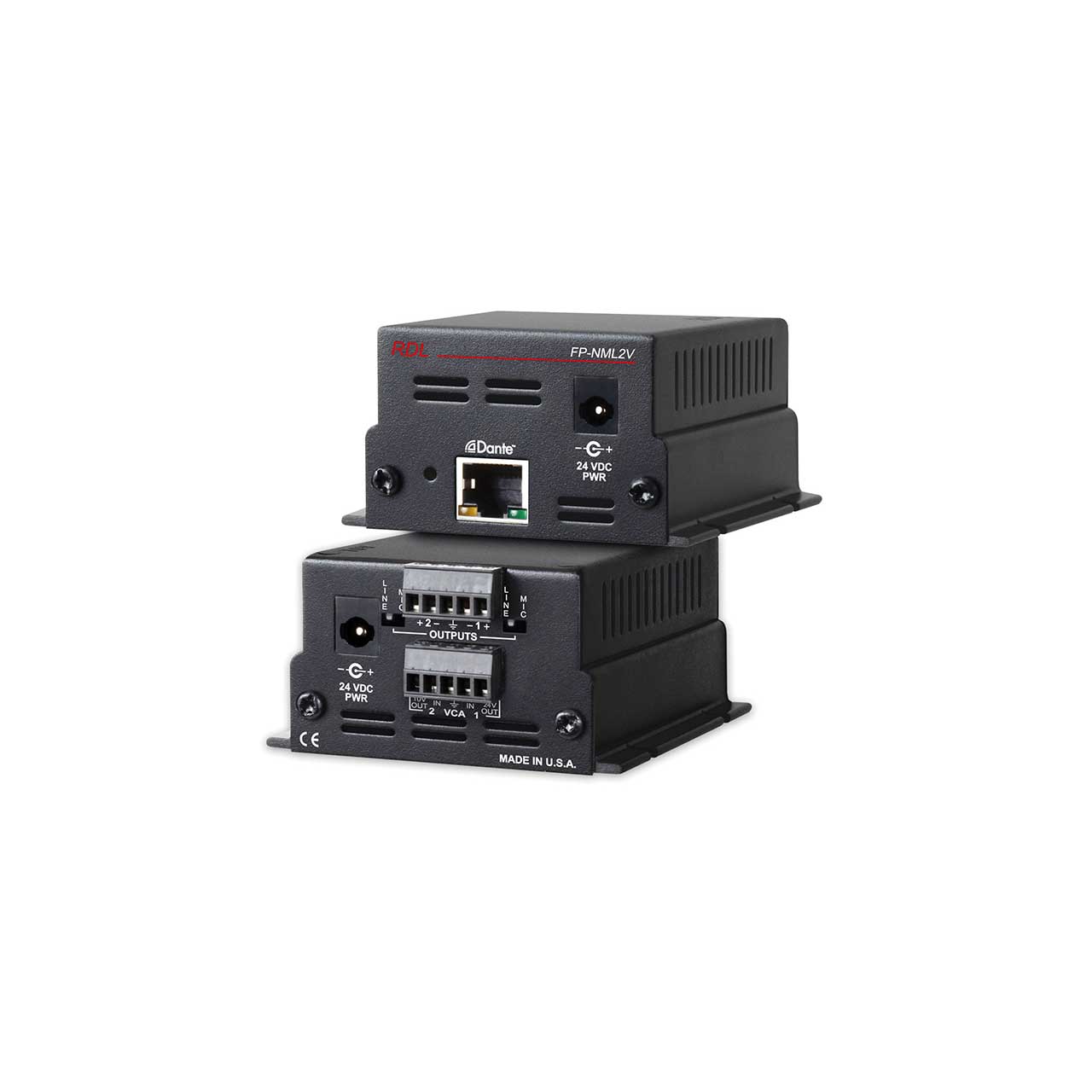

RDL FP-NML2V Network to Mic/Line Interface with VCA

Manufacturer: Radio Design Labs

Item #: RDL-FP-NML2V   •   MFG #: FP-NML2V



List Price:$656.45
Our Price:$445.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The FP-NML2V modules are Dante audio network interface products compatible with mic-level or line-level audio equipment inputs. These modules are designed to be mounted in equipment racks, closets, conference tables and on shelves or backboards in commercial/industrial installations.

    APPLICATION: The FP-NML2V is a high quality converter that provides professional line-level outputs from two Dante network audio channels. Each un-attenuated line output provides +4 dBu balanced for a network digital audio level of -18 dBFS. The professional output directly interfaces with other professional and commercial equipment without the need for additional gain. Crosstalk is below the noise floor between all outputs across the entire audio spectrum. The noise floor is better than 80 dB below operating level with greater than 18 dB of headroom. Each output is equipped with a recessed mic/line switch that provides 50 dB of attenuation to feed the microphone input of a mixer-amplifier or other equipment with mic inputs.

    Each output is equipped with a VCA circuit for remotely adjusting the output level. Separate remote controls may be used for each output, or a single remote control may be connected to adjust both outputs simultaneously. VCA control uses industry standard 0 to 10 Volts allowing audio levels to be adjusted using a wide variety of industry equipment. RDL offers a range of compatible passive and multi-point rotary-encoder remote controls with and without muting options.

    The FP-NML2V is powered from an external 24 Vdc power supply, available separately. The FP-NML2VP is equipped to operate from a PoE enabled network switch. The FP-NML2VP will reserve power from the switch even while being powered from an external 24 Vdc supply. If PoE power and an external 24 Vdc supply are both feeding an FP-NML2VP, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply.

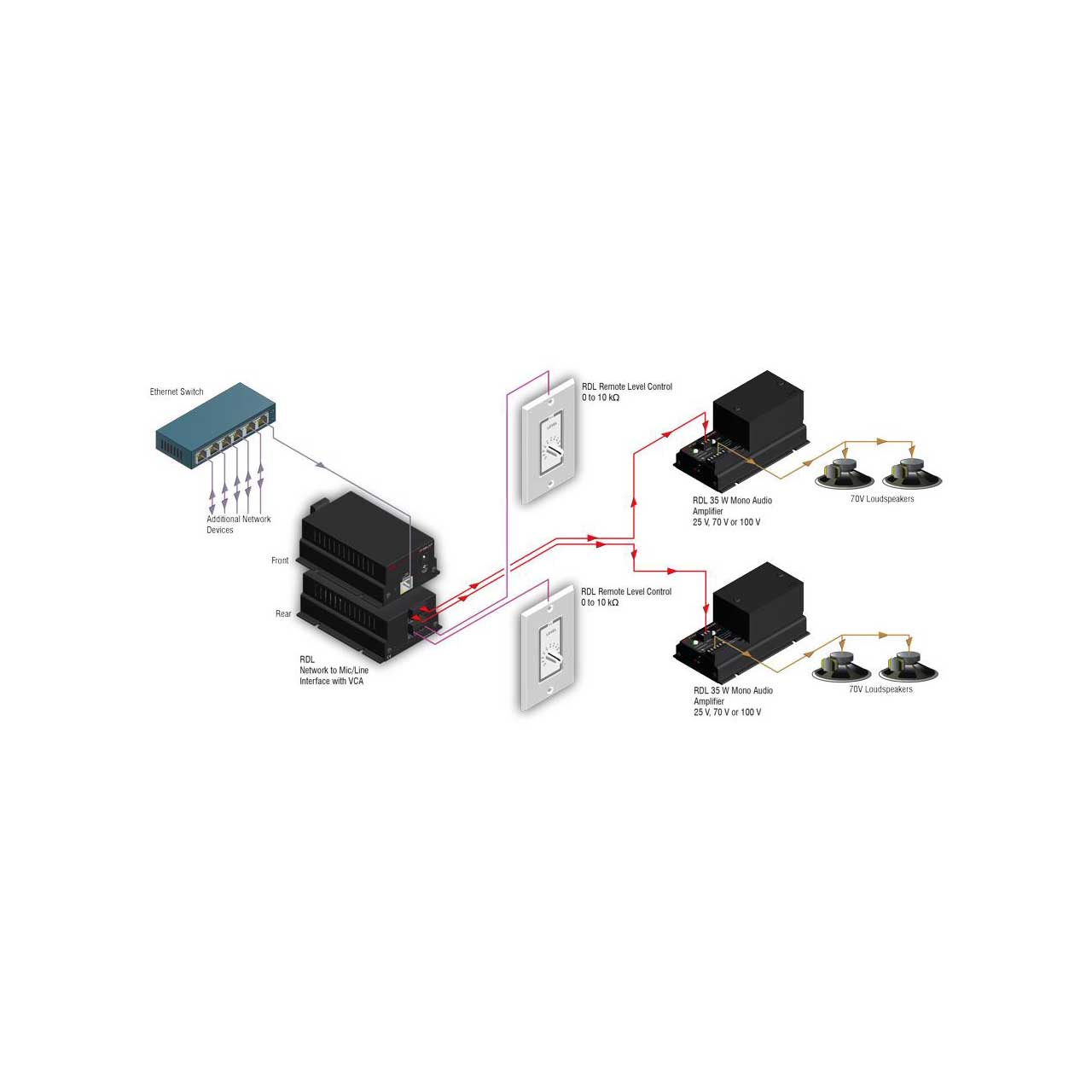

    The FP-NML2V includes a dc output jack and extension cable that allows it to be operated from a common power supply with RDL FLAT-PAK amplifiers. One audio output connects to the FLAT-PAK amplifier input, and the second output may be connected to an additional amplifier.

    The FP-NML2V’s superior performance specifications make it ideally suited to the most demanding installations, and an exceptional value in commercial networked audio systems.

    The FP-NML2V is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Built to last. Built to outperform.


    • Features

      • Adapts Standard Audio Amplifiers to a Dante Network
      • Converts Two Dante Network Audio Signals to Professional Line Level
      • Separate VCA Provided for Each Output
      • Outputs are Adjustable using RDL or OEM Remote Controls or 0 to 10 Vdc
      • Individually Adjustable Outputs Ideal to Feed Two Separate Amplifiers
      • Each Output is Switch-Selectable for Mic or Line Level
      • Line-Level Outputs Provide +4 dBu with VCA at Maximum
      • Output Amplifiers Provide More than 18 dB Headroom
      • Exceptional Low-Noise and Low-Distortion Performance
      • Crosstalk is Below the Noise Floor
      • 24 Vdc Pass-Through Jack for Power Supply Sharing with RDL Amplifiers (FP-NML2V)
      • High Resolution 24 Bit Digital to Analog Conversion
      • Legendary RDL Analog Filtering Enhances Superb Audio Performance
      • Outputs Mute when Digital Audio Inputs are Inactive
      • Normal or Hot-Standby Operation from PoE (Model FP-NML2VP)
      • Equipped for Rack Mounting or Surface Mounting

    • Specifications

      • Network Connector: RJ45 with Link and Speed indicators
      • Digital Audio Ethernet Protocol: Dante
      • Transmission Rate: 100 Mbps
      • Sample Rates Supported: 44.1 kHz, 48 kHz (default)
      • Bit Depth Supported: 24 bits
      • Audio Operating Levels: -18 dBFS = +4 dBu
      • Outputs (2): Balanced, detachable terminal block
      • Output Level: +4 dBu (nominal)
      • Output Impedance: 150 Ω balanced; 75 Ω unbalanced
      • VCA Control: 0 to 10 Vdc or 0 to 10 kΩ linear
      • VCA Attenuation: 0 to > 90 dB, Audio taper
      • Frequency Response: 20 Hz to 20 kHz (± 0.5 dB)
      • THD+N: < 0.1%
      • Noise below +4 dBu: < -80 dB (output active); < -95 dB (outputs muted)
      • Crosstalk: < 90 dB (1 kHz); < 80 dB (20 Hz to 20 kHz)
      • Headroom above +4 dBu: > 18 dB
      • Indicators (2): Ethernet Link and Speed
      • Power Connections (2): Power Jack; Detachable Terminal Block
      • Ambient Operating Environment: 0° C to 40° C
      • Power Requirement: 24 Vdc @ 135 mA, or PoE (FP-NML2VP)
      • PoE (FP-NML2VP): Class 0, IEEE 802.3af
      • Dimensions: 4.85" (12.3 cm) W; 1.75" (4.45 cm) H; 3.25" (8.26 cm) D
      • Package Type: Cardboard Box
      • Package Dimensions: 4.375 x 4.8 x 2.25 in.
      • Shipping Weight: 0.828 lbs. (FP-NML2V); 0.857 (FP-NML2VP)

    • GTIN:

      0813721019394
