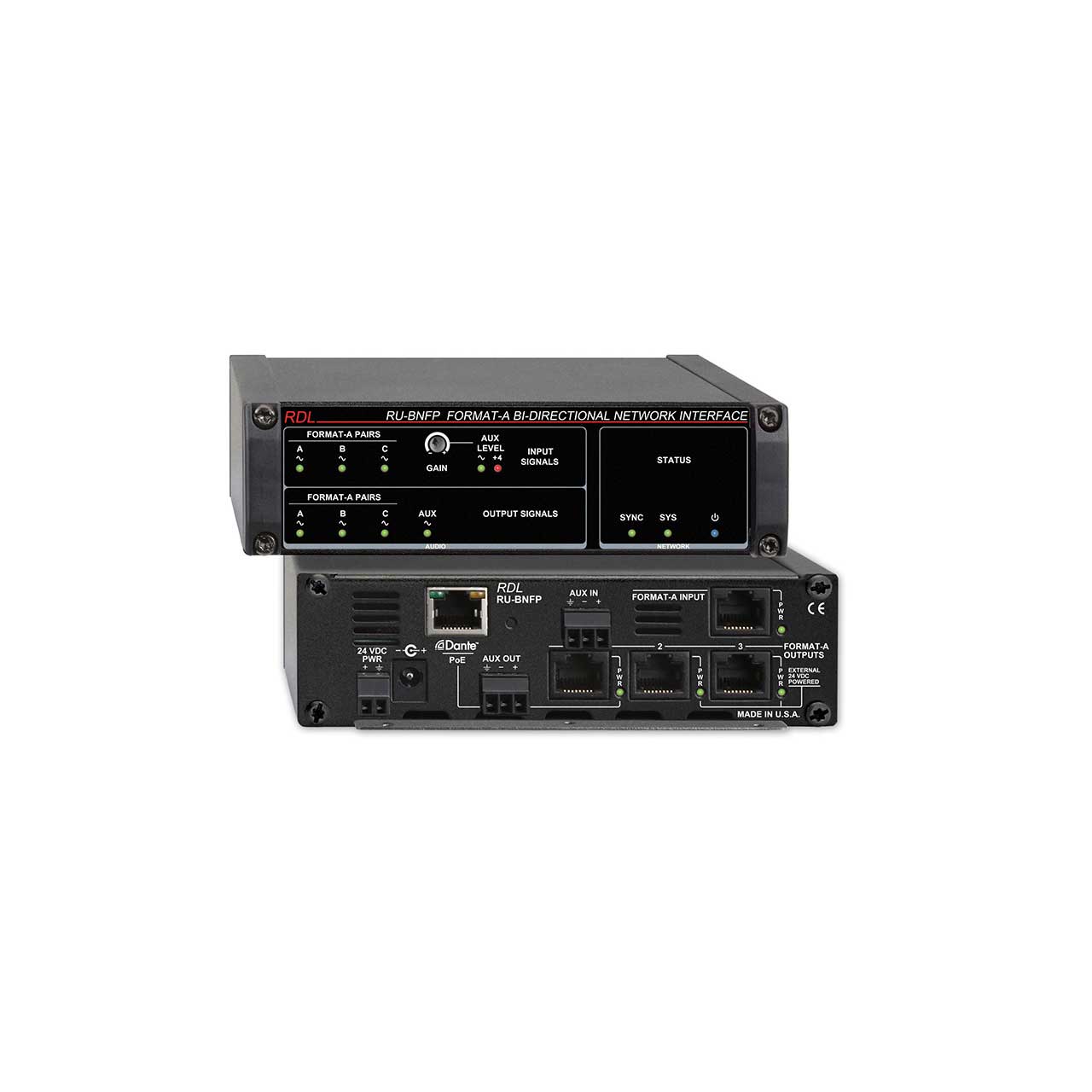

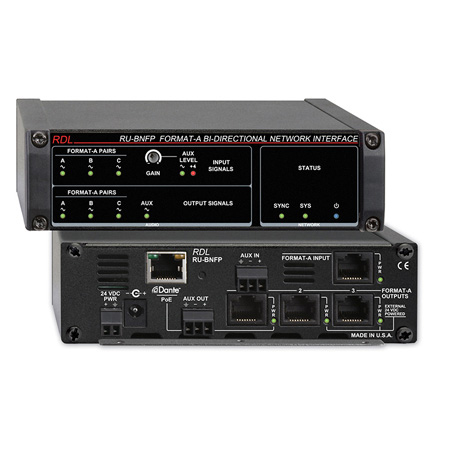

RDL RU-BNFP Format-A Bi-Directional Network Interface - PoE

ITEM #: RDL-RU-BNFP MFG #: RU-BNFP

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$1,062.67

Our Price:

$743.69

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    RU-BNFP - Overview

    The RU-BNF modules are Dante audio network interface products compatible with RDL Format-A twisted pair products. These modules are designed to be mounted in equipment racks, closets, conference tables and on shelves or backboards in commercial/industrial installations.

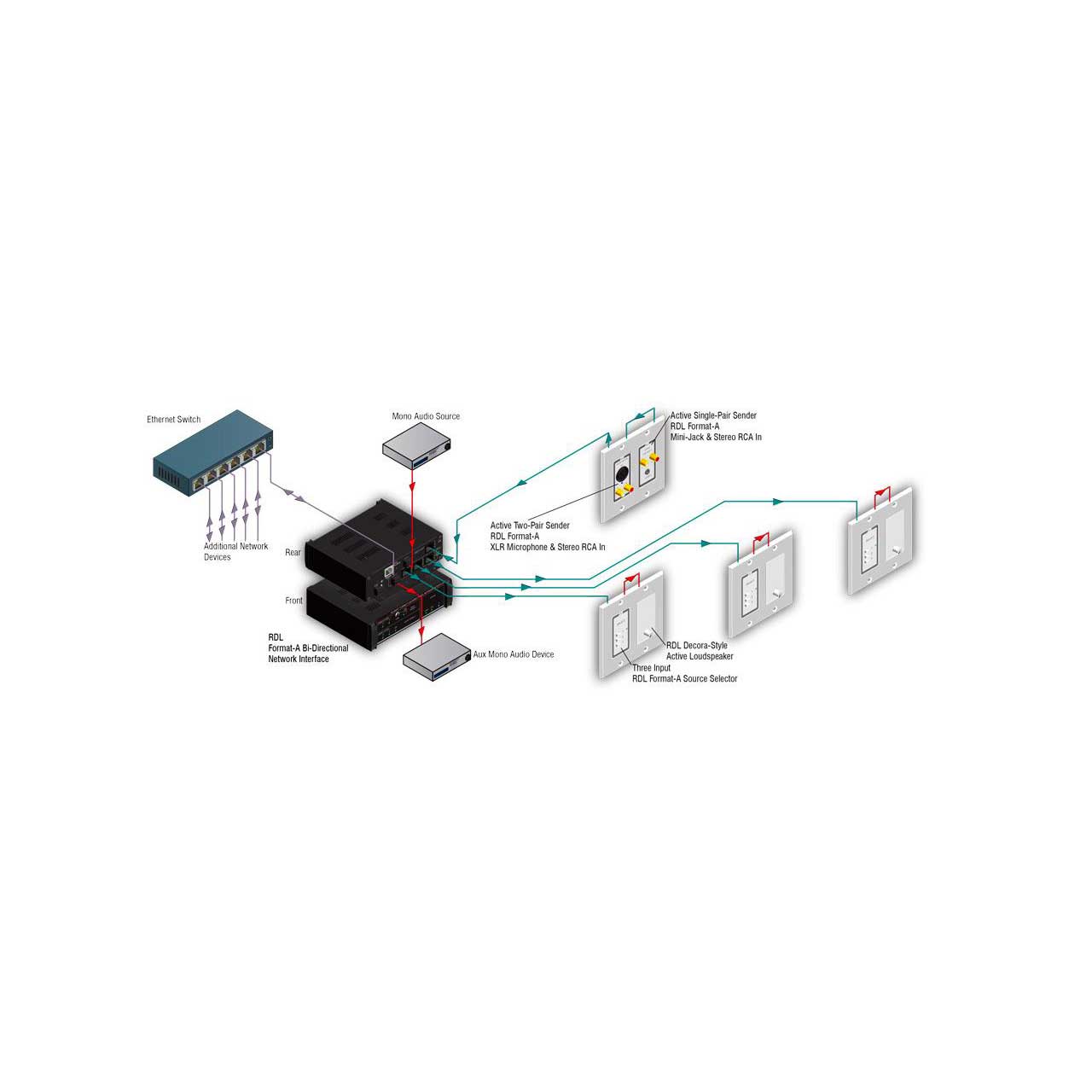

    APPLICATION: The RU-BNF is an RDL Format-A sender/receiver that connects to a Dante-enabled network, providing all the features of an RDL RU-FN Format A to Network Interface and an RU-NFD Network to Format-A Interface/Distributor.

    Network to Format-A Interface/Distributor Section

    The RU-BNF converts three Dante audio channels to RDL Format-A. Each network channel corresponds to Pair A, B or C of the Format-A outputs. The unit converts a fourth Dante audio channel to a balanced line-level AUX output.

    One front-panel green signal LED corresponds to each of the four Dante input channels. Received audio level is indicated on the variable-intensity LED indicator, facilitating setup when a networked computer is not connected at the module’s location.

    The Format-A output is distributed to three separate rear-panel RJ45 jacks. Each Format-A output jack provides up to 200 mA of power to connected Format-A receivers. Multiple receivers may be daisy chained from one output jack, or may be connected by home run to each of the three outputs. Higher current Format-A receivers, such as RDL D-PSP1A powered Decora-style speakers, are to be individually connected to a separate output jack.

    The RU-BNF output jacks support the entire range of Format-A receivers, making each output pair available for end-user connection on various wall plates, or feeding other equipment using rack-mounted, shelf-mounted or utility Format-A receivers. The wide array of Format-A receivers provide compatibility with commercial audio equipment operating at standard professional levels. High resolution digital audio converters coupled with RDL’s renowned analog filters provide superior fidelity with a very low noise floor. Each Format-A receiver may be connected near the RU-NFD or up to several thousand feet distant.

    Format-A to Network Interface Section

    The RU-BNF converts the three Format-A audio pairs to Dante networked digital audio channels. Each network channel corresponds to Pair A, B or C of the Format-A input. The unit converts a fourth input, balanced or unbalanced line-level AUX, to Dante.

    One front-panel green signal LED corresponds to each of the three Format-A input channels. Received audio level is indicated on the variable-intensity LED indicator, facilitating setup when a networked computer is not connected at the module’s location. A Dual-LED VU meter facilitates adjustment of the front-panel AUX input gain control. The AUX input supports the complete range of normal unbalanced and balanced line-level sources.

    • Features:

      • Converts RDL Format-A and Aux Source to Four Dante Network Channels
      • Easy Installation with Format-A Connections on RJ45 through CATx Cable
      • Format-A Audio Sources from Pairs A, B and C Converted to Dante
      • Fourth Dante Audio Channel Fed from Unbalanced or Balanced Aux Line Input
      • Front-Panel Gain Adjustment with Dual-LED VU Meter for Aux Input
      • Signal LEDs Indicate Audio for Each of the Three Audio Source Format-A Pairs
      • Converts Four Dante Network Audio Signals to RDL Format-A and Aux
      • Three Dante Audio Signals Feed Format-A Output Pairs A, B and C
      • Fourth Dante Audio Signal Feeds Auxiliary Balanced +4 dBu Line Output
      • Format-A Pairs are Distributed to Three Separate Format-A Output Jacks
      • Signal LEDs Indicate Audio for Each of the Four Received Dante Audio Signals
      • External 24 Vdc Supply Powers All Connected Format-A Modules through RJ45 Jacks
      • PoE (RU-BNFP) Powers Format-A Input and Primary Format-A Output RJ45 Jacks
      • High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
      • Legendary RDL Analog Filtering Enhances Superb Audio Performance
      • LED Indicators Show Network Sync Status
      • Normal or Hot-Standby Operation from PoE (Model RU-BNFP)
      • Compatible with Wide Array of RDL Format-A Active and Passive Senders and Receivers
      • Equipped for Rack Mounting or Surface Mounting

    • Specifications:

      • Network Connector: RJ45 with Link and Speed indicators
      • Digital Audio Ethernet Protocol: Dante
      • Transmission Rate: 100 Mbps
      • Sample Rates Supported: 44.1 kHz, 48 kHz (default)
      • Bit Depth Supported: 24 bits
      • Audio Operating Levels: -18 dBFS = +4 dBu
      • Format-A to Network Interface Section
      • Format-A Input: RDL Format-A RJ45
      • Format-A Signal Pairs Used (3): A, B, C
      • Frequency Response: 20 Hz to 20 kHz (± 0.5 dB)
      • THD+N: < 0.1%
      • Noise below +4 dBu: < -75 dB
      • CMRR: > 90 dB (50 Hz to 120 Hz, any input pair)
      • Crosstalk: < 80 dB (20 Hz to 20 kHz)
      • Headroom above +4 dBu: > 18 dB
      • AUX Input
      • Input: Balanced, detachable terminal block
      • Input Impedance: > 20 kΩ
      • Input Level for +4 dBu: -16 dBu to +12 dBu, +22 dBu maximum
      • Frequency Response: 20 Hz to 20 kHz (± 0.75 dB)
      • THD+N: < 0.1%
      • Noise below +4 dBu: < -75 dB
      • CMRR: > 60 dB (50 Hz to 120 Hz)
      • Crosstalk: < 80 dB (20 Hz to 20 kHz)
      • Headroom above +4 dBu: > 18 dB
      • Network to Format-A Interface/Distributor Section
      • Format-A Outputs: RDL Format-A RJ45 (3)
      • Format-A Signal Pairs Used (3): A, B, C (each Format-A output)
      • Frequency Response: 20 Hz to 20 kHz (± 0.75 dB)
      • THD+N: < 0.1%
      • Noise below +4 dBu: < -85 dB (pair active); < -100 dB (pair muted)
      • Crosstalk: < 80 dB (20 Hz to 20 kHz)
      • Headroom above +4 dBu: > 18 dB
      • AUX Output
      • Output: Balanced, detachable terminal block
      • Output Level: +4 dBu (nominal)
      • Output Impedance: 150 Ω balanced; 75 Ω unbalanced
      • Frequency Response: 20 Hz to 20 kHz (± 0.5 dB)
      • THD+N: < 0.1%
      • Noise below +4 dBu: < -75 dB
      • Crosstalk: < 80 dB (20 Hz to 20 kHz)
      • Headroom above +4 dBu: > 18 dB
      • Indicators (18): Power In (1); Power Out (4); Audio Signal LEDs (7); AUX Dual-LED VU Meter (2); Network Sys and Sync (2), Ethernet Link and Speed (2)
      • Power Connections (2): Power Jack; Detachable Terminal Block
      • Ambient Operating Environment: 0° C to 40° C
      • Power Requirement: 24 Vdc @ 150 mA plus connected loads, or PoE (RU-BNFP)
      • PoE (RU-BNFP): Class 0, IEEE 802.3af
      • Dimensions: 5.8" (15 cm) W; 1.7" (4.3 cm) H; 5.2" (13.2 cm) D
      • Package Type: Cardboard Box
      • Package Dimensions: 6 x 6 x 2.625 in.
      • Shipping Weight: 1.72 lbs. (RU-BNF); 1.745 lbs. (RU-BNFP)

    • GTIN:

      0813721019240
