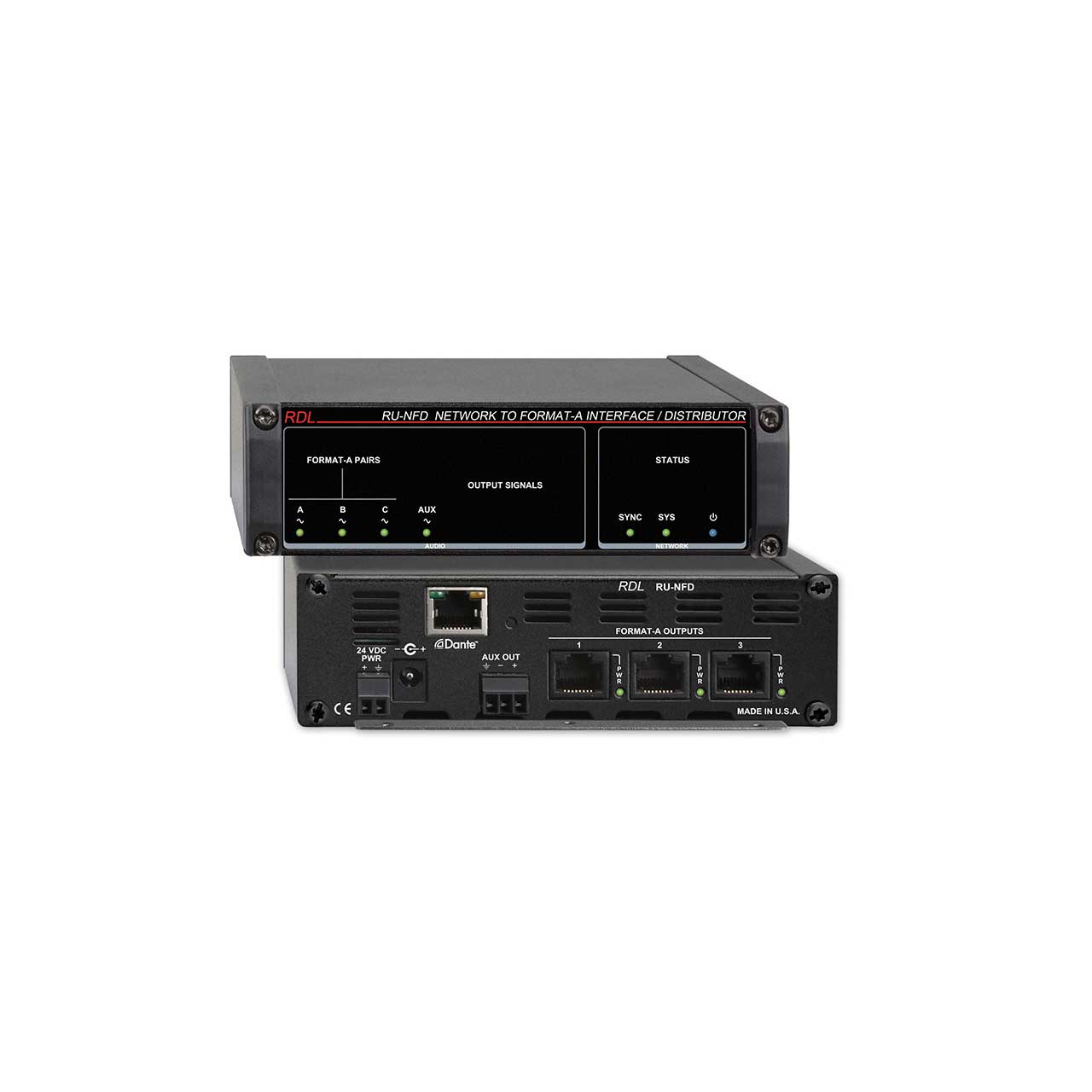

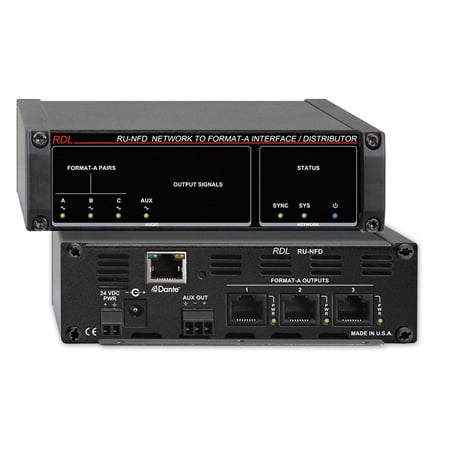

RDL RU-NFD Network to Format-A Interface/Distributor

ITEM #: RDL-RU-NFD MFG #: RU-NFD

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$854.11

Our Price:

$590.94

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    RU-NFD - Overview

    The RU-NFD modules are Dante audio network interface products compatible with RDL Format-A twisted pair products. These modules are designed to be mounted in equipment racks, closets, conference tables and on shelves or backboards in commercial/industrial installations.

    APPLICATION: The RU-NFD is an RDL Format-A sender/distributor that connects to a Dante-enabled network. It converts three Dante audio channels to RDL Format-A. Each network channel corresponds to Pair A, B or C of the Format-A outputs. The unit converts a fourth Dante audio channel to a balanced line-level AUX output.

    One front-panel green signal LED corresponds to each of the four Dante input channels. Received audio level is indicated on the variable-intensity LED indicator, facilitating setup when a networked computer is not connected at the module’s location.

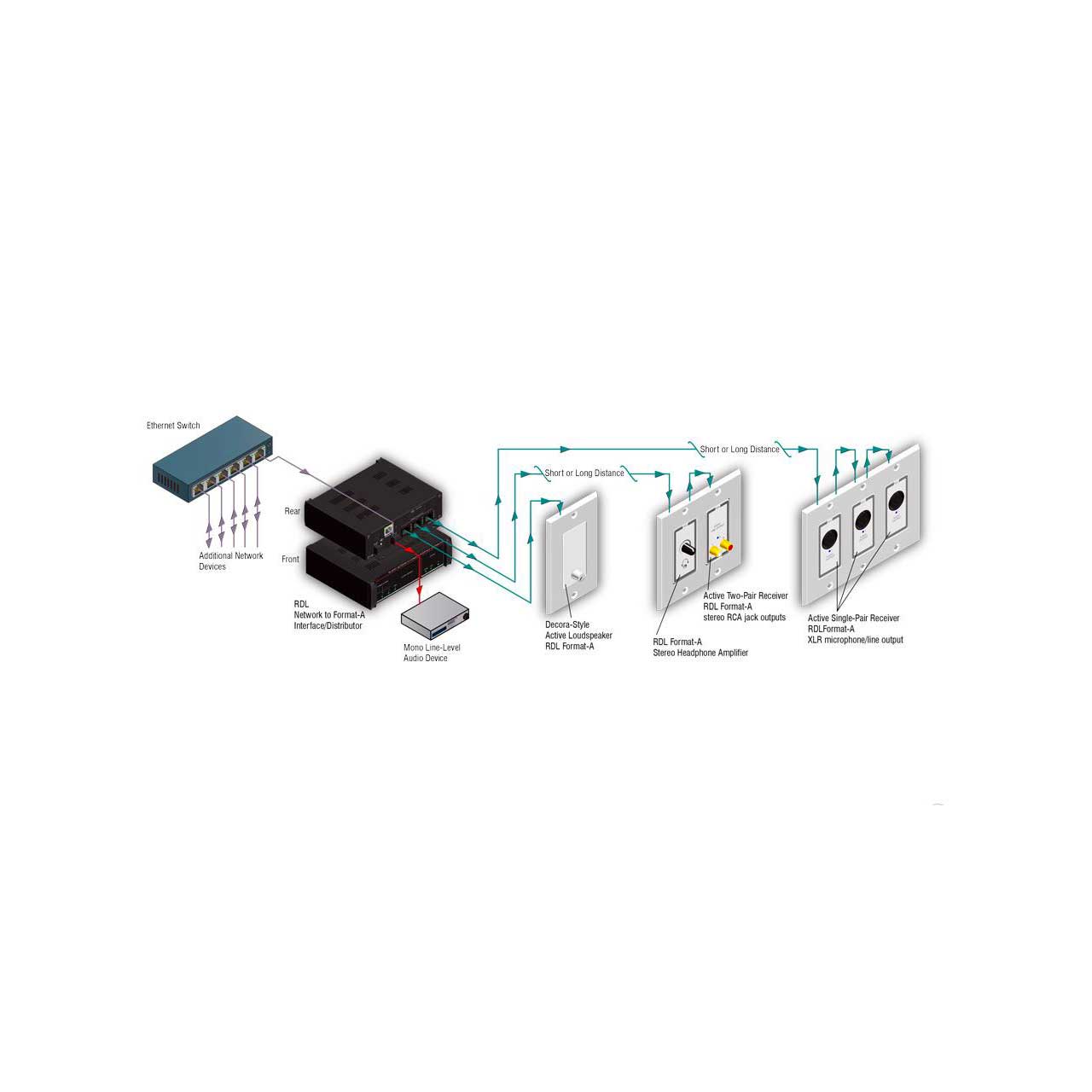

    The Format-A output is distributed to three separate rear-panel RJ45 jacks. Each Format-A output jack provides up to 200 mA of power to connected Format-A receivers. Multiple receivers may be daisy chained from one output jack, or may be connected by home run to each of the three outputs. Higher current Format-A receivers, such as RDL D-PSP1A powered Decora-style speakers, are to be individually connected to a separate output jack.

    The RU-NFD output jacks support the entire range of Format-A receivers, making each output pair available for end-user connection on various wall plates, or feeding other equipment using rack-mounted, shelf-mounted or utility Format-A receivers. The wide array of Format-A receivers provide compatibility with commercial audio equipment operating at standard professional levels. High resolution digital audio converters coupled with RDL’s renowned analog filters provide superior fidelity with a very low noise floor. Each Format-A receiver may be connected near the RU-NFD or up to several thousand feet distant.

    The RU-NFD is powered from an external 24 Vdc power supply, available separately. The external supply powers the RU-NFD and Format-A receivers connected to all three Format-A outputs. The RU-NFDP is equipped for PoE which powers the RU-NFD and Format-A receivers connected to the primary Format-A output jack. Audio is also distributed to the other two output jacks. Remote Format-A receivers connected to those other two output jacks are only powered from the RU-NFDP if an external 24 Vdc power supply is connected. If PoE power and an external 24 Vdc supply are both feeding an RU-NFDP, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external 24 V supply. The power feeding each Format-A RJ45 connector is separately protected by an automatically resetting fuse. A power LED is associated with each connector, facilitating identification of wiring faults.

    PoE relies on the use of a PoE enabled network switch. The RU-NFDP will reserve power from the switch even while being powered from an external 24 Vdc supply.

    The RU-NFD is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Built to last. Built to outperform.

    • Features:

      • Converts Four Dante Network Audio Signals to RDL Format-A and Aux
      • Easy Installation with Format-A Connections on RJ45 through CATx Cable
      • Three Dante Audio Signals Feed Format-A Output Pairs A, B and C
      • Fourth Dante Audio Signal Feeds Auxiliary Balanced +4 dBu Line Output
      • Format-A Pairs are Distributed to Three Separate Format-A Output Jacks
      • Signal LEDs Indicate Audio for Each of the Four Received Network Signal Channels
      • High Resolution 24 Bit Digital to Analog Conversion
      • Legendary RDL Analog Filtering Enhances Superb Audio Performance
      • Powers Remote Format-A Receivers through Primary Output Jack
      • External 24 Vdc Supply Powers Format-A Receivers through All Output Jacks
      • LED Indicators Show Network Sync Status
      • Outputs Mute when Digital Audio Inputs are Inactive
      • Normal or Hot-Standby Operation from PoE (Model RU-NFDP)
      • Compatible with Wide Array of RDL Format-A Active and Passive Receivers
      • Equipped for Rack Mounting or Surface Mounting

    • Specifications:

      • Network Connector: RJ45 with Link and Speed indicators
      • Digital Audio Ethernet Protocol: Dante
      • Transmission Rate: 100 Mbps
      • Sample Rates Supported: 44.1 kHz, 48 kHz (default)
      • Bit Depth Supported: 24 bits
      • Audio Operating Levels: -18 dBFS = +4 dBu
      • Format-A Outputs: RDL Format-A RJ45 (3)
      • Format-A Signal Pairs Used (3): A, B, C (each Format-A output)
      • Frequency Response: 20 Hz to 20 kHz (± 0.75 dB)
      • THD+N: < 0.1%
      • Noise below +4 dBu: < -85 dB (pair active); < -100 dB (pair muted)
      • Crosstalk: < 80 dB (20 Hz to 20 kHz)
      • Headroom above +4 dBu: > 18 dB
      • AUX Output
      • Output: Balanced, detachable terminal block
      • Output Level: +4 dBu (nominal)
      • Output Impedance: 150 Ω balanced; 75 Ω unbalanced
      • Frequency Response: 20 Hz to 20 kHz (± 0.5 dB)
      • THD+N: < 0.1%
      • Noise below +4 dBu: < -75 dB
      • Crosstalk: < 80 dB (20 Hz to 20 kHz)
      • Headroom above +4 dBu: > 18 dB
      • Indicators (12): Power In (1); Power Out (3); Audio Signal LEDs (4), Network Sys and Sync (2), Ethernet Link and Speed (2)
      • Power Connections (2): Power Jack; Detachable Terminal Block
      • Ambient Operating Environment: 0° C to 40° C
      • Power Requirement: 24 Vdc @ 120 mA plus connected loads, or PoE (RU-FNP)
      • PoE (RU-NFDP): Class 0, IEEE 802.3af
      • Dimensions: 5.8" (15 cm) W; 1.7" (4.3 cm) H; 5.2" (13.2 cm) D
      • Package Type: Cardboard Box
      • Package Dimensions: 6 x 6 x 2.625 in.
      • Shipping Weight: 1.605 lbs. (RU-NFD); 1.63 (RU-NFDP)

    • GTIN:

      0813721019219
