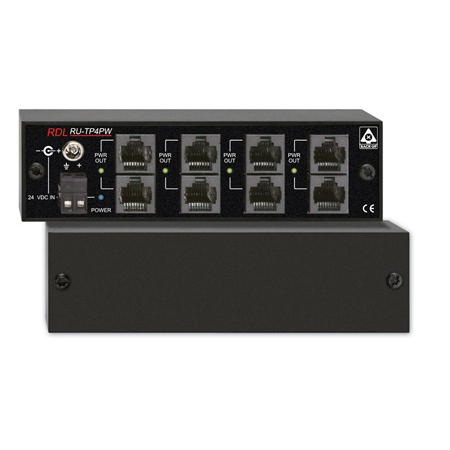

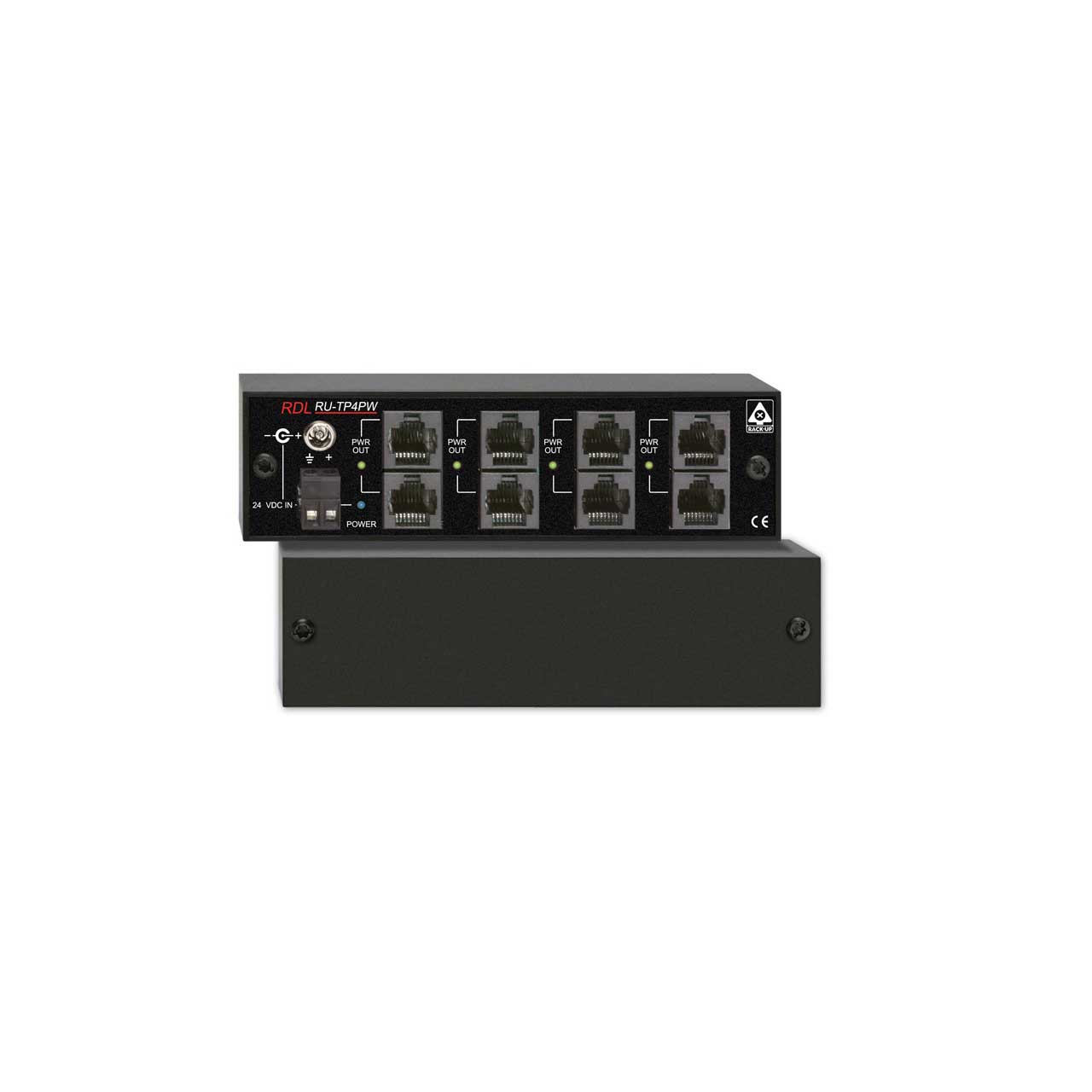

    RDL RU-TP4PW Power Inserter - Twisted Pair - Four sets of outputs - Signal loop-through

    Manufacturer: Radio Design Labs

    Item #: RDL-RU-TP4PW   •   MFG #: RU-TP4PW




    Required Accessories

    The RU-TP4PW is a four output power inserter compatible with RDL twisted pair products. The RU-TP4PW is powered from a 24 Vdc power supply using either the power jack or the detachable terminal block. Four dual-RJ45 jack sets are provided to connect remote twisted pair senders and receivers. Power is provided to all modules connected to the RJ45 jacks. Signal pairs feed through the associated RJ45s. The voltage feeding each dual-RJ45 jack set is separately protected by an automatically resetting fuse. A power LED is associated with each dual-RJ45 jack set, facilitating identification of wiring faults. Module power is indicated by a front-panel LED. The RU-TP4PW is ideal for powering remote twisted pair modules from a central equipment rack.

    • Features

      • Power Four Sets of Remote Senders and Receivers from a Convenient Location
      • 24 Vdc Input on dc Power Jack or Detachable Terminal Block
      • Blue Power LED Shows Module is Receiving Power
      • Green LEDs Indicate Correct dc Output Voltage on RJ45s
      • Two Associated RJ45s Provided for Each Power Output
      • One Associated RJ45 may Power Receivers
      • The Other Associated RJ45 may Power Senders
      • High-Density Rack Mounting Using RACK-UP Accessories
    • Specifications

      • Outputs (4): Dual-RJ45
      • Indicators (5):Power In (1);Power Out (4)Ambient Operating Environment: 0° C to 55° CPower Connections (2):Power Jack; Detachable Terminal Block
      • Maximum Load Current: 200 mA (each RJ45 output)Power Requirement: 24 Vdc @ 25 mA plus connected loadsDimensions: 5.8" (15 cm) W; 1.7" (4.3 cm) H; 2.2" (5.59 cm) DPackage Type: Cardboard Box
      • Package Dimensions: 4.375 x 7 x 2.25 in.
      • Shipping Weight: 1.115 lbs.
      • WEEE weight: 0.88 lbs.
      • Tariff code: 8517.18.0000
