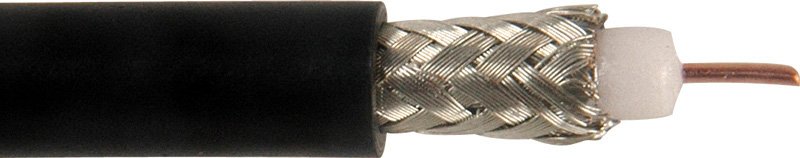

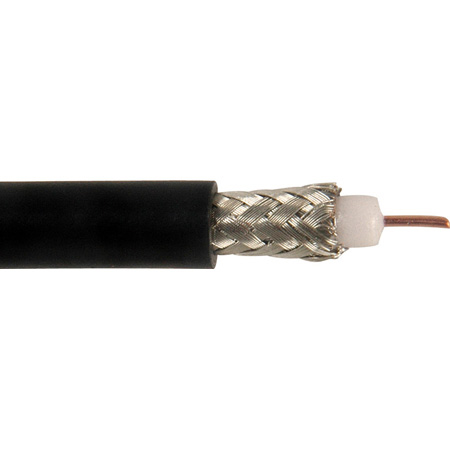

Laird RG59/U 20 AWG Solid Center Digital Coaxial Cable - 1000 Foot

RG59-1000 - Overview

• Specifications:

  • Conductor: 20 AWG Bare Copper
  • Stranding: Solid .032"
  • Insulation Material: Gas Injected Polyethylene
  • Insulation Thickness: .143''
  • Nom. Shield: 100% Aluminum Foil + 95% Tinned Copper Braid
  • Jacket Material: PVC
  • Overall Cable Diameter: .233'' Nom.
  • Cable Weight: 31 Lbs/1M' Nom.
  • Flame Rating: UL1666 Vertical Shaft


• Warranty:

  • 1 Year
