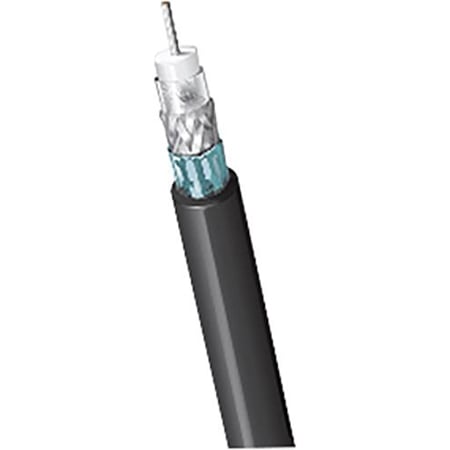

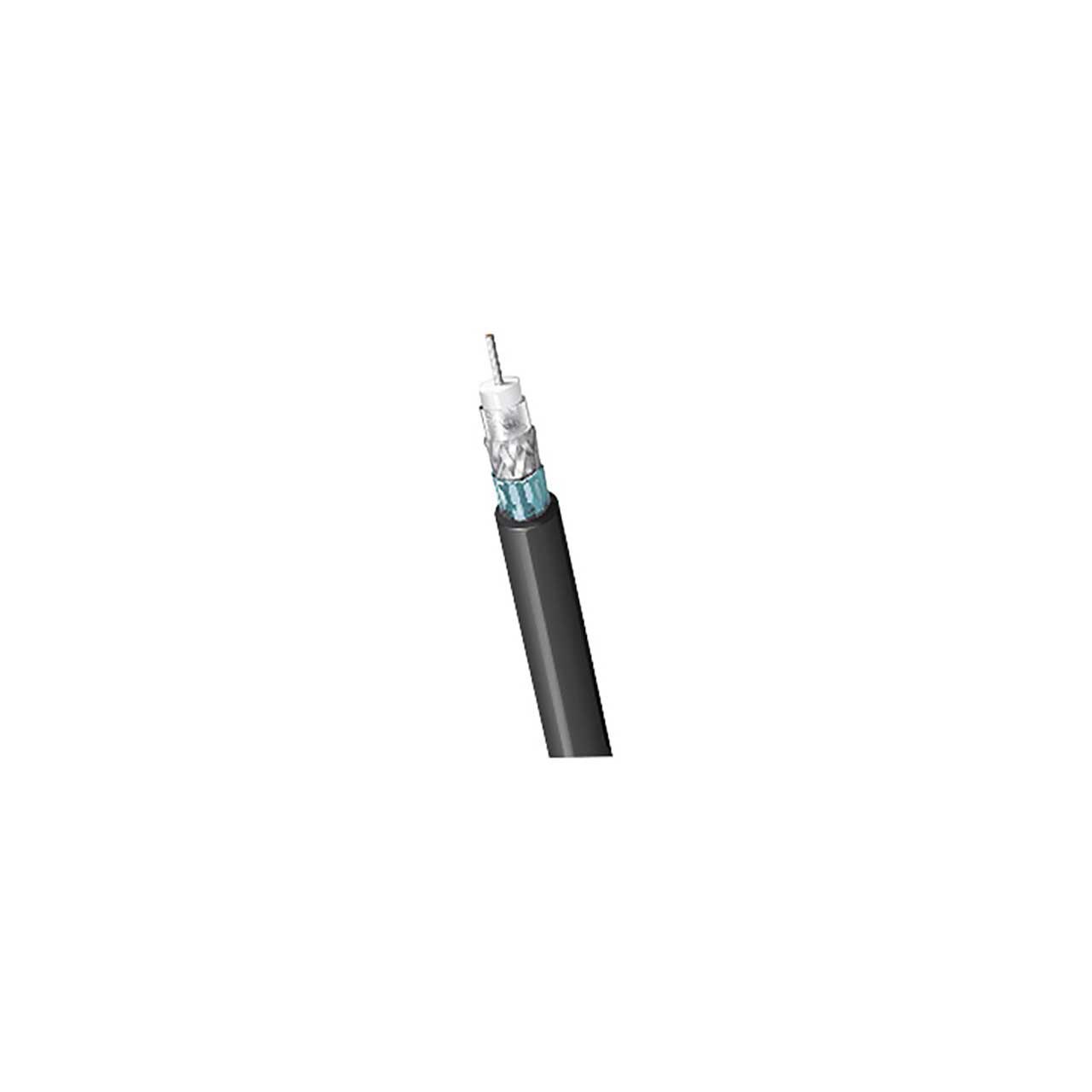

Belden 4694F CM Rated Flexible 12G-SDI 75 Ohm 4K UHD RG-6/U Precision Video Coax 18 AWG - Black - Per Ft

ITEM #: BL-4694F-FT-BK MFG #: 4694F B591000

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    4694F B591000 - Overview

    Belden 4694F is a 12G-SDI, 4K UHD Precision Flexible Video Coax Cable. It's RG-6/U Type, 75 Ohm with an 18 AWG solid, .040inch inch silver plated copper conductor, gas-injected foam HDPE insulation, dual tinned copper braid shield (95% coverage each) in a CM (Communications Multipurpose) rated PVC jacket.

    Belden 4K UHD Coax Cables for 12G-SDI maximize 4K signal transmission distance over a single coax, minimizing weight and space utilization compared to multi-link solutions. This solution provides significant headroom and guarantees -15 dB return loss from 4.5 to 12 GHz.

    SMPTE 2082-1 12 Gb/s UHDTV
    SMPTE 2081-1 6 Gb/s UHDTV
    SMPTE 424M 3 Gb/s HD-SDI 1080P

    • Features:

      • Faster Installation: Using Belden's single-link solution saves time and is significantly lighter than dual or quad-link configurations
      • Optimized Design: On Belden 4K UHD Coax Cables for 12G-SDI, the inner foil is bonded to the core to eliminate bunching when installing 1-piece connectors. The outer foil is bonded to the jacket for a quicker, one-step stripping process
      • Superior Performance: The 4K UHD coax cable for 12G-SDI are superior in performance and engineered to optimize transmission distance, the cables exceed the SMPTE Return Loss (RL) specifications for UHDTV
      • Supports 12 GHz: Belden 4K UHD Coax Cables for 12G-SDI are capable of supporting 12 GHz bandwidth and enable a single-link configuration to transmit 4K
    • Specifications:

      • Environmental Space: Indoor
      • Conductor Size: 18 AWG
      • Conductor Stranding: Solid
      • Conductor Material: SC - Silvered Copper
      • Conductor Nominal Diameter: 0.040 in
      • Conductor No. of Coax: 1
      • Insulation Material: PE - Polyethylene (Foam)
      • Insulation Nominal Diameter: 0.180 in
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Outer Jacket Nominal Diameter: 0.276 in
      • Outer Shield: Dual tinned copper braid shield (95% coverage each)
      • UL Voltage Rating: 300 V RMS
      • Operating Temp Range: -30°C To +75°C
      • Bulk Cable Weight: 49 lbs/1000ft
      • Electrical Characteristics Notes: Return Loss: Fixed bridge and termination
      • Max Recommended Pulling Tension: 80 lbs
      • Min Bend Radius/Minor Axis: 2.75 in;
      • Standards: NEC/(UL); Specification: CM, CEC/C(UL); Specification: CM
      • RG Type: 6/U Type
      • EU Directive Compliance: EU Directive 2003/11/EC (BFR)
      • CA Prop 65 (CJ for Wire & Cable): Yes
    • Item Includes:

      • 4694F 12G-SDI 4K UHD RG-6/U Video Coax 18 AWG - Black - Per Foot
    • Warranty:

      • Limited 10 Year Warranty
