MINI-ISO - Overview

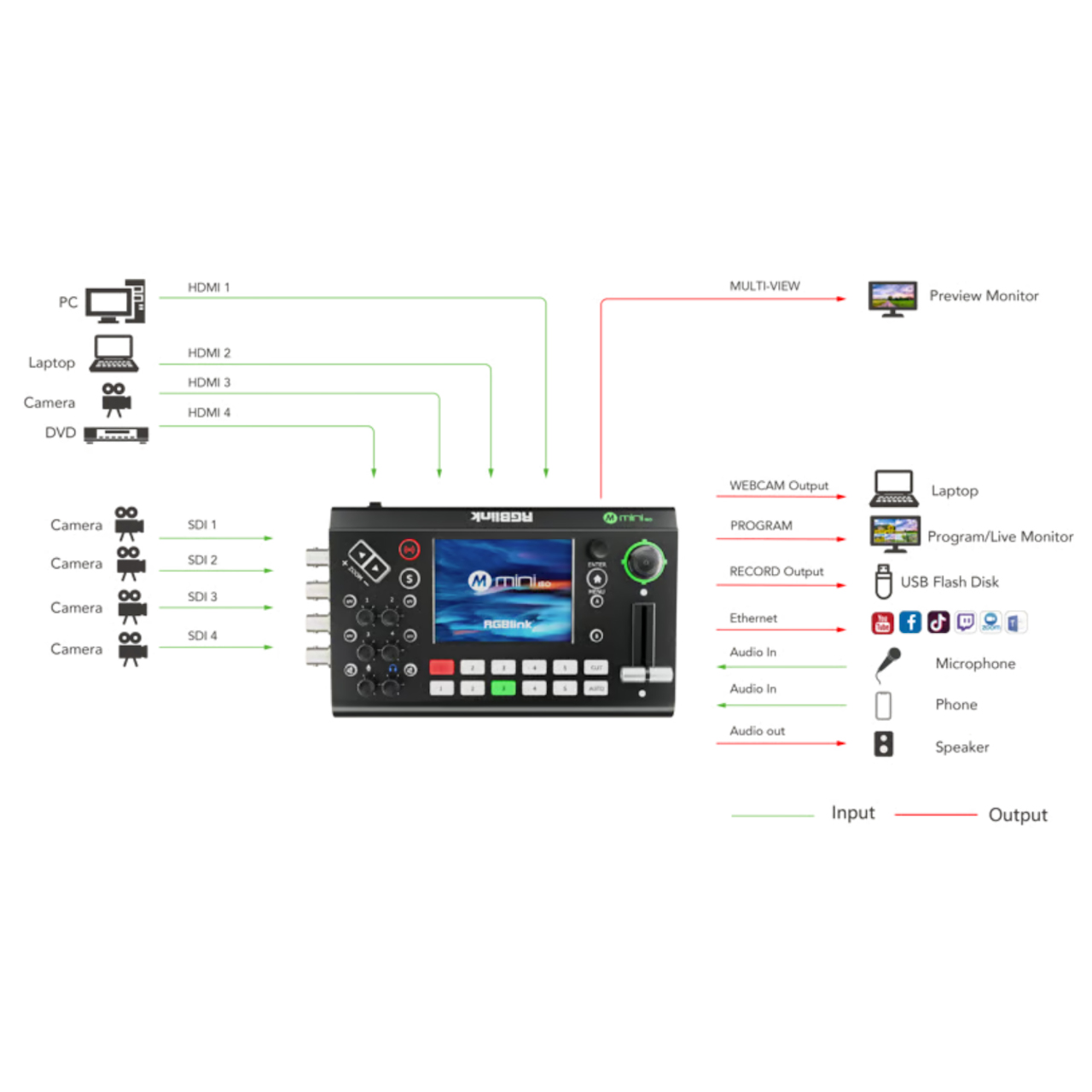

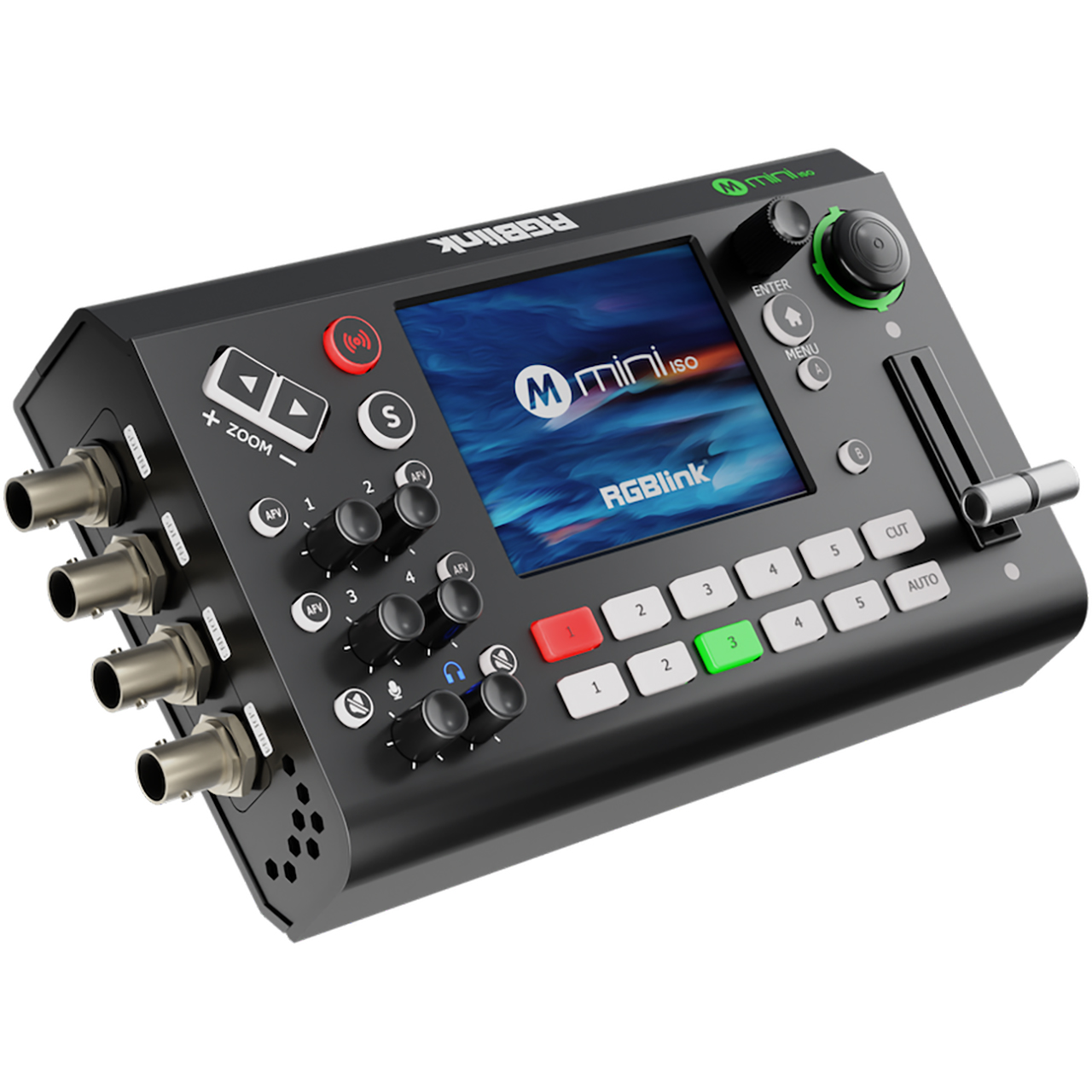

The RGBLink mini-ISO features 4x 4K HDMI inputs and 4x SDI inputs, supporting signals from PC, Laptop, camera and more. Both Line and Mic level audio supported on aboard with variable delay controls to bring audio into sync if needed. Dual HDMI outputs support for monitoring of multi-view Preview, Program or Test Pattern. One USB output supports YUY2 and MJPEG encoding formats, which can be recognized as webcam for streaming to Facebook, YouTube, ZOOM, etc. The mini-ISO is built with 3.5-inch TFT touch screen for menu operation and video sources display. mini-ISO is packed with features including dynamic output control, multi-view preview, picture in picture, chroma key, luma key, transitions, on board PTZ camera controls and much more. The mini-ISO supports TAO Cloud integrated control, simultaneous streaming to 4 live streaming platforms via RTMP(S).

  • Features:

    • Quad SDI inputs supports signal from PC, camera,etc
    • Quad HDMI 2.0 inputs (HDCP 1.4 compliance), resolutions up to 4K@60
    • 3.5-inch touch screen for menu operation, signal preview and working status display
    • Dual HDMI 1.3 outputs for monitoring of multi-view Preview, Program or Test Pattern
    • Mix for 4-channel HDMI/SDI embedded and 2-channel external audio
    • USB 2.0 one-key recording in exFAT or FAT32 format with bitrate up to 16Mbps
    • USB output supports YUY2/MJPEG format, which can be recognized as webcam for streaming
    • AUTO and WIPE Switch mode available
    • 15 transition effects
    • 5-direction joystick and toggle for controlling PTZ camera (IP VISCA Protocol supported)
    • TAO Cloud control, compatible with mobile devices and desktop
    • Support RTMP(S) network streaming up to 4 platforms
    • Specify either "green" or "blue" as the key color for Chroma Key
    • Support Luma Key
    • Save and load PTZ presets. One-click for preset recall


  • Specifications:

    • Connectors
    • Input:

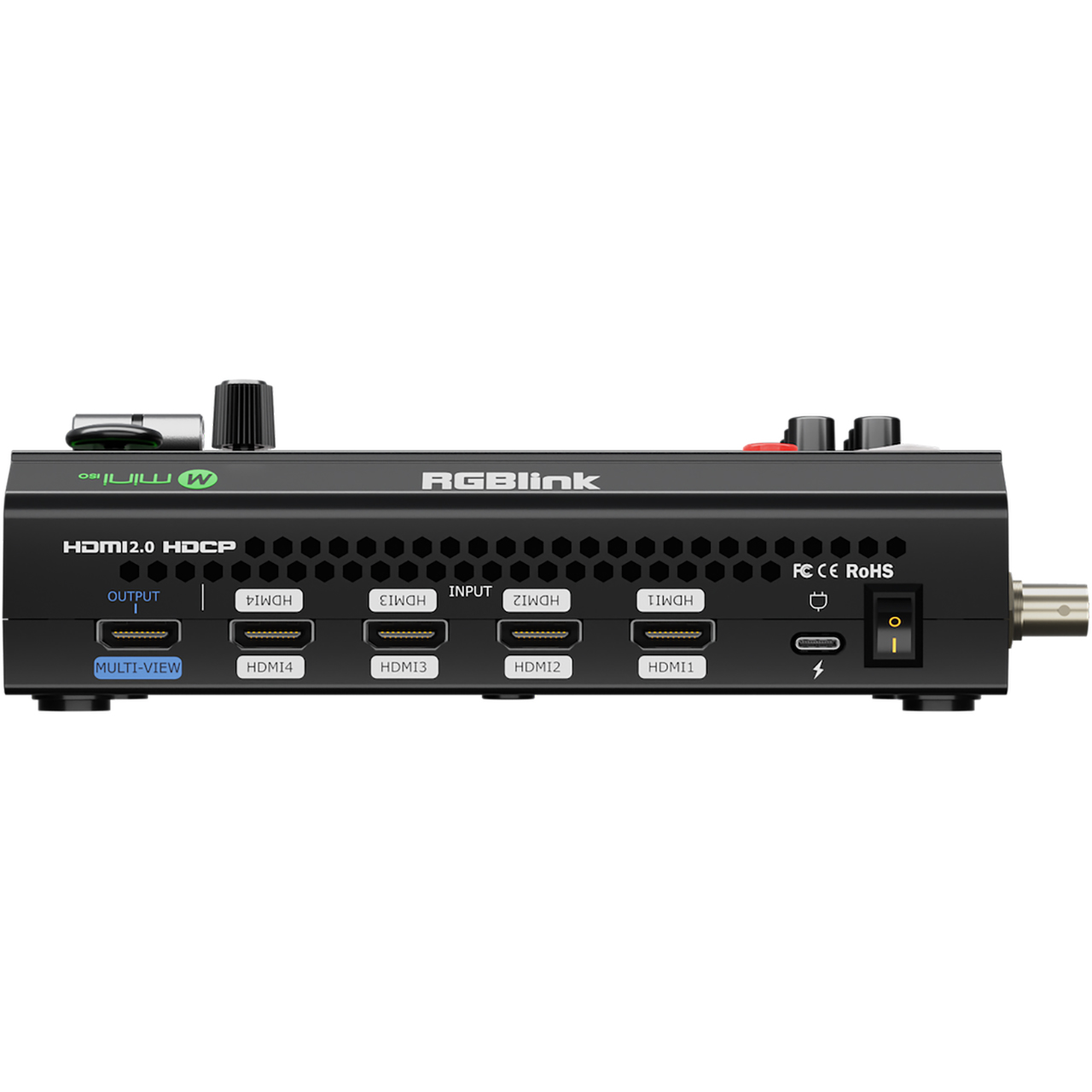

      - HDMI 4K 4x HDMI-A
      - UVC (USB Cam) 1x USB-A (Webcam)
      - SDI 4x BNC
      - Media 1x USB-A (Record)
      - NDI 1x RJ45 (LAN)
    • Output:
      - HDMI 2K 2xHDMI-A
      - USB (Record) 1x USB-A (Record)
      - USB (Stream) 1x USB-A (Webcam)
      - RTMP(s)/NDI 1x RJ45 (LAN)

      Audio
    • Embedded Audio Input: 4xHDMI-A
    • External Digital Input: 1xUSB-A (Record)
    • External Analog Input: 2x3.5mm mini-Jack
    • External Analog Output: 1x3.5mm mini-Jack
    • Communication/Stream/Upgrade: LAN 1xRJ45

      Power
    • Power Supply: 1xUSB-C

      Performance
    • Input Resolutions:
      - SMPTE 720p@50/60 | 1080i@50/60 | 1080p@24/30/50/60
      - VESA 1024x768p@60 | 1280x720p@60 | 1280x768p@60 | 1280x800p@60 | 1280x1024p@60 | 1360x768p@60 | 1366x768p@60 | 1440x900p@60 | 1600x1200p60 | 1680x1050p@60 | 1920x1080p@60 | 1920x1200p@60 | 3840x2160p@60 | 4096x2160p@60
      - SDI 720p@50/60 | 1080i@50/59.94/60 | [email protected]/24/25/29.97/30/50/59.94/60
      - UVC 1080p@60
    • Output Resolutions:
      - HDMI 1.3 1280x720p@50/60 | 1920x1080p@30/50/60 | 1080*1920@60
      - USB 1280x720p@60 | 1920x1080p@24/25/30/50/60
    • Video:
      - Color Space: RGB 8bit | YCbCr 4:4:4 8bit | YCbCr 4:2:2 8bit
      - Video Latency: <3 frames
    • Audio
      - Audio Format: PCM/2ch/24bit/48kHZ
      - Sampling Rate: 48K
      - Bitrate: 24bit
    • Record/Storage:
      - Record Formats: MP4 (up to 16Mbps)
      - Disk Formats: FAT32 | exFAT
    • Supported Standards:
      - HDMI: 2.0
      - HDCP 1.4
      - USB 3.0
      - SDI SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
      - NDI NDI | HX2

      Power
    • Compatibility: USB Power Delivery (PD) 3.0
    • Supported Cables: Certified USB PD Aware
    • Input Voltage: 12V/2.5A
    • Maximum Power: 30W
    • Environment Temperature: 32°F (0°C) - ~140°F (~60°C)
    • Humidity: 10%~85%

      Physical
    • Net Weight: 1.32lbs (0.60kg)
    • Packaged Weight 3.04lbs (1.38kg)
    • Net Dimension (LWH): 7.76" (197mm) x 4.45" (113mm) x 2.36" (60mm)
    • Packaged Dimension (LWH): 10" (255mm) x 5.7" (145mm) x 3.34" (85mm)


  • Item Includes:

    • 1x mino-ISO
    • 1x Power adapter
    • 1x Power cable
    • 1x USB-A cable
    • 1x Audio cable


  • Warranty:

    • 1 Year Limited Warranty
