RGBLink TAO1PRO 4-input Video Switcher/Recorder & Streaming Encoder with 5.5-inch FHD Touchscreen Preview Display

ITEM #: RGL-TAO1PRO MFG #: TAO1PRO

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the RGL-TAO1PRO

TAO1PRO - Overview

TAO 1pro HDMI/USB Switcher with Recording and RTMP/NDI 5 Encoding

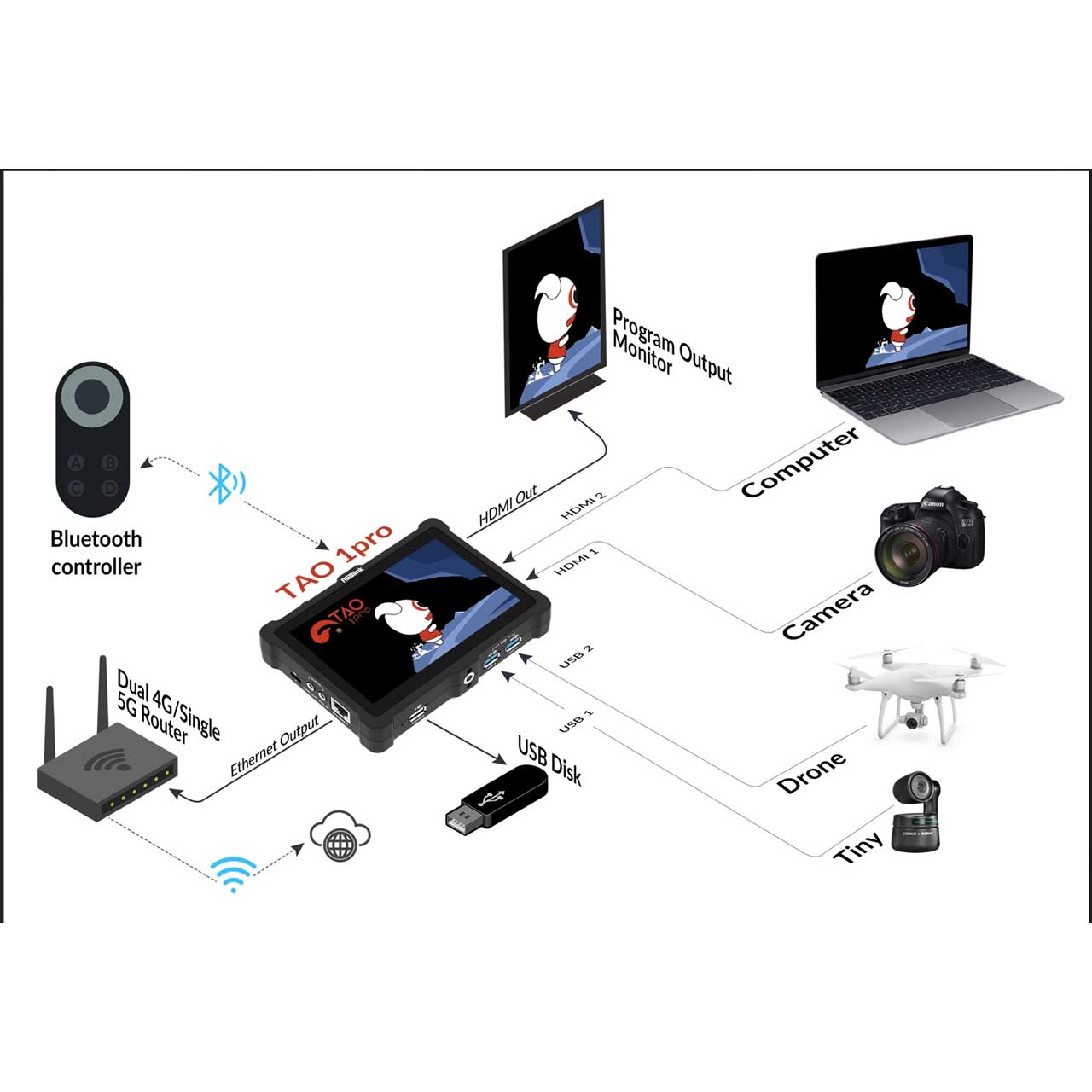

The RGBLink TAO 1pro is a portable 4-input video switcher and touch screen monitor with HDMI and USB 2.0/3.0 inputs, able to record to USB drive and stream to NDI 5.0 and RTMP via UVC. The 5.5-inch Full HD touch screen allows control of all parameters, including live switching of video inputs sent simultaneously to the HDMI or streaming output. Convenient cold-shoe mounts on the top of bottom can connect to any camera or tripod. The device can be powered off the included AC adapter or one of the two removable battery connections which support both Sony and Panasonic style camera batteries. Additionally, UVC enabled PTZ cameras can be operated directly from the TAO 1pro interface or via Bluetooth controller.

  • Features:

    • 5.5-inch touchscreen operation
    • Network HD streaming
    • Seamless switcher
    • 2x UVC inputs, 2x HDMI 1.3 input and 1x HDMI 2.0 output
    • NDI 5.0 encoder
    • Recording via USB 2.0 port,mobile hard disk stores up to 2T
    • Multistream up to 4 Live Streaming platforms simultaneously


  • Specifications:

    • Connectors
    • Input: HDMI 1.3: 2x HDMI-A, USB 3.0: 2x USB TypeA
    • Output: HDMI 2.0: 1x HDMI-A
    • Record: USB 2.0: 1x USB TypeA
    • Audio: In: 1x 3.5mm Audio Jack, Out: 1x 3.5mm Audio Jack
    • Communication/Stream: LAN: 1x RJ45
    • Power: 1x USB-C

      Performance
    • Input Resolutions: SMPTE: 720p@50/60, 1080p@23/24/60, VESA: 1024x768@60, 1280x720@60, 1280x800@60, 1280x1024@60, 1360x768@60,1600x1200@60, 1680x1050@60, 1920x1080@60
    • Output Resolutions: SMPTE: 720p@50/60, 1080p@24/25/50/60, 2160p@60, VESA: 1024x768@60, 1280x720@50/60, 1280x800@60, 1280x1024@60, 1360x768@60, 1920x1080@50/60, 3840x2160@60
    • Supported Standard: HDMI: 1.3(Input), 2.0(Output), USB: 3.0

      Screen Feature
    • Screen Dimension: 5.5 ''TFT
    • Resolution: 1080x1920 pixels
    • Dot Pitch: 0.063(H)x0.021(W)(mm)
    • Aspect Ratio: 16:9
    • Brightness: 450cd/m²
    • Contrast: 1000:1
    • Backlight: LED
    • View Angle: 80°/80°(L/R)80°/80°(U/D)

      Power
    • Input Voltage: 9V/2A
    • Max Power: 18W

      Environment
    • Temperature: 0°~55°
    • Humidity: 5%~85%

      Physical
    • Weight Net: 350g(without battery);882g(with battery), Package: 770g
    • Dimension: Net: 161mm x 106mm x 36mm, Package: 255mm x 145mm x 85mm


  • Item Includes:

    • 1x RGBlink TAO 1pro
    • 1x Power Adapter
    • 1x Type-C Power Cord
    • 1x Doubletheard 1/4 Screw


  • GTIN:

    6970447703656
