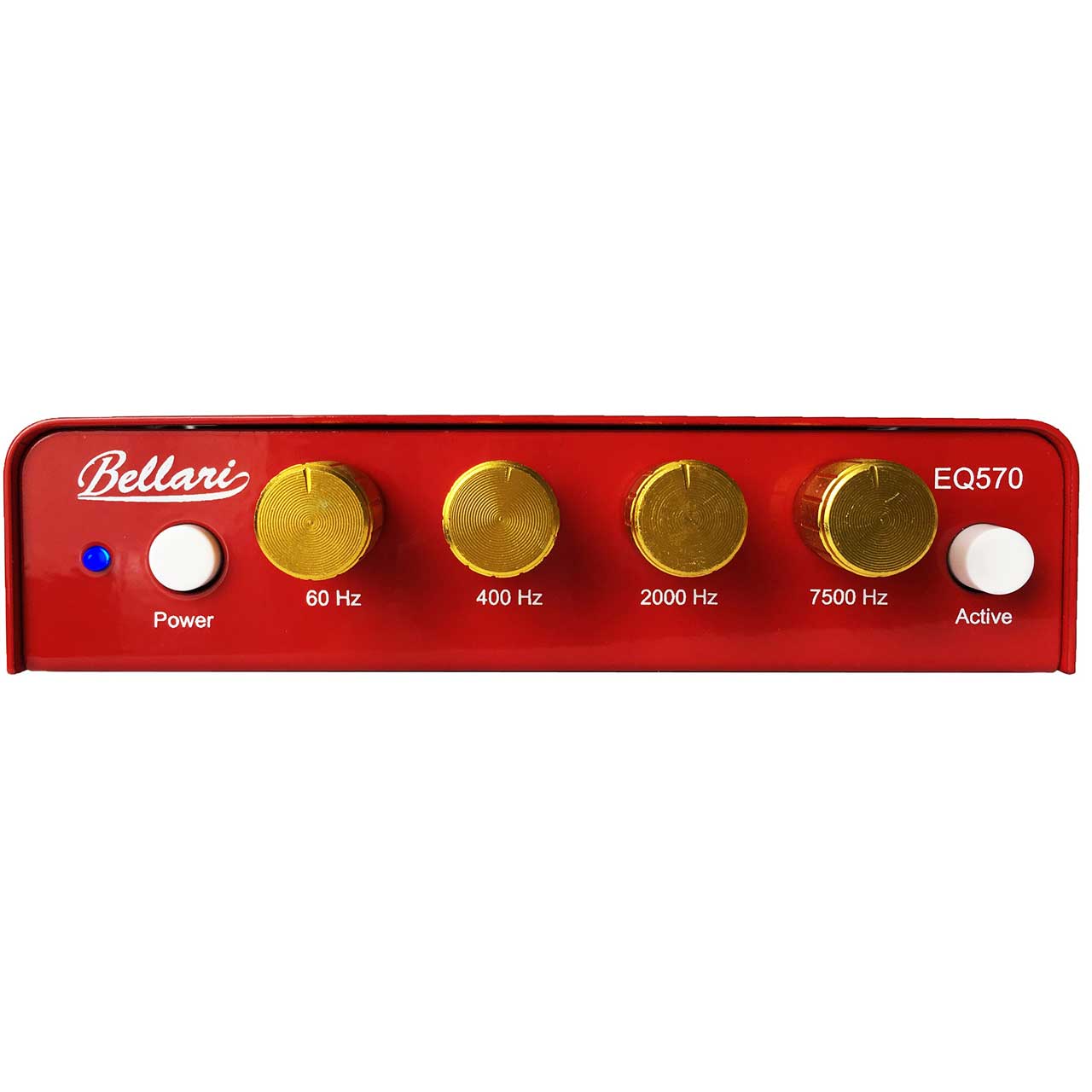

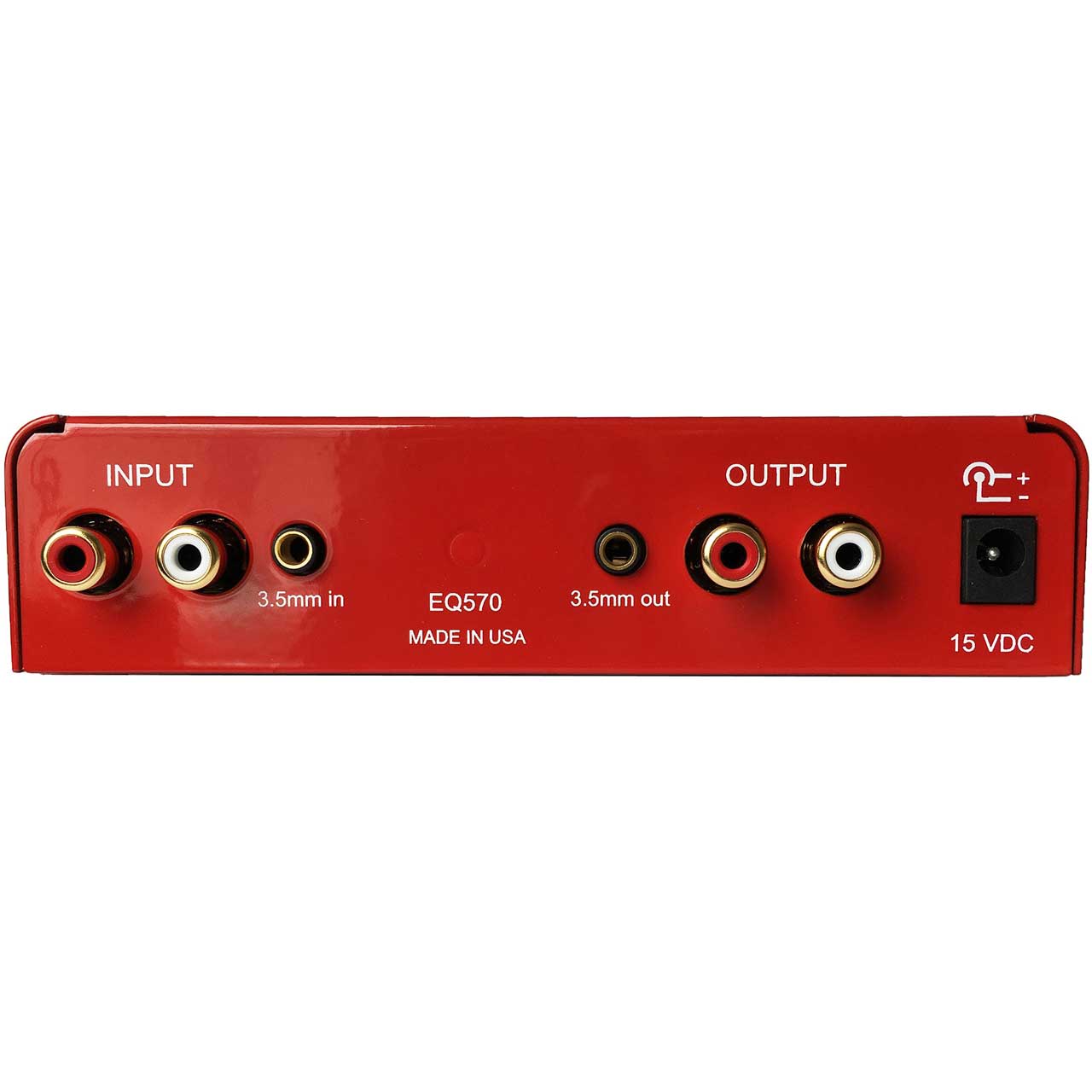

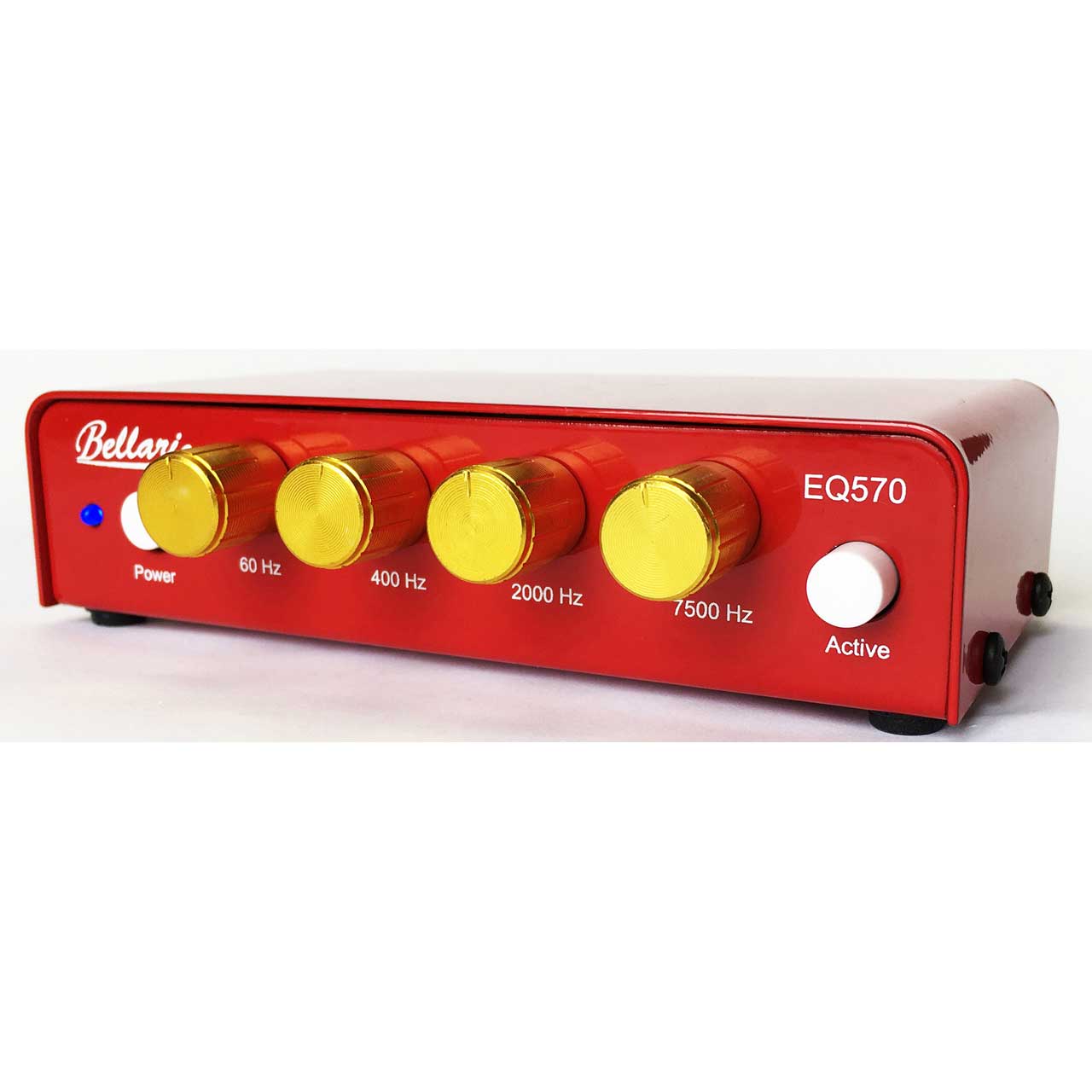

Bellari EQ570 Four Band Audio Equalizer

ITEM #: RLS-EQ570 MFG #: EQ570

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the RLS-EQ570

EQ570 - Overview

The Bellari EQ570 is a solid well built four band EQ with extremely low phase shift and gradual curve filters. That makes it one of the most musical sounding EQ's Bellari has ever built. They have been building EQ's in the USA since 1989 and have released many different models, from dual 31 band graphic's to four band parametric's, they have built them all at one time or another.

Not all records sound great, some of the "new" recordings lack dynamic range and seem overly compressed. Why suffer from glaring treble or poor bass response due to a bad recording? It's silly to suffer through bad recordings for the sake of "purity." There's no reason EQ controls can't be implemented and used in ways that result in a net sonic improvement, and of course they can always be bypassed when a great recording is being played.

Made in the U.S.A.

  • Specifications:

    • Input Impedance: 47k
    • Output Impedance: 47Ω
    • Frequency Response: 5Hz - 154kHz
    • Adjustment:
      ±12dB for 60Hz and 7500Hz
      ±6dB for 400Hz and 2000Hz
    • THD: .003% @ 1KHz
    • S/N Ratio: >100dB unweighted
    • PWR: 15 VDC
    • Dimensions (HxWxD): 1.25" x 5.5" x 3.5"
    • Weight: .8lbs

  • Item Includes:

    • 1x EQ570
    • 1x 15V power supply PN PS27s
    • 1x Owner's manual

  • GTIN:

    0675889057003
