    RM-KB-LCD17KVMHD - Overview

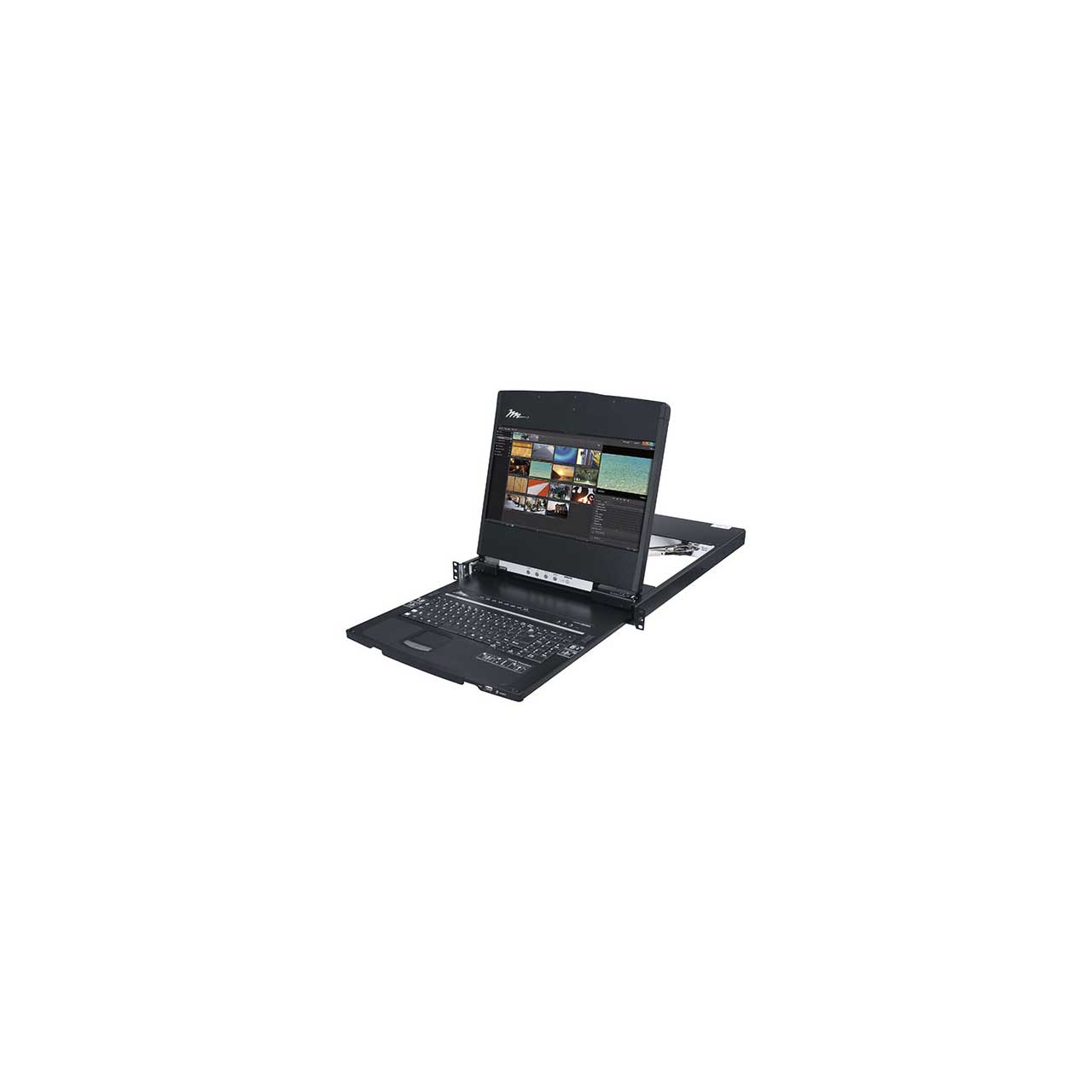

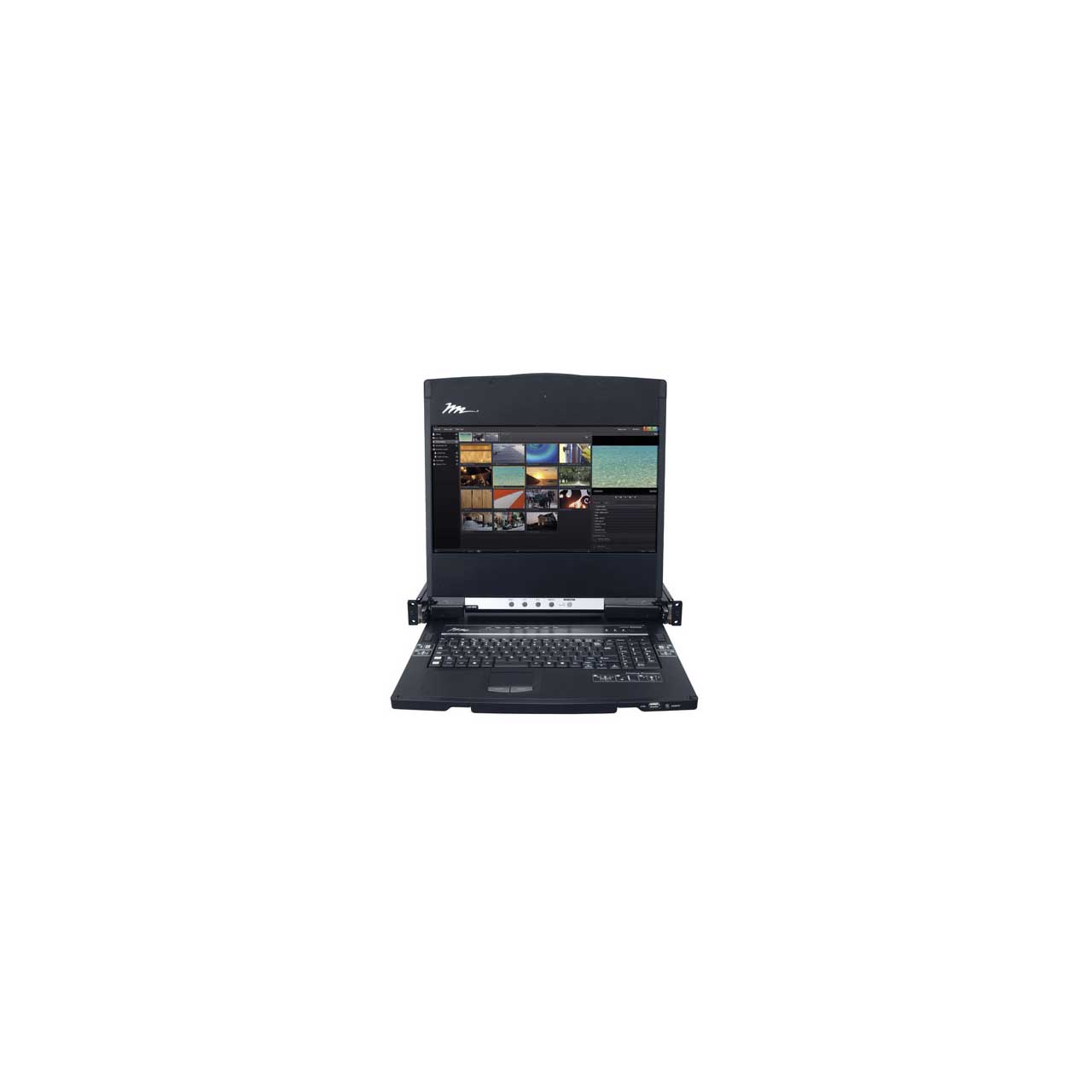

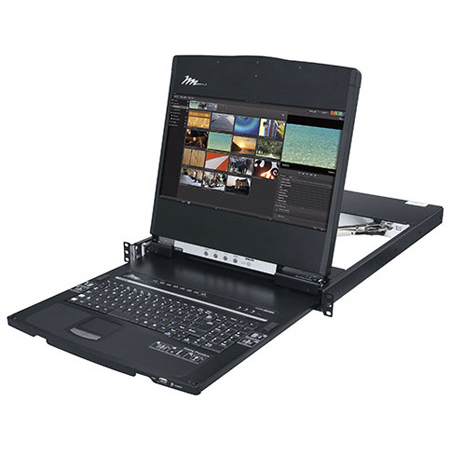

    The RM-KB-LCD17KVMHD switch is an integrated LCD console and keyboard, video, and mouse (KVM) switch that offers secure access to 8 attached computers and mounts in only 1U of rack space. It features an independently retractable 17.3" HD widescreen LCD monitor and keyboard with built-in touchpad. To maximize space in your data center, the keyboard/touchpad

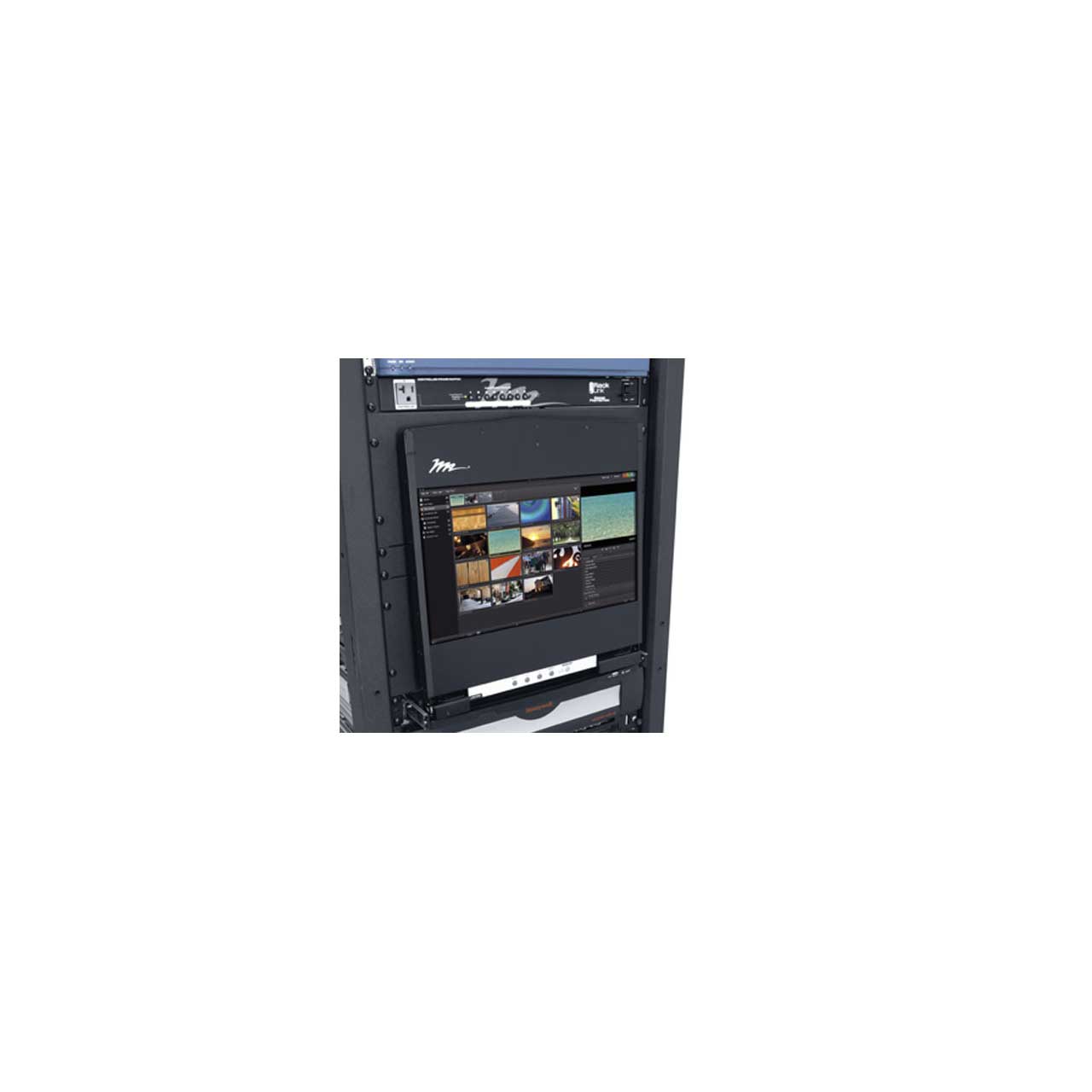

    module hides away when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity.

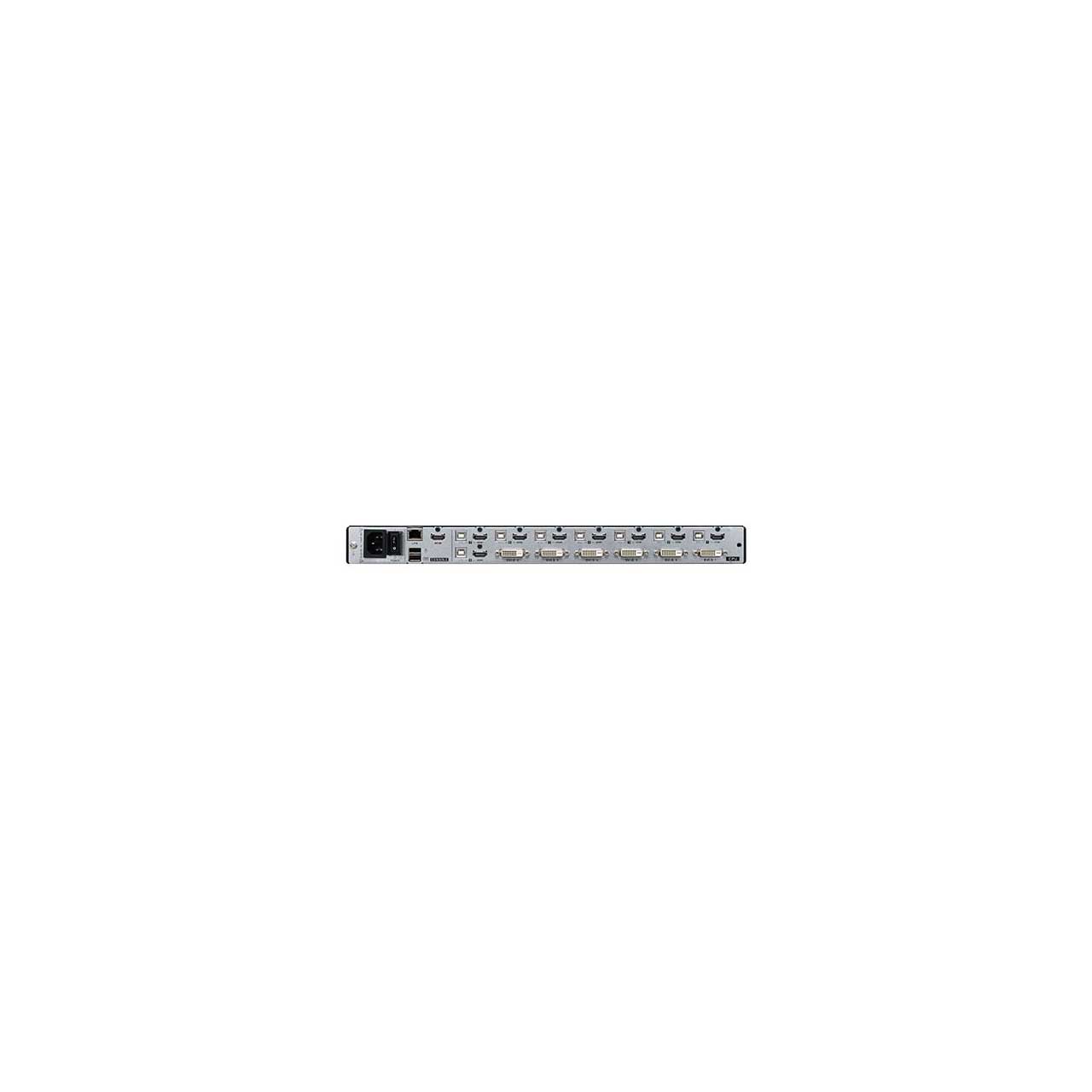

    An extra console port is provided on the rear panel to manage the LCD KVM switch from an external console (monitor, keyboard, and mouse). For added convenience it also supports an external USB Peripheral Port. The RM-KB-LCD17KVMHD supports both PS/2 and USB keyboards and mice for the connected computers, and supports USB peripheral devices to be used with the attached computers. A single RM-KB-LCD17KVMHD can control up to 8 computers.

    Your RM-KB-LCD17KVMHD investment is protected by an included firmware upgrade utility. You can stay current with the latest functionality improvements by downloading firmware update files from our website as they become available, and using the utility to quickly and conveniently perform the upgrade.

    • Features:

      • High definition (1080p), widescreen (16:9) display
      • Designed for digital video, featuring an HDMI certified 100% digital platform including HDMI/DVI inputs and HDCP compliance
      • No special cables required - compatible with industry standard cables and extenders
      • IP-enabled for remote monitoring and management
      • Models available in standard console configuration for single systems or console with 8 Port KVM for managing multiple systems from a single station
      • Compact, 1-rackspace design includes 17" widescreen display, keyboard and touchpad

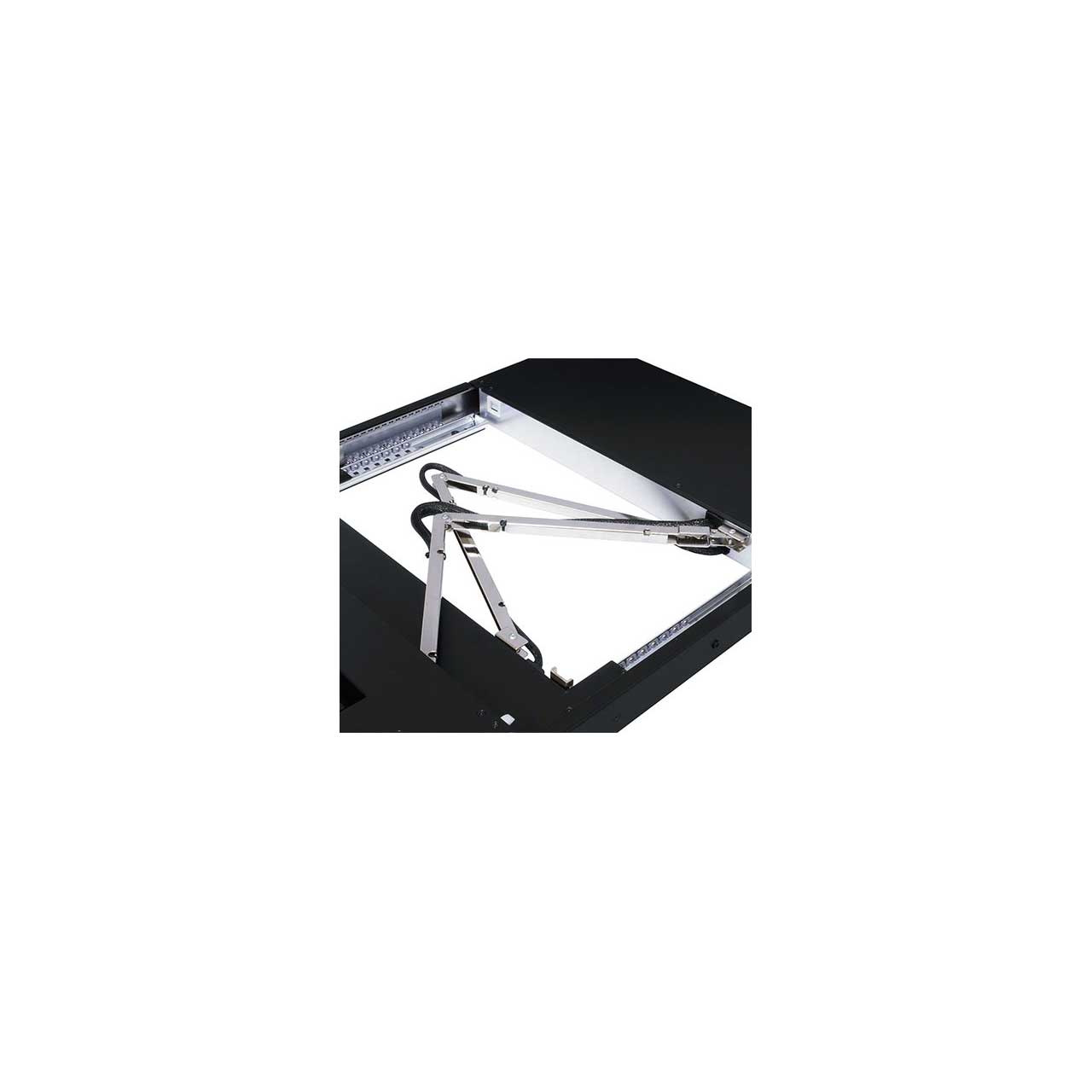

      • Dual rail design allows monitor to reside in open position for system monitoring while keyboard is recessed
      • Fast one-person installation with quick-install rails
    • Specifications:

      • Number Of Ports: 8
      • UL Standards Tested: UL 60950-1
      • Mounting Points: 4
      • RoHS: Yes
      • Mounting Depth Max: 27.75
      • Mounting Depth Min: 21.63
      • Depth: 25.23"
      • Height: 1.73"
      • Width: 18.9"
      • Primary Package Weight (US): 25.08
      • Rack Units: 1
      • Material: Metal
    • Item Includes:

      • 1 RM-KB-LCD17KVMHD Rackmount LCD KVM switch
      • 2 Custom USB DVI KVM Cable Set
      • 1 Power Cord
      • 1 User Instructions
      • 1 Quick Start Guide
    • GTIN:
