    CCS-PRO8-US - Overview

    Manage multiple computers, and multiple monitors with a single keyboard and mouse

    The ADDER® CCS-PRO US Command and Control switch enables users to interact with up to eight computers using a single mouse. The operator can simply move the mouse cursor across screen borders to instantly select the computer they need to control providing the experience of a single desktop, saving both time and desk space.

    It provides seamless switching allowing the user to manage multiple computers, and multiple monitors with a single keyboard and mouse with no software installation required for single screen computers. You gain improved desk ergonomics and can also copy and paste text between Windows computers.

    • Features:

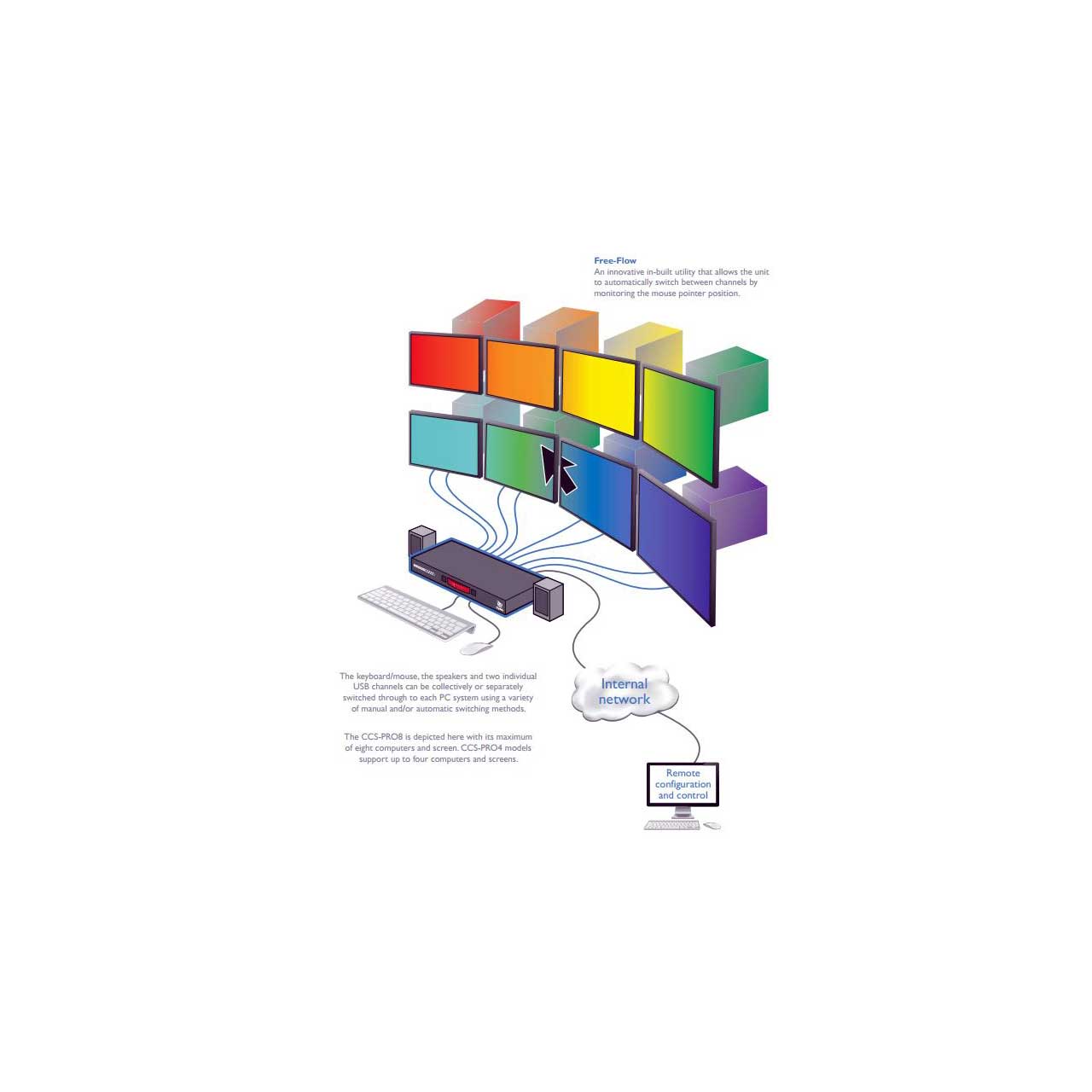

      • Adder's multi-monitor Free-Flow technology: switch between target computers by moving the mouse pointer from screen to screen
      • USB True Emulation: USB 2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers
      • Multiple switching options: instant switching via one of seven different methods: Free-flow; keyboard hotkeys; remote control; API; mouse buttons; front panel button; and serial control
      • Copy and Paste: Copy and paste up to 200KB of formatted text between directly connected Windows computers. Encrypted data setting available. A driver must be installed on each computer
      • External API control: with an open API, the unit can be easily set up and integrate into third party systems
      • Independent USB device selection: switching options enable the operator to use the keyboard and mouse on one computer whilst the USB peripherals are connected to other ones
      • Power redundancy: dual power inlets are available for mission critical control
      • Screen Illumination Module: an optional illumination module, the CCS-XB, is available to identify, with a LED indicator, which screen is being controlled
    • Specifications:

      • Approvals / Compliance
      • CE
      • FCC

      • Standards
      • USB 2.0

      • Cable Requirements
      • For connection to CCS-XB LED illumination module - 10p10c connector via cable VSC46
      • AB USB cable to connect to computer and 3.5mm audio cable

      • Environmental
      • 0 to 40°C / 32 to 104°F

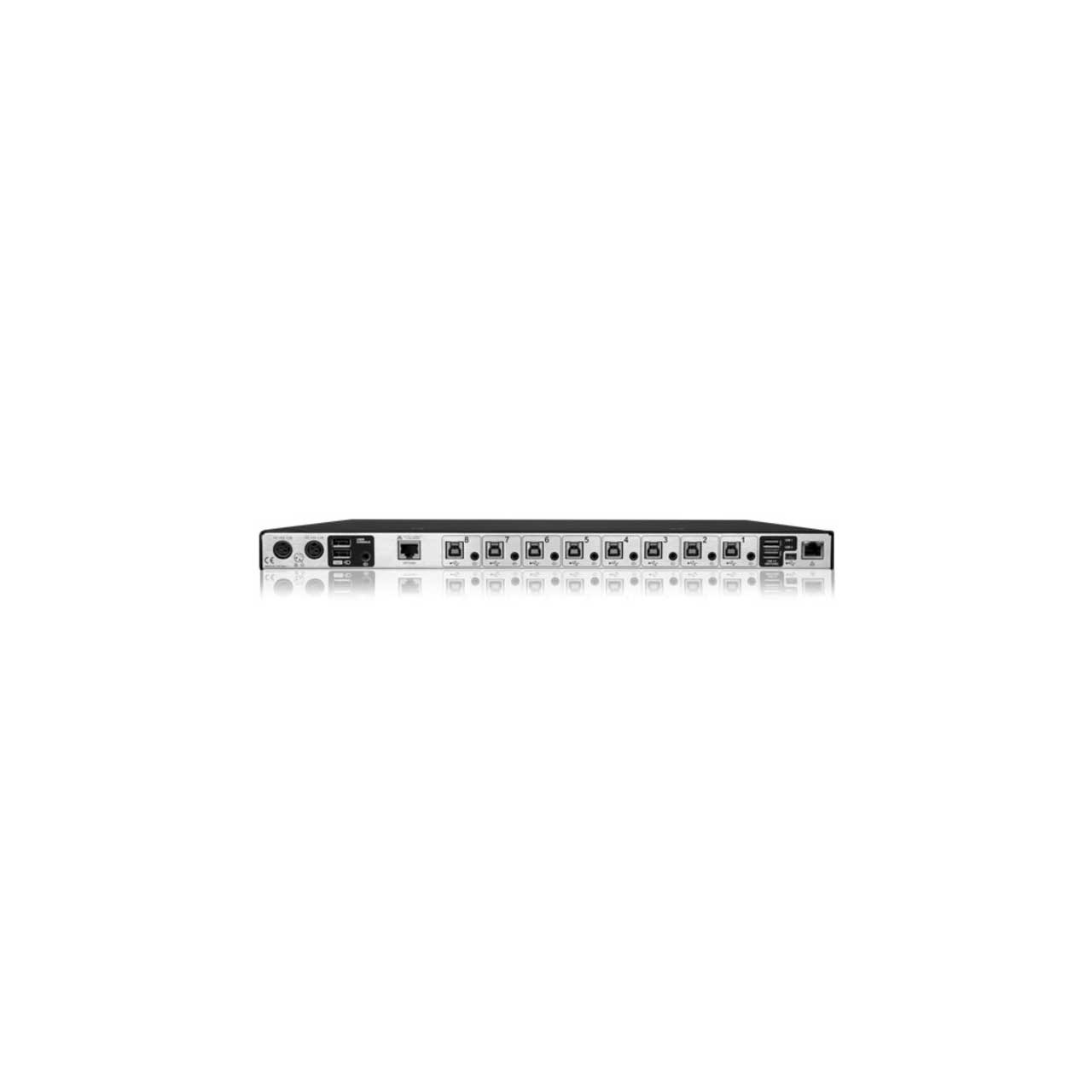

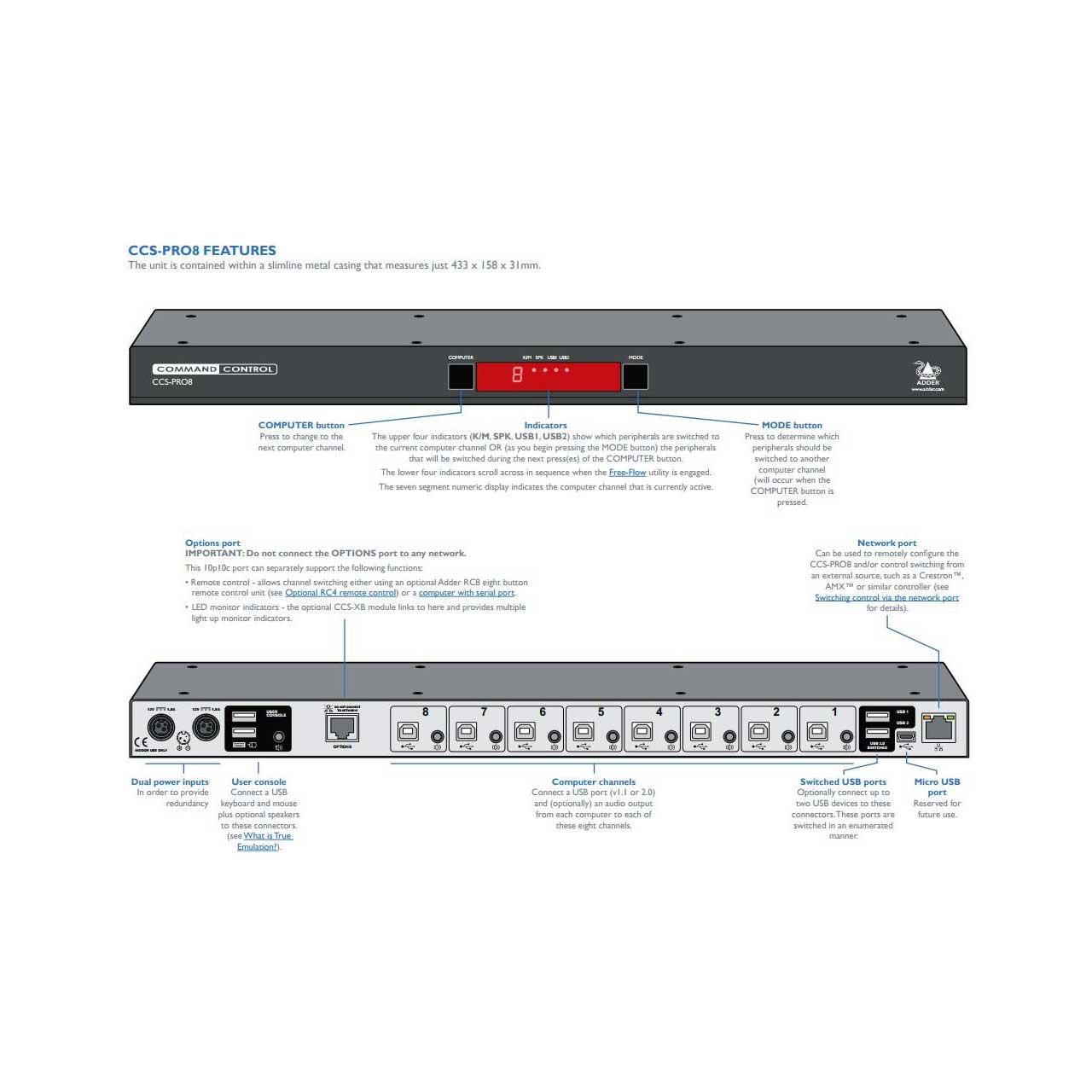

      • Connectors - Local Unit
      • 10 x 6P6C connecters for the CCS-LED modules.
      • 10P10C connector x 1, for upgrade cable or remote control RC4 4-button switch or RC8 8-button switch
      • Audio 3.5mm in x 8
      • USB type B x 8

      • All computers equipped with USB2.0 connections
      • Audio 3.5mm out x 1, USB type A x 2 (Console- USB2.0 Low and Full Speed)
      • USB type A x2 (Enumerated USB2.0)

      • Mechanical
      • Robust metal construction.
      • 433mm/17" (w), 30mm/1.2" (h), 158mm/6.2" (d), 1.57kg/3.5lbs

      • Power
      • Toby 3 pin jack x 2 (one power adapter included),100-240VAC 50/60Hz, 0.7A, input to power adapter.
      • 12VDC, 18W output from power adapter

      • Software
      • All known operating systems for single screens.
      • Free-Flow works by reporting absolute mouse coordinates.
      • Free-Flow Configuration and firmware upgrade programs are available for use with Windows only.
      • Operating temperature: 32 to 104°F
      • Approvals: CE, FCC
    • Item Includes:

      • 1x Adder CCS-PRO8
      • 1x Locking power adapter with US cord
    • Warranty:

      • 2 Year Limited
