Tripp-Lite RS-0615-F 6 Front Outlet Strip 15ft Cord

ITEM #: RS-0615-F MFG #: RS-0615-F

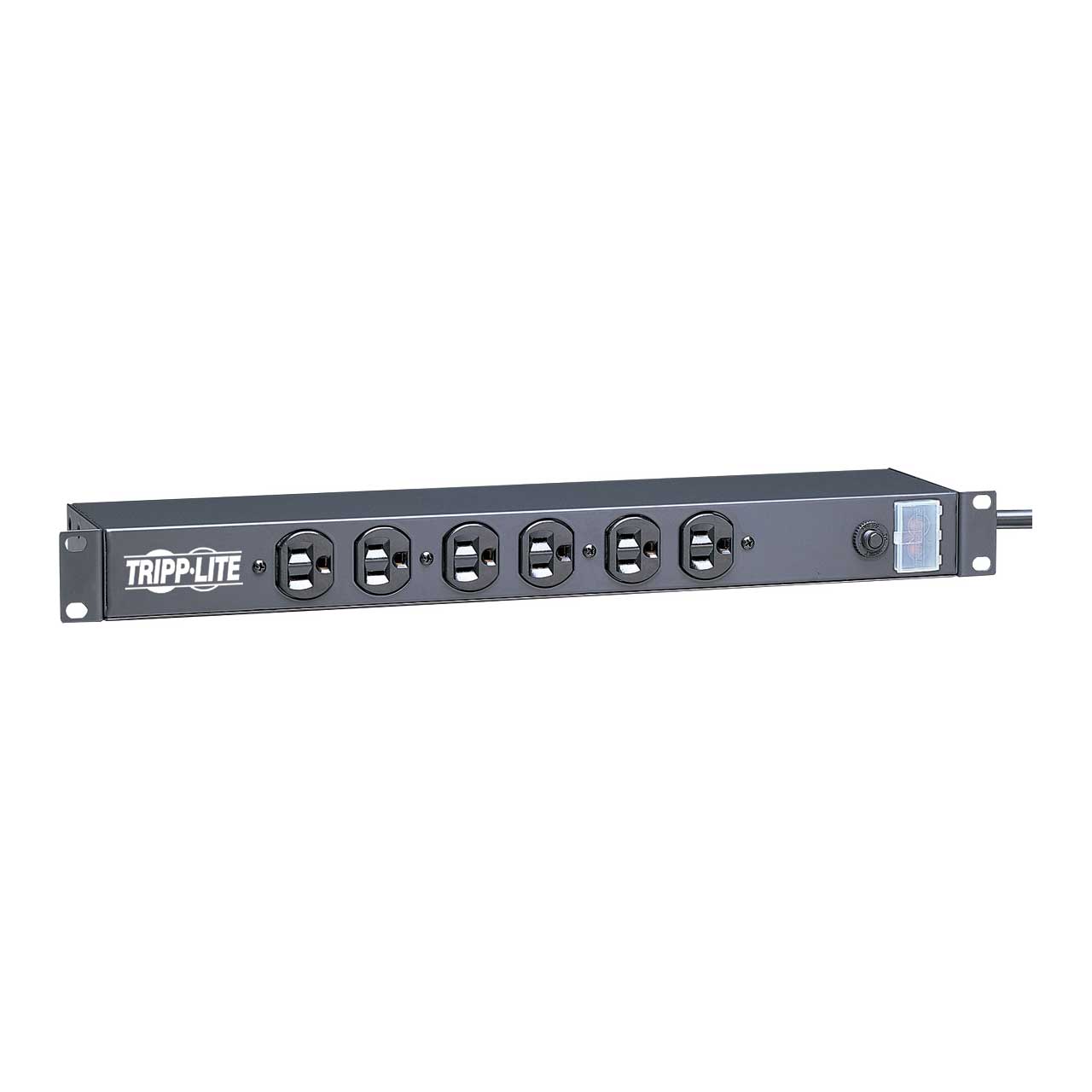

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    RS-0615-F - Overview

    Tripp Lite's RS-0615-F power strip offers 15 amp capacity AC power distribution in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch rack meeting EIA standards. Unfiltered electrical pass-through makes RS-0615-F ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 6 front-facing NEMA5-15R outlets, 15 ft AC power cord and lighted switch with latching safety cover prevents risk of accidental turn-off.

    • Features:

      • Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options
      • Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)
      • Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment
      • 6 front facing NEMA5-15R output receptacles
      • 15 foot AC cord NEMA5-15P plug connection
      • Lighted power switch confirms power on/off status
      • Latching switch guard prevents accidental turn off
      • 15 amp electrical capacity with circuit breaker
      • 120VAC, 50/60Hz electrical compatibility
    • Specifications:

      • Output/Input
      • Frequency Compatibility: 50 / 60 Hz
      • Output Receptacles: (6) 5-15R
      • Circuit Breaker (amps): 15
      • Nominal Input Voltage(s) Supported: 120V AC
      • Recommended Electrical Service: 15A 120V
      • Input Connection Type: NEMA 5-15P
      • Input Cord Length (ft.): 15
      • Voltage Compatibility (VAC): 120
      • Switches: Red illuminated 2 positon switch controls power to all outlets
      • Locking Switch Cover: Transparent locking switch cover prevents accidental shutoff

      • Shipping Dimensions (hwd / in.): 2.000 x 9.400 x 20.500
      • Shipping Weight (lbs.): 5.0000
      • Unit Dimensions (hwd / in.): 1.75 x 17.5 x 4.5
      • Unit Weight (lbs.): 5.50
      • Material of Construction: Sheet metal
      • Receptacle Color: Black
      • Color (AC Line Cord): Black
      • Form Factors Supported: 1U rackmount, wall-mount and undercounter installation supported
      • Outlets Measurement (Center to Center): Distance between grouped outlets = 38.90mm; Distance between groups = 44.45mm; Distance between duplex outlets = 83.35
      • Certifications: NOM (Mexico); UL1363 (UR status); cUL
      • Product Warranty Period (Worldwide): Lifetime limited warranty
    • Warranty:

      • Lifetime
    • GTIN:
