Tripp Lite TLP74R Surge Protector Strip TL P74 R 120V Rt Angle 7 Outlet 4ft Cord

ITEM #: TRL-TLP74R MFG #: TLP74R

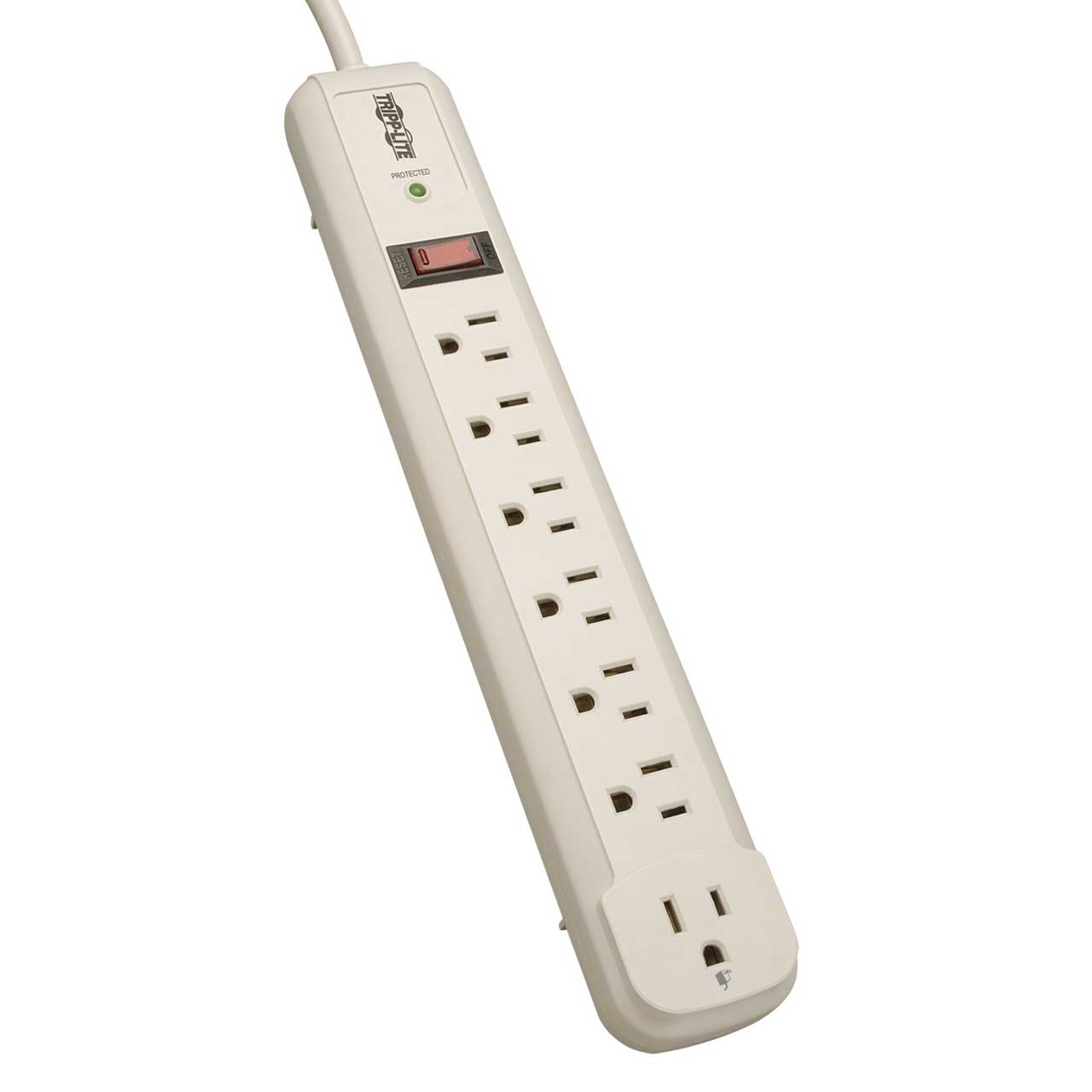

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$27.02

Our Price:

$18.05

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    TLP74R - Overview

    Tripp Lite's TLP74R offers economical AC surge suppression for protection of workstations, desktop PCs, telecom systems and other sensitive electronics. Built-in AC surge suppression shields connected equipment from damage and performance problems due to transient surges. TLP74R offers 7 total outlets (6 at right angle and 1 designated transformer plug outlet), 4 foot cord and diagnostic LED to warn of suppressor damage. AC suppression rated at 1080 joules shields equipment from surges and line noise. Attractive gray housing with keyhole mounting tabs offering convenient protection of desktop computer equipment and accessories. $25,000 Ultimate Lifetime Insurance (USA & Canada Only).PLUG/OUTLETS: Input: NEMA5-15P/Output: 7 NEMA5-15R/4-ft. AC line cordELECTRICAL: 120V AC, 60Hz, 15A (Requires NEMA5-15R wall receptacle)FORMAT: Corded multi-outlet stripSUPPRESSION: AC: 150V RMS Clamping/1080 joules/400V UL1449 Let-through.

    What is the main culprit of electrical surges?
    Electrical devices that require lots of power to operate. Depending on the wiring of your Studio or Production suite, you may notice at times that your lights flicker when powerful devices turn on and off, e.g. your air conditioner. When these devices are switched on, they demand a lot of electricity, which puts a lot of strain on the grid and can cause surges.
    When should you use a surge protector?
    All the time. The real question is really which devices you should connect to a surge protector. You don’t need a surge protector for your desk lamp or your standing fan, but you do want a surge protector for expensive devices that have intricate microprocessors, like computers, DVR's, LED/LCD monitors, power amps, Studio Lighting, Powered Nearfield Speaker monitors, etc. Think of it this way: if there was an electrical surge that destroyed all of the devices connected to your outlets, which lost devices would pain you the most? Plug those into a surge protector. It’s better to be safe than sorry.

    • Features:

      • 1080 joules AC surge suppression shields equipment from the strongest surges and line noise
      • 7 total AC outlets (6 right angle and 1 transformer plug outlet)
      • 4 foot AC line cable
      • Lighted on/off switch with integrated circuit breaker for overload protection of all outlets
      • Diagnostic LED confirms surge suppression status
      • Integrated keyhole slots provide convenient wall/desk mounting
      • UL1449 3rd Edition Rated (400V all modes), UL1363 (Power Tap), cUL (Canada)
      • Exceeds IEEE 587 category A & B surge suppression specifications
      • $25,000 Ultimate Lifetime Insurance (USA and Canada Only)

    • Specifications:

      • Product Group: SURGE PROTECTORS
      • Intended Application: Home/Office
      • Style: Strip
      • Surge Style: STRIP
      • Frequency Compatibility: 60 Hz
      • Output (Watts): 1800
      • Circuit Breaker (amps): 15
      • Outlet Quantity / Type: 7 NEMA 5-15R
      • Number of Outlets: 7
      • Transformer Accommodation: Supports 1 large transformer plug accessory without covering remaining outlets
      • Outlet Orientation: Single row
      • Nominal Input Voltage(s) Supported: 120V AC
      • Recommended Electrical Service: 120V (110-125V)
      • Input Connection Type: NEMA 5-15P
      • Input Cord Length (ft.): 4
      • Input Cord Length (m): 1.22
      • Input Cord Gauge Type: 14 gauge, SJT
      • Voltage Compatibility (VAC): 120
      • Maximum Surge Amps: 36000
      • Switches: Combination AC circuit breaker and 2 position on/off power switch
      • Diagnostic LEDs: Built-in LED confirms suppressor "protection present" (green) status
      • AC Suppression Joule Rating: 1080
      • AC Suppression Response Time: < 1 ns
      • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
      • Clamping Voltage (RMS): 150
      • UL1449 Let Through Rating: 400V
      • Telephone/DSL Protection: No
      • Cable (Coax) Protection: No
      • Network (Ethernet) Protection: No
      • Shipping Dimensions (hwd / in.): 14.05 x 3.26 x 1.37
      • Shipping Dimensions (hwd / cm): 35.69 x 8.28 x 3.48
      • Shipping Weight (lbs.): 1.1
      • Shipping Weight (kg): 0.5
      • Unit Dimensions (hwd / in.): 1.33 x 2.04 x 12.4
      • Unit Dimensions (hwd / cm): 3.38 x 5.18 x 31.50
      • Unit Weight (lbs.): 1.04
      • Unit Weight (kg): 0.47
      • Material of Construction: Plastic
      • Integrated Keyhole Mounting Tabs: Keyhole mounting tabs enable wall mounting
      • Housing Color: Light Gray
      • Receptacle Color: Light Gray
      • Color (AC Line Cord): Light Gray
      • Outlets Measurement (Center to Center): 28.5mm
      • Keyhole Slot Mounting Measurement (Center to Center): 207mm
      • UL1449 3rd Edition (AC Suppression): UL1449 3rd Edition
      • UL1363 (Power Tap): UL1363
      • cUL / CSA (Canada): cUL
      • Approvals: Exceeds IEEE 587 category A&B specifications
      • Product Warranty Period (Worldwide): Lifetime limited warranty
      • Connected Equipment Insurance (U.S., Canada & Puerto Rico): $25,000 Ultimate Lifetime Insurance
      • Selector Type: SURGE SUPPRESSORS

    • GTIN:

      0037332155658
