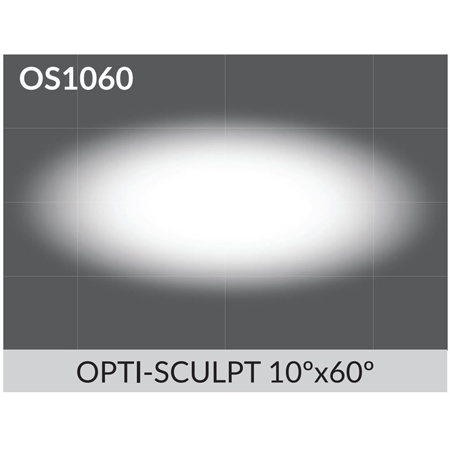

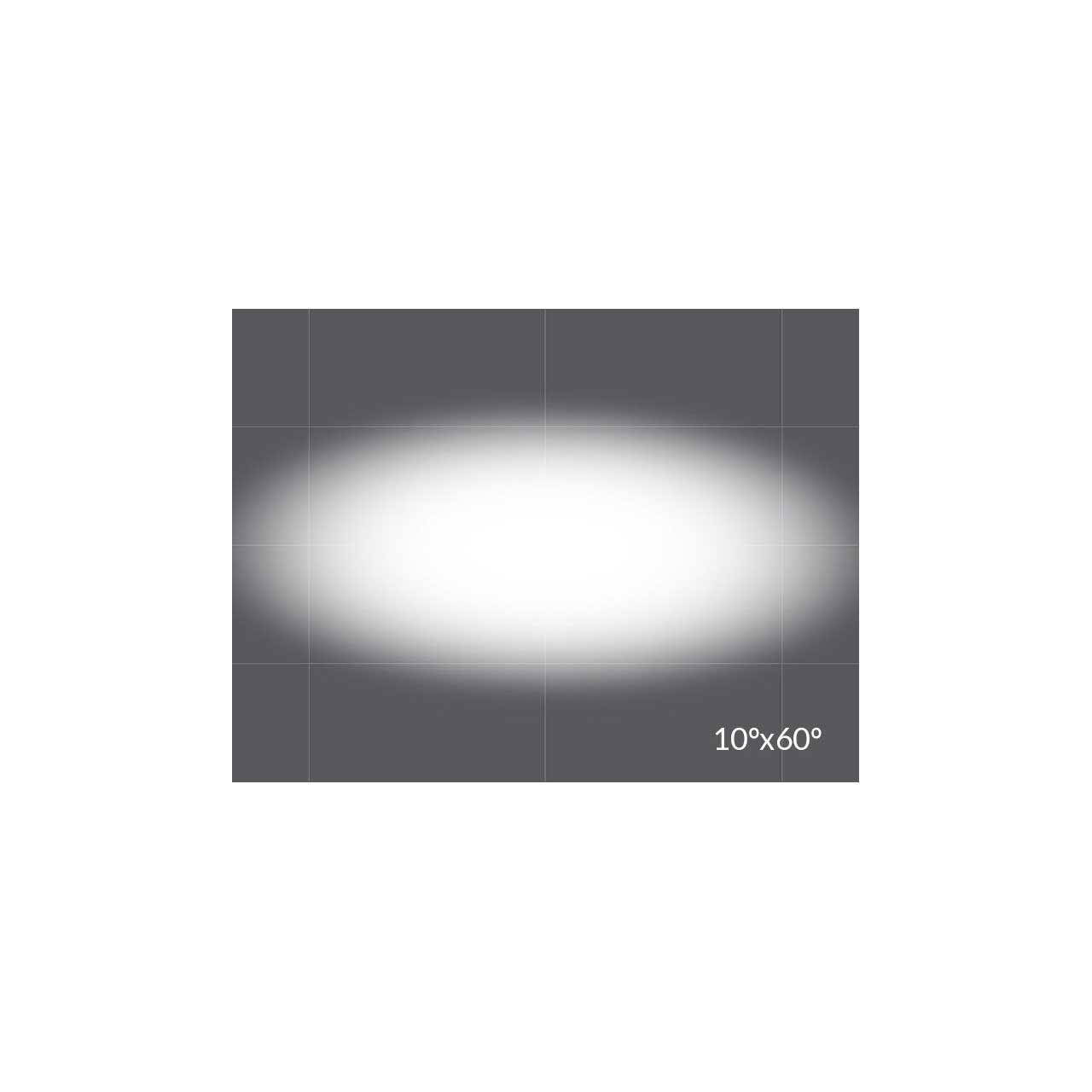

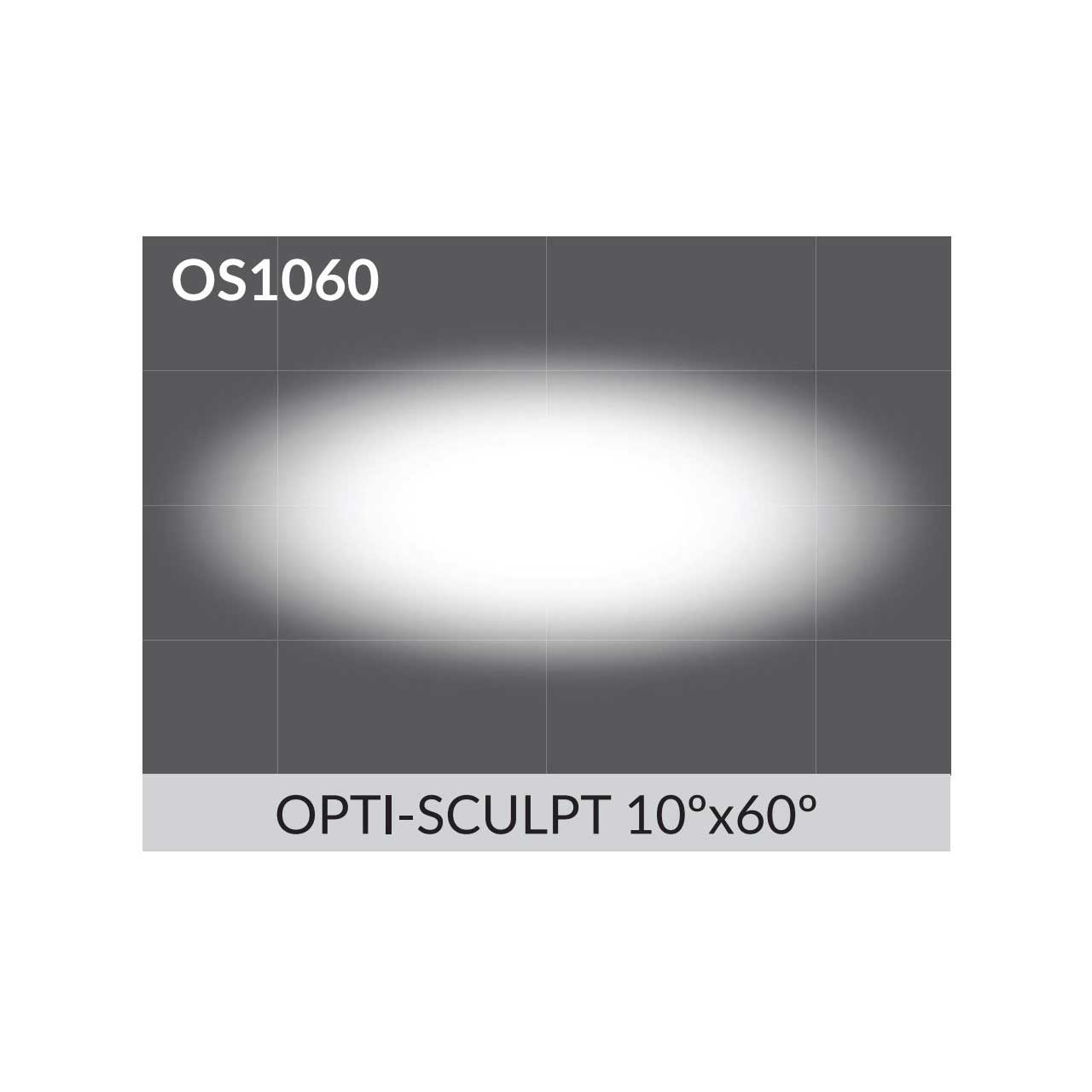

Rosco 108110602440 OptiSculpt Filter - 10x60 Degrees / 24x40-Inch Sheet

ITEM #: RSC-108110602440 MFG #: 108110602440

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$104.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    108110602440 - Overview

    Engineered For Precise Beam Sculpting

    Rosco OPTI-SCULPT Filters provide precise angular beam control - enabling lighting professionals to accurately and affordably control the shape of their light with increased brightness over traditional diffusion filters. Rosco's unique, proprietary process features engineered light distribution that has been laboratory tested for accuracy and repeatability.

    Accurate, Repeatable Beam Shaping
    OPTI-SCULPT light sculpting filters are scientifically engineered to provide lighting designers precise, angular beam control by passing the light through non-diffracting structures for even beam distribution without any color-shift. This uniform control of the beam angle sculpts the beam into circular or linear patterns for any project where beam shaping is required.

    High Light Transmission
    OPTI-SCULPT filters are manufactured out of clear polycarbonate plastic and feature a very fine matte texture on the backside, which helps improve transmission by removing reflective light loss. The beam sculpting structures engineered inside the plastic provide a natural back scatter that helps eliminate hotspots without a significant reduction of light output.

    Durable And User Friendly
    Available in standard 24"x20" and larger 24"x40" seamless sheets, OPTI-SCULPT filters can easily be cut-to-size to fit any light. The performance of these durable, heat resistant, flame retardant filters is not affected by dust or the oils from hands. Thanks to their heat-resistant base, OPTI-SCULPT can be used on both LED and traditional tungsten lighting fixtures.

    Installation:
    Each OPTI-SCULPT Filter has a textured side and a smooth side. In order to achieve the filter's stated beam shape, position the OPTI-SCULPT filter with the smooth side towards the lamp. For the Reversible 40R60 OPTI-SCULPT Filter - position the filter with the smooth side towards the lamp to achieve the 40° beam shape and the textured side of the filter toward the lamp to achieve the 60° beam shape.

    In order to create an accurate experience with OPTI-SCULPT filters, we recommend testing it with a small fixture like a pin spot or a small fresnal fixture. The use of lasers and mobile phone LED lights may provide different, misleading results.

    • Features:

      • Engineered and laboratory tested for accurate and
      • repeatable beam shaping.
      • High light transmission
      • Available in 24"x20" and 24"x40" SEAMLESS sheets
      • Manufactured using heat-resistant, flame-retardant
      • polycarbonate
      • Designed for LED fixtures, but also suitable for use on
      • conventional fixtures
      • Durable - The lens' performance is not adversely affected
      • by dust, fingerprints or by marking the back of the lens.
      • Available in eleven different patterns, including the
      • unique, reversible 40°/60°

    • Specifications:

      • Thickness: 10mil (254æ)
      • Substrate: Clear polycarbonate Contains flame retardant additive
      • Size: 20 x 40 Inch Sheet
      • Thermal Performance: -40°F - +320°F (-40°C - +160°C)
      • Transmission: >85%.
