Triplett 8150 CamView5 H.265/H.264 Security Camera Tester with 5 Inch 1920x1080 IPS Touch Screen

ITEM #: TRIPL-8150 MFG #: 8150

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$299.99

Our Price:

$262.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    8150 - Overview

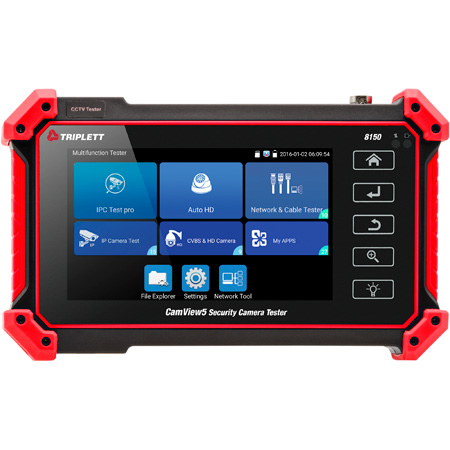

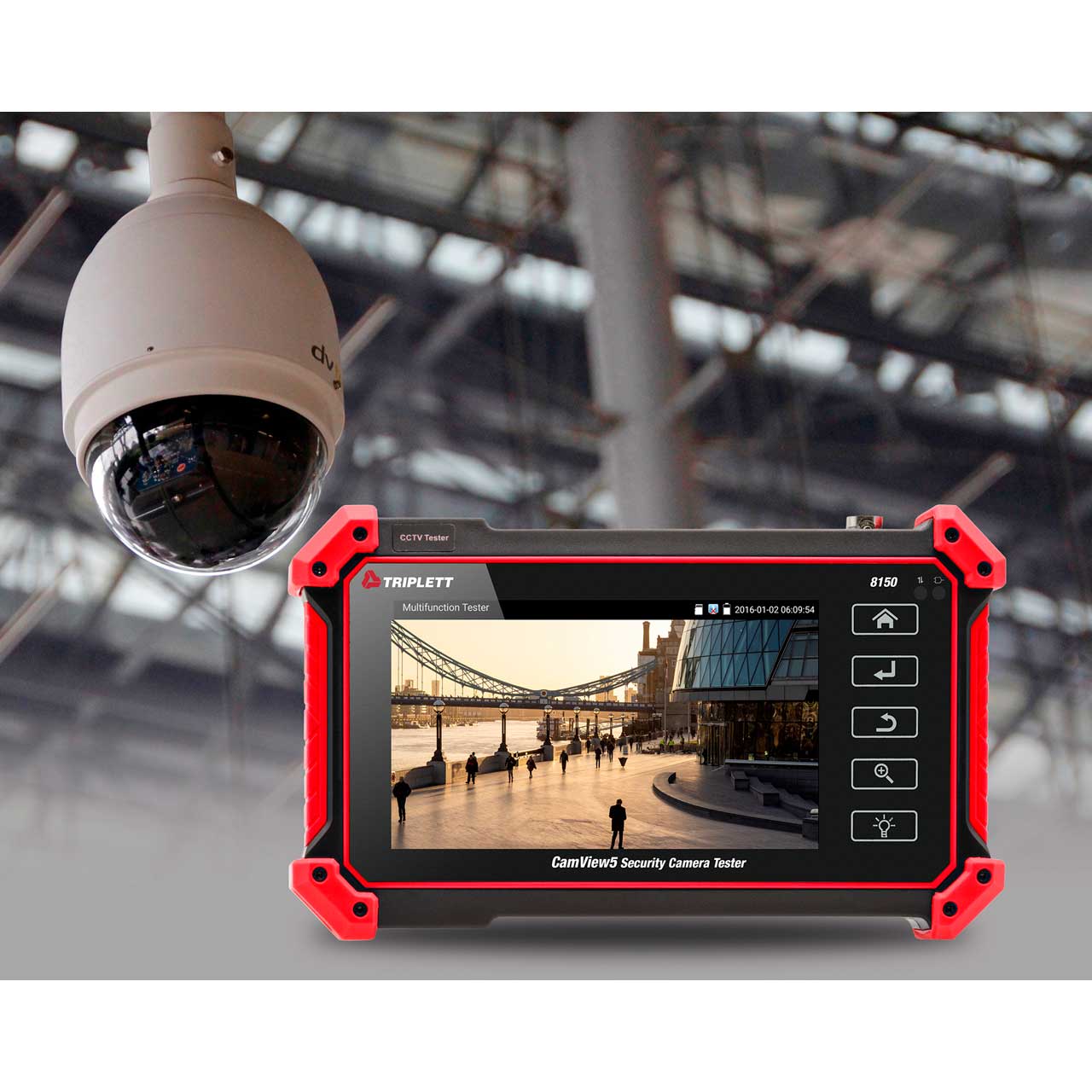

    The Triplett Model 8150 CamView IP Pro 5 has a 5 inch IPS touch screen monitor and is designed for the maintenance and installation of IP cameras, analog cameras, TVI, CVI, AHD cameras, as well as for testing 4K H.264 /H.265. The 1920 x 1080 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports ONVIF PTZ and analog PTZ control and is compatible with more than 30 protocols. The combination of touch screen and key buttons make the CamView IP Pro 5 very user- friendly. Other functions include providing 24W PoE power to your camera, PING and IP address searching, DC 12V 3A power output, HDMI output and much more. Its portability, user-friendly design and many other functions make the IP tester an essential tool for all installers and technicians. Comes complete with Li-ion battery, AC adapter/charger, DC power cable, BNC cable, RS485 cable, audio cable, wrist strap, and carrying case.

    • Features:

      • All-in-one CCTV Tester
      • 5-inch IPS touch screen, 1920x1080 resolutions
      • 8MP CVI/ TVI/ AHD camera test
      • H.265/H.264, 4K video display via mainstream
      • HDMI output, support1080P
      • DC12V 3A, 48V PoE power output
      • Rapid ONVIF, Create the test report and modify IP address, etc.
      • Auto HD, auto recognize HD coax camera type and resolution
      • RJ45 TDR cable test, cable quality test
      • UTP cable test, detect open, shorts, mis-wiring
      • Works 4 hours after a 2~3 hour charge

    • Specifications:

      • IPC Protocol: ONVIF, RTSP, RTP
      • Network Test: 10/100/100M detect; IP address scan, ping, packet test, DHCP server;trace route; link monitor
      • Rapid IP Discovery: Discover the IP address in the connected device's network segment
      • WiFi: Display upload/download connection speeds: create a Wifi hotspot
      • IP Camera Test: Display image from the 4K H.265 camera by mainstream
      • Data Monitor: Capture and analyze the command data from controlling device; can also send hexadecimal
      • Video Test: NTSC/PAL/HD-CVI 3.0/AHD 3.0/HD-TVI 3.0
      • Audio Test: 1 channel audio signal input
      • PTZ Control Test: Support RS485; Compatible with more than 30 protocols
      • Lens Simulation: Simulate different lens display areas: 2.8, 3.6, 4, 6, 8, 12, 16, 25mm
      • POE Test Power: 48V power output; Max power 24W
      • 12V Power Output: 12V/3A output interface
      • Snapshot/Video: Capture and record images and live video with playback
      • Memory: Internal - 3.2GB; External - Optional microSD 32GB max
      • Display: 5" IPS Touch, 1920x1080
      • Power: Lithium-ion battery 5 hour work time
      • Dimensions: 183 x 110 x 36.5mm

    • Item Includes:

      • 1x Triplett 8150 CamView5 H.265/H.264 Security Camera Tester with 5 Inch 1920x1080 IPS Touch Screen
      • 1x 7.4V Li-ion battery
      • 1x AC adapter/charger
      • 1x DC power cable
      • 1x BNC cable
      • 1x RS485 cable
      • 1x Audio cable
      • 1x Wrist strap
      • 1x Carrying case

    • GTIN:

      0614395002930
