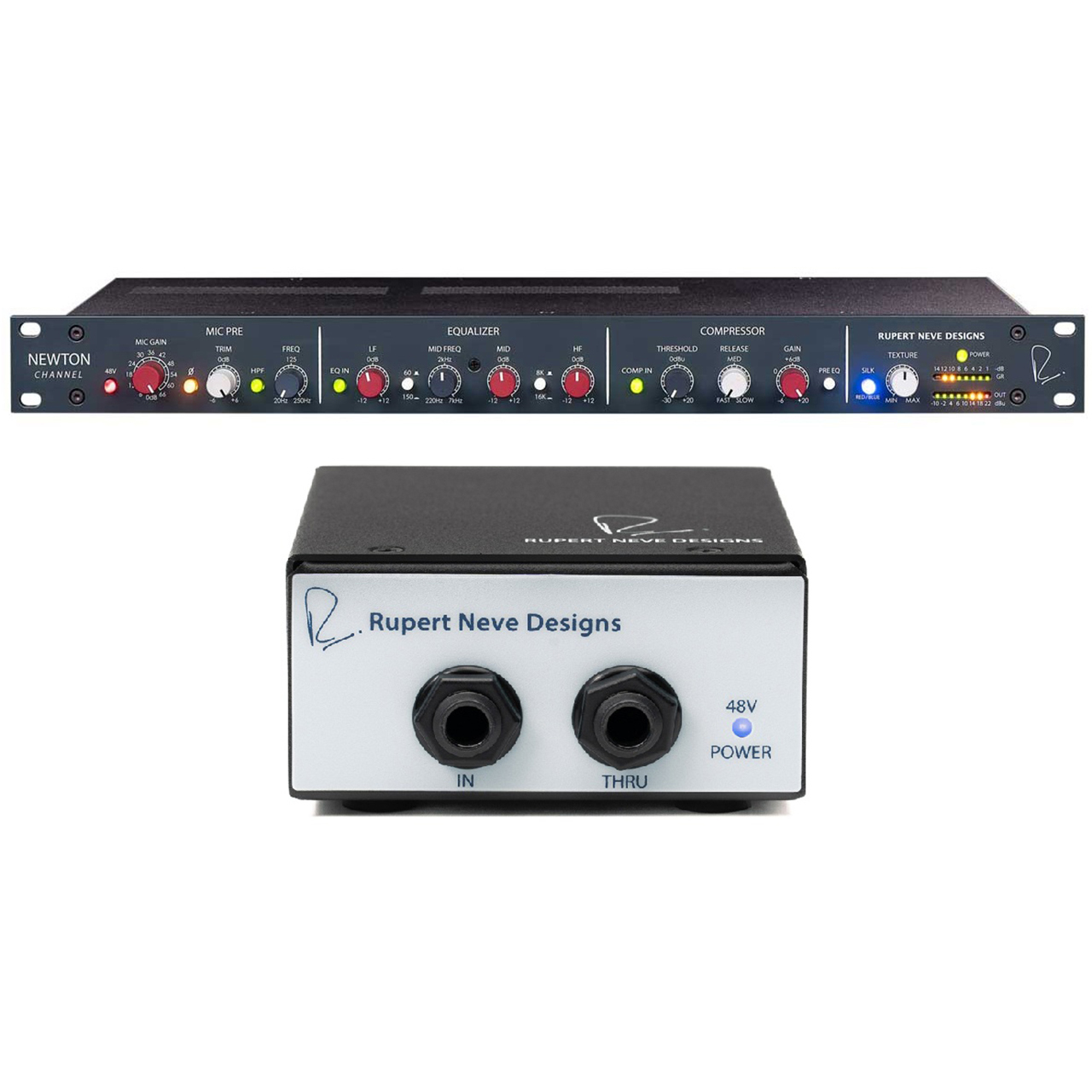

Rupert Neve Designs 5034/RNDI-M 5034 Newton Channel Strip with RNDI-M Active Transformer Direct Interface Bundle

5034/RNDI-M - Overview

• Features:

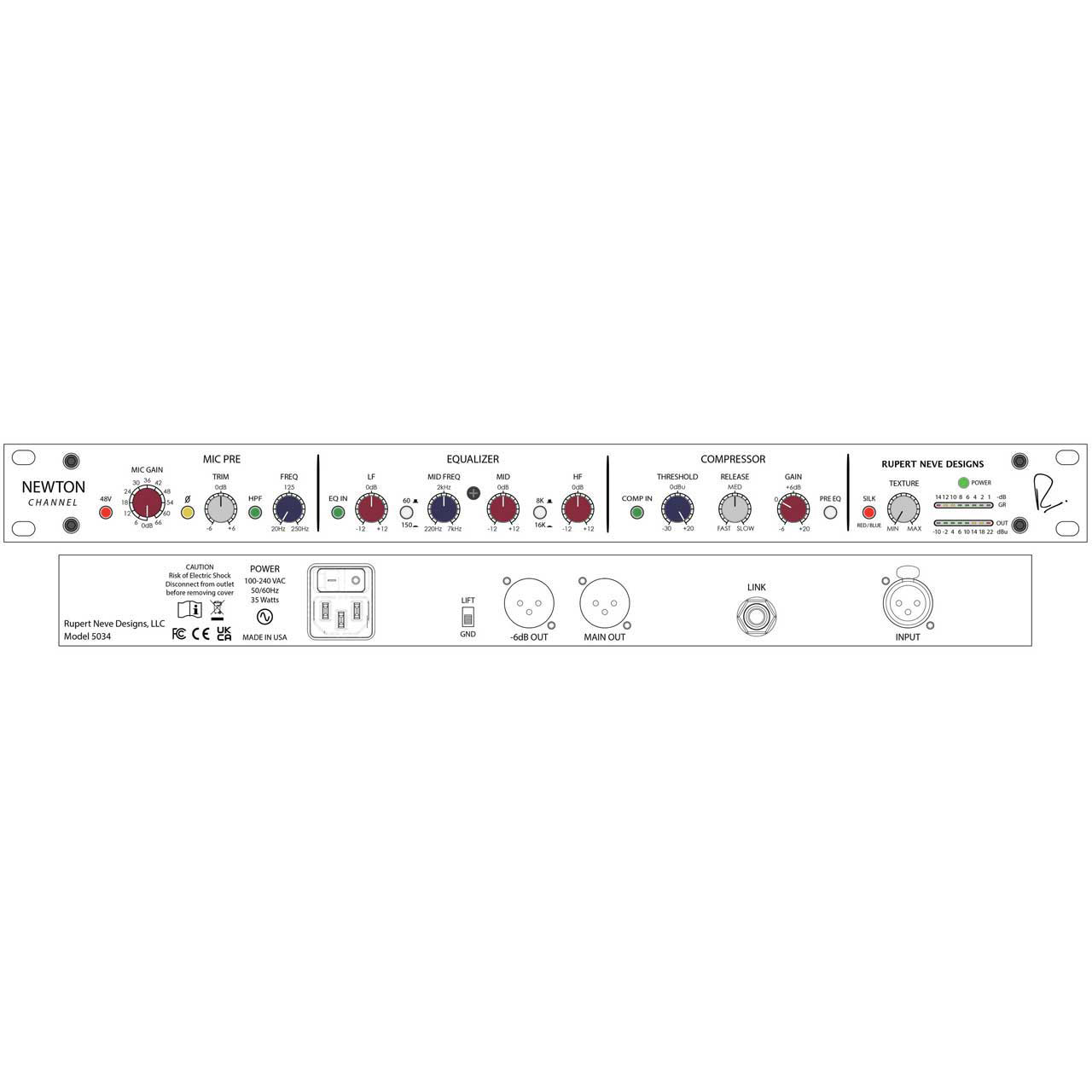

  5034
  • Mic Gain: 12-position rotary switch that controls the microphone preamp gain in 6dB steps. For line level input signals, set the Mic Gain to the "0dB" position.
  • 48V: Push-button switch that illuminates RED when +48V Phantom Power is engaged.
  • Ø (Polarity): Push-button switch that illuminates AMBER when engaged and inverts the phase of the preamp signal.
  • TRIM: 31-detent potentiometer that allows the user to adjust the preamp gain within a range of ±6dB.
  • HPF: Push-button switch that illuminates GREEN when the high pass filter is engaged.
  • FREQ: 31-detent potentiometer that allows the user to adjust the cutoff frequency of the Sallen-Key high pass filter within a range of 20Hz to 250Hz.
  • EQ IN: Push-button switch that illuminates GREEN when the EQ section is engaged.
  • LF: 31-detent potentiometer that controls the amount of boost or cut for the low frequency shelf within a range of ±12dB.
  • 60/150: Push-button switch that selects between the two available low frequency shelf frequencies: 60Hz (OUT) and 150Hz (IN).
  • MID FREQ: 31-detent potentiometer that controls the frequency of the midband peaking EQ within a range of 220Hz to 7kHz.
  • MID: 31-detent potentiometer that controls the amount of boost or cut for the MID FREQ peaking EQ within a range of ±12dB.
  • 8K/16K: Push-button switch that selects between the two available high frequency shelf frequencies: 8kHz (OUT) and 16kHz (IN).
  • HF: 31-detent potentiometer that controls the amount of boost or cut for the high frequency shelf within a range of ±12dB.
    For a complete explanation of features, please consult the attached User Manual.

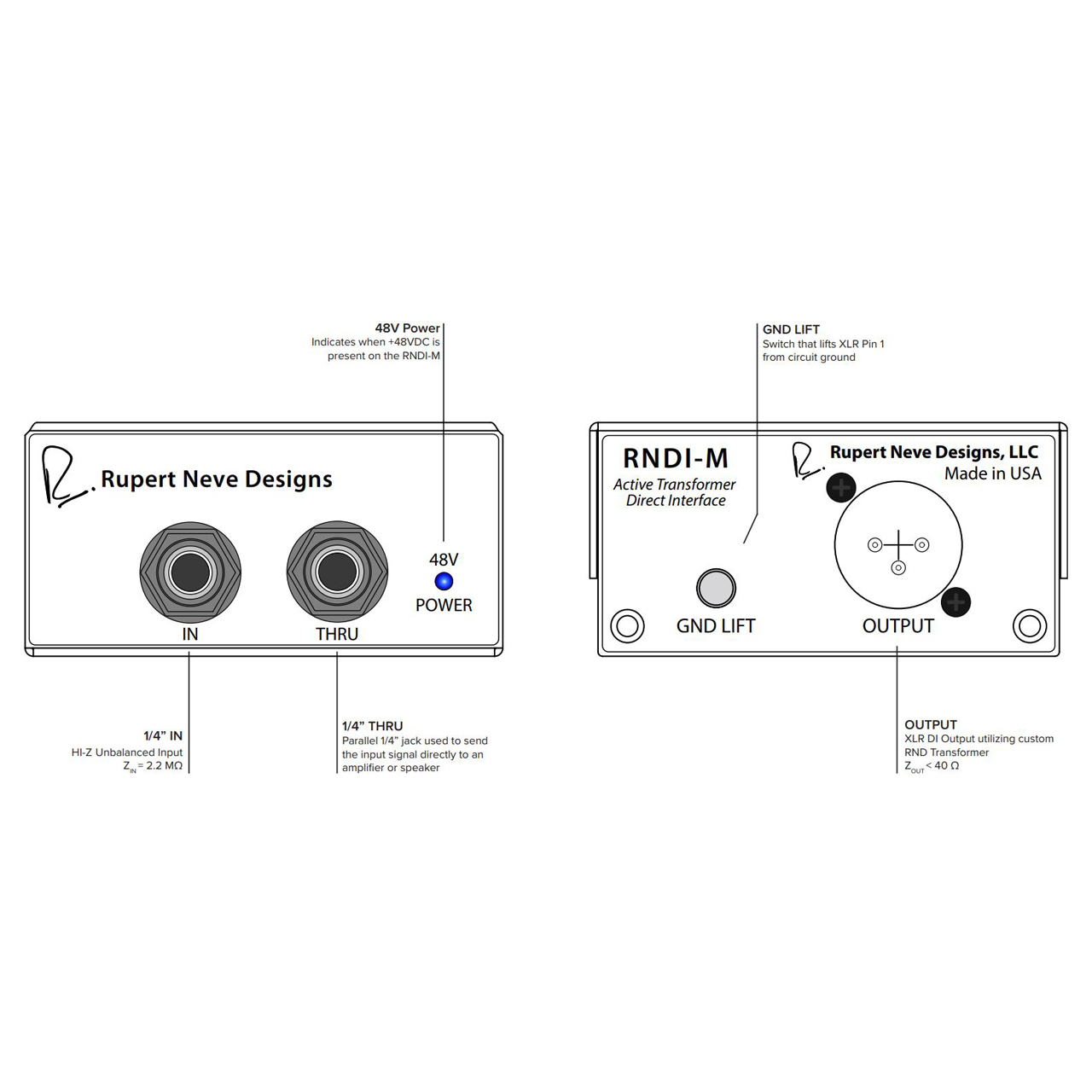

    RNDI-M
  • Groundbreaking Direct Tone: When class-A, discrete amplifiers meet Rupert's custom transformers, amazing things happen. The RNDI-M contains the unique components and design knowledge that make it worthy of the Rupert Neve name.
  • Huge Headroom: Maximum input level is a massive +20.5dBu, making the RNDI-M capable of handling not only instruments but also keyboards, drum machines and even pre-recorded material.
  • Rugged Solid Steel Frame: The rugged steel chassis is built to withstand the severe stresses of life on the road.
  • Use on a Variety of Sources: The RNDI-M has immensely consistent performance across a wide variety of sources due to its 2.2MΩ discrete FET input stage and high headroom. The RNDI-M can be used with confidence on guitars, synths, basses, acoustic instruments, keyboards & drum machines.
  • Drive Longer Lines: The low impedance transformer coupled output - below 40Ω - is capable of driving long lines while maintaining exceptional high frequency performance.
  • ¼" THRU Output: The THRU output can be used to maintain optimal input level to an amplifier with no signal degradation.

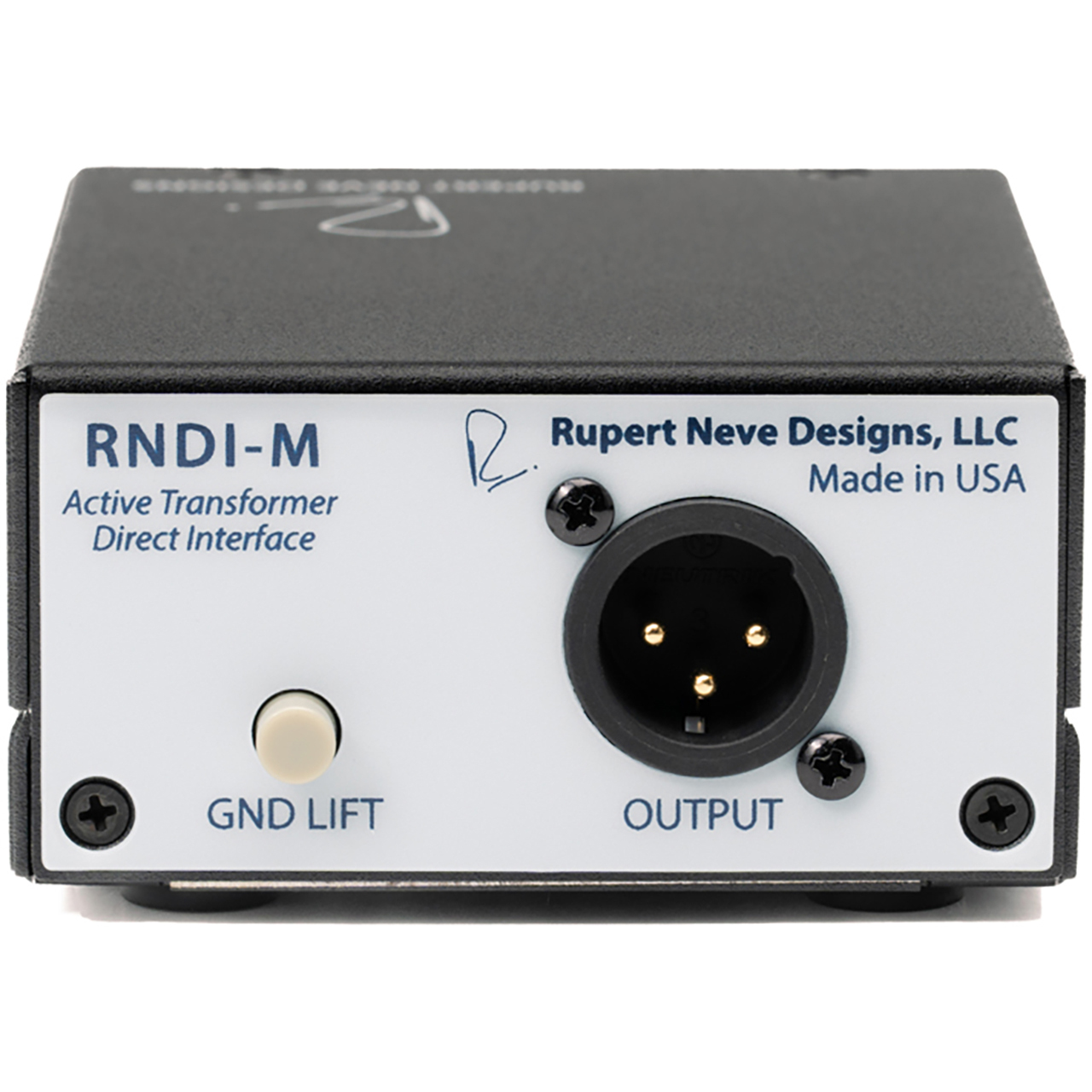

  • Ground Lift: A Ground Lift switch is provided on the rear panel to isolate Pin 1 on the XLR balanced output from the circuit ground to help fix any potential grounding issues.
  • Phantom Powered: The RNDI-M is powered by standard 48V phantom power. Power is indicated by a blue LED on the front panel.


• Specifications:

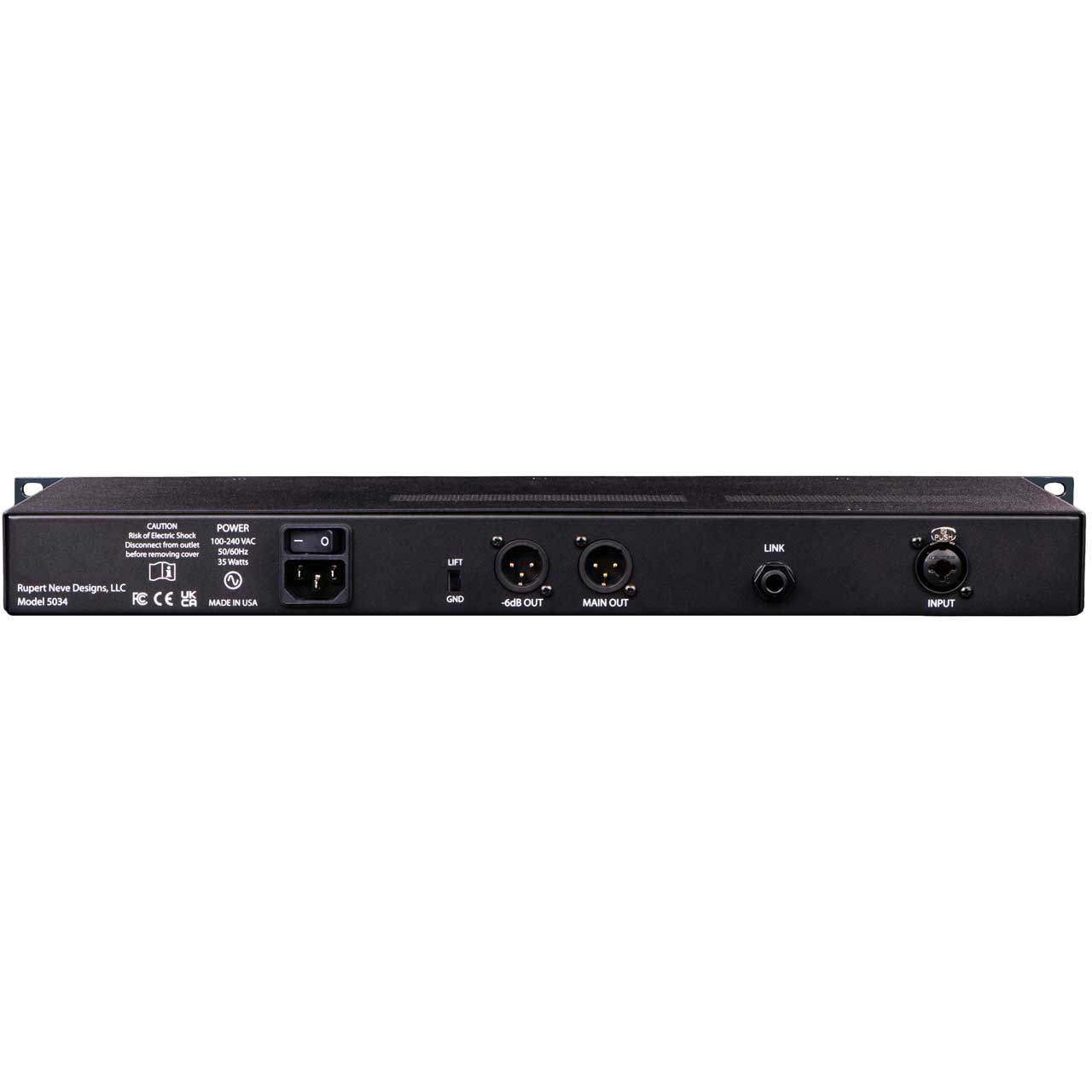

  5034 Newton Channel Strip
  • Input Impedance: 8900Ω
  • Maximum Input Level: +23.6dBu
  • Line Out (Unity Gain): -102dBu
  • -6dB Line Out (Unity Gain): -107dBu
  • Line Out (+30dB Gain): -95dBu
  • Equivalent Input Noise @ +30dB Gain (EIN): -125dBu
  • Maximum Output Level @ 1kHz: +23.6dBu
  • Frequency Response:
    - <10Hz to 30kHz: ±0.1dB
    - <5Hz to 70kHz: ±0.25dB
    - <5Hz to 140kHz: -3dB
  • THD+N, BW (<10Hz - 22kHz):
    - 0dBu at 1kHz: 0.0013%
    - +20dBu at 1kHz: 0.0007%
  • Input to Line Output (Equalizer Engaged):
    - Noise (BW <10Hz to 22kHz): -90dBu
    - THD+N @ 0dBu (EQ Flat): 0.003%
  • Input to Line Output (Compressor Engaged):
    - Noise @ 0dB Make-Up Gain (BW <10Hz to 22kHz): -91dBu
    - THD+N @ 0dBu (EQ Flat): 0.005%
  • Compressor Section:
    - Attack Time: 20mS (fixed)
    - Release Time: Variable; 50mS (Fast) to 500mS (Slow)
  • Dimensions (WxDxH): 19" x 8.125" x 1.75" (48.26cm x 20.64cm x 4.4cm)

    RNDI-M Active Transformer Direct Interface
  • Noise (22Hz - 22kHz, Un-weighted): Better than -110dBV
  • Input Impedance: Instrument Input: 2.2MΩ
  • Output Impedance: Less than 40Ω
  • Maximum Input Level: Instrument Input: +20.5dBu (8.2V RMS)
  • Maximum Output Level: +11.5dBu
  • Frequency Response:
    - ±0.25dB: 28Hz - 60kHz
    - ±1dB: 14Hz - 90kHz
    - -3dB: Below 5Hz
  • Total Harmonic Distortion + Noise (THD+N%):
    - @ 1kHz, +20dBu Input Level: 0.25% Typical (2nd and 3rd Harmonic)
    - @ 1kHz, -20dBu Input Level: 0.015% Typical (2nd and 3rd Harmonic)
    - @ 20Hz, -20dBu Input Level: 0.75% Typical (2nd and 3rd Harmonic)
  • Power Requirements: Phantom Powered, 4.5mA @ +48V DC
  • Dimensions (WxDxH): 3.25" x 4.75" x 1.75" (8.3cm x 12.1cm x 4.4cm)


• Item Includes:

  • 1x 5034 Newton Channel Strip
  • 1x RNDI-M Active Transformer Direct Interface


• Warranty:

  • 1 Year Limited Warranty
