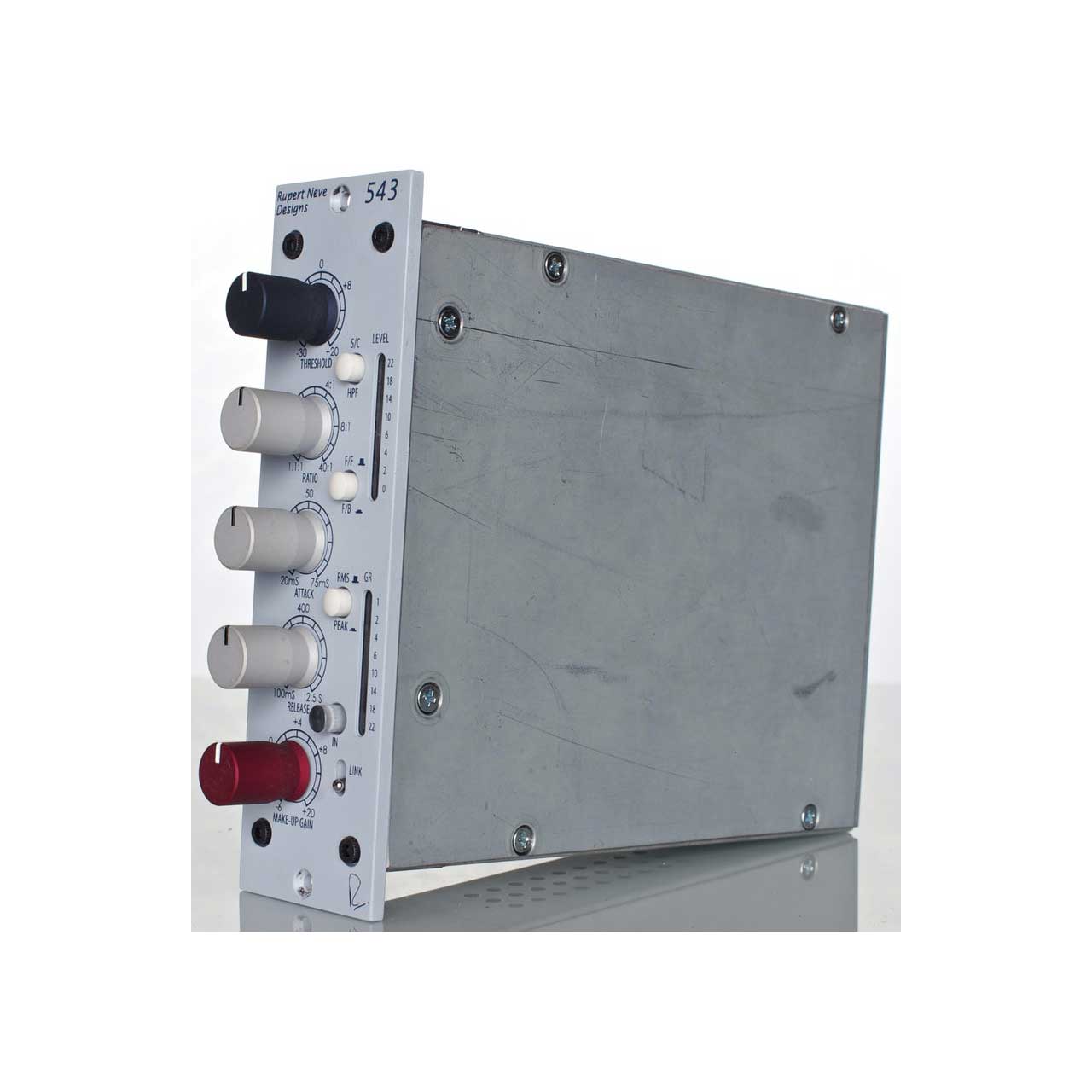

Rupert Neve Designs 543 500 Series Mono Compressor / Limiter

543 - Overview

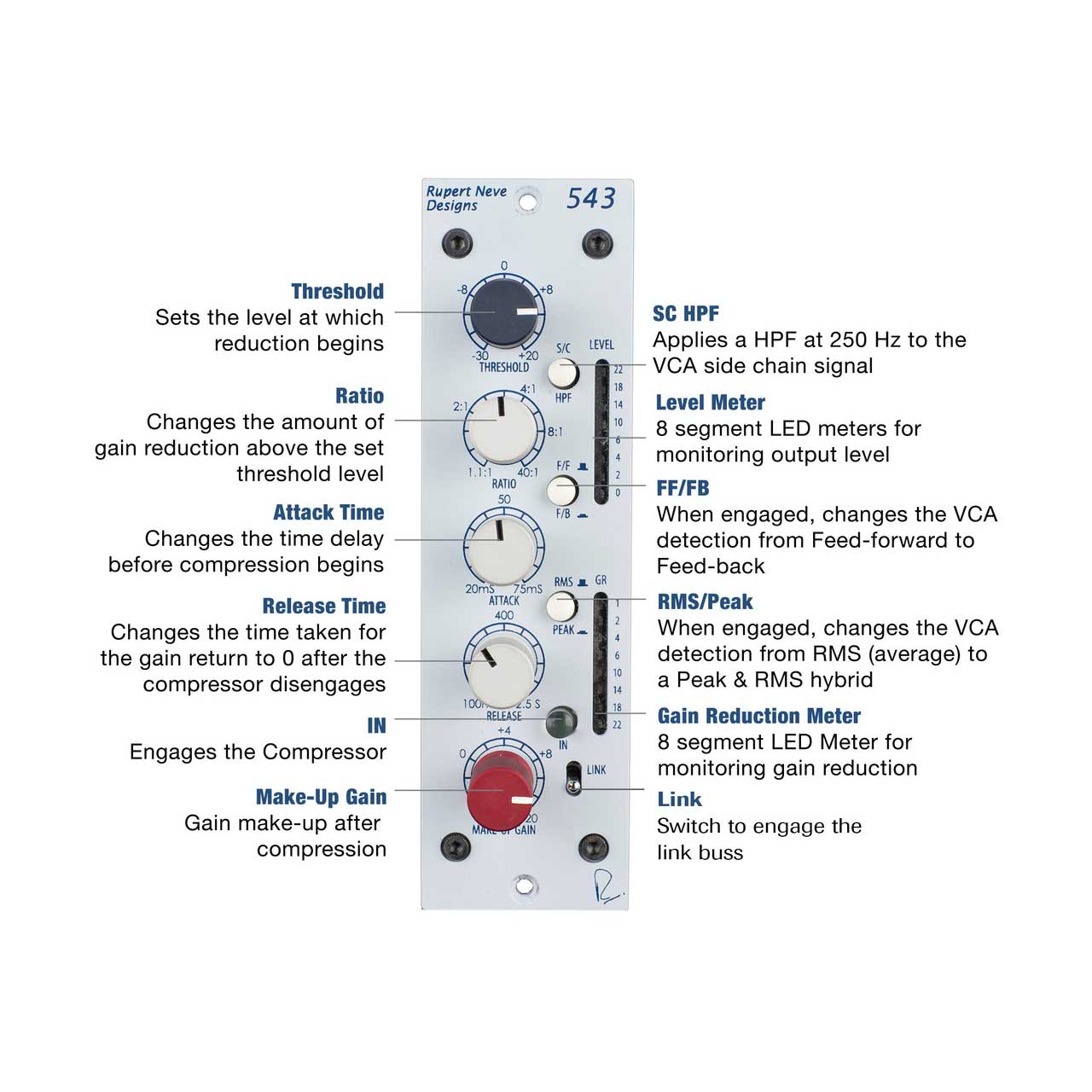

• Features:

  • Classic Rupert Neve VCA compressor sound.
  • Feed-forward and feed-back mode for modern and vintage characteristics.
  • RMS or Peak mode.
  • Ratio, Attack, Release and Threshold controls for ultimate control.
  • Sidechain HPF at 250 Hz applies to the VCA sidechain only.
  • Link switch engages link buss between two units.


• Specifications:

  • Gain Range: Continuously variable from 6 dB to +20 dB.
  • Threshold Range: Continuously variable from 36 dB to +22 dB.
  • Ratio Range: Continuously variable from 1.1:1 to Limit (40:1).
  • Attack Range: Continuously variable from 20mS to 75mS
  • Release Range: Continuously variable from 100mS to 2.5 Seconds.
  • FF/FB: Feed-Forward or Feed-Back VCA control.
  • Maximum Output Level: Balanced and Floating Transformer Output
  • Total Harmonic Distortion and Noise: @ 1kHz, +20 dBu output level, no load. Main Output, compressor
    bypassed
  • Noise: Measured at Main Output, un-weighted, 22Hz-22kHz, Terminated 40 Ohms. With Gain at Unity,
    Compressor disengaged
  • Better than 103 dBu. With Gain at Unity, Compressor engaged: Better than 92 dBu
  • Frequency Response: Main Output, Unity Gain, @ 18 Hz, +/- .1dB, @ 150 kHz -3 dB.
  • Crosstalk: Better than 90 dB @ 15kHz.


• Item Includes:

  • 1x 543 Mono Compressor
  • 1x Manual


• Warranty:

  • 1 Year Warranty


• GTIN:

  0752423656981
