Rupert Neve Designs R6 Six Space 500 Series Rack

ITEM #: RUP-R6 MFG #: R6

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$699.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    R6 - Overview

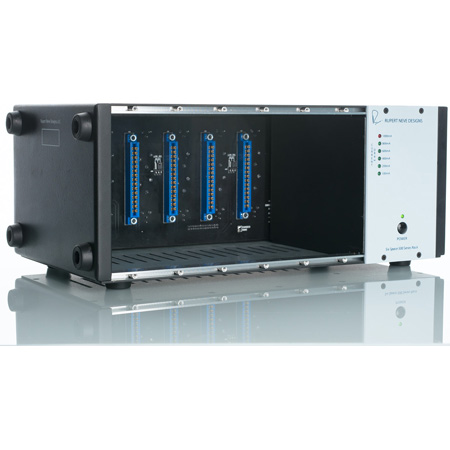

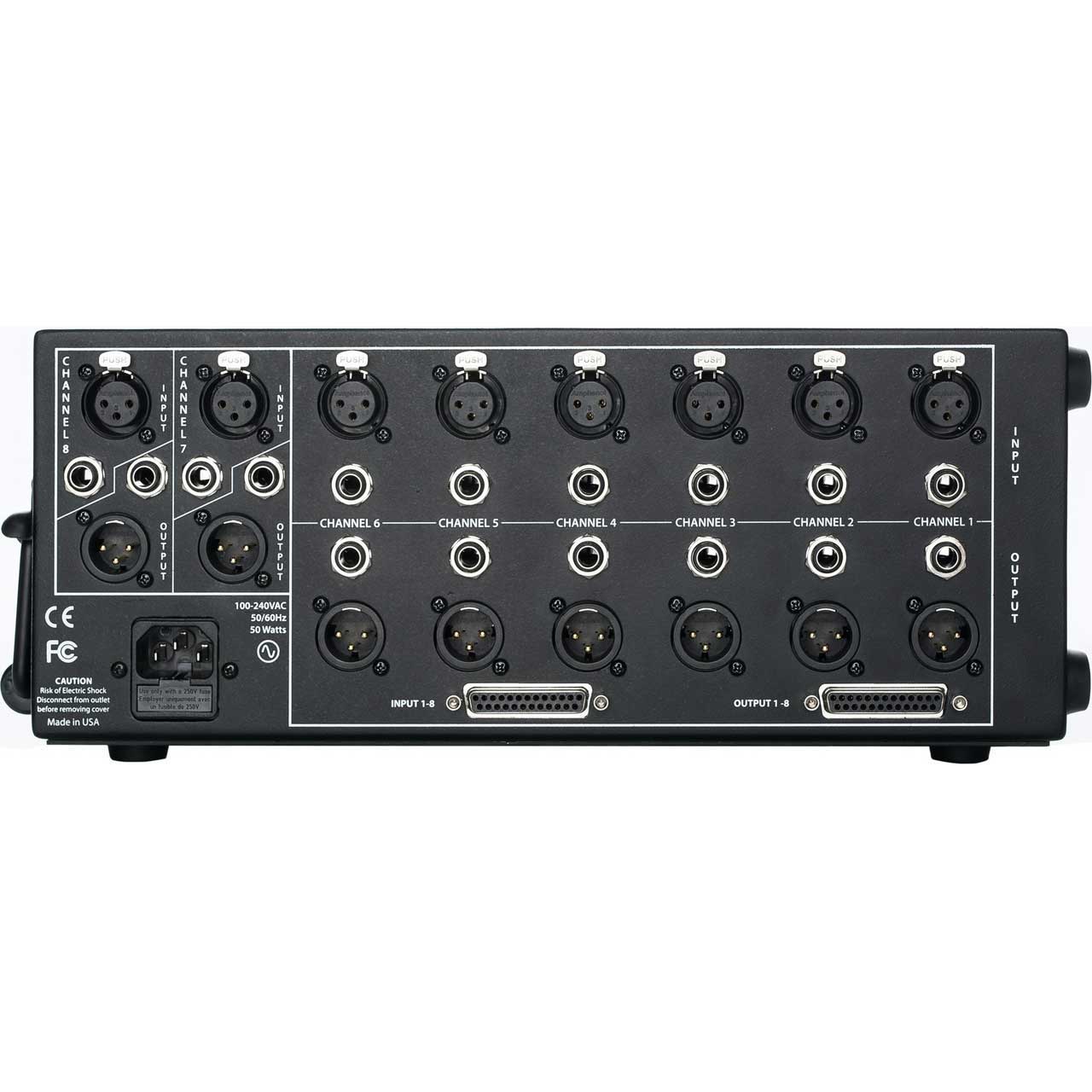

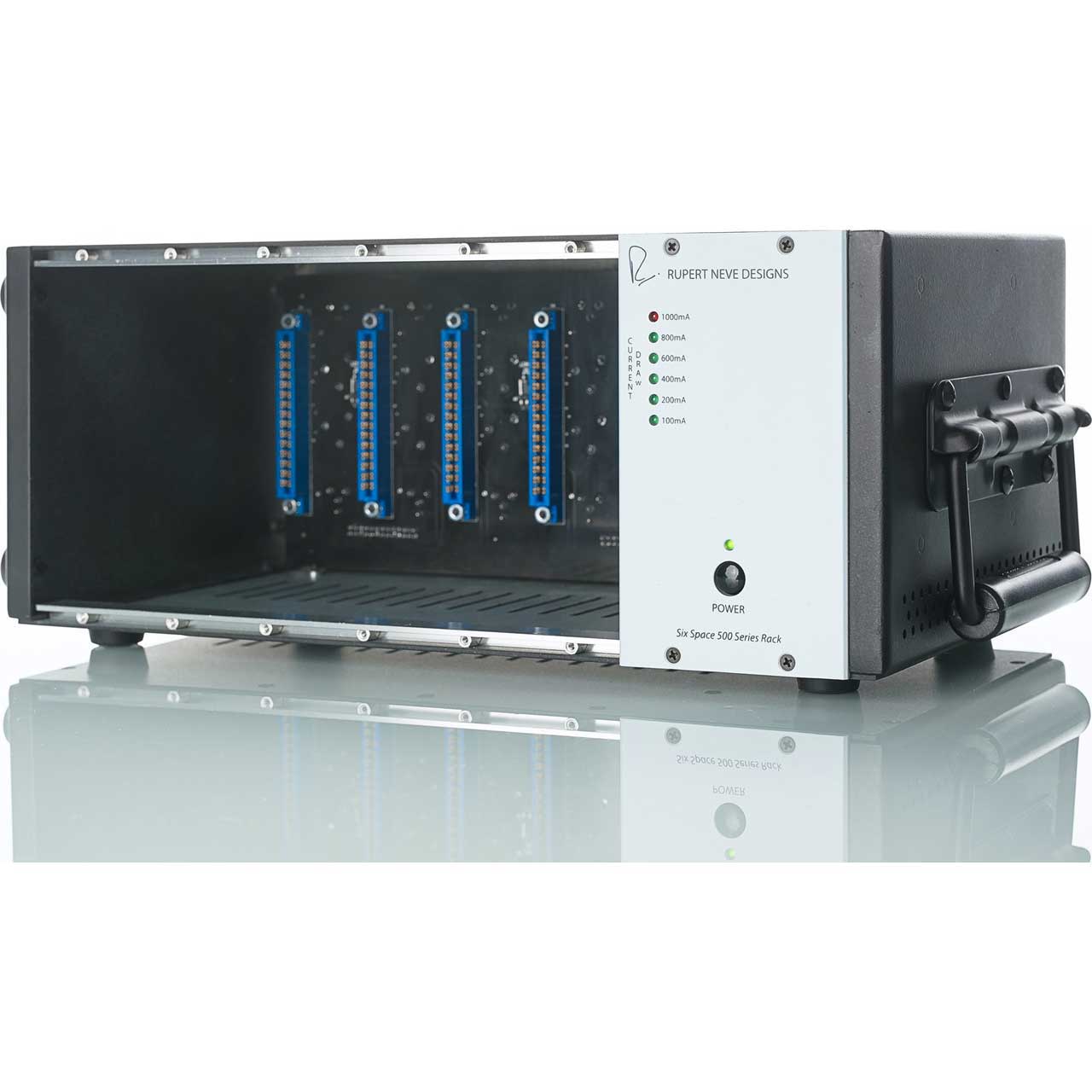

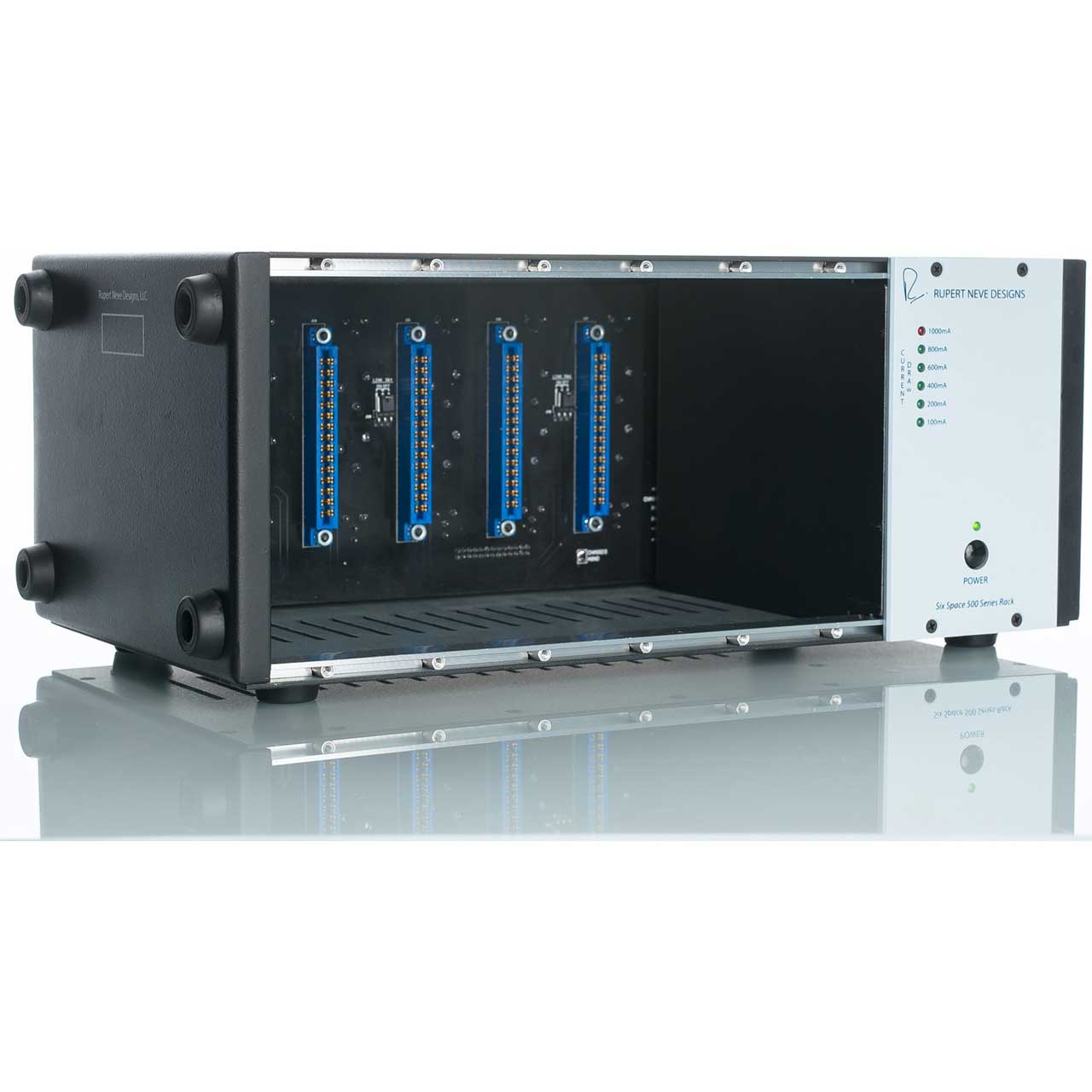

    The R6 500 Series chassis features a solid steel construction with an internal power supply that delivers 150% of the power you'll ever demand. With a plethora of connections available, the R6 back panel is practically a patchbay on its own. The R6 features 8 channels of balanced I/O options including DB-25, XLR and TRS that may be used interchangeably. Because the R6 is built to 500 series specifications, it will work flawlessly with any properly-designed 500 series module you wish to include in it. To help accommodate modules that are slightly out of spec, the R6 has variable-position screw holes to help make the installation process as smooth as possible.

    • Features:

      • Six slots that will accommodate any 500-Series module.
      • Over built PSU that has the reserve power to maintain the voltage.
      • Interchangeable XLR, TRS, and DB-25 I/O connections are provided to ensure that you can connect wherever you go with the backpanel patchbay.
      • Current metering lets you know you'll never run out of power.

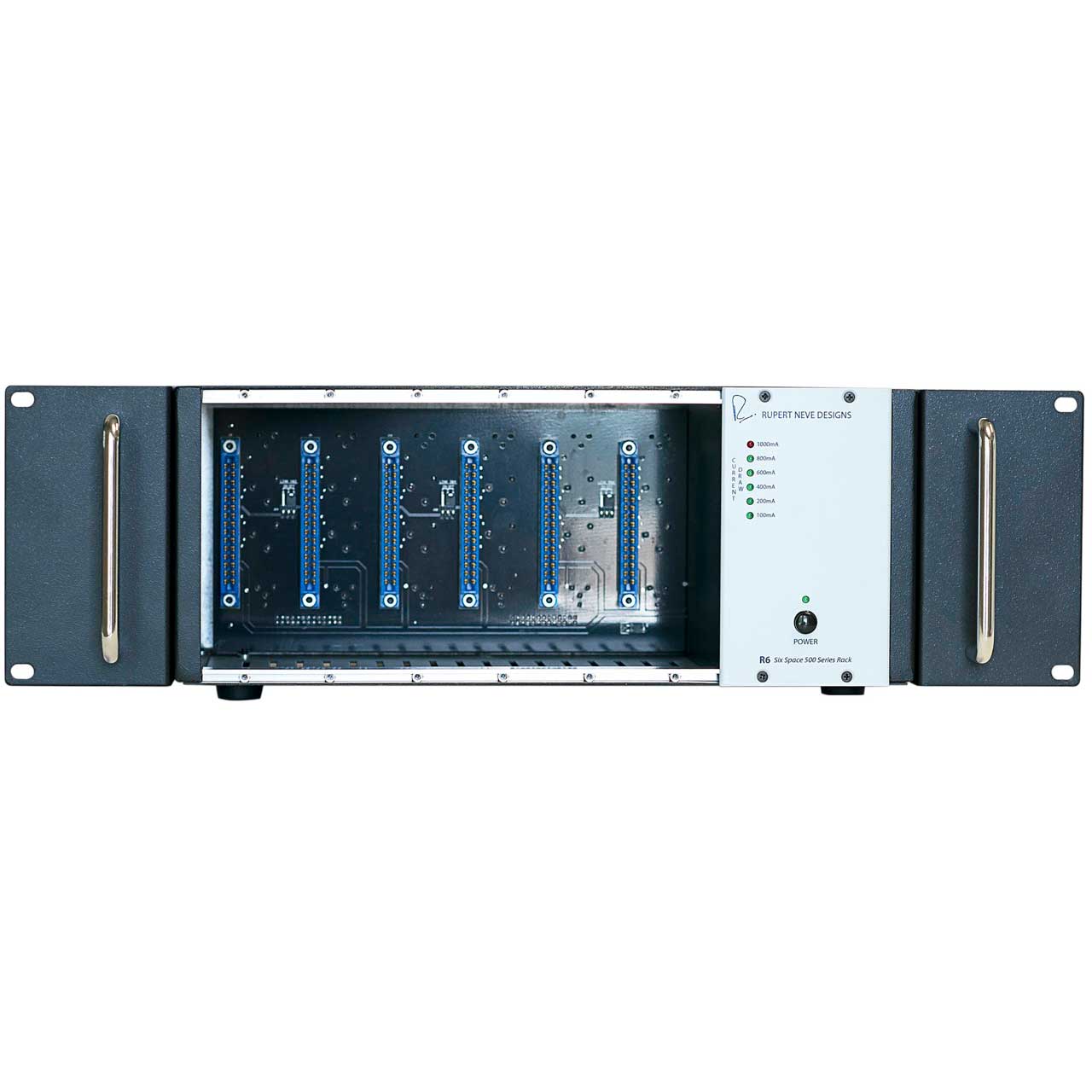

      • Rack-mountable with optional rack kit.

    • Specifications:

      • DC Voltage to Units: +/-16VDC and +48VDC for phantom power
      • Max Current: 1000mA for modules, 150mA for 48V phantom power
      • Power Requirements: 100-240VAC, 50/60Hz, 50 Watts
      • Weight: 9.5lbs
      • Dimensions: 13” long x 7.5”wide x 5.5” high

    • Item Includes:

      • 1x R6 Six Space Rack
      • 1x PSU Cable
      • 1x Manual

    • Warranty:

      • 1 Year Warranty

    • GTIN:

      0752423657322
