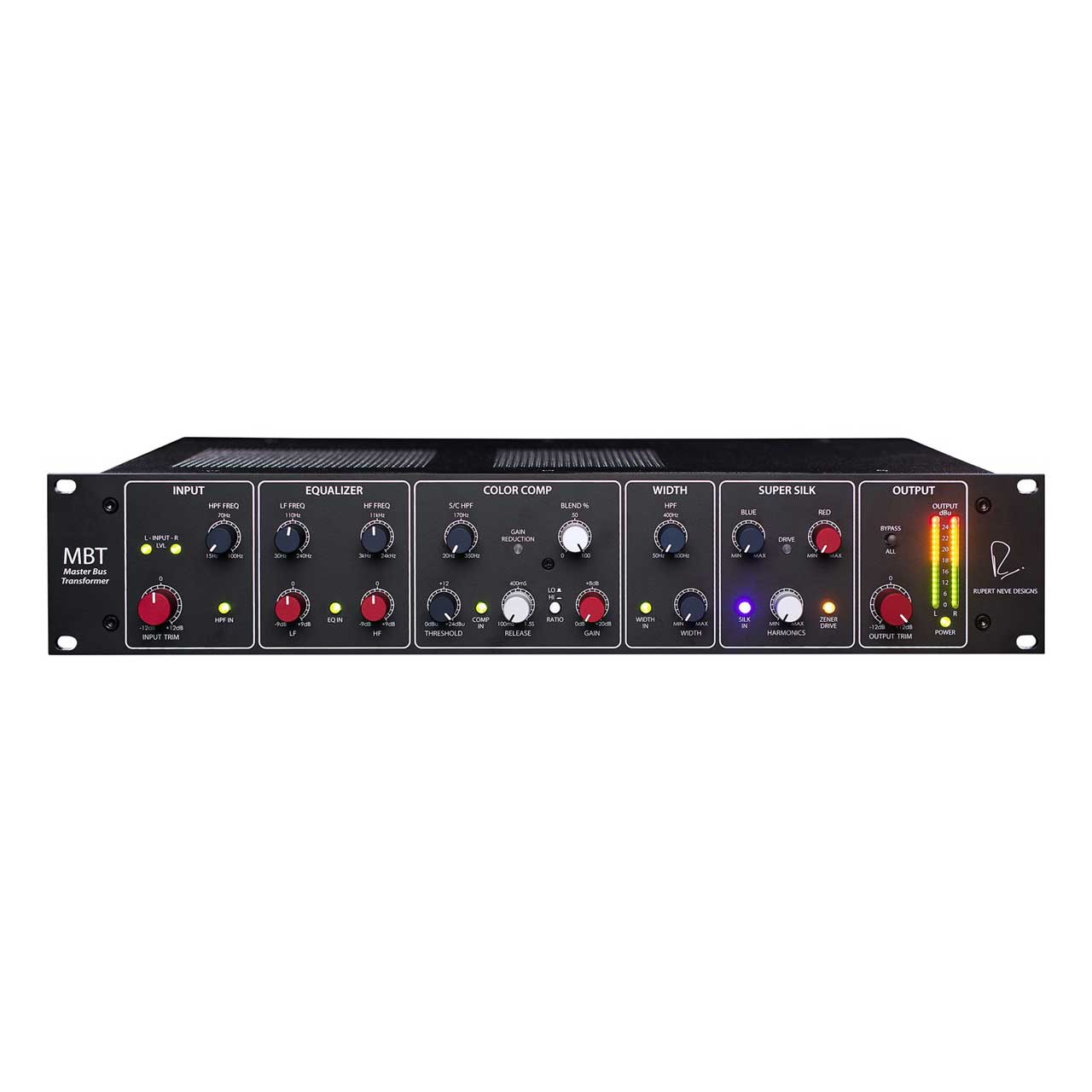

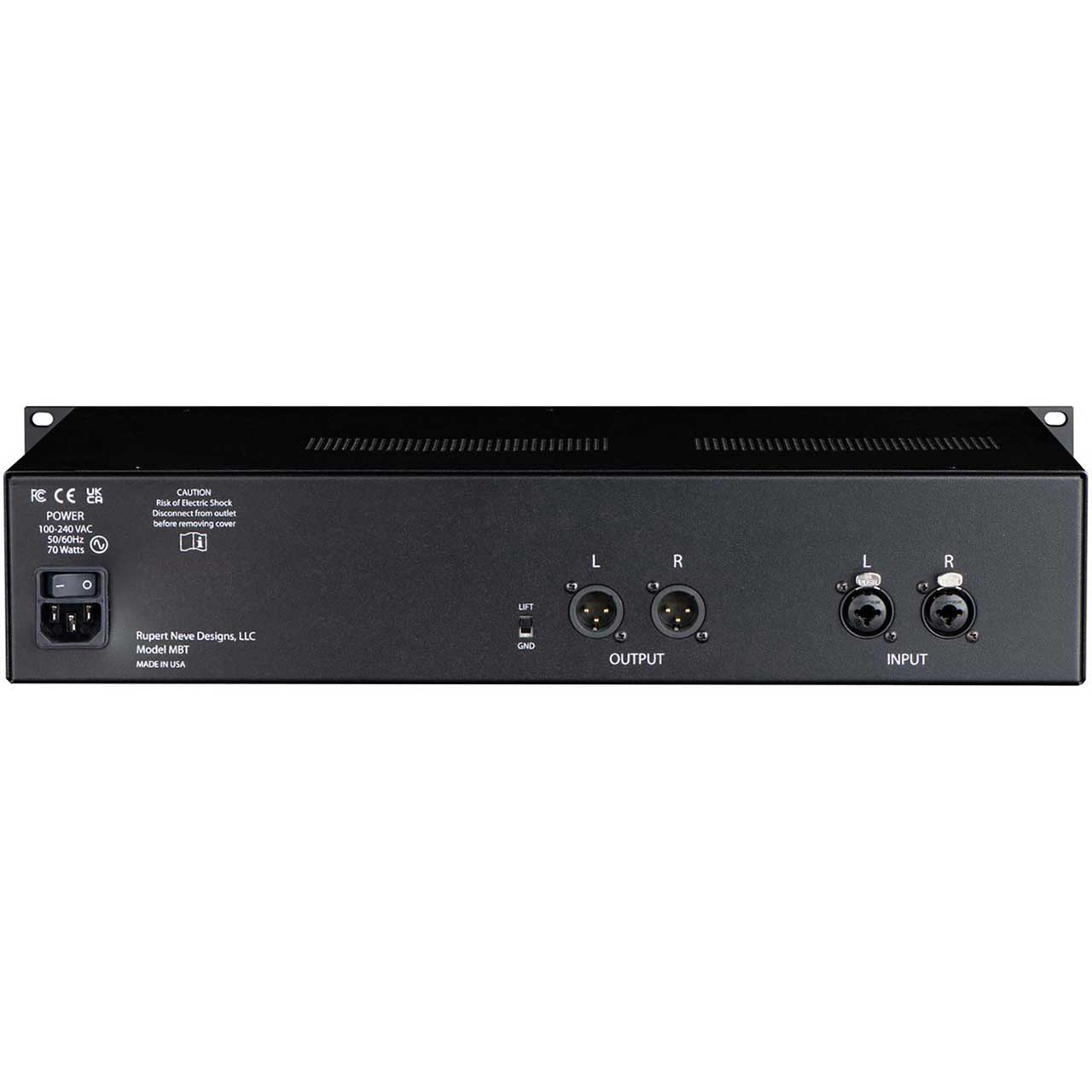

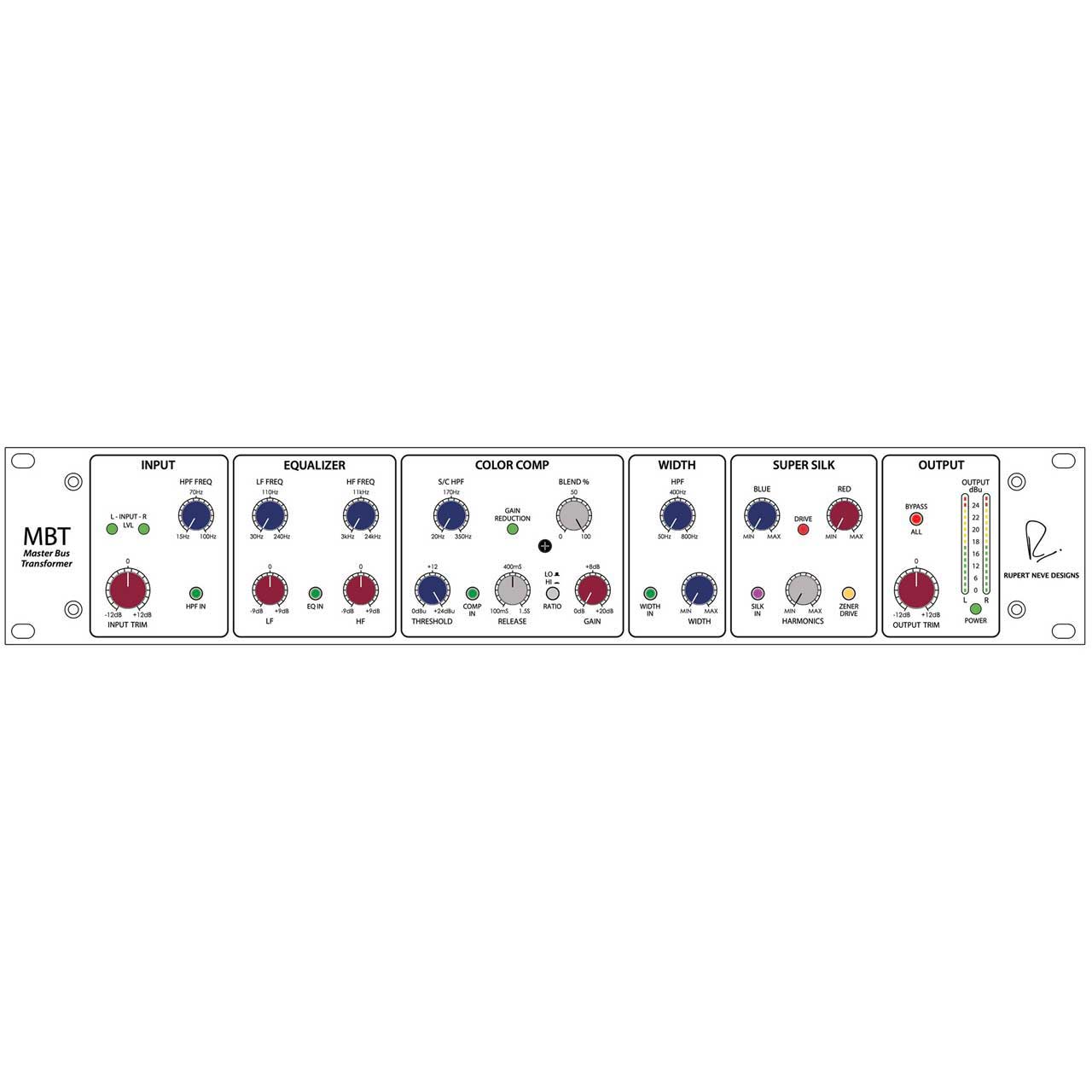

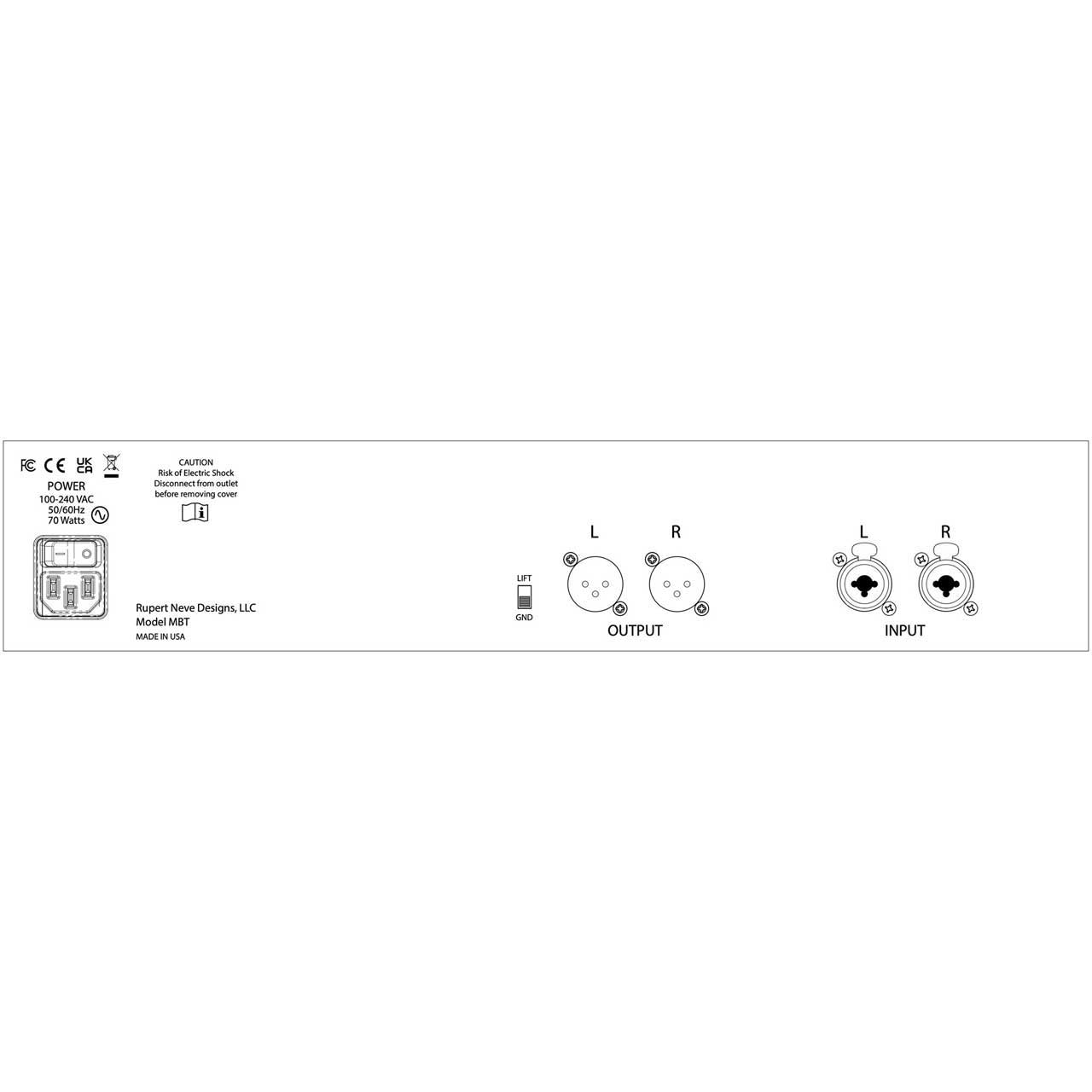

Rupert Neve Master Bus Transformer Audio Signal Processor

ITEM #: RUP-MBT MFG #: MBT

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$3,999.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    MBT - Overview

    Transform your tone.
    For over six decades, audio transformers have been the bedrock of Mr. Rupert Neve's audio circuit design philosophy - and Rupert Neve Designs' bespoke transformers are an integral part of virtually every RND product.

    Packed with these transformers, the MBT provides an incredible array of flavorful options designed to sweeten, enhance, drive, widen, and utterly transform source material, making it the ultimate tool for musical coloration.

    Create Tonal Magic with the Shelf EQ
    With 3 octave ranges, gentle slopes and minimal phase shifts, the all-new 2-band Shelf EQ section was created with an emphasis on simplicity and elegance. This smooth & musical EQ is excellent at providing just the right amount of tonal enhancement - especially when it is interacting with the other sections of the MBT.

    Breathe In New Life with the Color Comp
    With an all-new optical compressor design, the Color Comp excels at accentuating the non-linear distortion and "colorful" characteristics of the Opto cell to bring source material a new sense of life and depth.

    The Color Comp includes two selectable ratios, a sweepable high pass side-chain filter, variable threshold and release, 20dB of Class-A makeup gain, and a Blend control for parallel processing.

    Introducing Super Silk
    Introduced nearly twenty years ago, the Silk circuit has long been a favorite for Rupert Neve Designs users. First available as a simple on/off switch, then with selectable Red and Blue modes and the variable Texture control, Silk exists to enhance and control even and odd order harmonic content in any source material.

    Super Silk is the latest advancement to this beloved technology: with independent Red, Blue, Harmonics and Zener Drive controls, plus the ability to adjust gain into (and out of) the circuit, harmonic manipulation is taken to a whole new level with the MBT.

    • Features:

      • For a list of Front and Rear Panel features, please see the attached User Manual.

    • Specifications:

      • Input Impedance: 10 kilohm

        No Features Engaged:
      • Noise (22 Hz - 22kHz): Better than -95 dBu
      • THD+N (0 dBu @ 1kHz): Better than 0.004%
      • THD+N (+20 dBu @ 1 kHz): Better than 0.002%
      • Maximum Input Level: +25.5 dBu
      • Crosstalk @ 1 kHz: Better than -95 dB

        Frequency Response:
      • <5 Hz - 30 kHz: +/- 0.1 dB
      • <5 Hz - 60 kHz: +/- 0.25 dB
      • <5 Hz - 180 kHz: -3 dB

        HPF Engaged:
      • Noise (22 Hz - 22 kHz): Better than -95 dBu
      • THD+N (+20 dBu @ 1 kHz): Better than 0.002%

        Equalizer Engaged:
      • Noise (22 Hz - 22 kHz): Better than -93dBu
      • THD+N (+20 dBu @ 1 kHz): Better than 0.002%

        Compressor Engaged:
      • Noise (22 Hz - 22 kHz): Better than -92dBu
      • THD+N (+20 dBu @ 1 kHz): Better than 0.002%

        Width Engaged:
      • Noise (22 Hz - 22 kHz): Better than -88dBu
      • THD+N (+20 dBu @ 1 kHz): Better than 0.002%

        SILK Engaged:
      • Noise (22 Hz - 22 kHz): Better than -95dBu
      • THD+N (+20 dBu @ 1 kHz): Better than 0.003%

        Weights & Dimensions:
      • Product Dimensions (W x D x H): 19" (48.3 cm) x 10.125" (25.7 cm) x 3.5" (8.9 cm)
      • Shipping Dimensions (L x W x H): 22" (55.9 cm) x 18" (45.7 cm) x 8.7" (22.1 cm)
      • Shipping Weight: 17 lbs. (7.7 kg)
