Simply45 PROSeries Pass Through 1 Piece Shielded External Ground Green Tint Mod Plugs for Cat6 STP with Cap45 - 50pc Jar

ITEM #: S45-1650P MFG #: S45-1650P

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    S45-1650P - Overview

    Simply45, the industry-leading brand for RJ45 modular plug innovation and performance solutions introduces the ProSeries Shielded with External Ground Pass-Through RJ45 Modular Plug, S45-1650P. The uniquely designed and patented Simply45 ProSeries S45-1650P simplifies and improves the terminated plug performance for shielded Cat6 and Cat6A F/UTP LAN cables. The Simply45 ProSeries S45-1650P Pass-Through RJ45 modular plugs are by far the highest performing, easiest to use, and most cost-effective way to professionally terminate Cat6 Shielded STP and Cat6A F/UTP LAN cables.

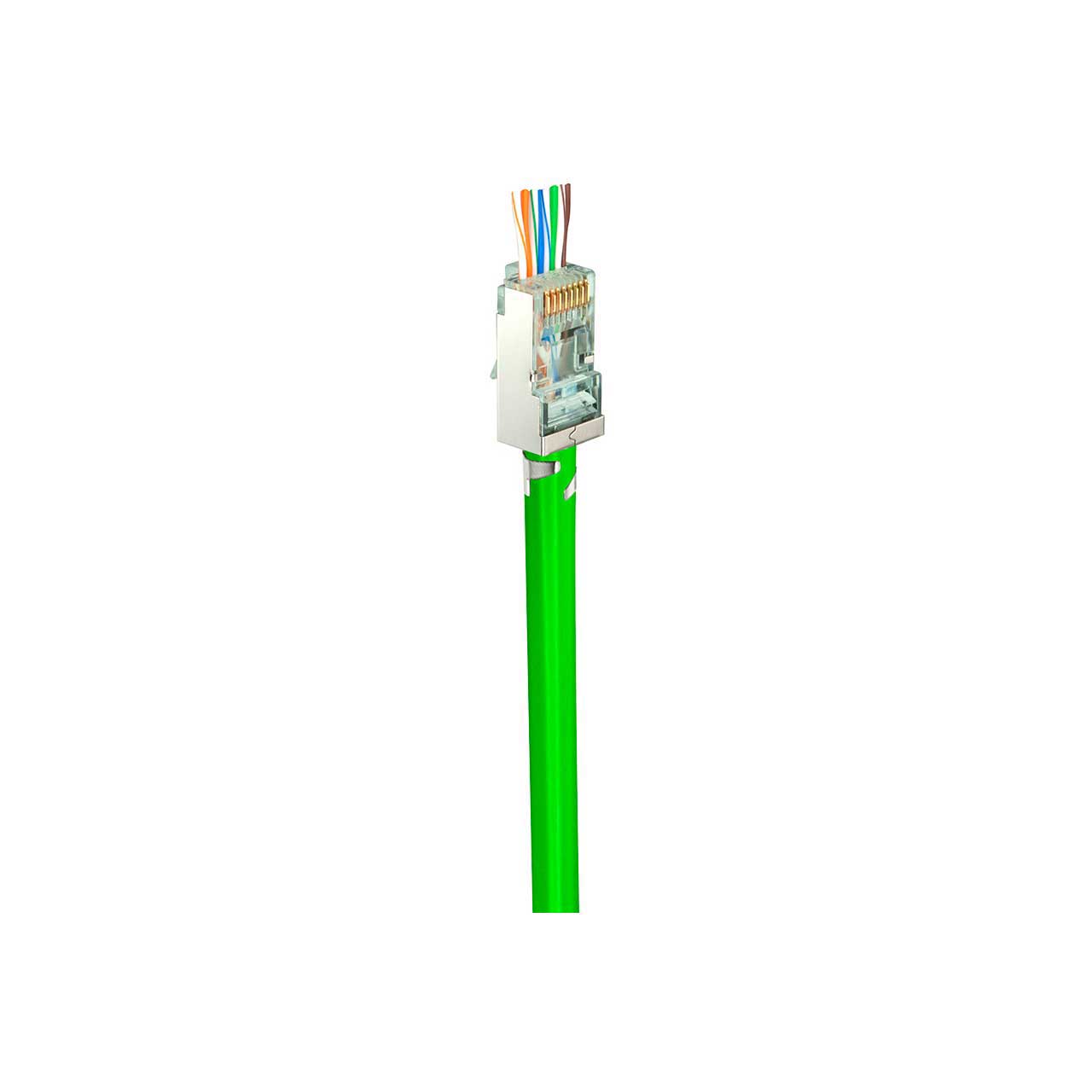

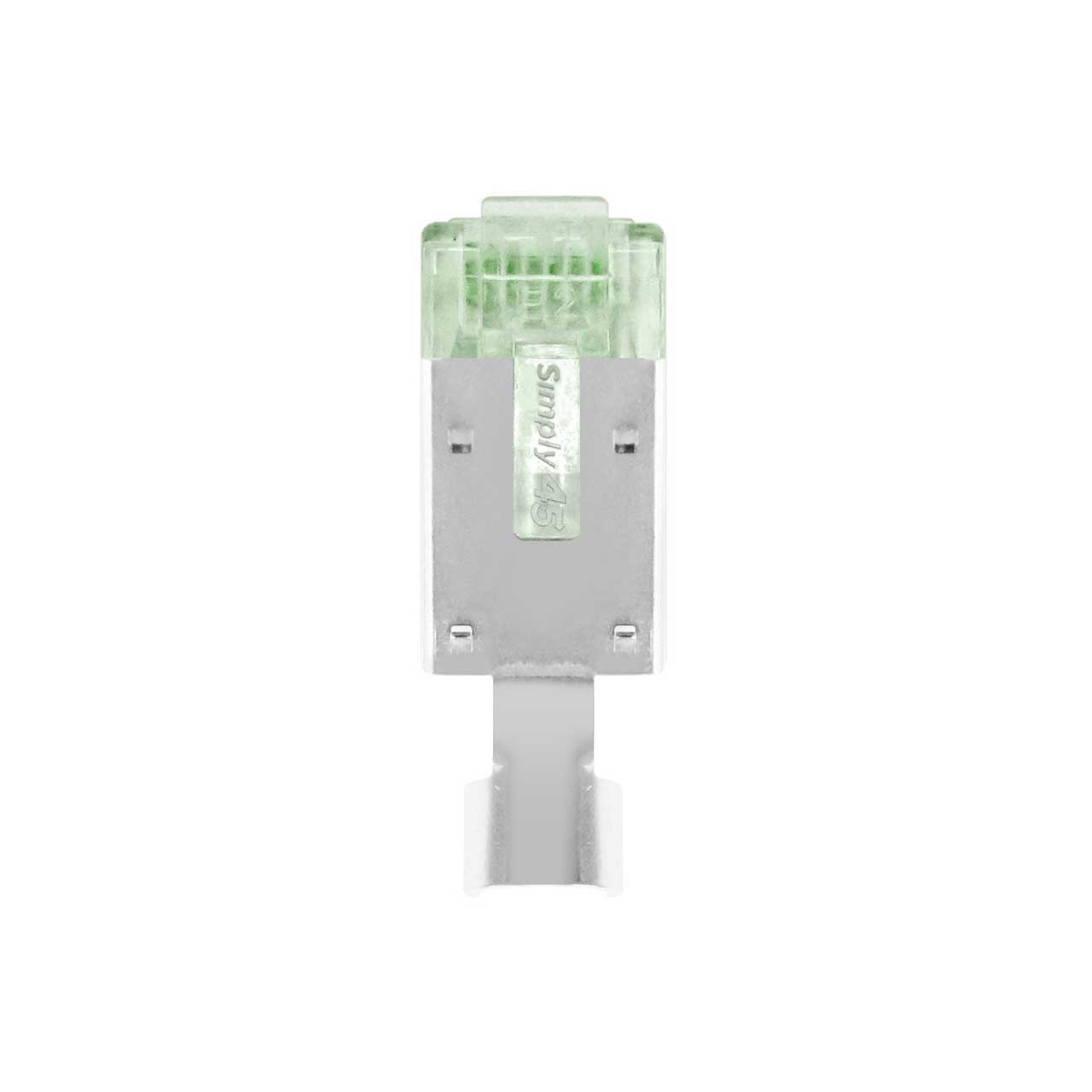

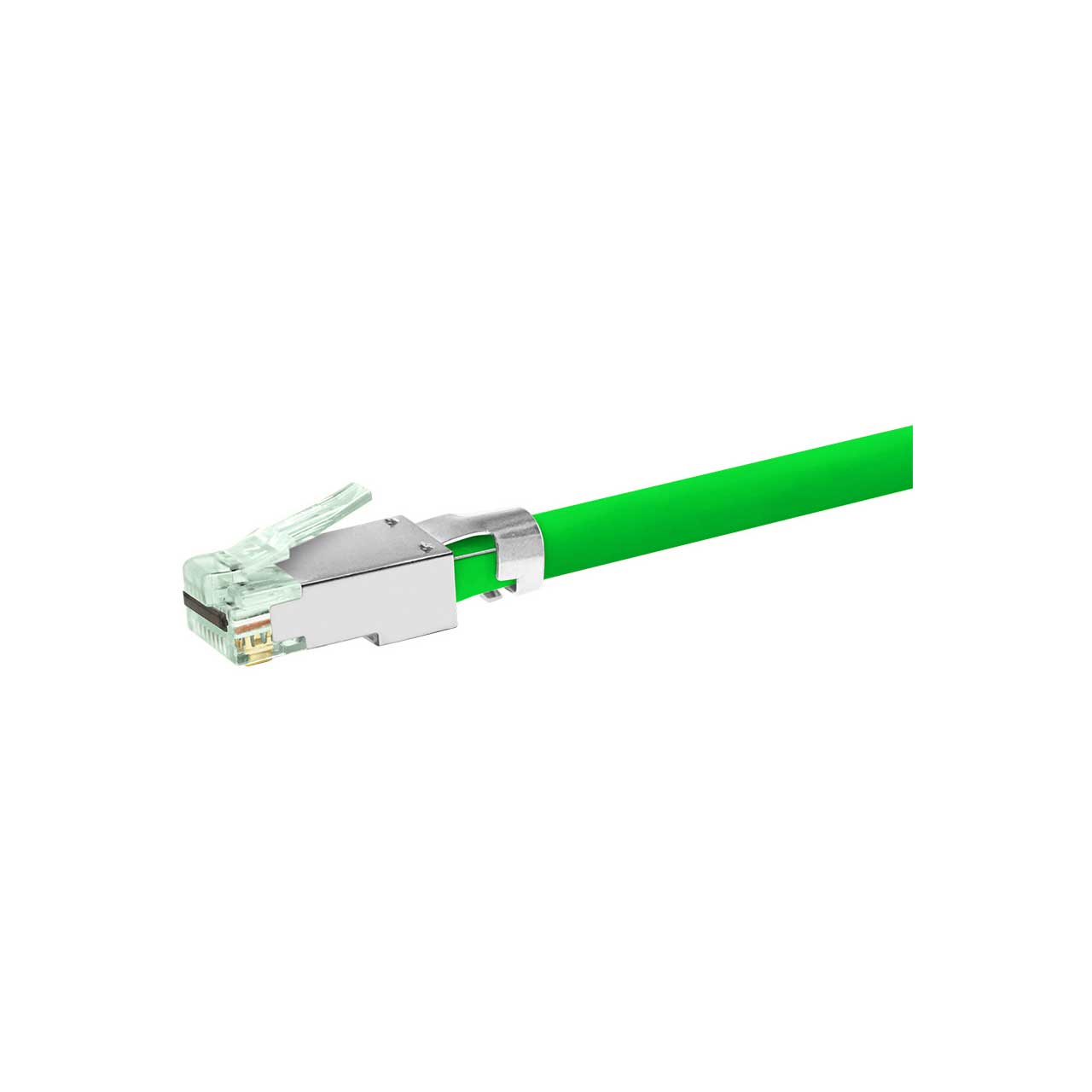

    The S45-1650P is a single piece fully shielded with an external ground pass-through RJ45 modular plug for shielded (STP) LAN cables. The integrated High Low Staggered design requires a No-load bar. This RJ45 design improves NEXT performance by reducing the length of untwisted wires inside the plug and is highly recommended for all PoE and Data applications. Supports performance standards: ANSI/TIA 568.2-D for Cat6/6a; ISO/IEC 11801 Class Ea and E. Supports 10GBaseT performance applications over shielded twisted pair cables. Works in all compliant RJ45 modular plug sockets.

    • Features:

      • High/Low Staggered Wire Insert - 1 piece plug construction. LAN cable wire conductors are easily inserted into the S45-1650P in a Staggered High/Low wire arrangement out through the front of the RJ45 pass-through modular plug. The S45-1650P is recommended for Cat6 shielded and Cat6A F/UTP LAN cables. It accommodates PE-insulated wires. Wire conductor sizes for 23 AWG Solid from 0.041"- 0.047" (1.05mm to 1.20mm).
      • 3 Prong Pin Design with 50µ of True 24ct Gold Plating - All Simply45 pass-through RJ45 modular plugs use only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signal integrity.
      • Improved Crosstalk Performance - The S45-1650P incorporates an exclusive and unique combination of features that work together to improve the Crosstalk performance of the shielded pass-through RJ45 modular plug. No other shielded pass-through RJ45 performs as well as the S45-1650P. These innovative features include a revolutionary plug design, Cap45. The S45-1650P ProSeries plug is a MUST-HAVE for terminating shielded Cat6 and Cat6A F/UTP LAN cables.
      • Commercial Rated - These RJ45 mod plugs are UL94 V0 (IEC 60695-11-10) rated for all commercial installations. These RJ45 mod plugs are recommended for CMP Plenum, CMR, CM; and LSZH up to B2ca rated LAN cables.
      • Color Tinted RJ45 Modular Plugs - The S45-1650P comes with a Green tint for easy pass-through RJ45 modular plug identification. No more trouble identifying which plug is which. All Simply45 RJ45 modular plugs are color-coded for easy identification.
      • PoE/PoH Rated The S45-1650P ProSeries is the BEST shielded Pass-Through RJ45 modular plug for Cat6 shielded and Cat6A F/UTP LAN cables. The S45-1650P is recommended whenever PoE or PoH may be used over shielded Cat6 LAN cables. In addition to the correct 3-Prong Pin design; true 24ct gold plated pins; highest quality RJ45 materials used in the pass-through RJ45 plugs; the S45-1650P incorporates a revolutionary plug design, Cap45 working together to ensure the lowest resistance and lowest heat build-up of any other shielded pass-through RJ45 for large diameter shielded LAN cables.
      • Compliant to Industry - Standards ANSI/TIA 568.2-D for Cat6 and Cat6A F/UTP, 1096-A; ISO/IEC 11801 Class Ea, E; 60603-7; 8877:1992; FCC
    • Specifications:

      • Performance: Meets or Exceeds ANSI/TIA 568.D-2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
      • Wire Cond(s) OD: 23 AWG: 1.05mm - 1.20mm (0.041" - 0.047")
      • Max LAN Cable OD: 8.0mm (0.315")
      • Supports PoE/PoH: Yes
      • Cable Fire Resistance Ratings: Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
      • Flame Autoextinguish: UL94 V-0, IEC 60695-11-10
      • Contact Material: Phosphor Bronze - .012" thick
      • Contact Plating: Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
      • Plug Material: Polycarbonate
      • Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
      • Conductor Type(s): Solid and Stranded
      • Operating Temperature: -40° C to +70° C
      • Insertion/Extraction Life: 2000 Minimum Cycles
      • Contact Resistance: 20 Milli-Ohms max
      • Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
      • Compliance: UL Listed, RoHS, FCC, NEC, TAA
    • Item Includes:

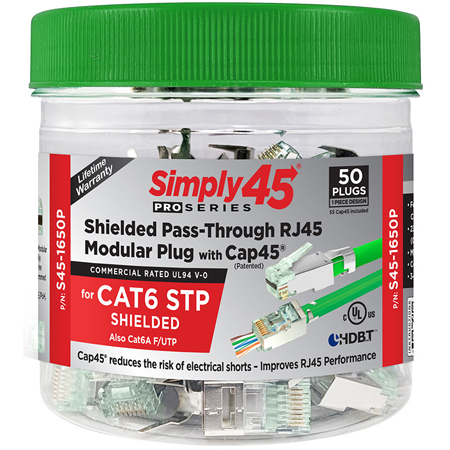

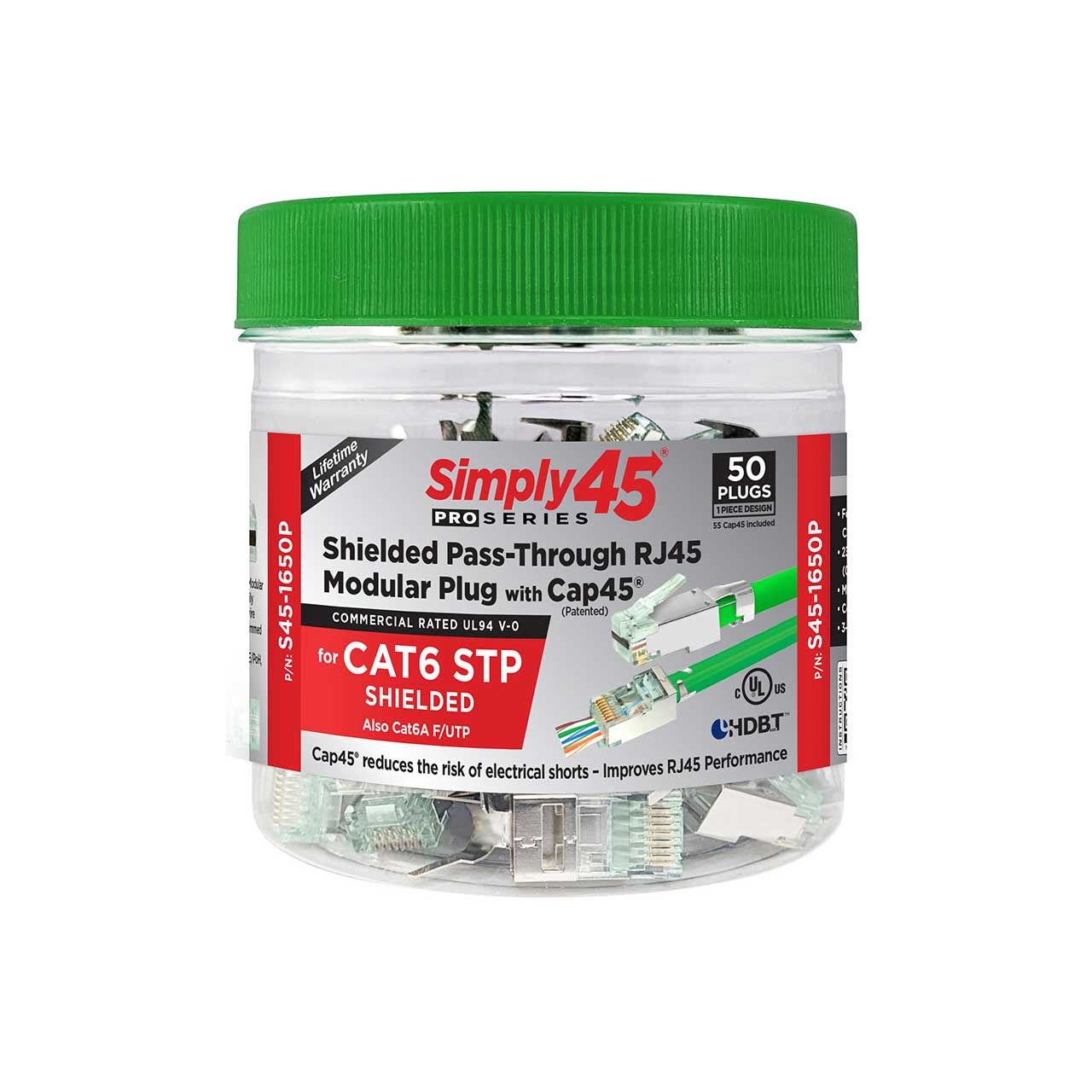

      • 1x Simply45 PROSeries Pass Through 1 Piece Shielded External Ground Green Tint - Cat6 STP with Cap45 - 50pc Jar
    • Warranty:

      • Lifetime Limited Warranty
