Simply45 S45-1700P ProSeries Cat6 or Cat6a Unshielded RJ545 Mod Plugs with CAP45 - 100 Piece Jar

S45-1700P - Overview

• Features:

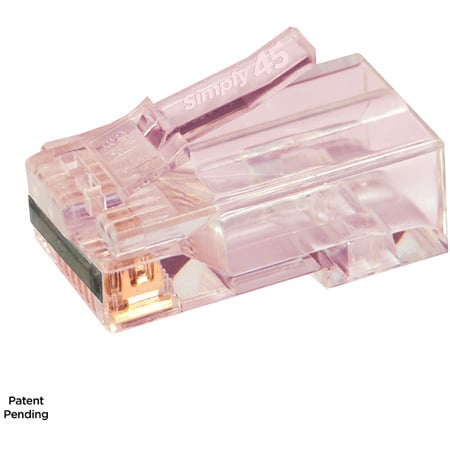

  • Single Piece Plug. The S45-1700P is a single piece unshielded pass through RJ45 modular plug for use with unshielded LAN cables. No-load bar required. Supports performance standards: ANSI/TIA 568.2-D for Cat6 and Cat6a; ISO/IEC 11801 Class E and Ea. Supports 10GBaseT performance applications over unshielded twisted pair cables.

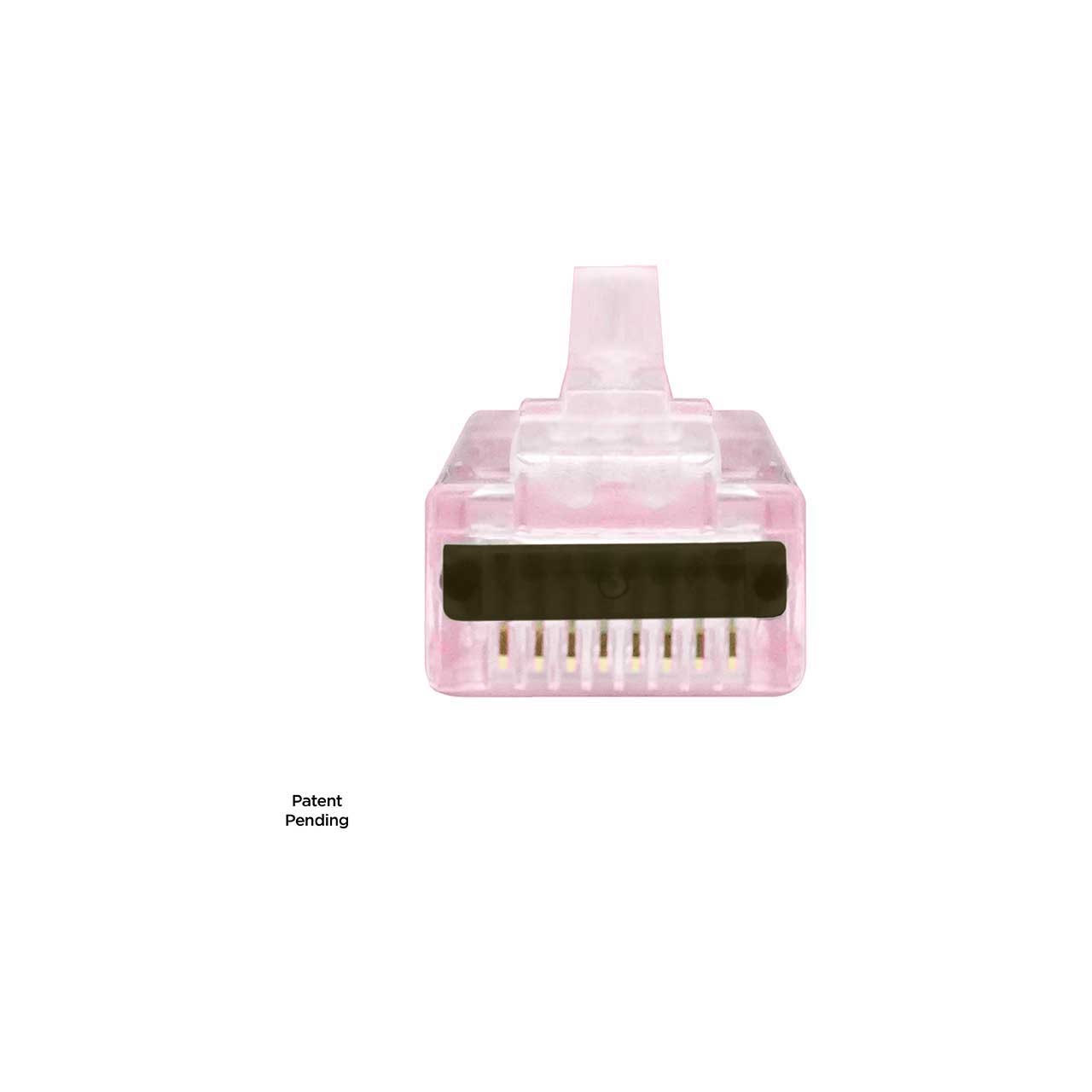

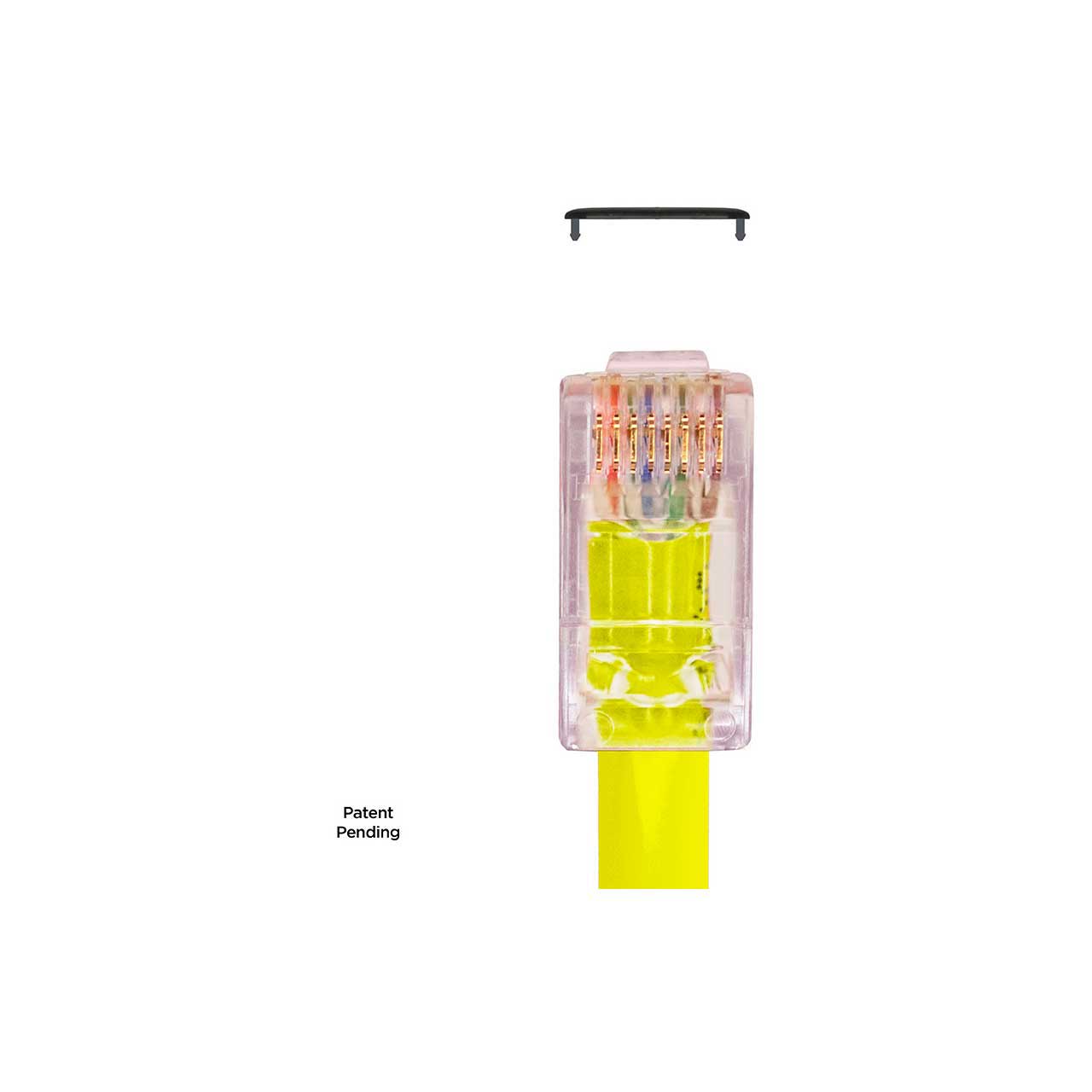

    Cap45™ (patent pending). Cap45™ is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends. Cap45™ is fast and easy to use. Fits all compliant RJ45 sockets. With Cap45™, any electrical risks associated with pass-through RJ45 modular plug exposed wire ends are now eliminated completely. Learn more about Cap45™ in our ProSeries Product Line discussion. If you don't want to use Cap45™, no problem. It will not affect plug performance. You just won't have the Cap45™ benefits.

    High/Low Staggered Wire Insert. LAN cable wire conductors are easily inserted into the S45-1700P in a Staggered High/Low wire arrangement out through the front of the RJ45 pass through modular plug. The S45-1700P is recommended for larger unshielded LAN cables. It accommodates 23 AWG Solid LAN cable wire conductor sizes 1.05mm - 1.2mm (0.041" - 0.047") typically found on some Cat6 UTP and Cat6A UTP cables. The S45-1700P accommodates larger wire conductors than our S45-1700.

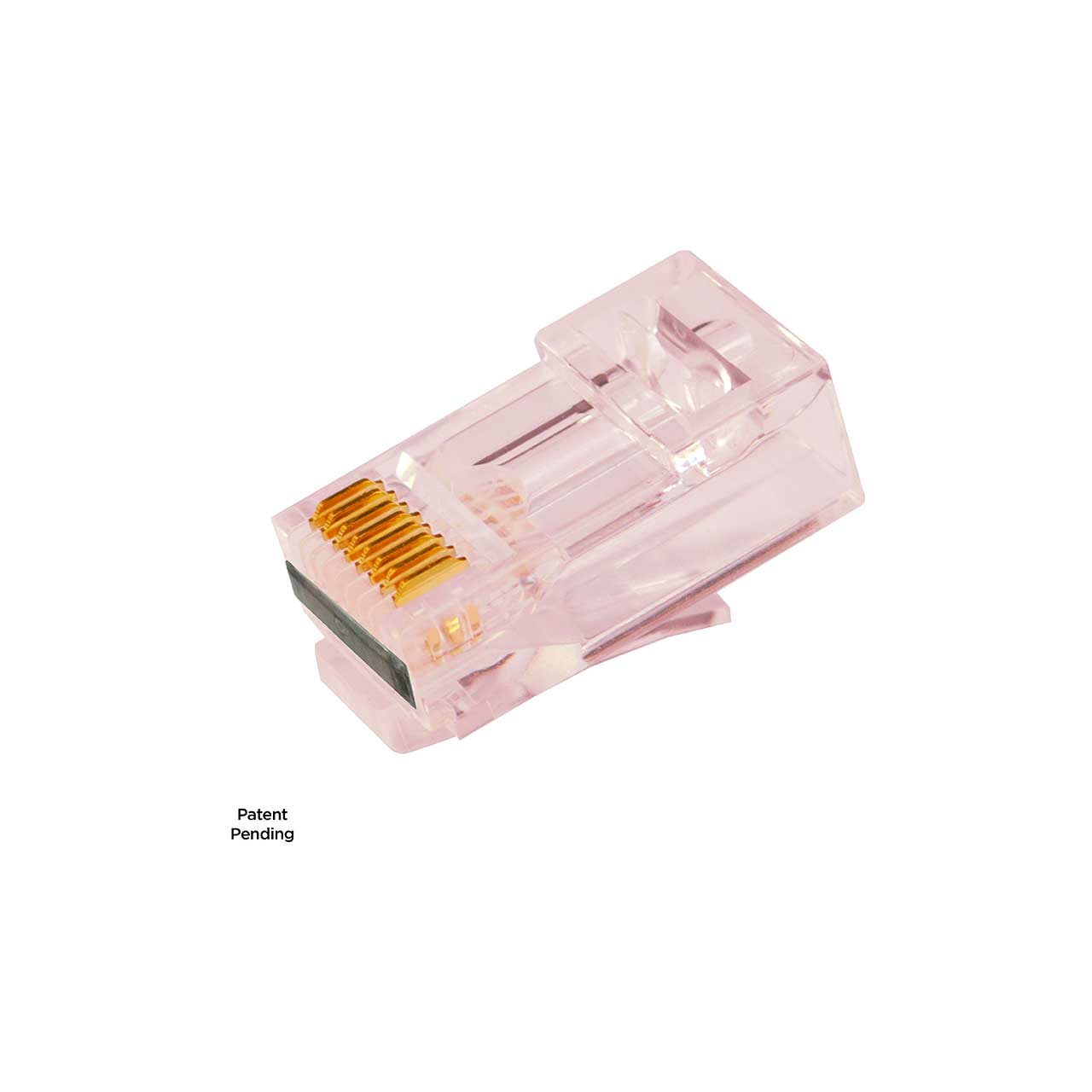

    3 Prong Pin Design with 50u of True 24ct Gold Plating. All Simply45™ pass through RJ45 modular plugs uses only 50æ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signal integrity. A 3-prong pin also holds stronger onto the wire conductors. To learn more about why we only use 3-Prong pins and 50æ 24ct gold plated contacts, please click here.

    Improved Crosstalk Performance. The unique internal design of the S45-1700P ProSeries Pass Through RJ45 modular plug allows larger size LAN cables to be inserted further into the RJ45 plug. This reduces the length of untwisted wires improving NEXT performance. The S45-1700P accommodates most Cat6 UTP and Cat6a UTP LAN cables. The S45-1700P even outperforms our S45-1700. The S45-1700P ProSeries plug is a MUST HAVE for larger unshielded LAN cable OD.

    Commercial Rated. These RJ45 mod plugs are UL94 V0 (IEC 60695-11-10) rated for all commercial installations. These RJ45 mod plugs are recommended for CMP Plenum, CMR, CM; and LSZH up to B2ca rated LAN cables.

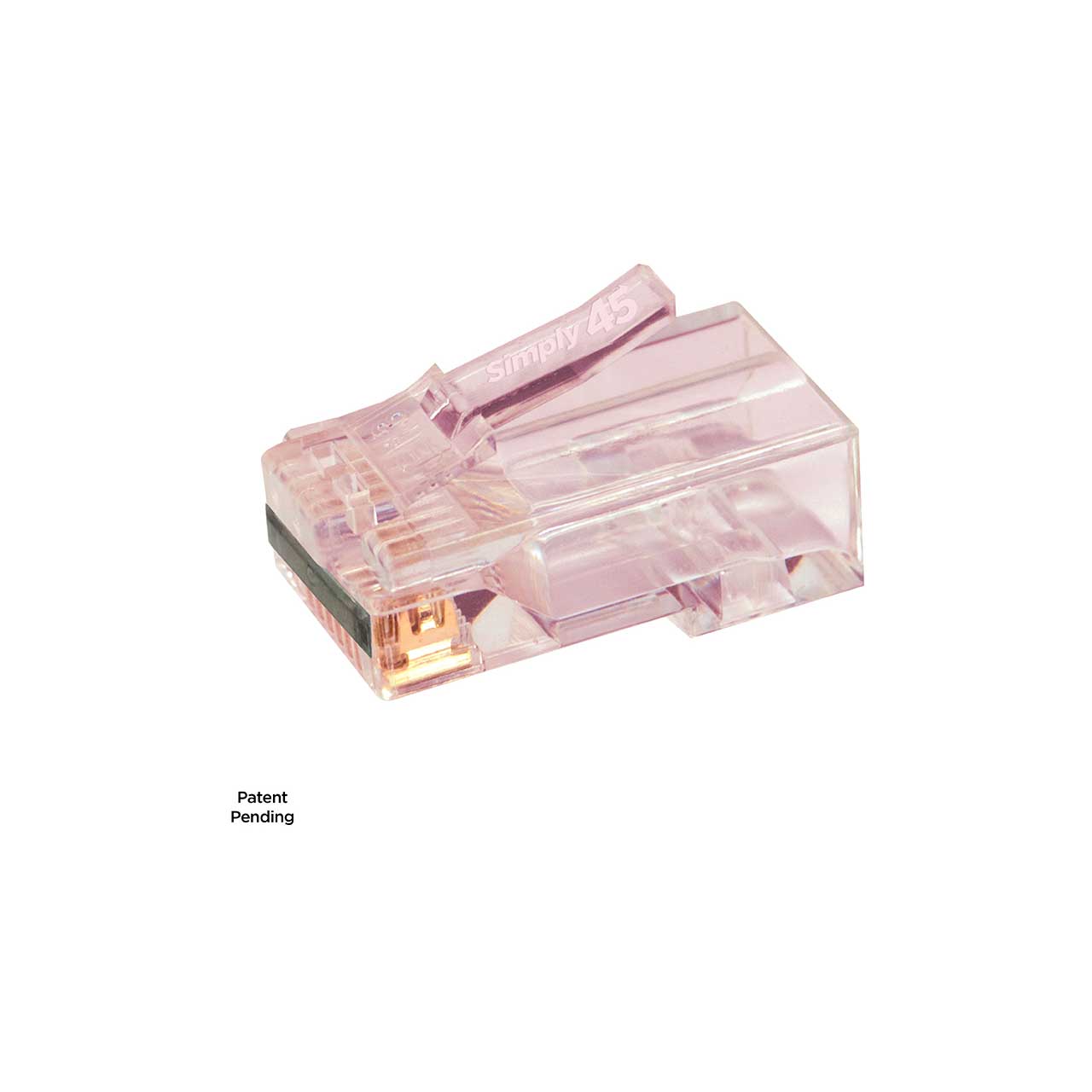

    Color-Tinted RJ45 Modular Plugs. The S45-1700P comes with a light red tint for easy pass-through RJ45 modular plug identification. No more trouble identifying which plug is which. All Simply45™ RJ45 modular plugs are color-coded for easy identification.

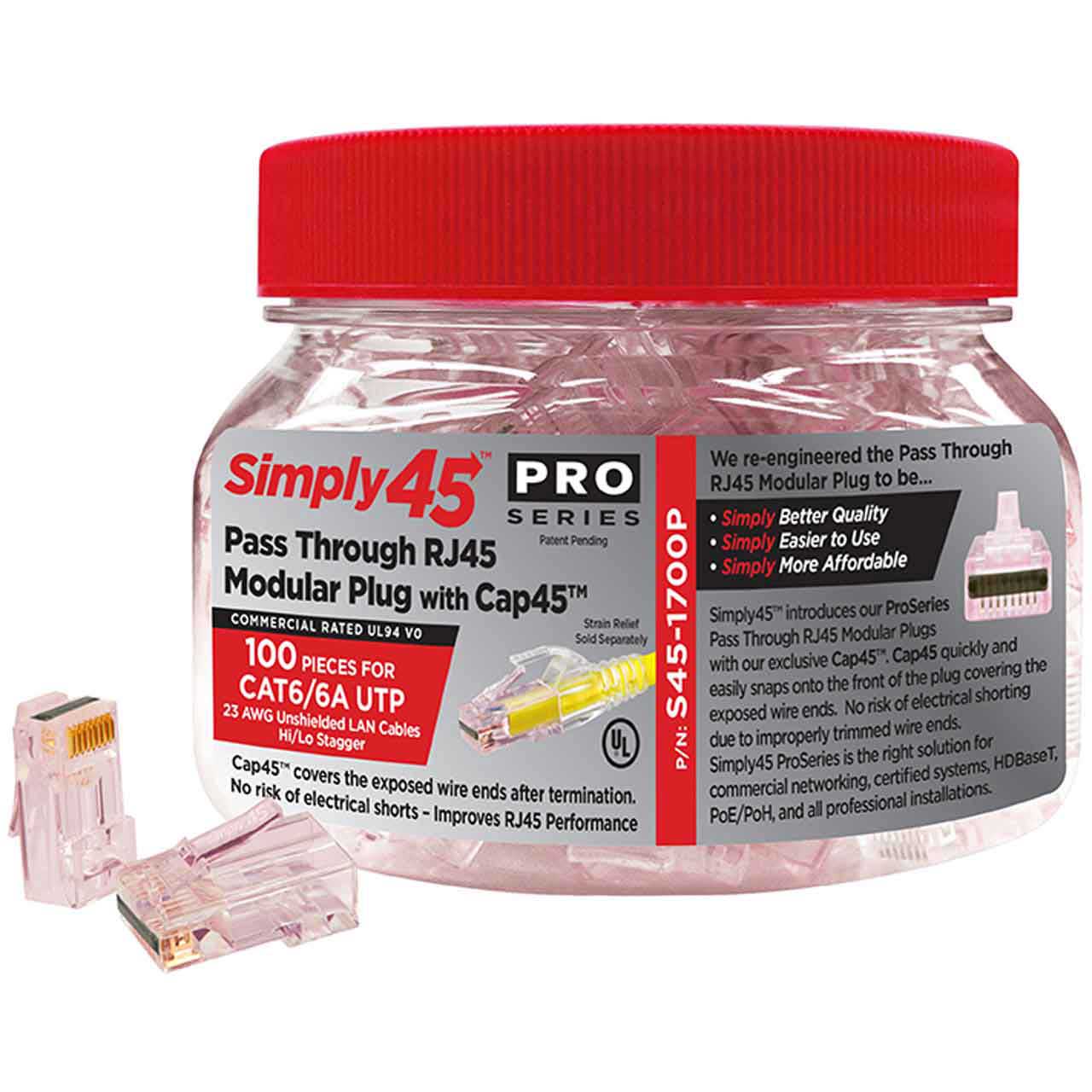

    Wide Mouth Jar for Easy Hand Access. No need to spill RJ45 mod plugs out of the jar just to reach them.


• Specifications:

  • Performance: Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC
    11801 Class D; ANSI/TIA 1096-A; IEC 60603-7 Wire Cond(s) OD: 23AWG: 1.05mm-
    1.20mm (0.041"-0.047")
  • Max LAN Cable OD: 7.4mm (0.291")
  • Supports PoE/PoH: Yes
  • Cable Fire Resistance Ratings: Commericial Rated, CMP, CMR,
    CM, CMX, LSZH up to B2ca EuroClass
  • Flame Autoextinguish: UL94 V0, IEC 60695-11-10
  • Contact Material: Phosphor Bronze - .012" thick
  • Contact Plating: Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold
    Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-
    1096-A specifications (formerly FCC Part 68)
  • Plug Material: Polycarbonate
  • Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A
    specifications (formerly FCC Part 68)
  • Conductor Type(s): Solid and Stranded
  • Operating Temperature: -40°F to +158°F
  • Insertion/Extraction Life: 2000 Minimum Cycles
  • Contact Resistance: 20 Milli-Ohms max
  • Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
  • Compliance: UL Listed, RoHS, FCC, NEC


• Warranty:

  • Lifetime Warranty


• GTIN:

  0817777017724
