Simply45 PSK10G ProSeries Pass Through 10G STP Starter Termination Kit - Boxed

PSK10G - Overview

• Features:

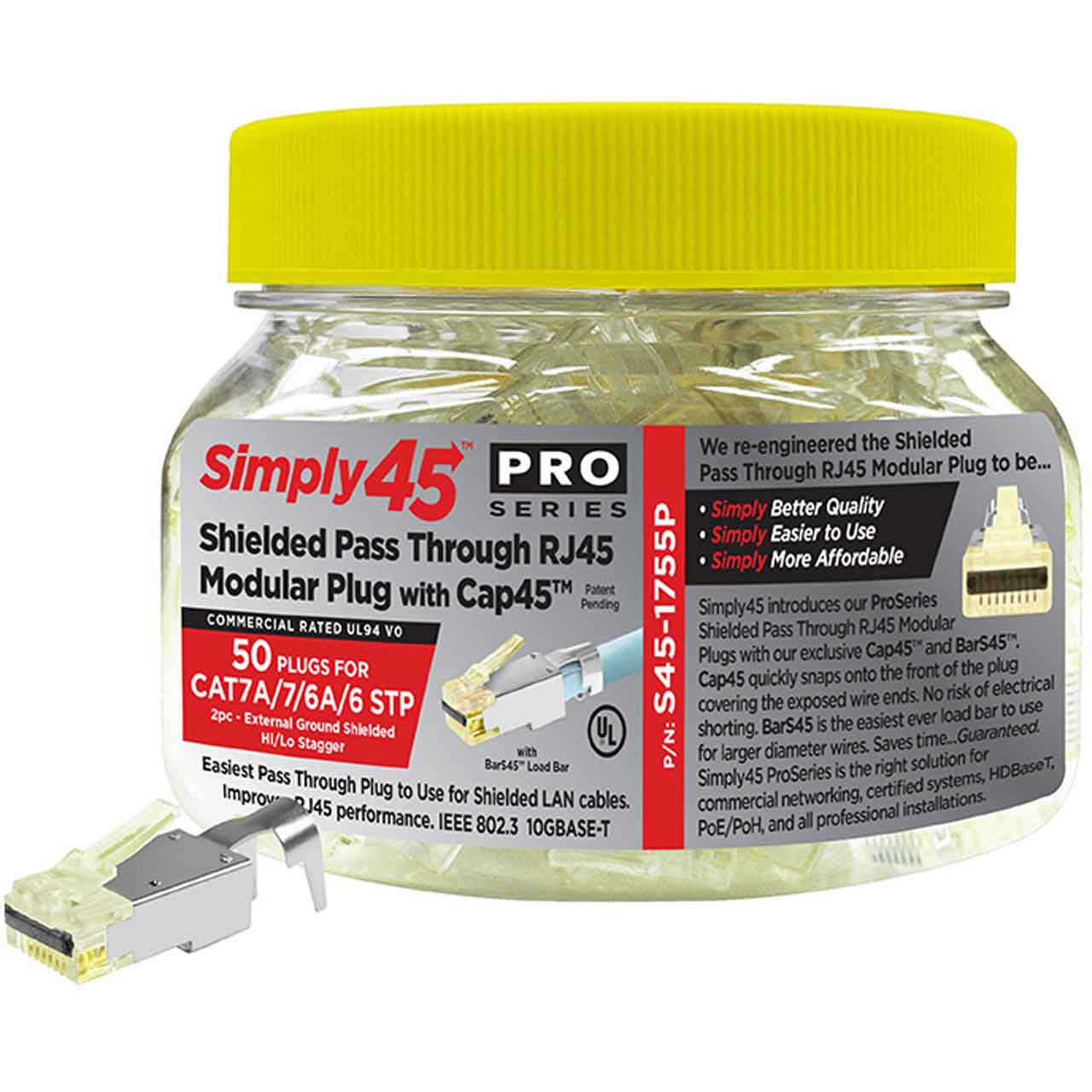

  • S45-1755P Pass-Through RJ45 Modular Plugs are by far the highest performing, easiest to use, and most cost-effective way to professionally terminate 10G Shielded and other large diameter shielded LAN cable
  • S45-C101 Crimper Crimps Both Pass-Through and Standard WE/SS Shielded RJ45 Modular Plugs
  • S45-801 Premium 5" Flush Cutter Tool Professionally Trim LAN Cable Wires
  • S45-S01YL Adjustable LAN Cable Stripper for Shielded & Unshielded Cat7a/6a/6/5e Works great for Plenum, LSZH, PE & PVC cable jackets)
  • S45-B003 Simply45® Snagless Strain Reliefs 0.33" (8.5mm) snagless strain relief for use with larger diameter shielded LAN cables


• Specifications:

  • General
  • Type: RJ45 Male
  • Quantity: 50
  • Contact Plating: 50 µ Gold
  • 100 µ Nickel
  • Contact Material: Bronze
  • Shielded: Yes
  • Conductor Diameter: 0" / 1.2 mm
  • Contact Resistance: 20 milliohms

    Compatibility
  • Supported Cable Diameter: 0.3" / 8 mm
  • Wire Gauge Supported: 23 to 23 AWG
  • Cable Types Supported: Solid, Stranded
  • Networking Type: Cat 6a, Cat 7, Cat 7a

    Physical
  • Plug Material: Polycarbonate
  • Compliance: cUL, RoHS, FCC
  • Flame Resistance Rating: UL94V-0
  • Mating Cycles: 2000
  • Operating Temperature: -40 to 158°F (-40 to 70°C)
  • Shipping Weight: 0.475 lb
  • Shipping Dimensions (LxWxH): 3.95 x 3.7 x 3.25"

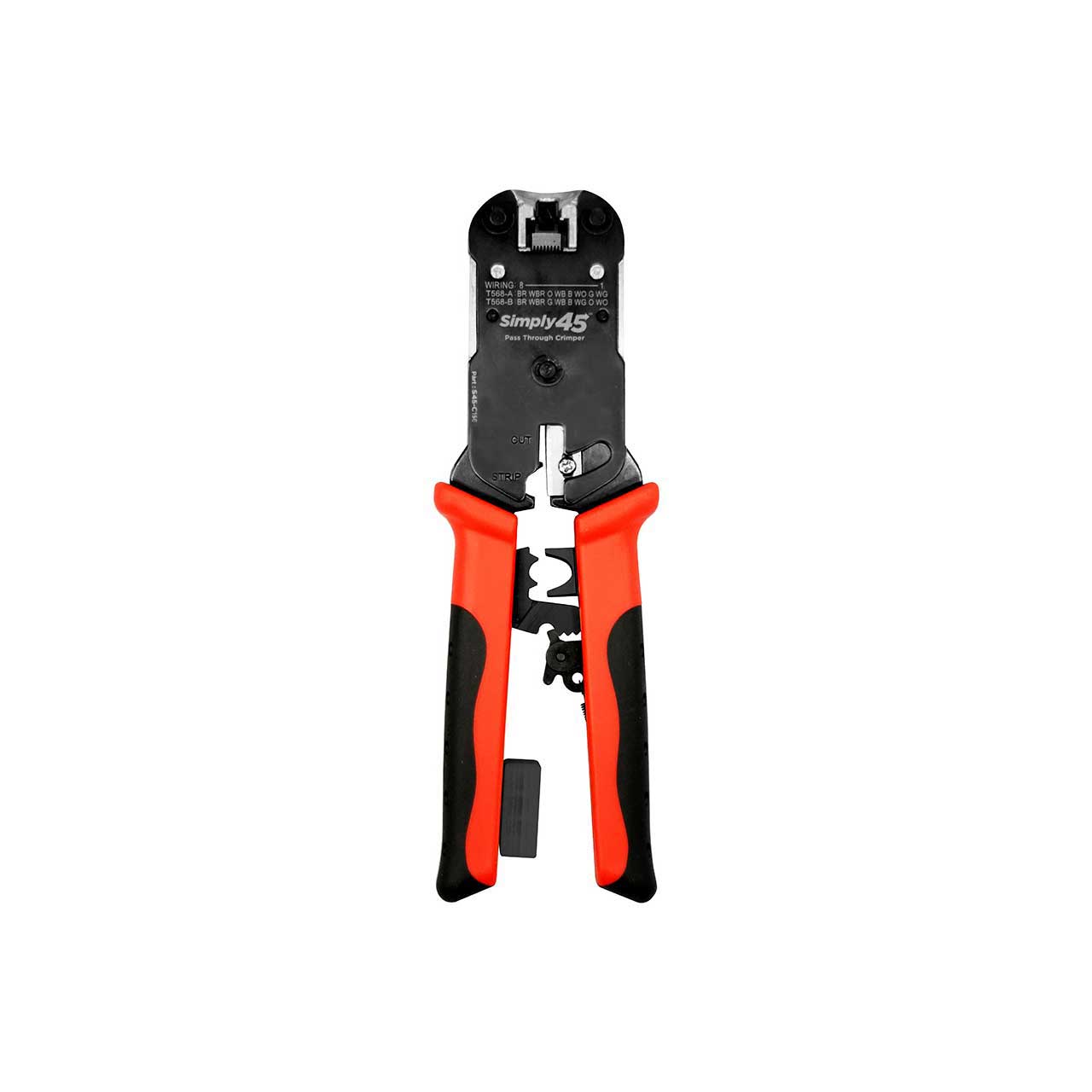

    All-In-One RJ45 Crimp Tool
  • Handle Opening: 4.25" (10.8 cm)
  • Dimensions: 11.6 x 4.5 x 1.2" (29.5 x 11.5 x 3 cm)
  • Shipping Weight: 1.11 lb
  • Shipping Dimensions (LxWxH): 11.6 x 4.5 x 1.4"

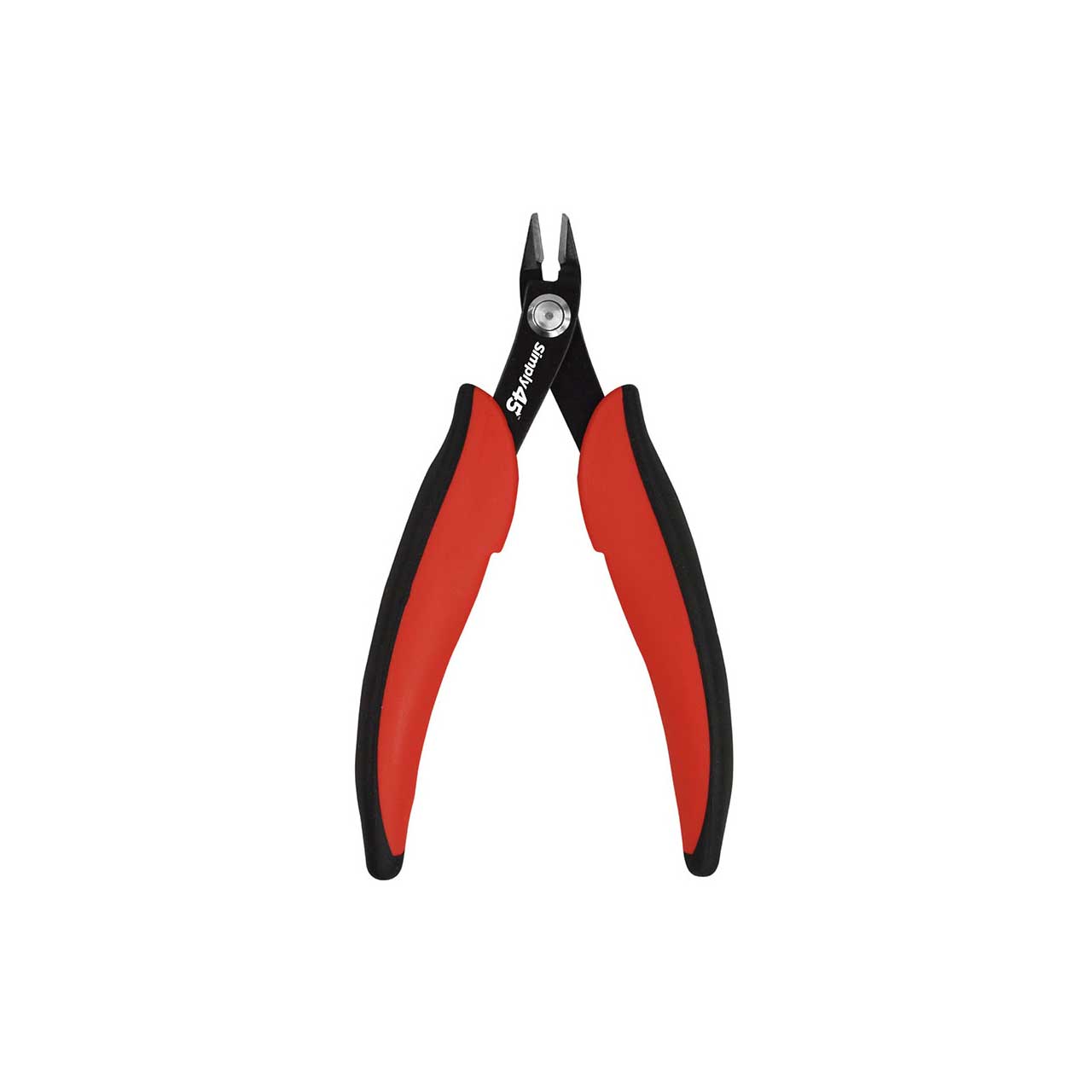

    Premium Flush Cutter Tool
  • Dimensions: 8.1 x 3 x 0.9" (20.5 x 7.5 x 2.2 cm)
  • Weight: 3.3 oz / 93 g

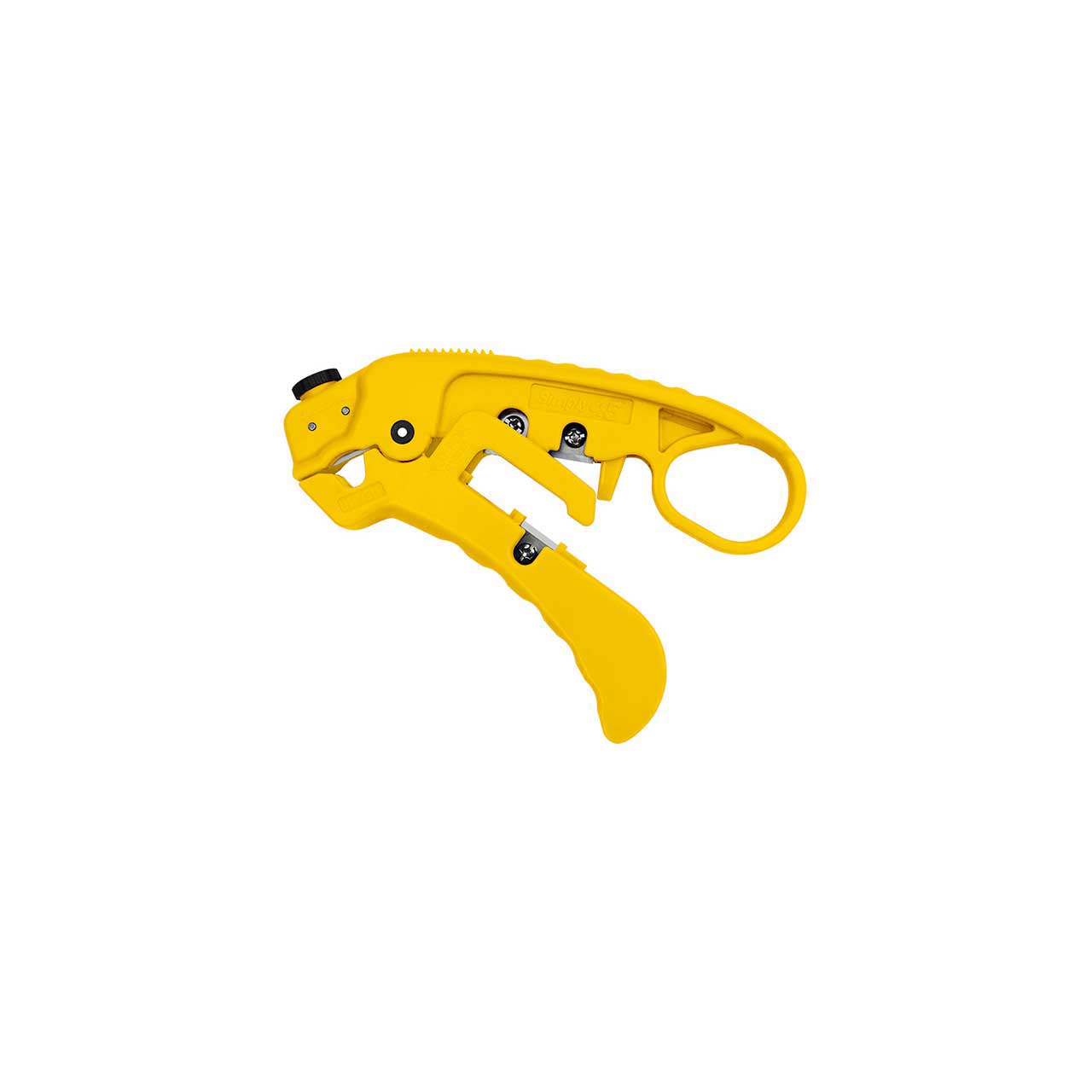

    Adjustable LAN Cable Stripper For Shielded & Unshielded Cat7a/6a/6/5e (Yellow)
  • Dimensions: 8.7 x 4.7 x 1.3" (22.1 x 12 x 3.2 cm)
  • Weight: 0.21 lb / 97 g
  • Shipping Weight: 0.21 lb
  • Shipping Dimensions (LxWxH): 8.65 x 4.65 x 1.2"

    Shielded External Ground Snagless Strain Reliefs (100-Pack)
  • Type: Strain Relief
  • Quantity: 100

    Compatibility
  • Supported Cable Diameter: 0.3" (8.5 mm)

    Physical
  • Plug Material: Polycarbonate
  • Shipping Weight: 0.32 lb
  • Shipping Dimensions (LxWxH): 8.95 x 5.85 x 2.4"

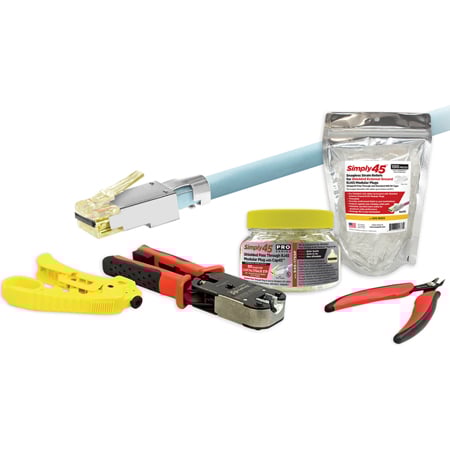

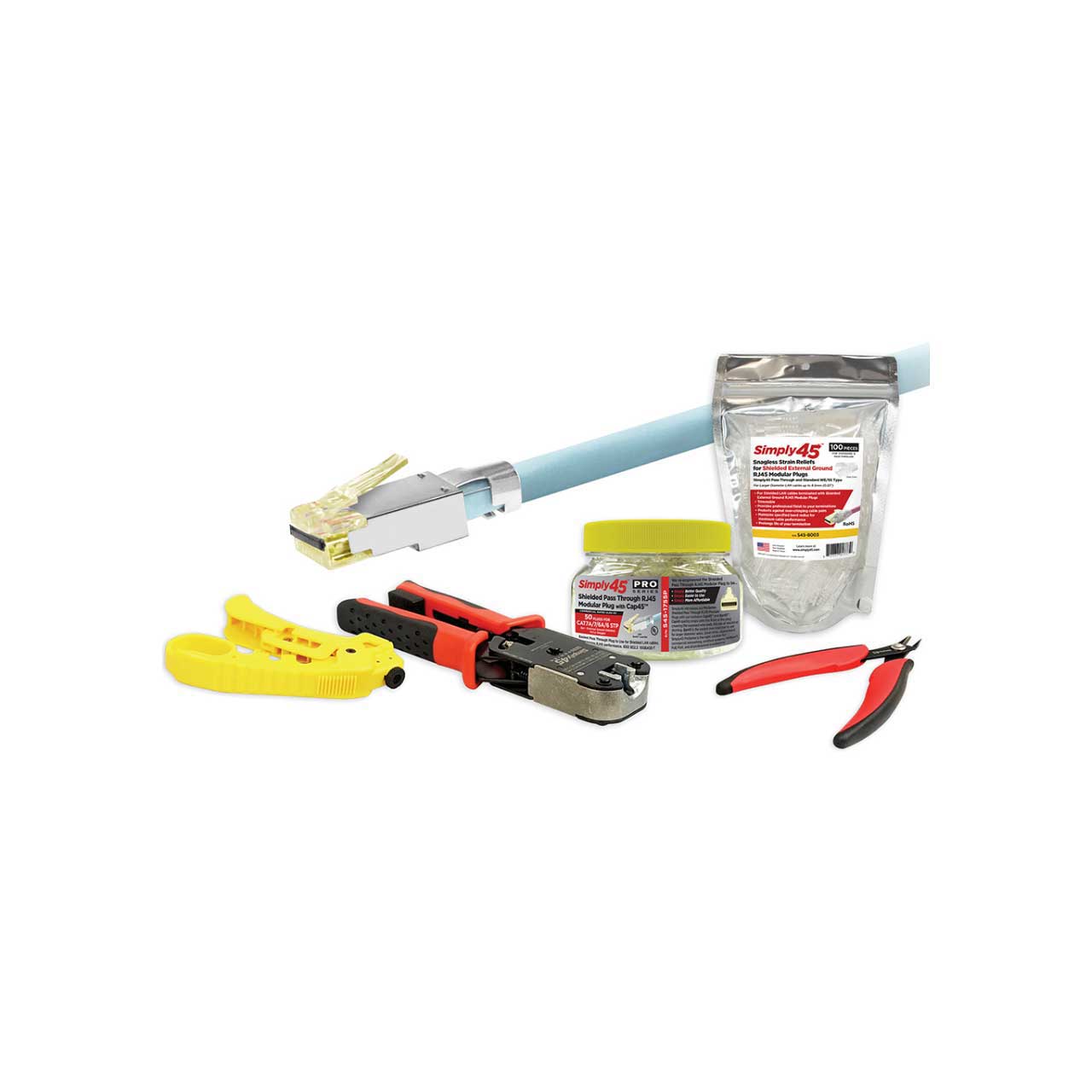

• Item Includes:

  • 1x S45-1755P - RJ45 Modular Plug - Shielded - 10G
  • 1x S45-C101 - Heavy Duty RJ45 Crimp Tool
  • 1x S45-801 - Flush Cutter
  • 1x S45-S01YL - Adjustable UTP Stripper
  • 1x S45-B003 - Strain Reliefs


• GTIN:

  0810093720040
