Samson SM10 Rackmount 10-Channel Line Mixer

ITEM #: SAM-SM10 MFG #: SM10

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$377.99

Our Price:

$279.99

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    SM10 - Overview

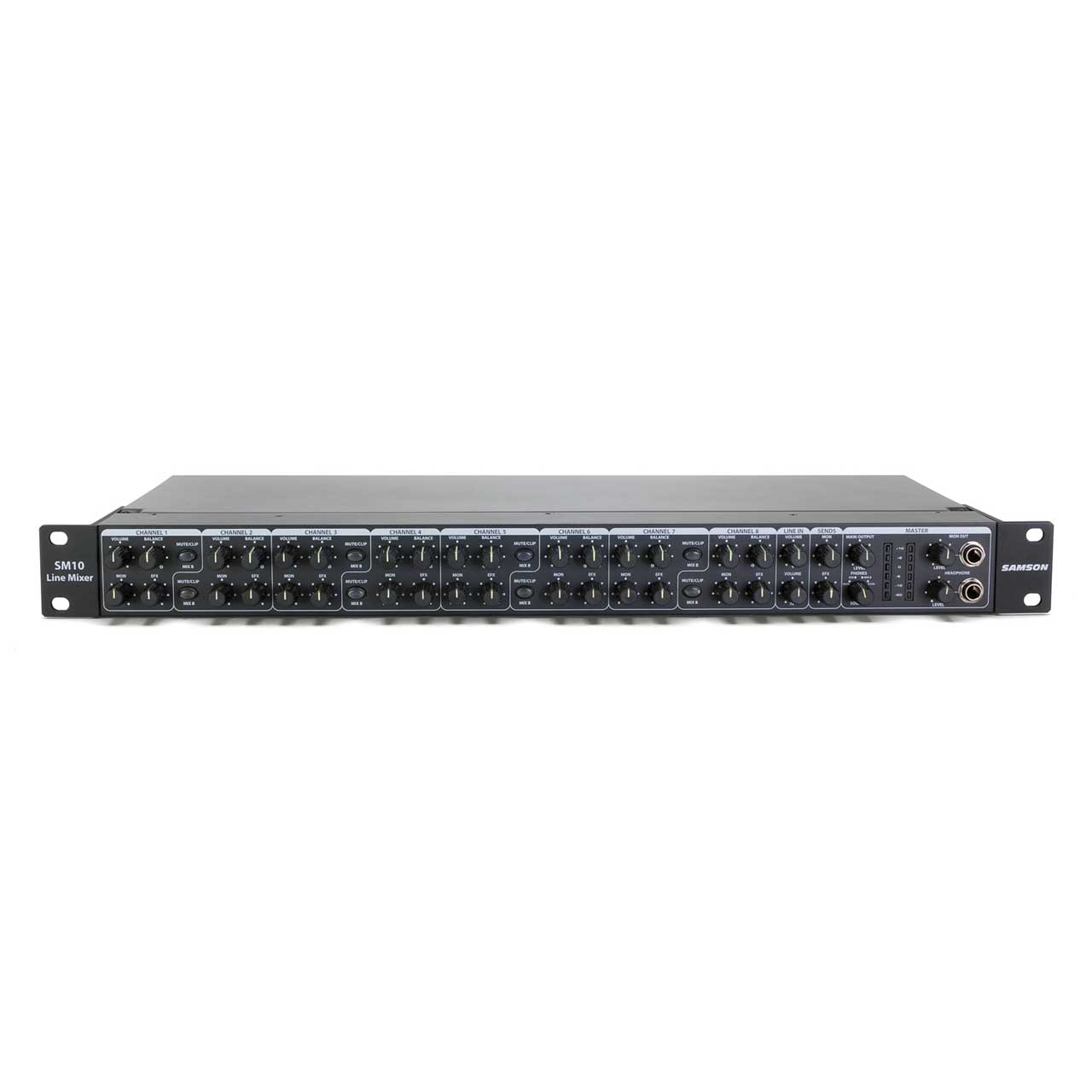

    Ideal for stage, studio and an infinite variety of installation applications, Samson's SM10 Line Mixer is a versatile and reliable addition to your audio setup. This internally powered, 19-inch rackmount metal chassis unit can be easily integrated into any existing system to more efficiently group your signals.


    The SM10 features ten channels with 1/4-inch stereo line inputs and a balance control for each channel. Two channels include XLR mic inputs. This allows you to blend the relative levels of stereo inputs to your liking. In addition, each channel includes a switch for +4 dBu or -10 dBV line level input.

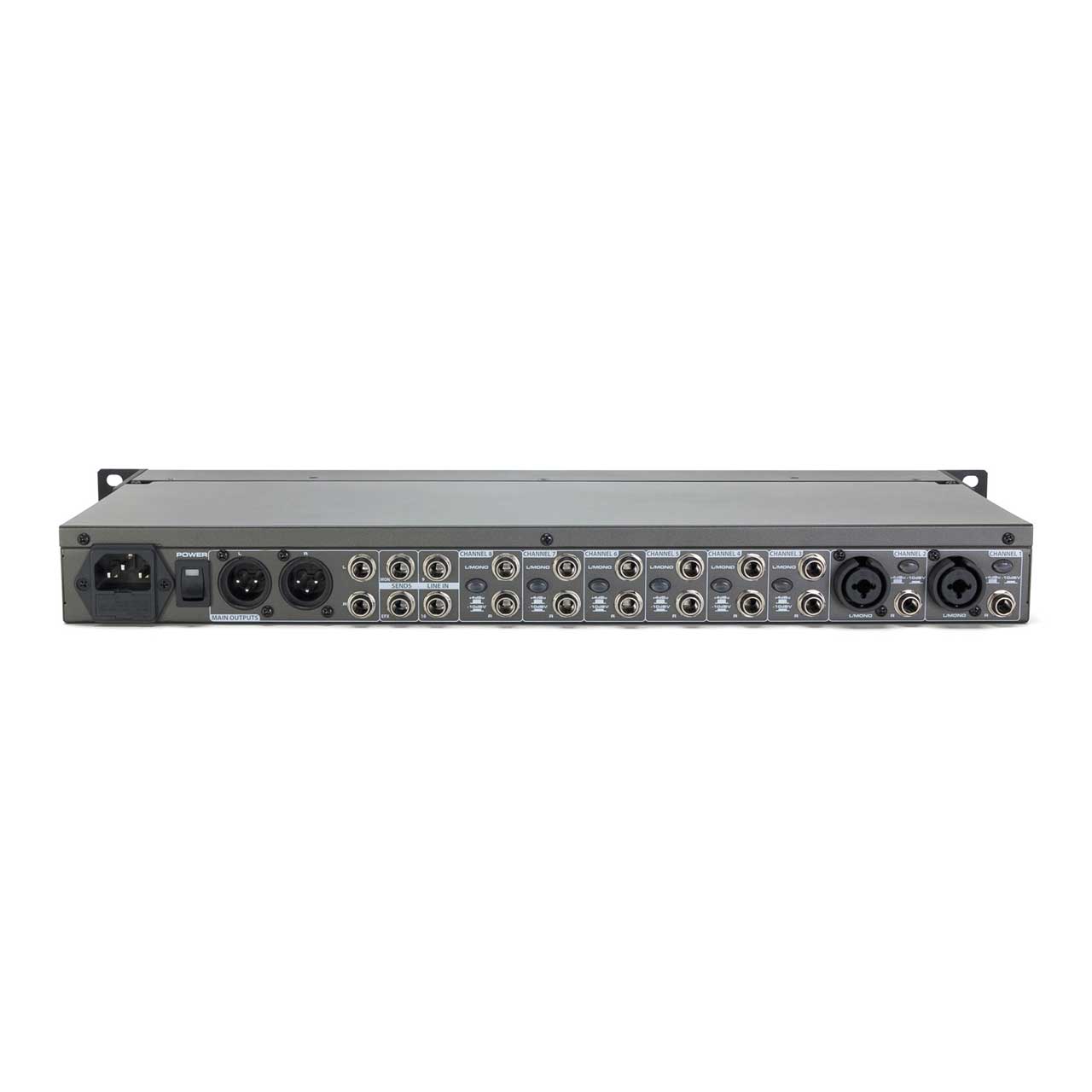

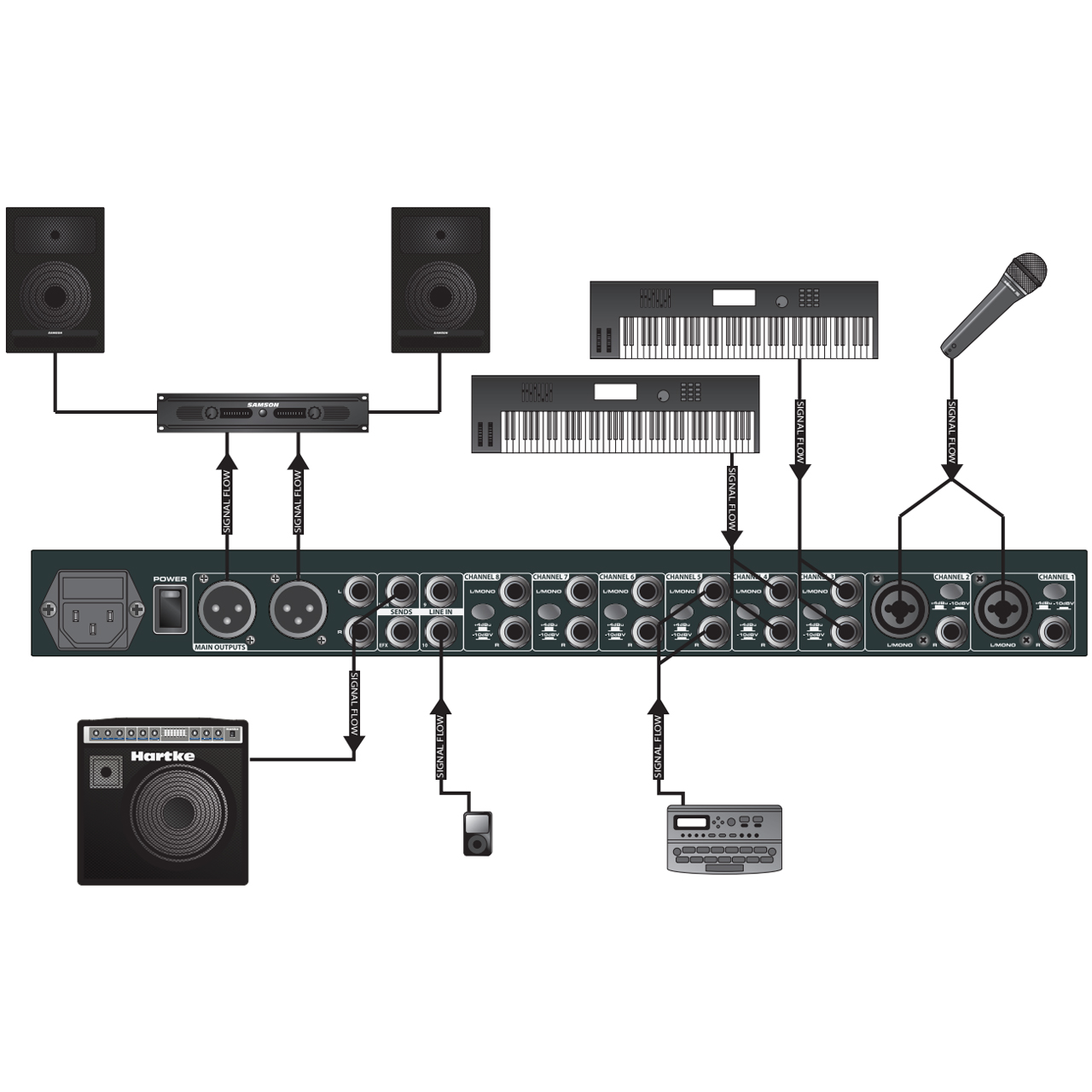

    For output, the SM10 provides electronically balanced main stereo XLR and 1/4-inch line outputs. The SM10 provides versatile signal routing via Main Mix, Mix B, Monitor and EFX bus outputs, as well as low noise and discrete microphone pre-amplifiers with 48-volt phantom power.

    Two auxiliary sends can also be used to route signals to external effects, or create a separate mix for on-stage monitors. The SM10 features front panel headphone and monitor outputs with dedicated level controls. The mix may be audited with the SM10's 6-segment LED meter and a flexible meter/headphone source control.

    The generously featured SM10 Line Mixer is right at home on stage, in studios, boardrooms, health clubs, restaurants, houses of worship, and more. Whether your interests lie in audio or video applications, the SM10 Line Mixer brings various signals together for an amazing audio experience.

    • Features:

      • Ten channel line mixer with two combi XLR-1/4-inch inputs and eight 1/4-inch stereo line inputs
        Balance control on each channel
        Switchable +4 dBu or -10 dBV line input level
        Balanced main stereo XLR and 1/4-inch line outputs
        Low noise, microphone pre-amplifiers with 48-volt phantom power
        Two auxiliary sends
        Front-panel headphone and monitor outputs with level controls
        Flexible 6-segment LED meter/headphone source control

    • GTIN:

      0809164011873
