Samson SWC88XAH8-D Airline 88x AH8 Headset Wireless Microphone System - D Band - 542-566 MHz

ITEM #: SAM-SWC88XAH8-D MFG #: SWC88XAH8-D

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$559.98

Our Price:

$399.99

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    SWC88XAH8-D - Overview

    Audio Agility. Physical Freedom.
    The Samson AirLine 88x AH8 Fitness Headset system offers true wireless freedom without the inconvenience of a beltpack or cable. Featuring a lightweight, water-resistant micro transmitter headset with a secure yet comfortable fit, this frequency-agile UHF wireless system provides high definition sound, premium reliability and a 300' operating range.

    Wireless Innovation
    The integrated design of the AH8 Fitness Headset combines a micro transmitter and adjustable gooseneck into a low-profile headset that molds to the shape of your head. The headset also features an internal 8-hour rechargeable lithium ion battery, easily accessible Gain and Mute controls, and IR sync wirelessly match the receiver and transmitter frequency.

    Fitness Focus
    Designed to meet the demands of Yoga, Pilates, Zumba and cycling instructors, the AH8 Fitness Headset features water-resistant components for protection against perspiration and the elements, including a marine-grade stainless steel gooseneck and AE50X micro-miniature microphone capsule. The capsule's cardioid pickup pattern provides excellent isolation from stray and unwanted noise for clear and intelligible speech.

    Simple Setup; Flawless Performance
    Simplicity and performance are at the core of the Concert 88x wireless systems. One-touch scanning analyzes all available channels, selecting the clearest channel for your performance space. An infrared signal then locks the transmitter and receiver together on the selected channel. With 100 frequencies and a wide 25 MHz bandwidth, there are plenty of available channels for your application.

    The True-diversity design minimizes dropouts to provide clear wireless reception for up to a 300' performance range. Tone-key and auto-mute circuitry ensure that only the audio signal from the AH8 transmitter reaches the receiver, automatically muting the system when the transmitter is out of range to prevent unwanted noise from entering the signal path.

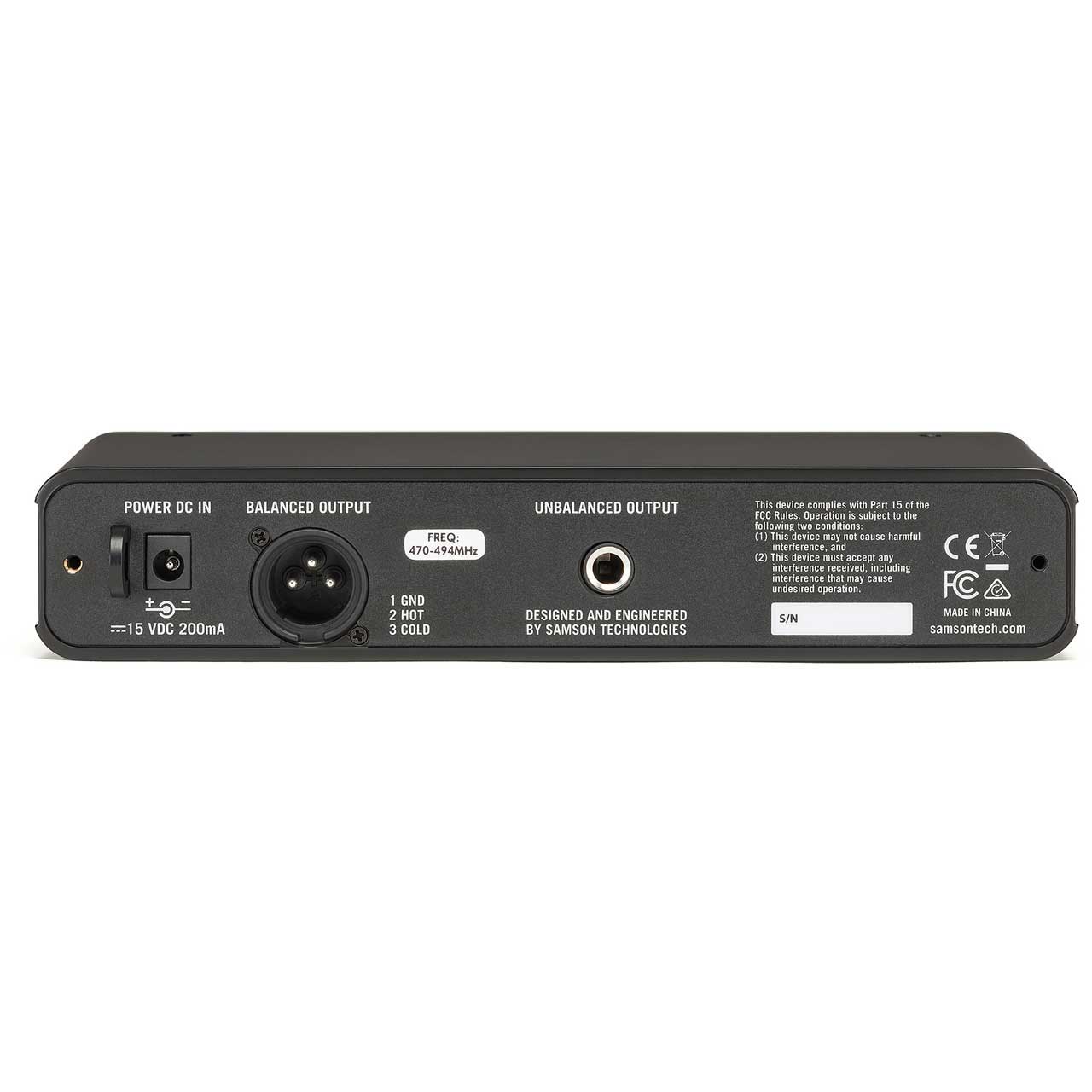

    The rear panel includes balanced (XLR) and unbalanced (1/4") outputs for connections to an amplifier or sound system. For classes with more than one instructor or facilities with multiple studios, up to eight systems per frequency band can be used simultaneously.

    • Features:

      • Airline 88x AH8 Fitness Headset System
      • High-performance professional UHF wireless system
      • 100 operating channels across 25 MHz bandwidth
      • 300' maximum operating range
      • Rackmount kit included

        CR88x Wireless Receiver
      • Bold LED display and visual indicators
      • 100 available frequencies with automatic scanning/selection
      • Infrared link locks the receiver and transmitter to the same channel
      • True diversity design minimizes dropouts
      • Tone-key and auto-mute functions eliminate background noise during dropouts
      • Balanced XLR and unbalanced 1/4" outputs

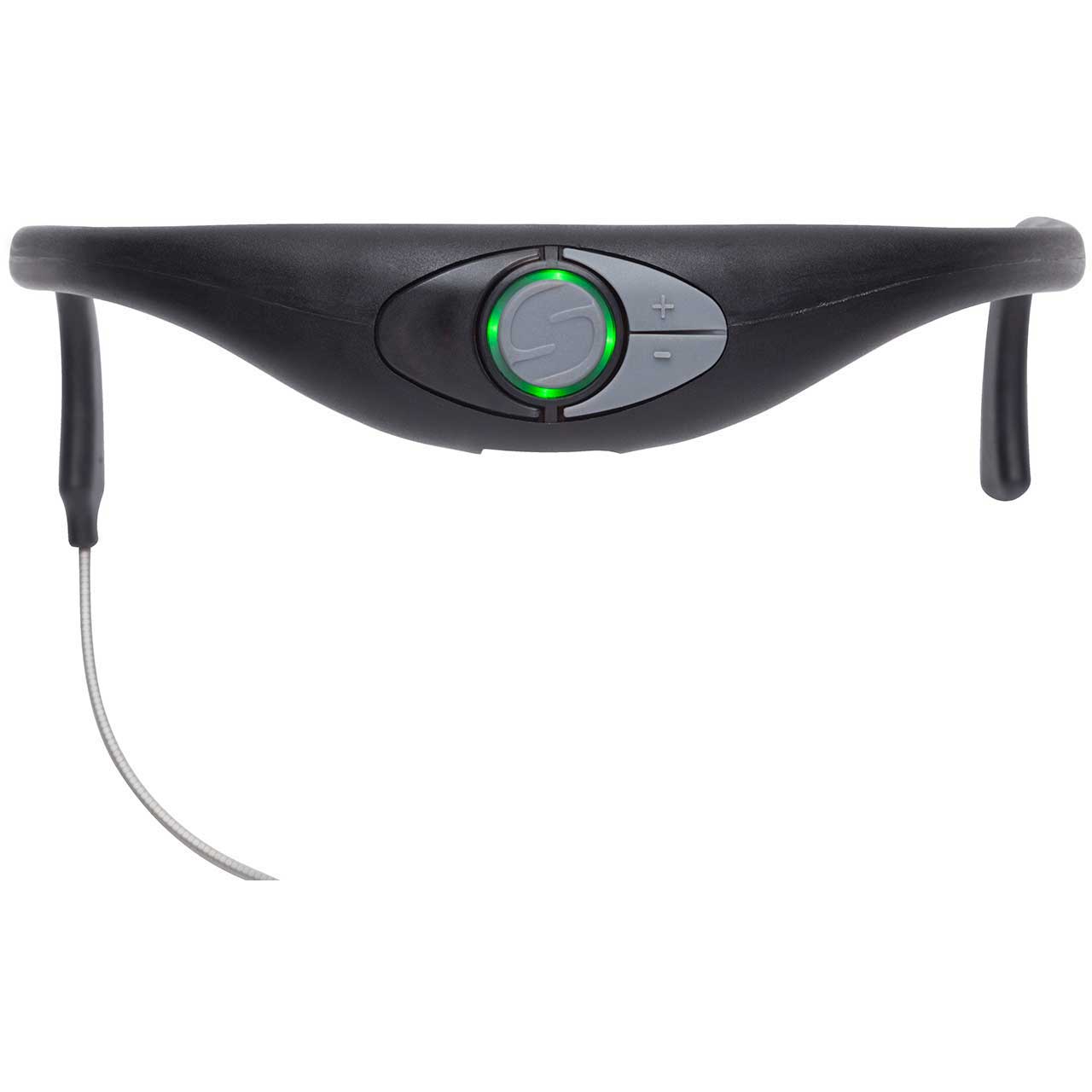

        AH8 Fitness Headset Transmitter
      • Integrated headset mic and transmitter (no beltpack or cable required)
      • Comfortable design mold to the user's head
      • Water-resistant materials; sealed circuit board
      • Marine-grade stainless steel gooseneck
      • Micro-miniature Samson AE50X cardioid mic capsule
      • Rechargeable Lithium-ion Battery operates for up to 8 hours
      • Tri-color LED indicator - Low Battery, Charging, Muted, Normal
      • 300' operating range (line-of-sight)
      • Variable Gain control
      • Silent mute switch

    • Specifications:

      • System
      • Working Range: 300' (100m) line of sight
      • Audio Frequency Response: 50 Hz - 15 kHz
      • T.H.D. (Overall): <1% (@AF 1 kHz, RF 46 dBu)
      • Dynamic Range: >100 dB A-weighted
      • Signal to Noise: >95 dB
      • Operating Temperature: -10°C (14°F) to +60°C (+140°F)
      • Tone Key Frequency: 35 kHz

        AH8 Headset Microphone Transmitter
      • Microphone Element: Condenser Mic
      • Microphone Polar Pattern: Unidirectional
      • Input Gain Range: 20dB
      • RF Power: 10mW EIRP
      • Power Requirements: 3.6V 500mAh, Lithium Ion rechargeable battery
      • Battery Life: 8 hours
      • Included Accessories
        4 foam windscreens
        1 stainless steel
        windscreen
        rubber headband
      • Dimensions (LxWxH): 5.9" x 6.7" x 3.9"
      • Weight: 0.13lb

        CR88x Receiver
      • Audio Output Level - Unbalanced: +14 dBu
      • Audio Output Level - Balanced: +9 dBu
      • Audio Output Impedance - Unbalanced: 810 Ohms
      • Audio Output Impedance - Balanced: 240 Ohms
      • Sensitivity: -100 dBm / 30 dB sinad
      • Image Rejection: >50 dB
      • Operating Voltage: 15 VDC 200mA
      • Dimensions (LxWxH): 8.25" x 4.9" x 1.75"
      • Weight: 0.88lb

    • GTIN:

      0809164222422
