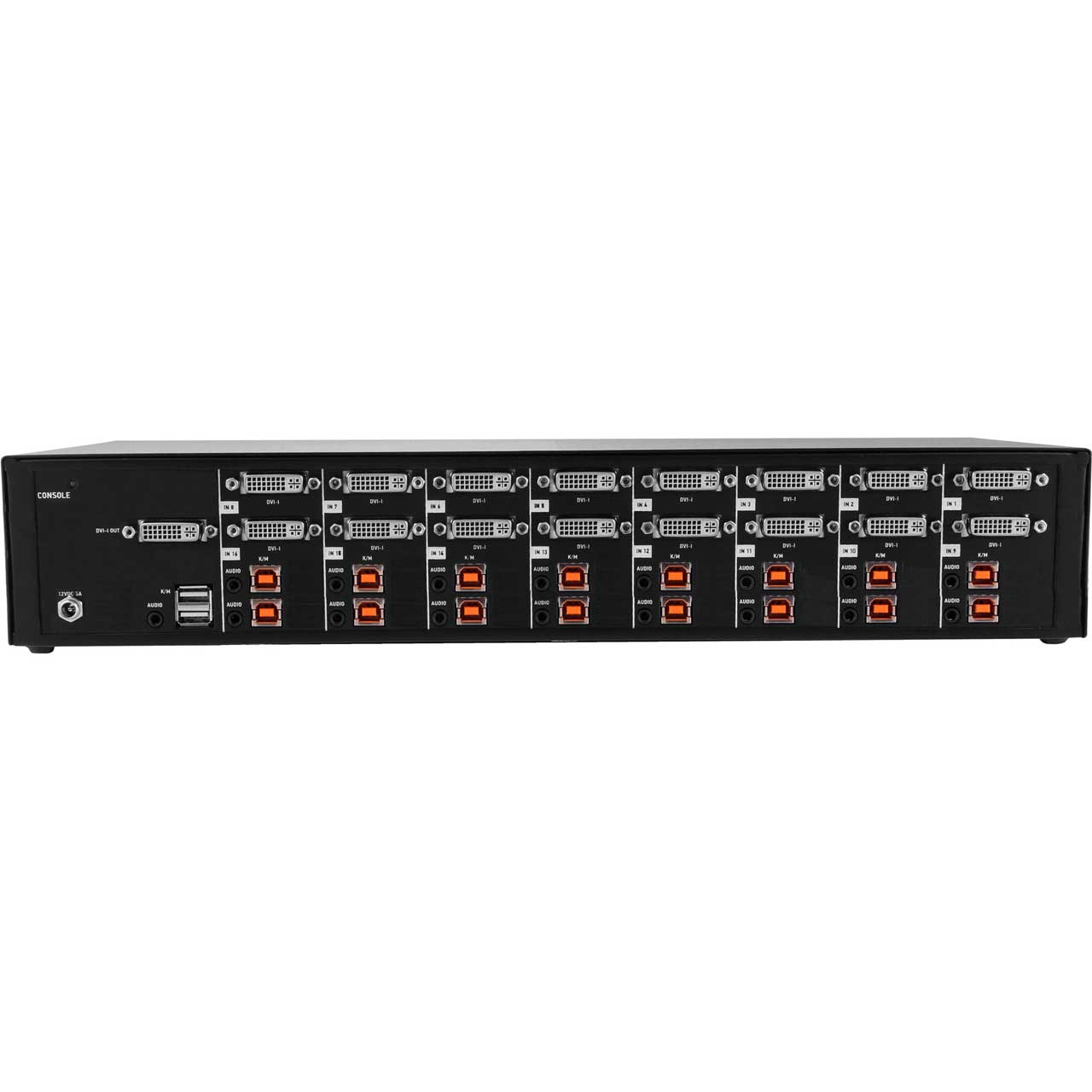

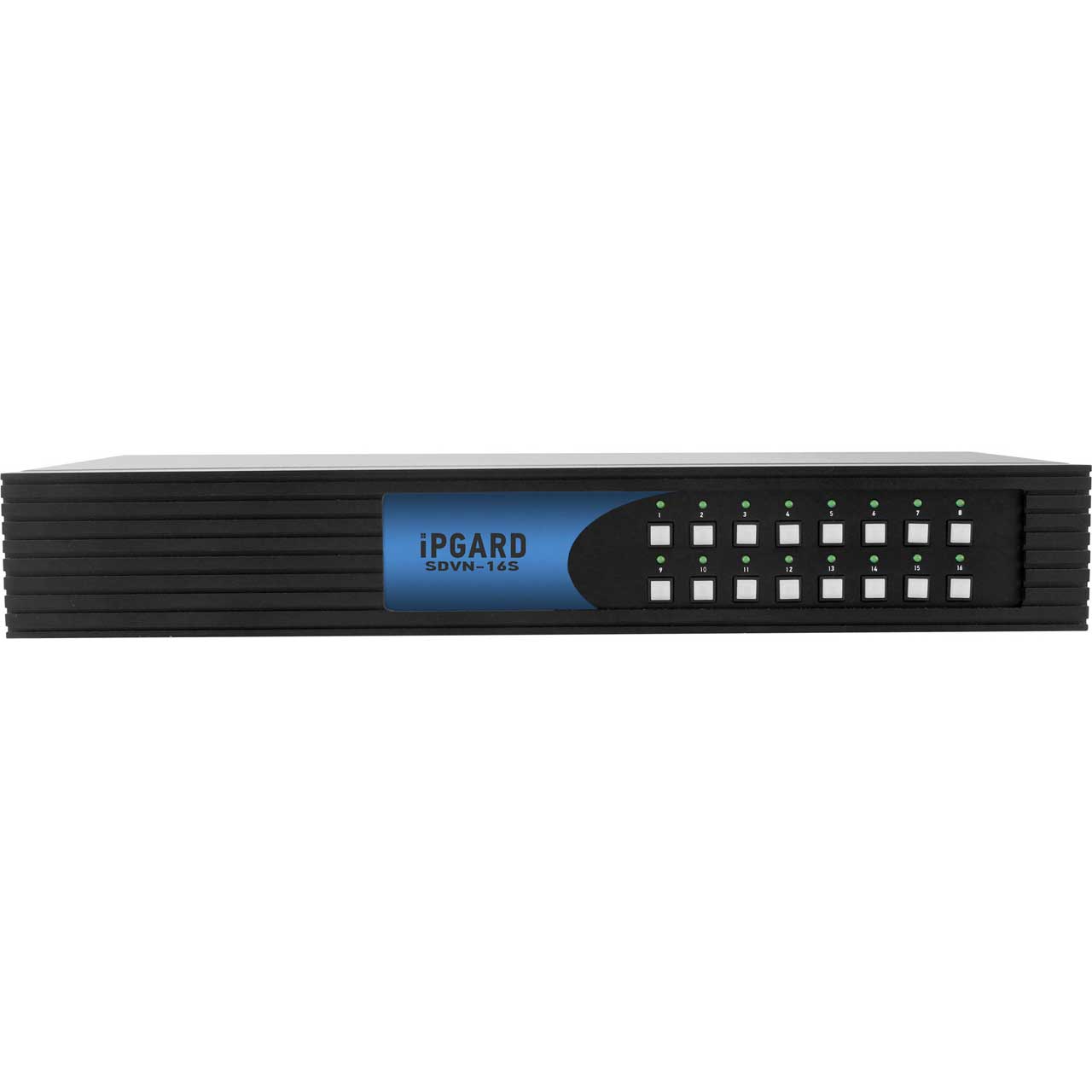

Smart-AVI SDVN-16S Secure 16-Port Single-Head DVI-I KVM Switch with USB and Audio
  • Smart-AVI SDVN-16S Secure 16-Port Single-Head DVI-I KVM Switch with USB and Audio
  • Smart-AVI SDVN-16S Secure 16-Port Single-Head DVI-I KVM Switch with USB and Audio

Questions? Ask a Markertek Expert:
800-522-2025 Email

Smart-AVI SDVN-16S Secure 16-Port Single-Head DVI-I KVM Switch with USB and Audio

Manufacturer: Smart-AVI

Item #: SAVI-SDVN-16S   •   MFG #: SDVN-16S



List Price:$2,321.00
Our Price:$2,089.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Smart-AVI SDVN-16S allows users to control KVM (keyboard, video and mouse) operation on up to 16 computers with DVI, HDMI or VGA displays. It features mechanical, electrical and optical signal isolation to prevent hacking and data leakage in environments where security is paramount.

    With the SDVN-16S, all data relays are controlled by inverted signals, shielding connections from outside intrusion by forcing them each to work one at a time. Each port uses its own isolated data channel and each unit features non-reprogrammable ROM to better protect the switch’s functions. Better yet, the SDVN-16S offers the highest security when accessing classified and public networks over the internet through these isolated connections. By isolating connections between networks, the SDVN-16S ensures no data is leaked between secure ports and the outside world.

    The SDVN-16S has clearly marked front-panel buttons for controlling the device, so securely switching between sources is always simple. For high-grade secure switching made easy, look no further than the SDVN-16S.


    • Features

      • Key Features
      • Supports Windows, Mac and Linux OS
      • Single-head DVI-I video interface.
      • Native DVI-I resolutions support up to 2560+1600 @ 60Hz
      • Supports Balanced speakers output and switching
      • Front panel tactile buttons with LED indicator
      • External power supply - Level VI efficiency

        Security Features
      • Non-reprogrammable ROM
      • Active Anti-tamper switches
      • Long-life internal Anti-tampering battery
      • External tamper-evident seals
      • Keyboard, Mouse and Video emulation
      • Absolute isolation - No data leakage between ports
      • Certified by NIAP, the latest Common
      • Criteria (Protection Profile for Peripheral Sharing Switch Version 3.0)

    • Specifications

      • Video
      • Format: Dvi-I Dual Link, Dvi 1.0, Dvi-D, Xvga
      • Max. Pixel Clock: 248 Mhz
      • Input Interface: (16) Dvi-I 29-Pin
      • Output Interface: (1) Dvi-I 29-Pin
      • Resolution: Up 2560+1600 @ 60hz
      • Ddc: 5 Volts P-P (Ttl)
      • Input Equalization: Automatic
      • Input Cable Length: Up To 20 Ft.
      • Output Cable Length: Up To 20 Ft.
      • Data Rate: 1.65 Gbps

        USB
      • Input Interface: (16) Usb Type B
      • Output Interface: (2) Usb 1.1 Type A For Km Devices
      • Emulation: Keyboard And Mouse

        Audio
      • Audio Input: (16) 3.5mm Stereo Audio
      • Audio Output: (1) 3.5mm Stereo Audio

        Control
      • Front Panel: Front Panel Select Buttons

        Other
      • Power: External 100-240 Vac/ 12vdc3a @ 36w
      • Dimensions: 17.0" W X 2.7" H X 8.69" D
      • Weight: 6.9 Lbs
      • Approvals: Niap Pp 3.0, Ul, Ce, Rohs Compliant
      • Operating Temp.: +32 To +104&Deg;F (0 To +40&Deg;C)
      • Storage Temp.: -4 To 140&Deg;F (-20 To +60&Deg;C)
      • Humidity: Up To 80% (No Condensation)

    • GTIN:

      0686911122552
