Soundcraft Signature 10 Audio Mixer


  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    5049551 - Overview

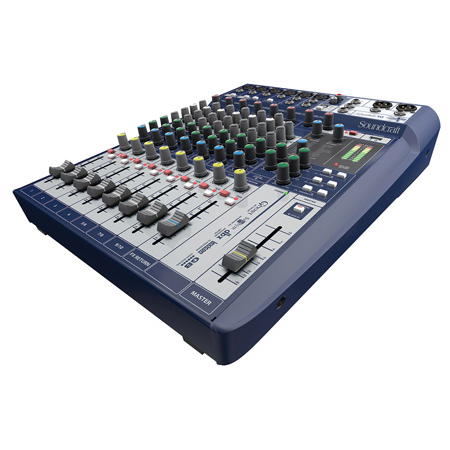

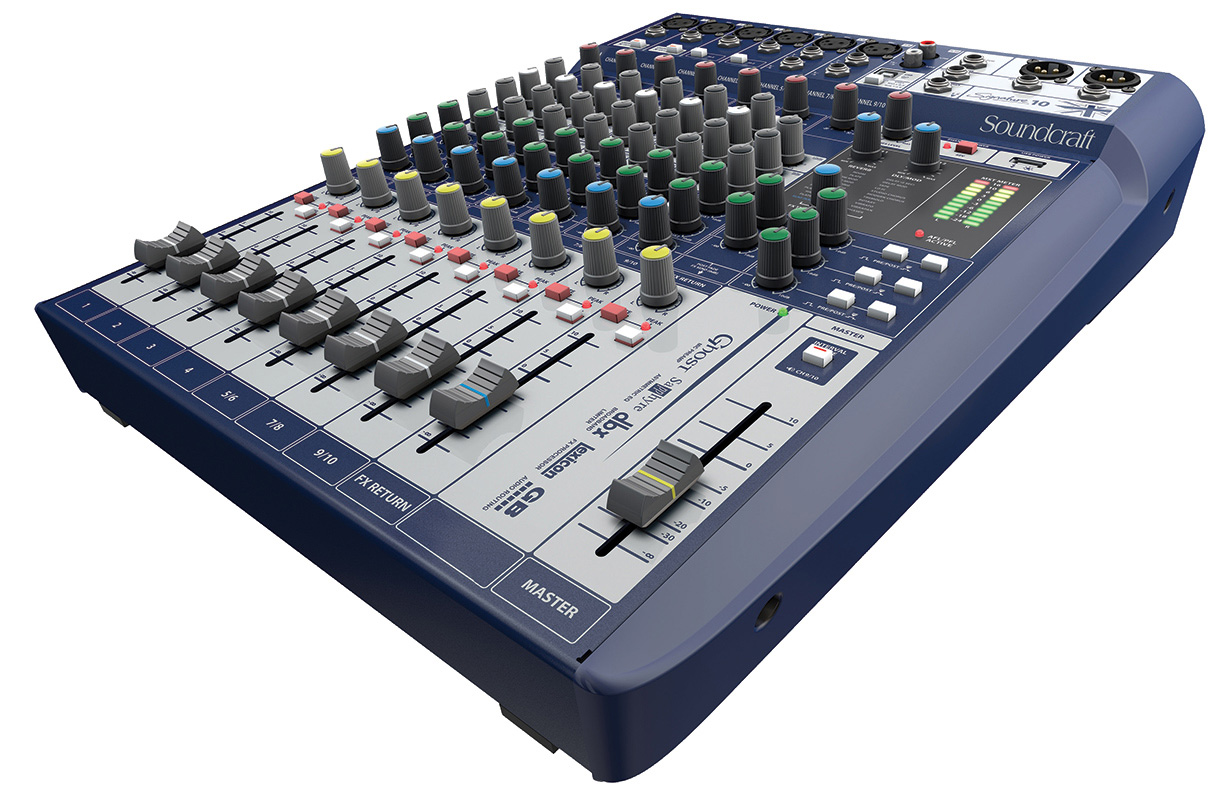

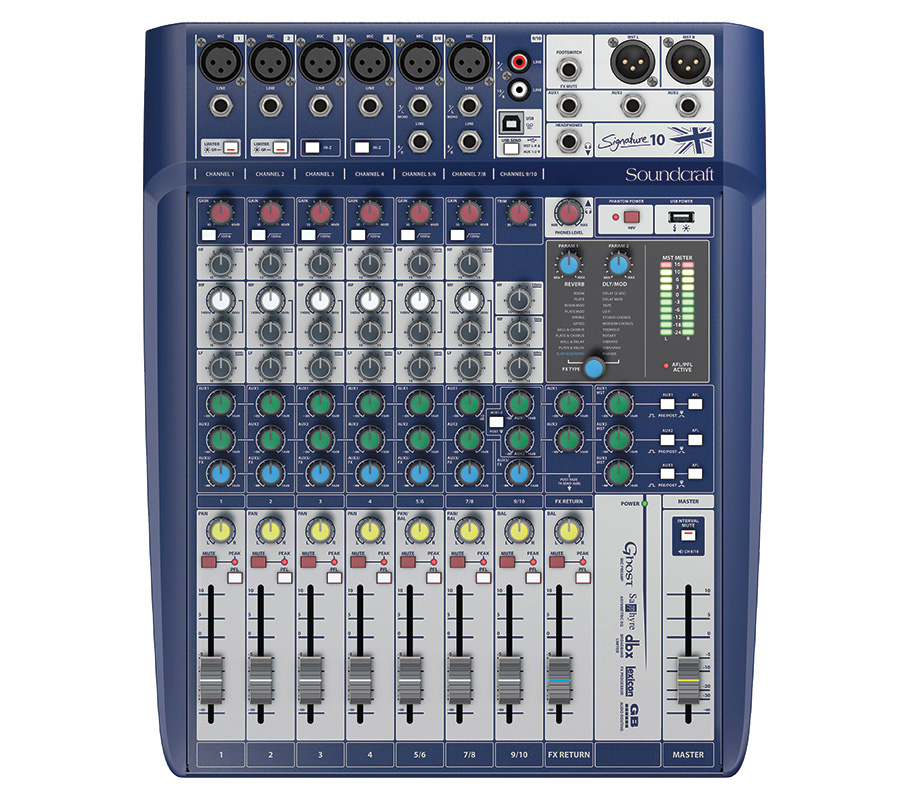

    The Soundcraft Signature 10 is a compact analog audio mixer. All Soundcraft Signature Series consoles incorporate Soundcraft’s iconic Ghost mic preamps, directly drawn from the company’s top-of-the-line professional consoles, to deliver extraordinary audio quality with high headroom, wide dynamic range and exceptional resolution and clarity with a superb signal to noise ratio. They employ Soundcraft’s Sapphyre Assymetric EQ for perfectly equalizing every vocal and instrumental element in a mix with the unmistakable musicality inherent in every Soundcraft console, plus the GB Series audio routing technology famous in thousands of live venues worldwide.

    They all include a wide variety of built-in Lexicon studio-grade reverb, chorus, modulation and other effects and dbx limiters on the input channels. The consoles offer XLR and switchable Hi-Z inputs that enable guitars, basses and other instruments to be directly connected.

    All the consoles come with a 2-in/2-out USB interface. Accompanying the consoles are free downloads of the Lexicon MPX-i native plug-in and Ableton Live 9 Lite.

    In addition, the consoles feature smooth, premium-quality faders with GB Series audio routing with flexible pre/post switching on each Aux, and subgroups with powerful routing and switching options as well as dedicated outputs. The Signature Series are built using tour-grade robust metal construction and top-quality components and have an internal universal power supply.

    • Features:

      • High-Performance 10-input small format analogue mixers with onboard effects
      • Iconic Soundcraft Ghost mic preamps with ultra-low noise performance
      • Renowned Soundcraft Sapphyre British EQ with sweepable mid-bands per channel
      • Lexicon Effects Engine featuring award-winning Reverbs, Delays, Choruses and Modulations
      • dbx Limiters (High-ratio Compressors) on input channels
      • 2-in/2-out USB audio playback and recording (PC: Supports Windows 7, Windows 8 and Windows 10. Mac: Supports Mac OS 10.7.x Lion through 10.11.x El Capitan)
      • Switchable Hi-Z inputs for guitars, basses and other instruments
      • Hi-Pass Filters (low-cut) and 48V Phantom Power on all mic channels
      • Comprehensive Soundcraft GB Series audio routing
      • Smooth premium-quality faders
      • Robust metal construction for tour-grade build quality and reliability
      • Internal universal power supply
    • Specifications:

      • Channels: 10
      • Soundcraft Ghost Preamps: 6
      • Soundcraft Sapphyre EQ: 3-band (1 band of swept mids)
      • dbx Limiters on inputs: 2
      • Lexicon Effects: Single Engine
      • USB Interface: 2-in/2-out
      • Auxes: 3
      • Subgroups: 0
      • Faders: 60mm
      • Height: 4.4"
      • Width: 15"
      • Length: 12.3"
      • Weight: 10.9lb
