    SCM-800 - Overview

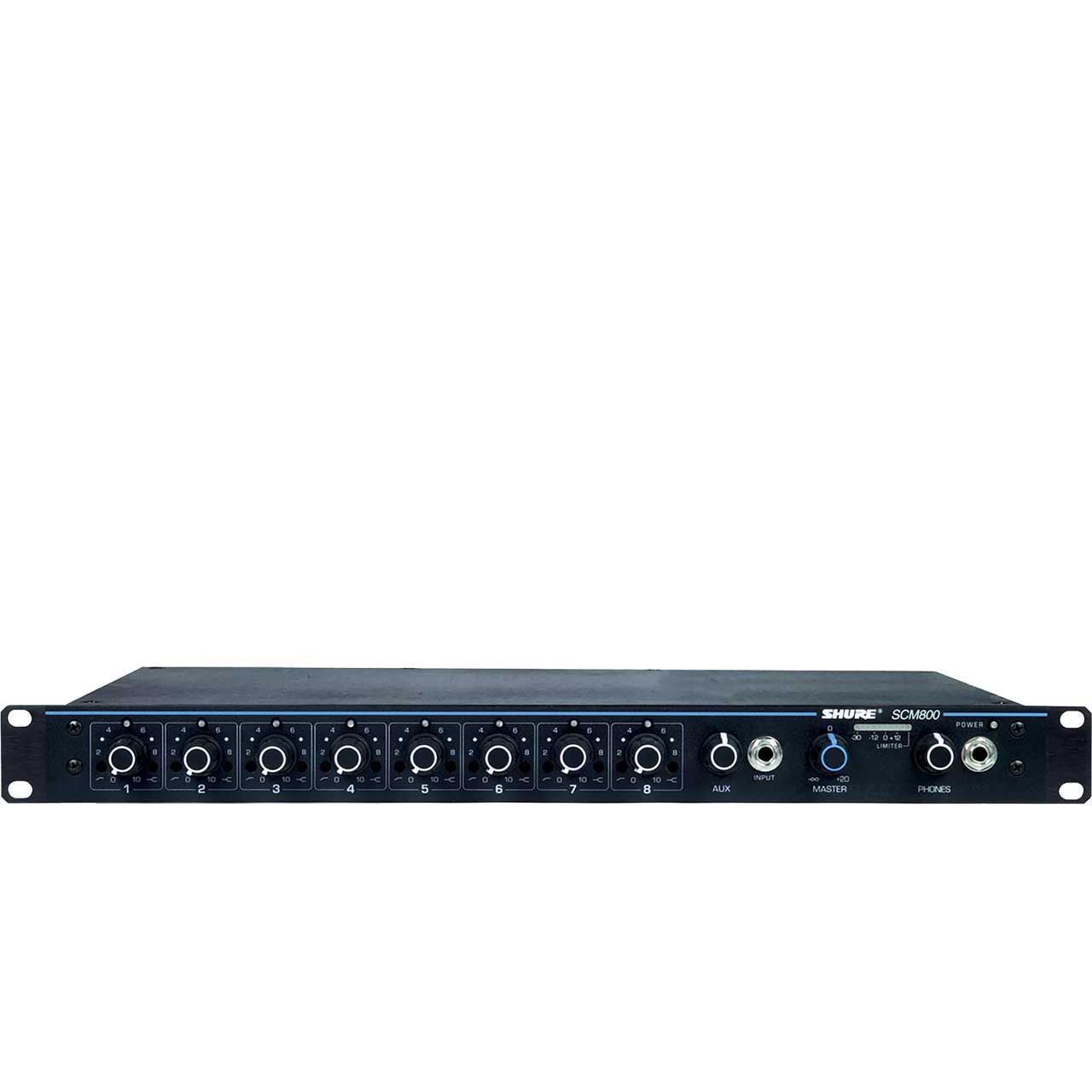

    The Shure SCM800 is a full-featured, eight-channel microphone mixer for sound reinforcement, general audio recording, and audio-visual systems. Any low-impedance, balanced dynamic or condenser microphone, including a wireless microphone system, can be used with the SCM800 mixer.

    Each SCM800 accepts up to eight microphone- or line-level inputs and one aux-level input (two input jacks feed the same channel). Up to four SCM800 mixers can be linked to provide up to 32 input channels. Each input channel has a two-band equalizer, switchable microphone- or line-level operation, switchable 48 V phantom power, and a 1/4-inch send/receive insert jack.

    The Shure SCM800 operates on 120 Vac power; the SCM800E operates 230 Vac power. Both models are supplied with rack-mounting hardware, link cable and removable block terminal connectors. An accessory rack panel adapter (Model RKC800, available separately) converts the removable block input and output connectors to XLR connectors, and the Aux connectors to phono jacks.

    • Features:

      • Compatible with Shure SCM410, SCM810 and FP410 automatic microphone mixers
      • Adjustable EQ per channel: low-frequency roll-off and high-frequency shelving
      • 48 V phantom power selectable for each input
      • Active balanced microphone- and line-level inputs and line level output
      • Highly RF-resistant chassis and circuitry
      • LED indication of channel clipping
      • Linking capability for systems up to 32 microphones
      • Two Aux-level input jacks that feed one channel
      • Insert jack on each channel
      • Manual mixing of input channels
      • Internal Modification permits 230 V operation (SCM800) or 120 V operation (SCM800E)
      • Front-panel headphones output with level control
      • Peak-responding output limiter with selectable thresholds and LED indicator

    • Specifications:

      • Power AC Power, IEC Connector
      • Analog Inputs 8 Mic/Line, 1 Aux, +48v
      • Dante Inputs n/a
      • Analog Outputs 1
      • Dante Outputs n/a
      • DANTE Audio Network Interface no
      • USB Audio no
      • Audio Connectors BLOCK
      • Acoustic Echo Cancelation no
      • Noise Reduction no
      • Automatic Mixing no
      • Matrix Mixing no
      • DFR no
      • Stereo/Mono Mono

    • GTIN:

      0042406054942
