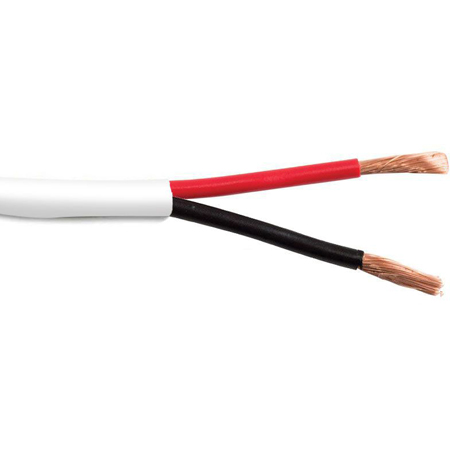

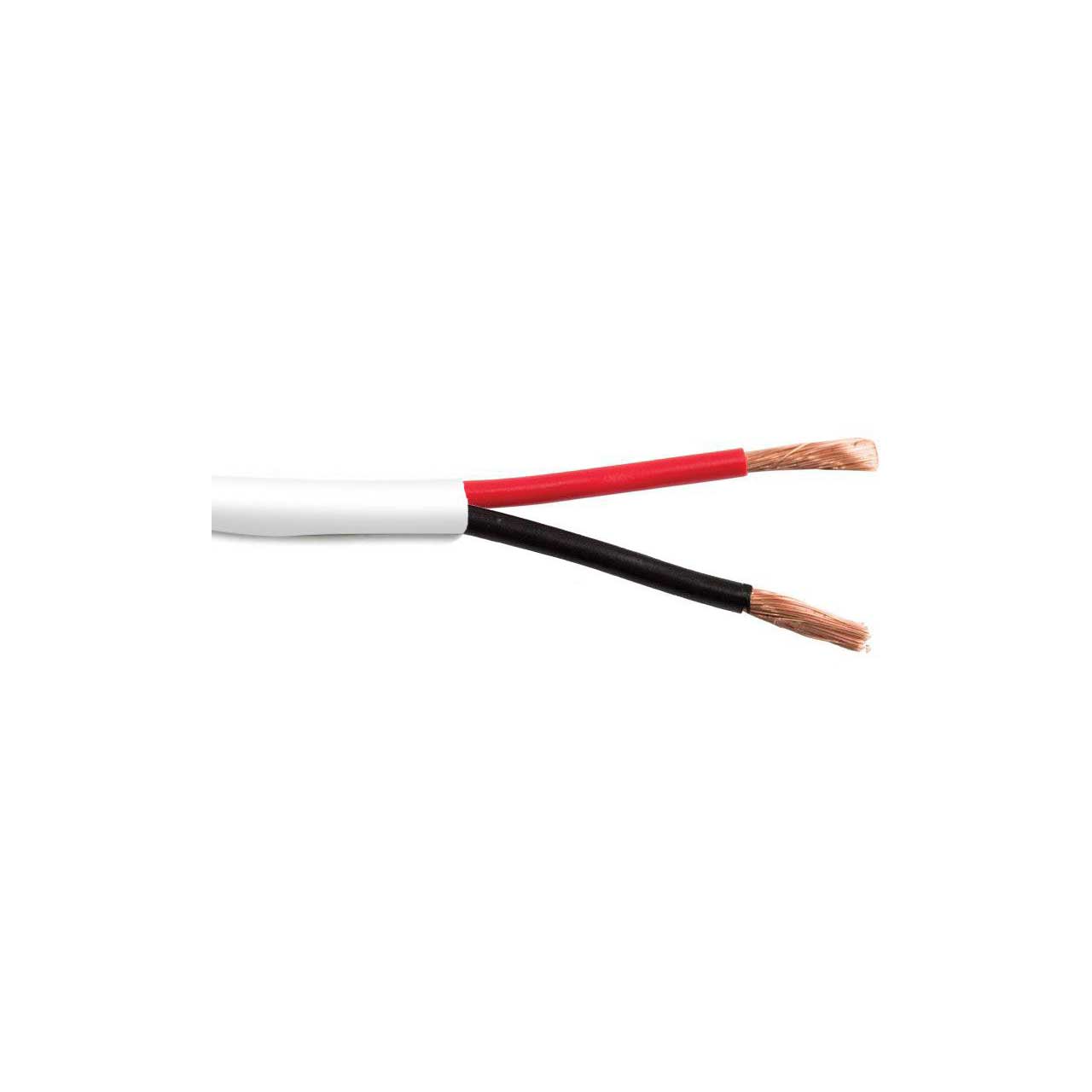

Structured Cable 12/2OFC Direct Burial 2-Conductor 12 AWG Stranded Copper Indoor/Outdoor Speaker Cable - 500 Feet White

12/2OFC-HD-WT - Overview

• Features:

  • Highly Flexible
  • Indoor/Outdoor Rated
  • High Strand Count Oxygen Free Copper (OFC)
  • Unshielded
  • Insulated twisted pair
  • HD UV Sun Resistant PVC Jacket
  • Easy Strip Round Rope Lay Construction
  • SCP Tangle Free Reelex II Box
  • Descending Feet and Zone/Outlet Jacket Markings


• Specifications:

  • Conductor:
  • Material: Stranded Bare Copper
  • Size: 12AWG X 2C (3.28mm²)
  • Construction: 65/0.254mm±0.004mm
  • Resistance: Max 5.8Ω/km at 20°C

    Insulation:
  • Material: PVC
  • Min. Thickness: 0.30mm
  • Avg. Thickness: 0.36mm
  • Diameter: 3.20mm±0.10mm
  • Colors: Black and Red
  • Resistance: Min 50MΩ*km at 20°C

    Jacket:
  • Material: PVC
  • Min. Thickness: 0.80mm
  • Avg. Thickness: 0.95mm
  • Diameter: 8.3mm±0.20mm
  • Rip Cord: Nylon


  • Bend Radius: Min 15D/125mm
  • Operating Temperature Range: -20°C - +75°C
  • Minimum Installation Temperature: 0°C - 40°C
  • Dielectric Strength: Min AC1.5KV
  • Rated Voltage (Insulated/Operating): Max 300V/80V
  • Test Voltage: 800V/min
  • Impedance (nearby): 77±5Ω
  • Capacitance (nearby): 20±3pf/ft


• GTIN:

  0810070017897
