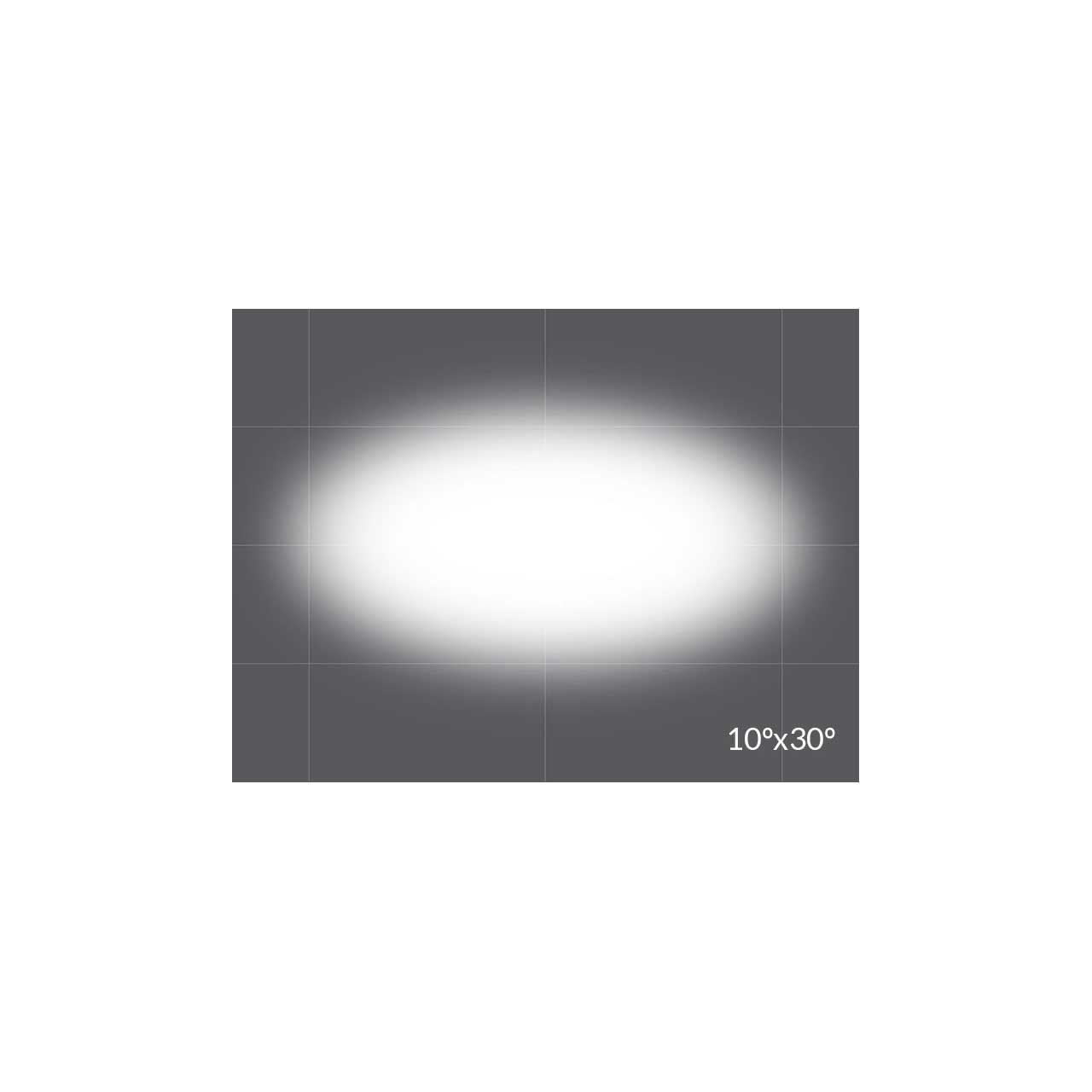

Rosco OPTI-SCULPT 10 x 30 Degree Beam Pattern for Precise Beam Sculpting - 24 Inch x 40 Inch Sheet

108110302440 - Overview

Engineered For Precise Beam Sculpting

• Features:

  • Accurate, Repeatable Beam Shaping - OPTI-SCULPT light sculpting lenses are scientifically engineered to provide lighting designers precise, angular beam control by passing the light through non-diffracting structures, embedded micro-lenses, for even beam distribution without any color-shift. This uniform control of the beam angle sculpts the beam into circular or linear patterns for any project where beam shaping is required.


  • High Light Transmission - OPTI-SCULPT is manufactured out of clear polycarbonate plastic and feature a very fine matte texture on the backside, which helps improve transmission by removing reflective light loss. The beam sculpting structures engineered inside the plastic provide a natural back scatter that helps eliminate hotspots without a significant reduction of light output.

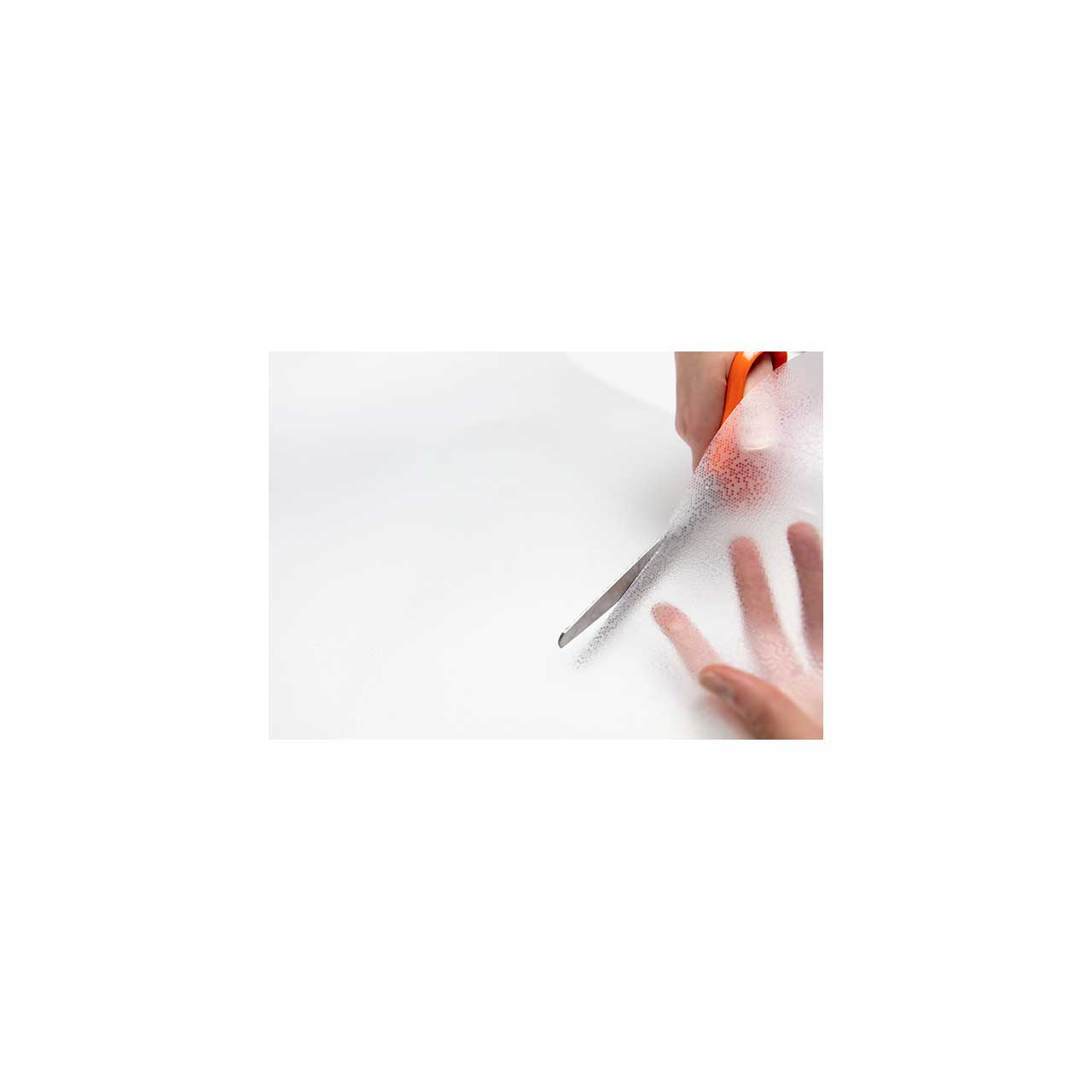

  • Durable And User Friendly - Available in standard 24"x20" and larger 24"x40" seamless sheets, OPTI-SCULPT can easily be cut-to-size to fit any light. The performance of this durable, heat resistant, flame retardant product is not affected by dust or the oils from hands. Once cut, you can mark the back to designate which design it is, without affecting the performance of the lens. Thanks to their heat-resistant base, OPTI-SCULPT can be used on both LED and traditional tungsten lighting fixtures.


• Specifications:

  • Substrate: Clear polycarbonate. Contains flame retardant additive
  • Thermal Performance: -40°F - +320°F (-40°C - +160°C)
  • Transmission: >85%
  • Flame Retardant Rating: M1, B1, C1, BS3944 PART 1 1992, NFPA 701
