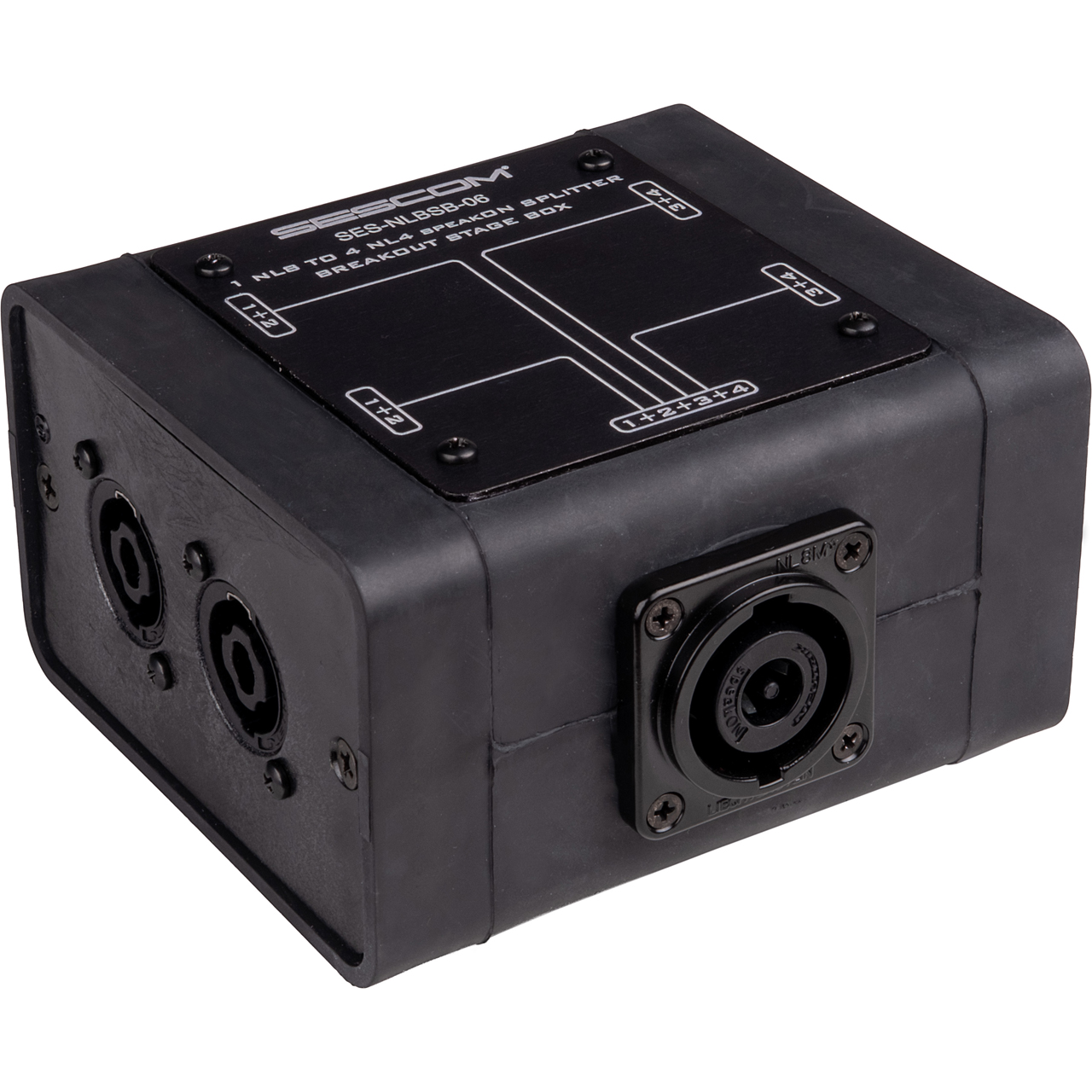

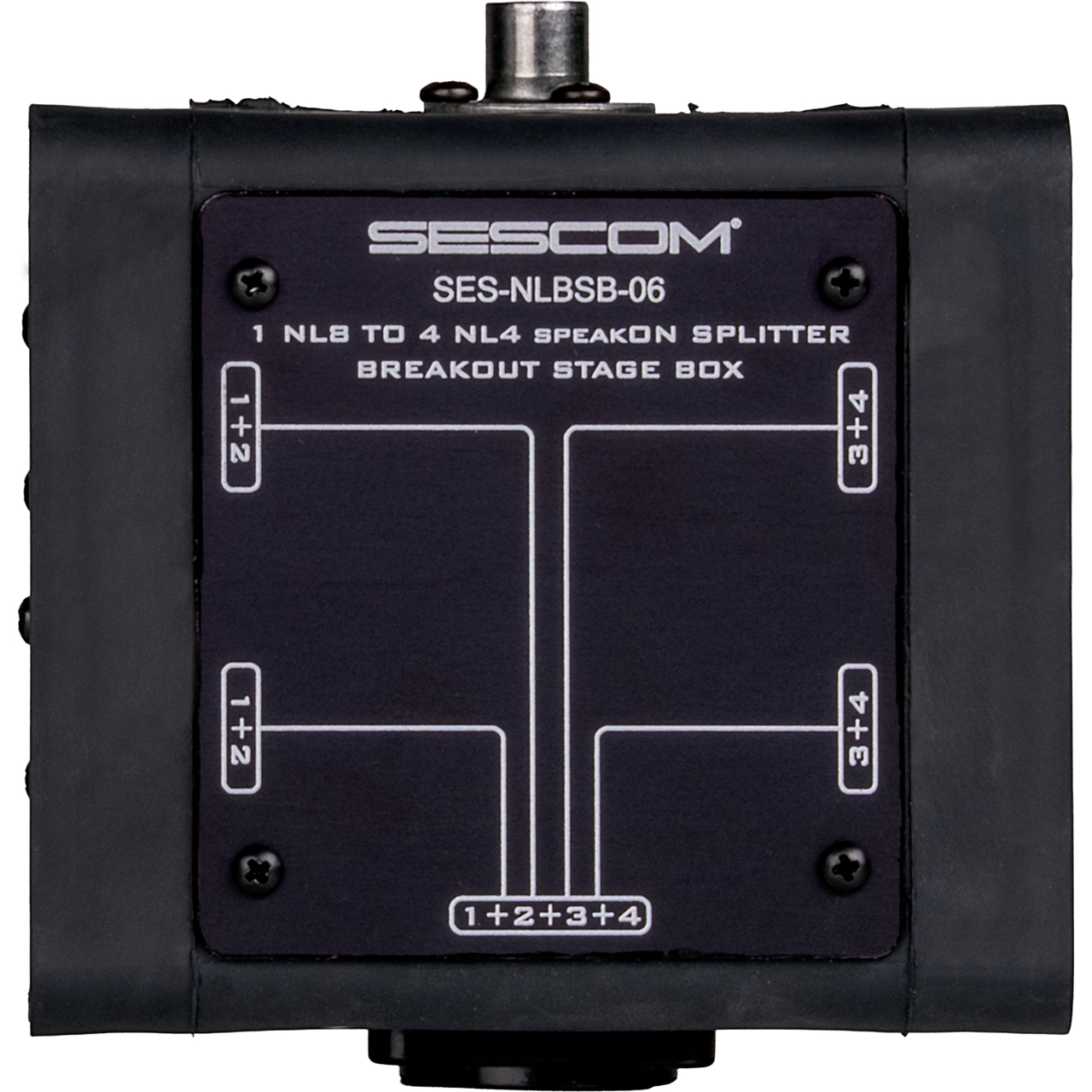

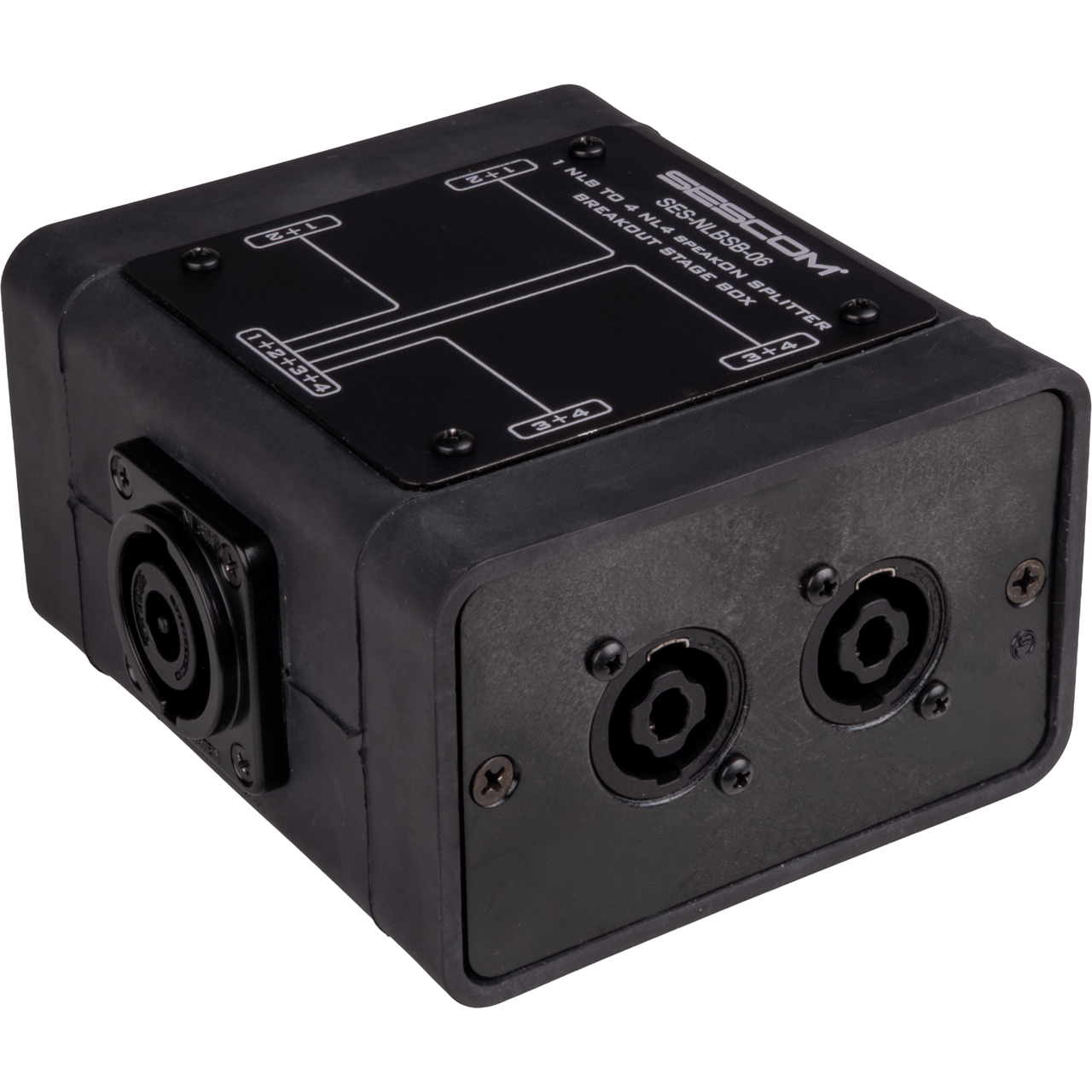

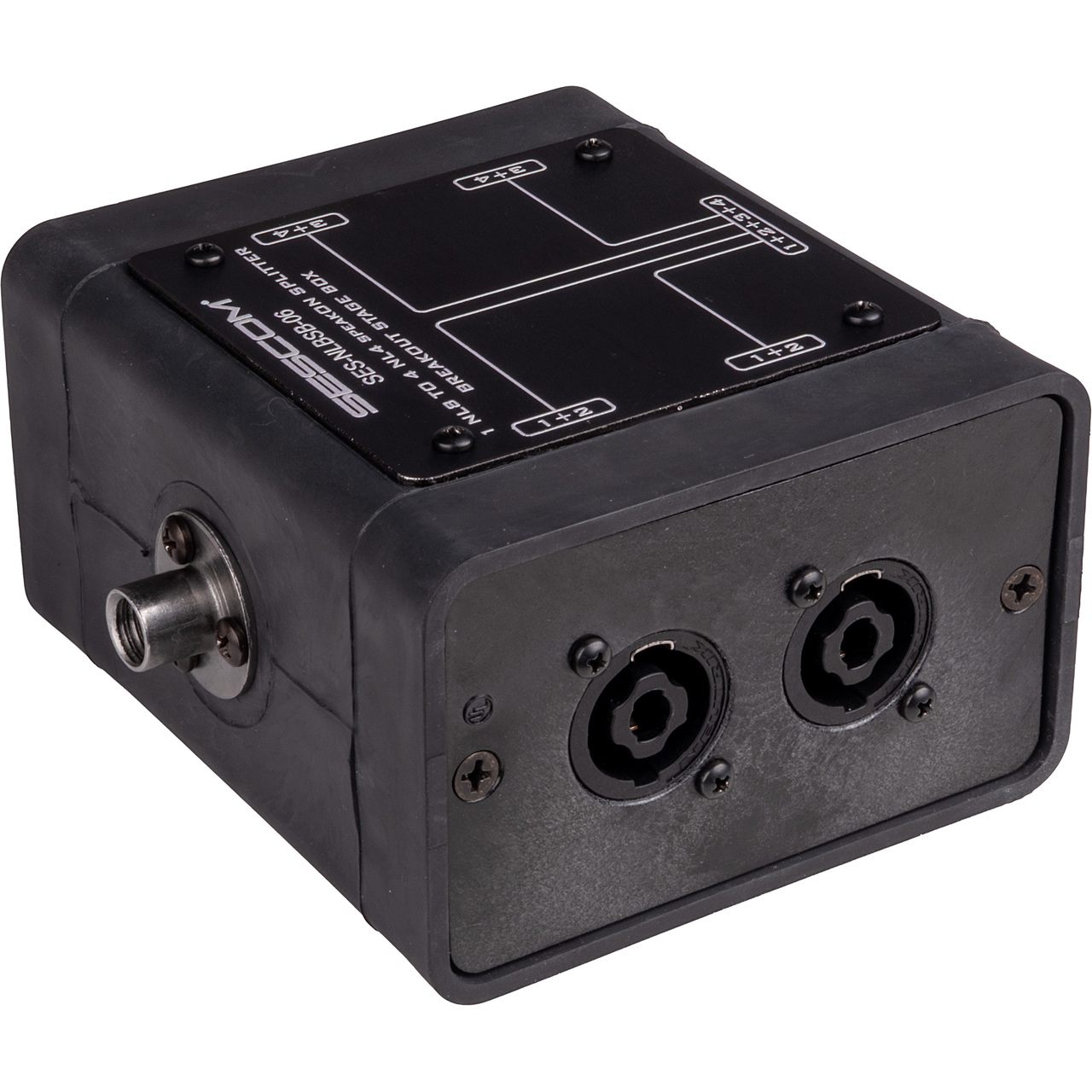

The Sescom SES-NLBSB-06 splitter breakout stage box is a compact, rugged, rubberized 1-gang speaker signal distribution unit equipped with Neutrik speakON connectors. The 1:4 configuration features a male speakON input, which is split and/or broken out into 4 male speakON chassis connectors, enabling simple yet versatile signal distribution.
Sescom Tech Note: NL4 chassis connectors are fully compatible, supporting both 4-pole NL4 and 2-pole NL2 speakON connectors. speakON is NOT to be used as an AC mains or power supply connector!
A SES-NLBSB stage box can be a breakout, splitter, and/or parallel.
- Anything that breaks a multi-channel connector to multiple individuals (Ch 1 - 4 on input to Ch 1, Ch 2, Ch 3, + Ch 4) is a BREAKOUT
- Anything where the same connection config is repeated on multiple connectors (i.e. Ch 1+2, Ch 1+2 outs) is a SPLITTER
- Having two of the same channels on one connector (Ch 1 + Ch 1) is considered PARALLEL
A SES-NLBSB stage box can be one, two, or all three of these.
