Shure AD600 Axient Wide-band Digital Spectrum Manager for Wireless Audio - 174 MHz to 2.0 GHz

ITEM #: SH-AD600 MFG #: AD600US

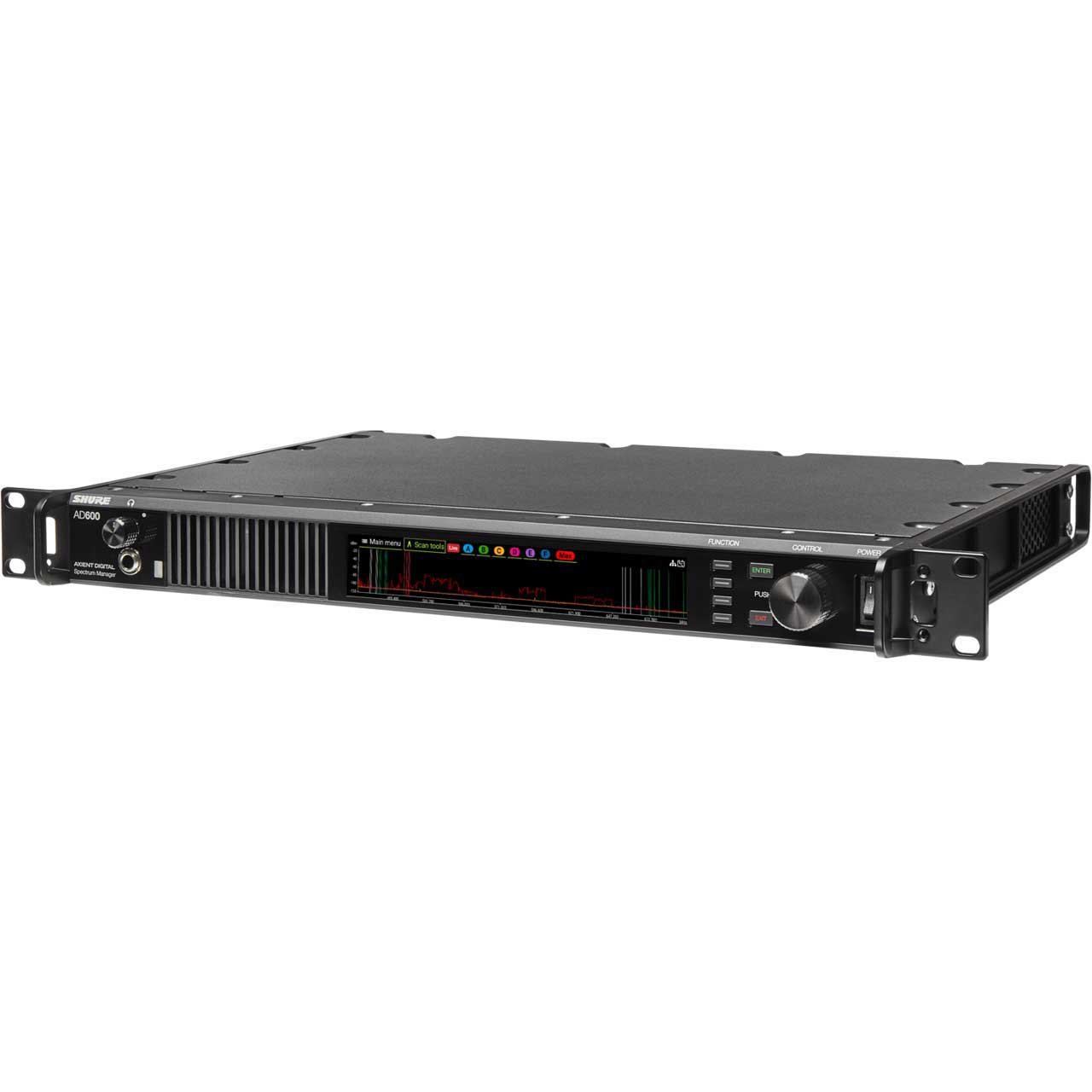

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with Minimum Order Banner

List Price:

$6,875.00

Our Price:

$5,499.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    AD600US - Overview

    Shure Axient® AD600 Digital Spectrum Manager delivers real-time, wide-band spectrum scanning and monitoring from 174 MHz to 2.0 GHz, spectrum analysis, and frequency coordination in a single rack unit. Six antenna connections deliver multiple coverage options while Dante connectivity provides advanced audio monitoring of your network. Use the USB port to export, import, or save backup scans, event logs, and other important data. The AD600 is an essential addition to your Axient Digital professional audio setup.

    The AD600 is a powerful, next-generation tool for planning and managing frequency coordination in the most demanding professional wireless audio applications including; touring, broadcast, location sound, theater, and house of worship. Use Guided Coordination menus to plan, RF scan, and deploy frequencies to your entire system, or dive deeper for complete control. Additional tools are available to analyze the spectrum, capture data, and perform site RF surveys. Monitor demodulated audio from your network using Dante Browse and listen over Dante features. The AD600 features a large, full-color 6.6-inch front panel screen making viewing information easy while real-time scanning and monitoring of RF activities keeps live information available when you need it most

    • Features:

      • Advanced, comprehensive RF coordination for your network
      • Fast, real-time scanning to find available frequencies and monitor RF activity

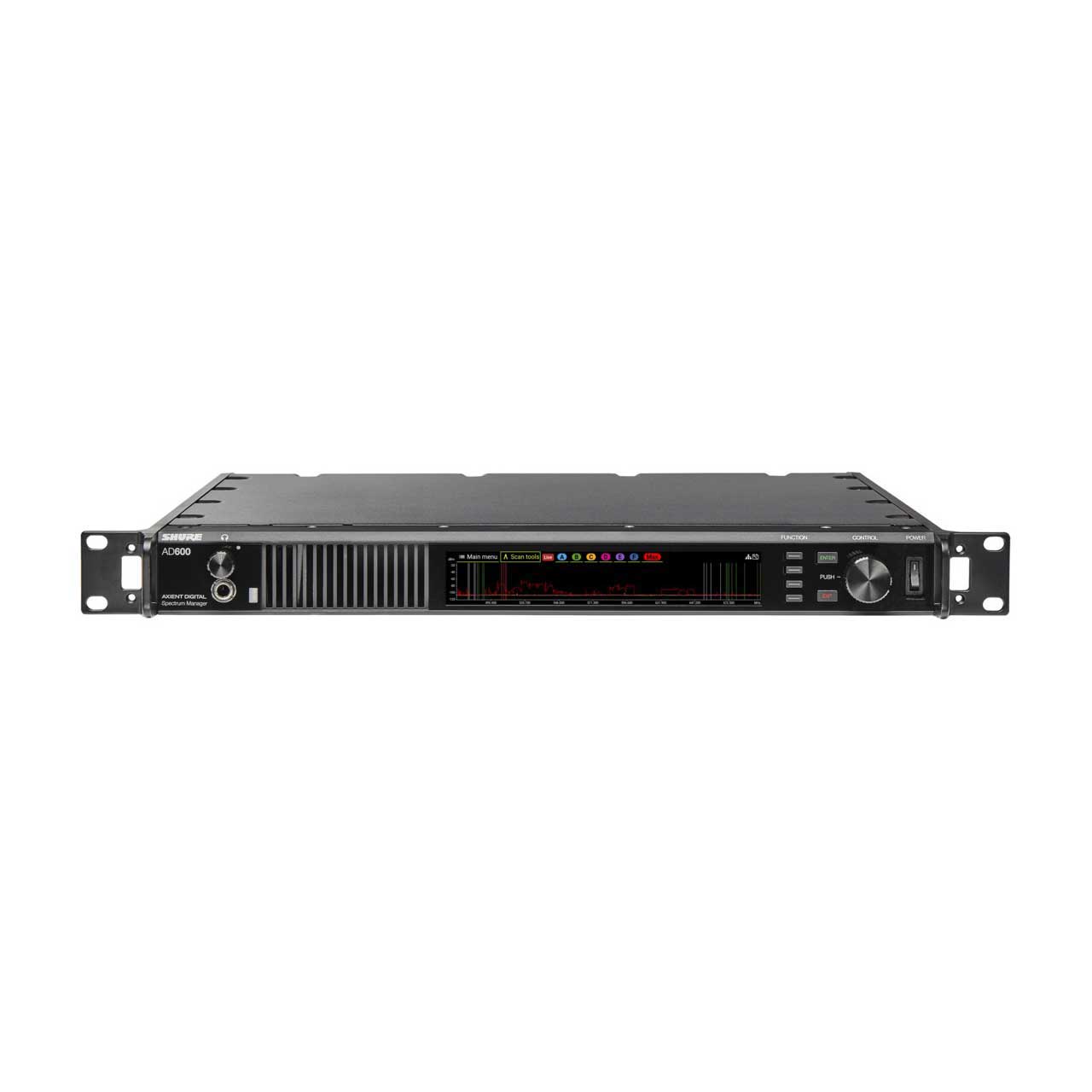

      • Large, 6.6-inch color display for viewing and analyzing the RF spectrum
      • Guided RF coordination to save time and effort in challenging RF environments
      • Tools for viewing, analyzing, and listening to RF activity
      • Tuning Range: 174 MHz to 2 GHz for support of multiple frequency bands

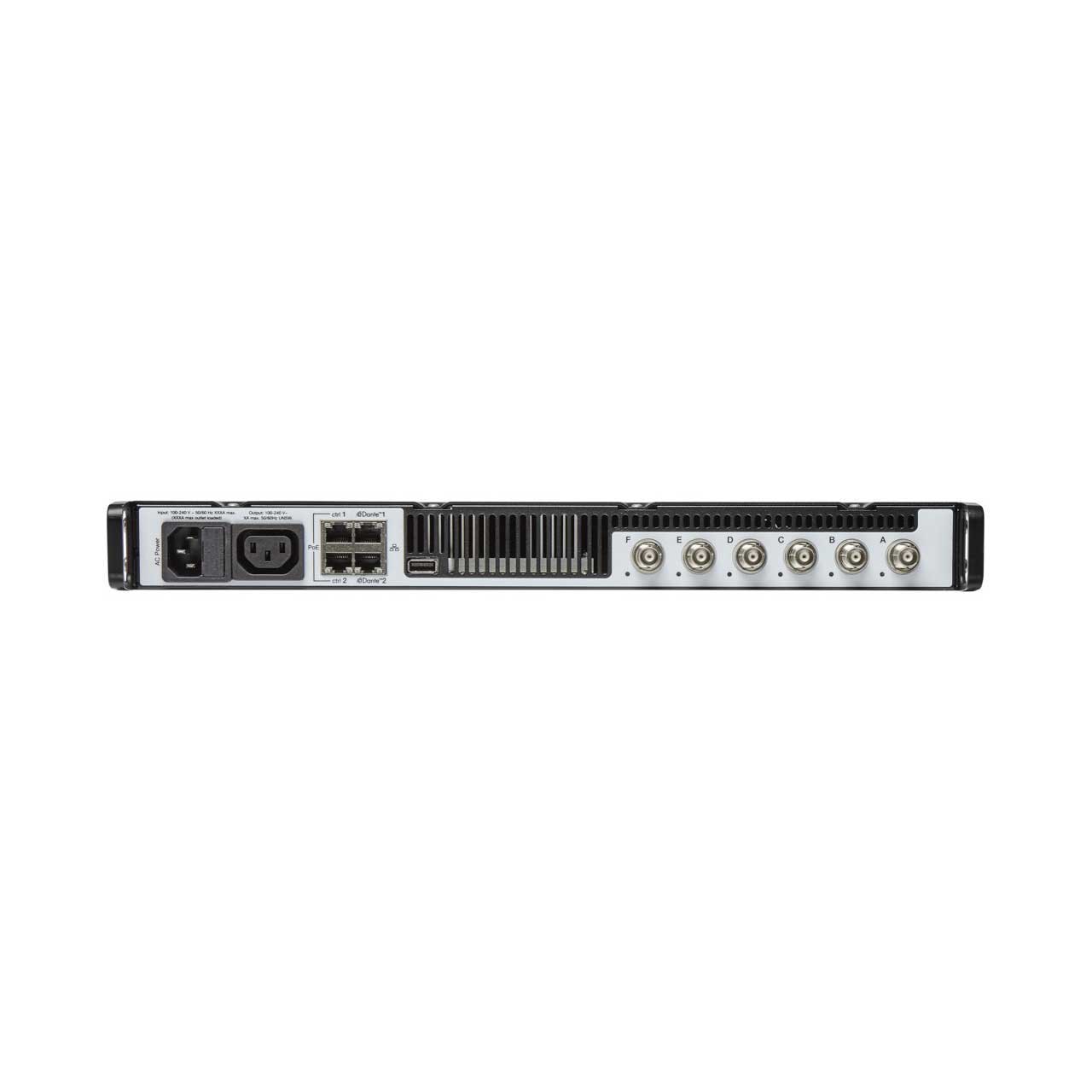

      • (6) antenna connections to support coverage for multiple antennas and zones
      • Data capture and storage to archive RF information for analysis
      • Network enabled for large-scale system deployments
      • USB connections for external data storage of scans, event logs, and other data
      • Dante enabled for advanced audio monitoring of your network
      • Compatible with Wireless Workbench to extend control and monitoring options
      • AC and DC powered options

    • Specifications:

      • RF Tuning Frequency Range: 174 - 2000 MHz
      • RF Tuning Step Size: 25 kHz / 200kHz
      • Noise Floor: -154 dBm/Hz
      • Image Rejection: > 90 dB
      • Spurious Response: < -100 dBm, typical
      • Dimensions: 1.7 x 19.0 x 11.25 inches, H x W x D
      • Weight: 3.7 kg (8.15 lbs)
      • Housing: Steel
      • Power Requirements: 110 - 240 V AC, 50 - 60 Hz
      • Current Drain: 1.2 A
      • Operating Temperature Range: 0°F - 122°F
      • Storage Temperature Range: -20°F - 165°F

        RF Input
      • Connector Type: BNC
      • Impedance: 50 Ω
      • Maximum Input Level: +10 dBm
      • Bias Voltage: 12 - 13.5 V DC, 150 mA maximum per antenna, 450 mA maximum per device

        Headphone Monitor Audio Output
      • Audio Frequency Response: 20 Hz - 20 kHz, +/- 3 dB
      • Configuration: ¬" / 6.3 mm connector, unbalanced stereo
      • Impedance: 63 Ω
      • Maximum Signal Level: 350 mW
      • Pin Assignments: Tip: Audio + , Left: / , Ring: Audio + , Right: / , Sleeve: Ground

        Networking
      • Network Interface: Quad Port Ethernet 10/100/1000 Mbps
      • Redundant Dante support: PoE supported on the control ports
      • Network Addressing Capability: DHCP or Manual IP address

        DC Module Specifications
      • DC Input Voltage Range: 10.9 - 16V
      • Maximum DC Input Current: 5.5 A
      • Protection Modes: Reverse Polarity, Over Voltage
      • Connector Type: 4-pin XLR (male). The shell of the DC inlet XLR connector is connected to Chassis Ground.

    • Item Includes:

      • 1x AD600
      • 1x Power cable with V-Lock (region specific)
      • 1x USB extension cable
      • 1x Rack mount hardware kit (90YT1371)
