    Install or On the Move. Your Venue's Spectrum Data, Ready When You Need It.

    The RF Venue Spectrum Recorder is a compact, standalone data recording device designed to assist in monitoring and optimizing wireless microphone and in-ear monitor systems. Spectrum Recorder continuously captures RF spectrum activity in the 400-700 MHz band, and writes CSV-formatted scan files to its internal storage drive. These time stamped scan files can be retrieved directly with a USB thumb drive or accessed remotely over a local network connection.

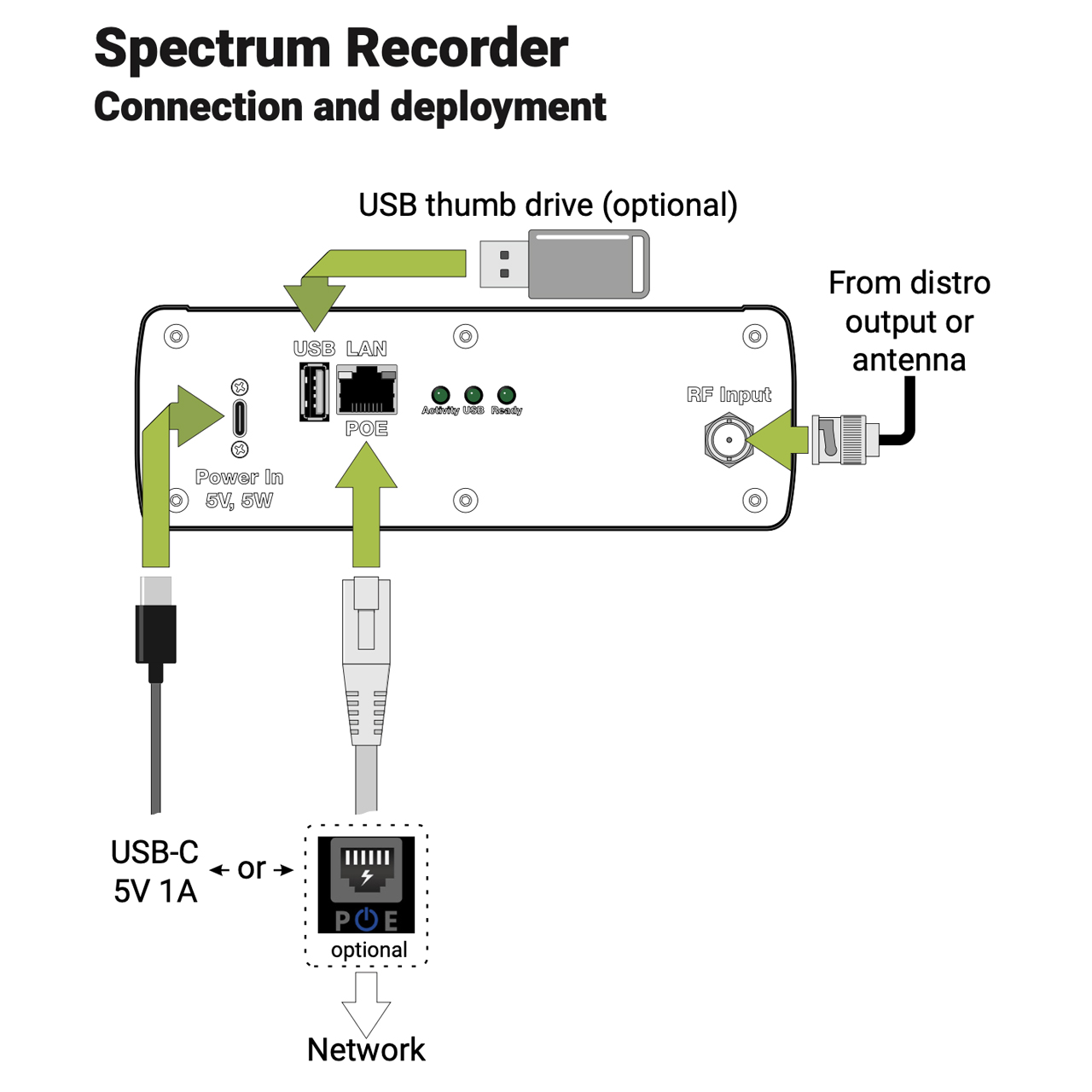

    Connect Spectrum Recorder directly to your wireless microphone antenna system or use the included whip antenna to capture spectrum for a site survey. PoE capable and battery ready, the Spectrum Recorder is small and lightweight enough to easily ship to a remote location or deploy across many rooms on a fixed installation.

    Spectrum Recorder's data can be uploaded to RF Venue's free web-based Wireless System Builder tool for system design and frequency coordination, or imported natively to third party software like Shure® Wireless Workbench and Audio-Technica® Wireless Manager.

    No software installation is needed, and no cloud subscriptions are required

    • Features:

      • Automatic Spectrum Recording: Instant and continuous capture of spectrum activity from 400-700 MHz. No spectrum analyzer or complex test equipment required.
      • 24 Hour Scan Data Capture: See the entire scope of spectrum activity over 24 hours. Max Hold and Average scan views are captured and calculated automatically.
      • Active Frequencies Scan: Separate fixed transmitters such as DTV stations from surprise interference sources. The Active Scan compiles hard to detect frequencies to help protect your wireless system from interference hits.
      • Power Over Ethernet (PoE) Capable: Deploy Spectrum Recorder where needed with just an ethernet connection. Easily cover multiple rooms, buildings, or studios with a network of Spectrum Recorders.
      • Battery Power Ready: No power? No problem. pectrum Recorder's 5V USB-C DC power input can accommodate common portable power banks used for charging mobile devices. A 10,000 mAh battery can power Spectrum Recorder for several days.
      • No Software Installed, No Subscription Fees: Spectrum Recorder does not connect to any outside services or require any onsite software installation. IT professionals can use the Spectrum Recorder MAC address to assign a fixed IP address if desired.
      • Updates and Upgrades: Look for exciting new capabilities for the RF Venue Spectrum Recorder as it grows and develops into the primary hub for all your RF spectrum data.
    • Specifications:

      • Scan Range: 400 - 700 MHz
      • Resolution Bandwidth: 25 kHz
      • Impedance: 50 Ω
      • Dynamic Range: -130 to +10 dBm
      • Average Noise Floor: -120 dBm
      • Data Port Connector: USB Type A
      • LAN and PoE Connector: RJ45
      • Power Connector: USB Type-C
      • Power Requirement: 5V DC 1 A (via USB-C) or PoE
      • Dimensions: 7" x 2.4" x 3.4"
      • Weight: 1.48lbs
    • Item Includes:

      • 1x Spectrum Recorder
      • 1x UHF whip antenna
      • 1x 5V USB-C power supply with cable
