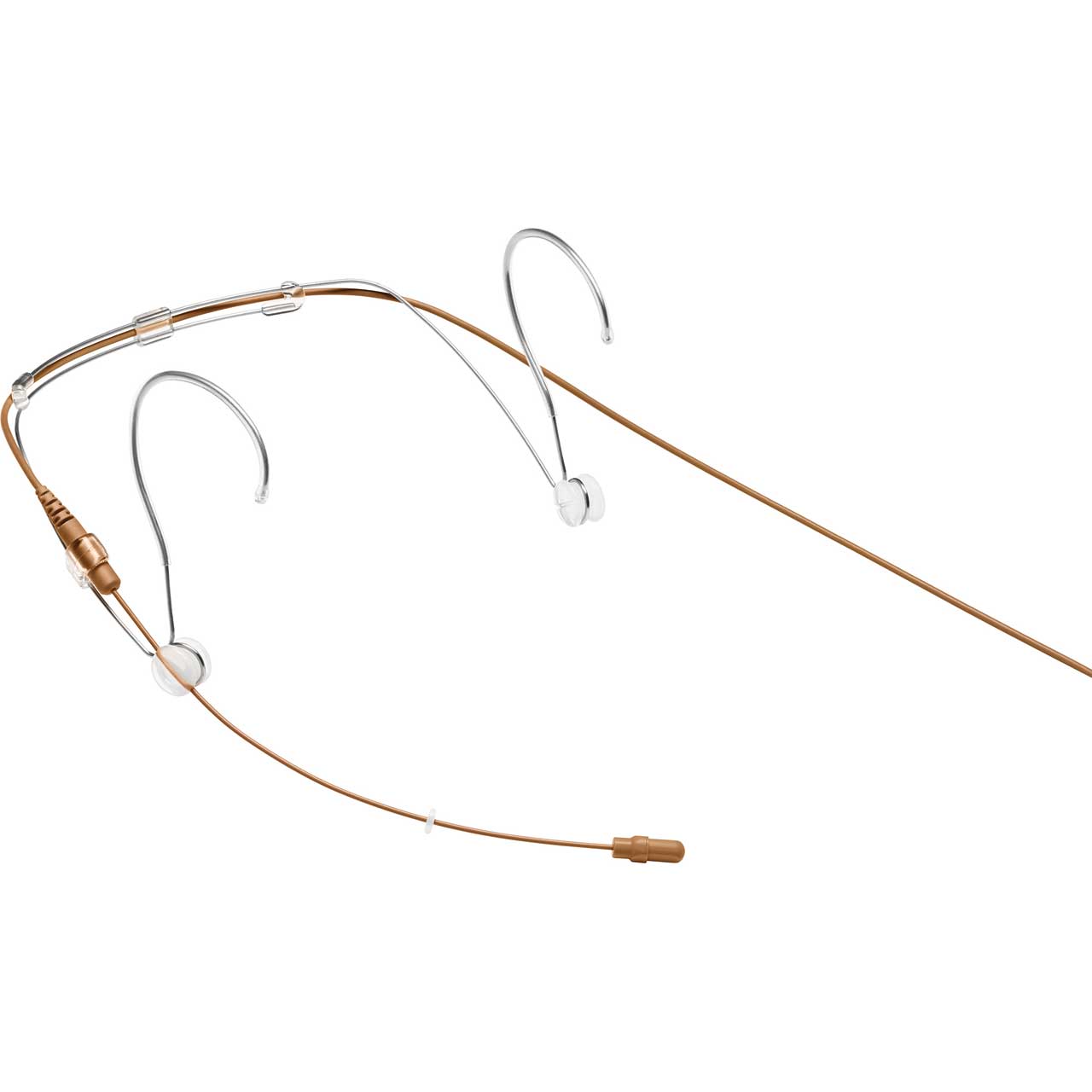

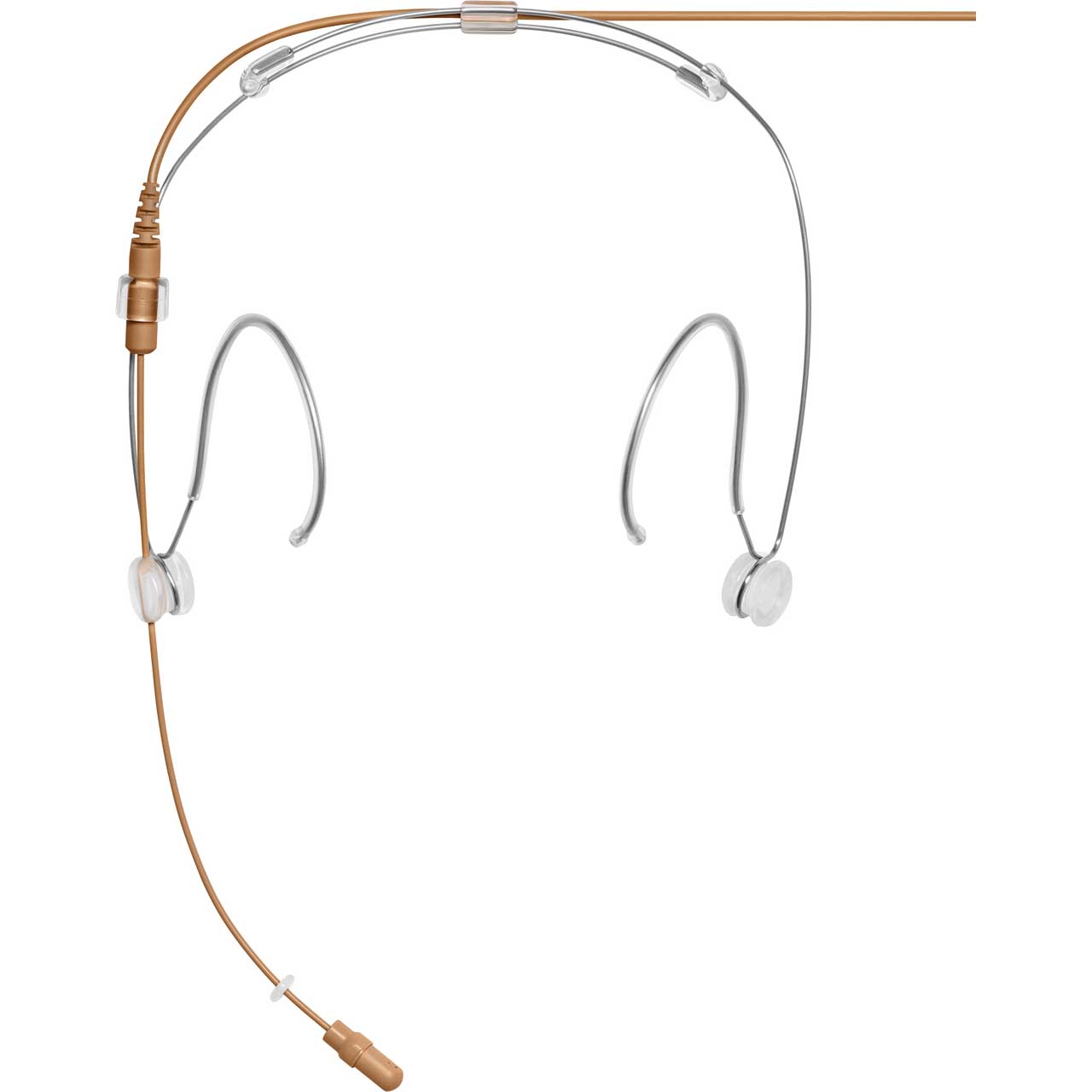

Shure DH5C/O-LM3 DuraPlex IP57 Omni Headset with LEMO Connector - Cocoa

ITEM #: SH-DH5C-O-LM3 MFG #: DH5C/O-LM3

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$524.00

Our Price:

$419.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    DH5C/O-LM3 - Overview

    With an easy-to-wear headset frame, the Shure DH5C/O-LM3 DuraPlex DH5 features a neutral, full sound quality that lives up to the highest audio standards on any stage or broadcast studio. Also available as a lavalier, DuraPlex has been extensively tested to ensure an IP57 dust-resistant, waterproof rating. The exclusive 1.6 mm Shure Plex cable with DuraPlex won't kink, offers virtually zero "memory effect," is fully paintable, and simply lasts longer due to a dual redundant ground, which doubles as a secondary shield.In the theater, on stage, or on television, you can depend on the DuraPlex DH5 headset microphone for consistent professional sound, durability, and longevity.

    • Features:

      • 5 mm omnidirectional subminiature design on a silicone boom pivot system that can be placed on the left or right ear
      • IP57 dust-resistant, waterproof rated
      • Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
      • Advanced 1.6 mm Shure Plex cable: Dual redundant ground in cable serves as secondary shield for unprecedented longevityo - Immune to memory effect and kinks - Fully paintable with typical theater paints, pens, and polishes
      • Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
      • Available in two connector types: TA4F (mTQG) and LEMO

    • Specifications:

      • Microphone Capsule: MEMS
      • Polar Pattern: Omnidirectional
      • Frequency Response: 20 Hz to 20 kHz
      • Sensitivity: -42.5 dBV (7.5 mVRMS) @ 1 kHz
      • Self-Noise: 31 dB SPL-A A-weighted, Equivalent Acoustical
      • Signal-to-Noise Ratio: 63.0 dB
      • Maximum SPL1: 32.0 dB SPL 1 kHz @ 1% THD, typical
      • Dynamic Range: 101.0 dB Typical
      • Microphone Current Draw: 220 µA, maximum
      • Bias Voltage Recommended Operating Voltage: 5 VDC
      • Housing: Molded ABS
      • Polarity:
        MTQG: Positive Pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
        LEMO: Positive pressure on dia-phragm produces positive voltage on Pin 3 with respect to Pin 1
      • Cable Diameter: 1.6 mm
      • Cable Length: 66.0 in (1.67 m)
      • Net Weight: 20 g (0.7 oz)
      • Capsule Dimensions (L x D): 14.5 mm x 5.2 mm
      • Boom Length: 13.6 cm

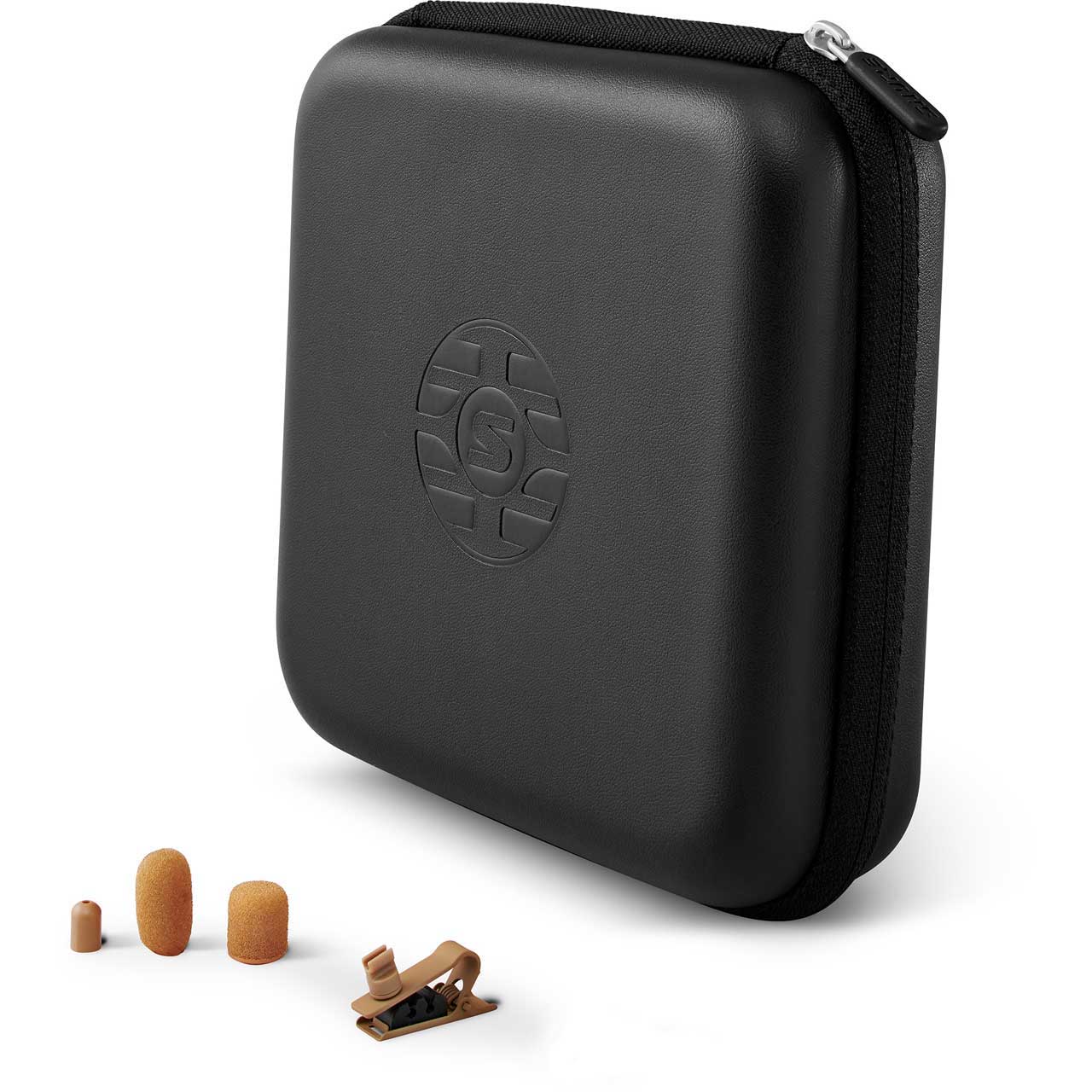

    • Item Includes:

      • 1x Shure DH5B/O-LM3 DuraPlex IP57 Omni Headset
      • 1x Case
      • 1x Foam Windscreen
      • 1x Snap-fit Windscreen
      • 1x Single Tie Clip

    • GTIN:

      0042406662383
