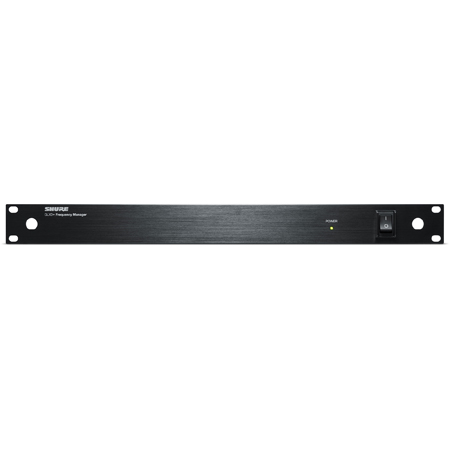

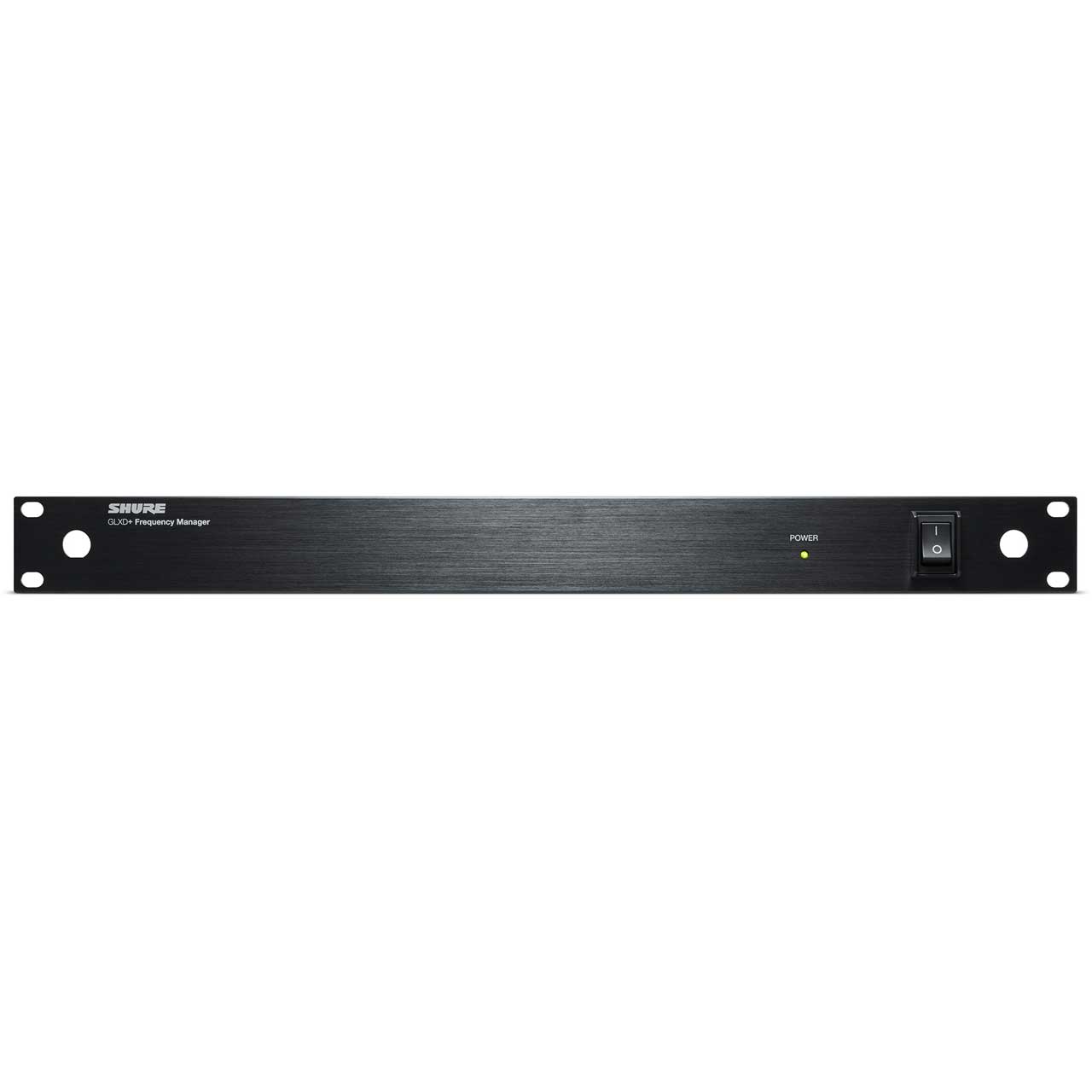

Shure GLXD+FMZ3/LC Dual-Band Wireless Frequency Manager for GLX-D+ Wireless - Z3 2.4 & 5.8GHz

GLXD+FMZ3/LC - Overview

• Features:

  • Provides automatic dual band frequency management to a linked receiver community for improved RF performance and increased channel count

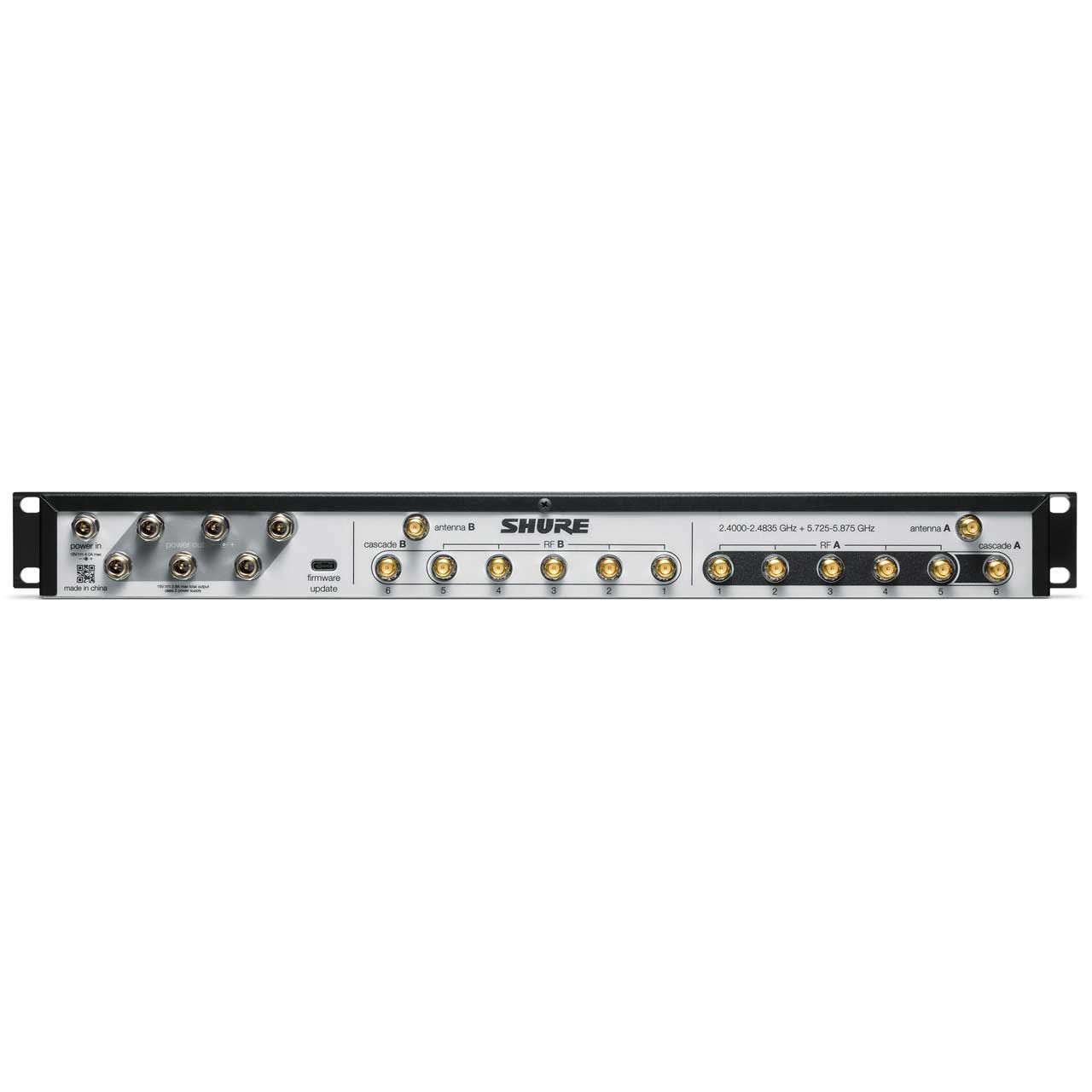

  • Link up to 6 individual rack receivers via RF ports
  • Daisy-chain cascade connection allows up to 3 Frequency Managers linked as a single managing unit for 16 receivers
  • Intelligent frequency management
  • Identifies and assigns optimal frequencies to receiver/transmitter pairs
  • In case of interference, automatically and seamlessly transitions to backup frequencies
  • Eliminates need for power strips or multiple outlets
  • Avoids interference
  • Globally?unlicensed 2.4GHz frequency band and 5.8 GHz frequency band


• Specifications:

  • Frequency Range: <2:1 Voltage Standing Wave Ration (VSWR) 2050 to 5850 MHz
  • Antenna Gain: At 2.45 GHz, Typical 8 dBi
  • Beam Width: 3 dB Horizontal Beam Width, 100°
  • Efficiency: At 2.45 GHz, Typical 89%
  • Impedance: 50 Ohms
  • Polarization: Linear
  • Front-to-Back Ratio: At 2.45 GHz, Typical 24 dB
  • Connector Type: Reverse SMA
  • Dimensions (H x W x D): 4.1 × 6.5 × 1.1" (105 × 164 × 27.5mm)
  • Weight: 0.15 lbs/2.5 oz (70 g)
  • Package Weight: 1.1 lb
  • Box Dimensions (LxWxH): 10.6 x 9.9 x 2.2"


• Item Includes:

  • 1x Shure GLXD+FM Dual-Band Wireless Frequency Manager for GLX-D+ Wireless (Z3: 2.4, 5.8 GHz)
  • 2x RSMA Cable (22")
  • 6x DC Power Cable
  • 1x Power Supply
  • 1x Hardware Kit


• Warranty:

  • 2 Year


• GTIN:

  0042406727693
