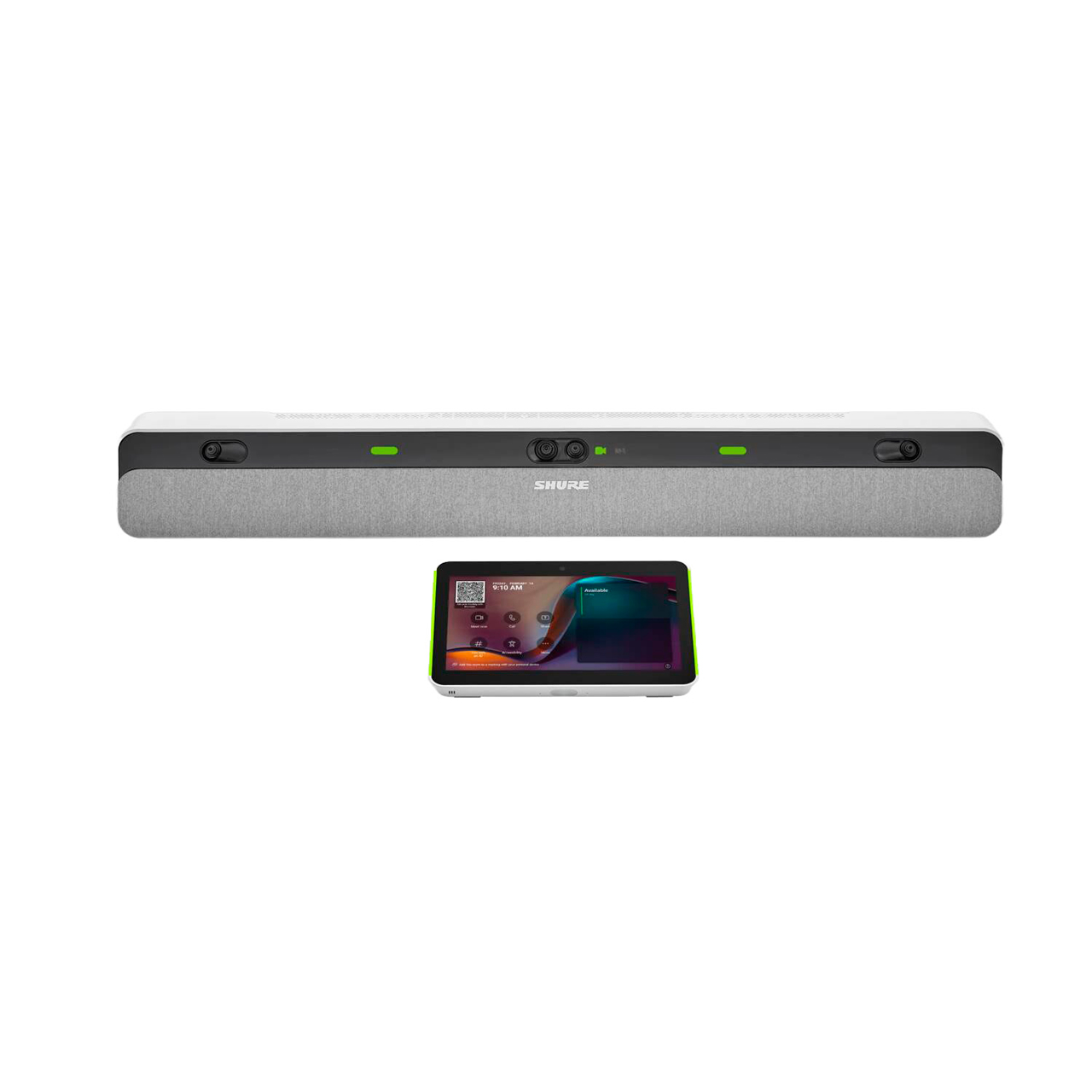

Shure IMXBPK-W IntelliMix All-In-One Video Bar & Touch Panel Kit - Certified for Medium & Large Conference Rooms - White

ITEM #: SH-IMXBPK-W MFG #: IMXBPK-W

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order


We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at (800) 522-2025 to complete your purchase.

Availability: Preorder – Expected Availability Jun 2026
iAvailability Description Popup


IMXBPK-W - Overview

Easy to Deploy Top-Tier Audio and Video!

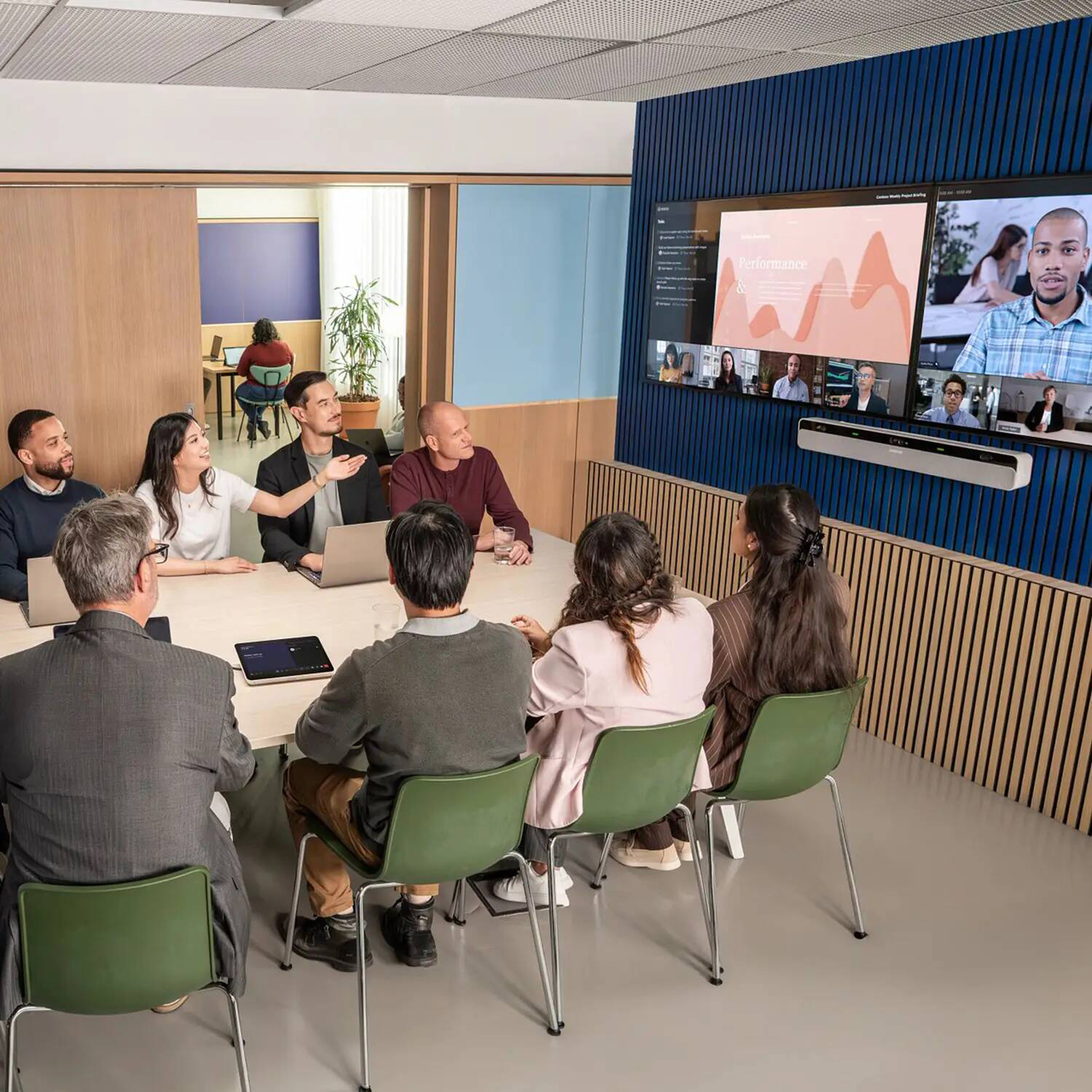

Clearly capture precise audio and video for AI-powered meetings in medium to large collaboration spaces with this Shure IMXBPK powerful all-in-one Android based video conference bar. Enterprise ready with auto-setup and simple global management, IT managers can create meeting experiences focused on participants with reliable transcription for enhanced AI tools.

Quality that's in the Details:
• Premium Audio: The IntelliMix Bar Pro innovatively combines patented Shure array microphones and high output, premium stereo loudspeakers for a spatial sound experience.
• Intelligent Video: Experience enhanced and equitable video calls with Shure IntelliMix™ View that automatically focuses on the speaker, adapts to different room settings, and highlights active participants, ensuring everyone in the meeting is seen.

Why It's Better:
• Extended Warranty: Protect your investment, maintain financial predictability, and minimize potential downtime with an add-on 3-year warranty extension for 5 years total coverage.
• Single-Vendor Support: Get a true one-stop experience and peace of mind with efficient, fast, and top-tier support.

  • Features:

    • The IntelliMix Bar Pro Kit built on Android features zero-touch provisioning for friction-less and fast deployment in larger spaces.
    • Shure IntelliMix™ View AI framing technology clearly captures individual meeting participants with increased accuracy using 4K AI-powered cameras with 135° of wide angle coverage and telephoto lenses.
    • Highly accurate meeting transcriptions are powered by advanced IntelliMix digital signal processing that enhance speech and remove distracting noise.
    • Globally monitor, manage, update and troubleshoot Shure IoT systems remotely in real-time with ShureCloud and other IT management systems.

  • Specifications:

      IntelliMix™ Bar Pro Kit
    • Weight: 13.199lbs (5987g)
    • Height: 4.823" (122.5mm)
    • Width: 3.685" (93.6mm)
    • Depth: 36.22" (920.0mm)
    • Management: ShureCloud
    • CPU: Qualcomm 8250
    • Memory: 12GB LDDR5
    • Storage: 128GB
    • Operating System: Android
    • Power: Input: 100V - 240V~, 50/60Hz, 3.5A, Output: 54V, 4.6A, 248.4W
    • Power Consumption: 110W Max (without expansion port use)

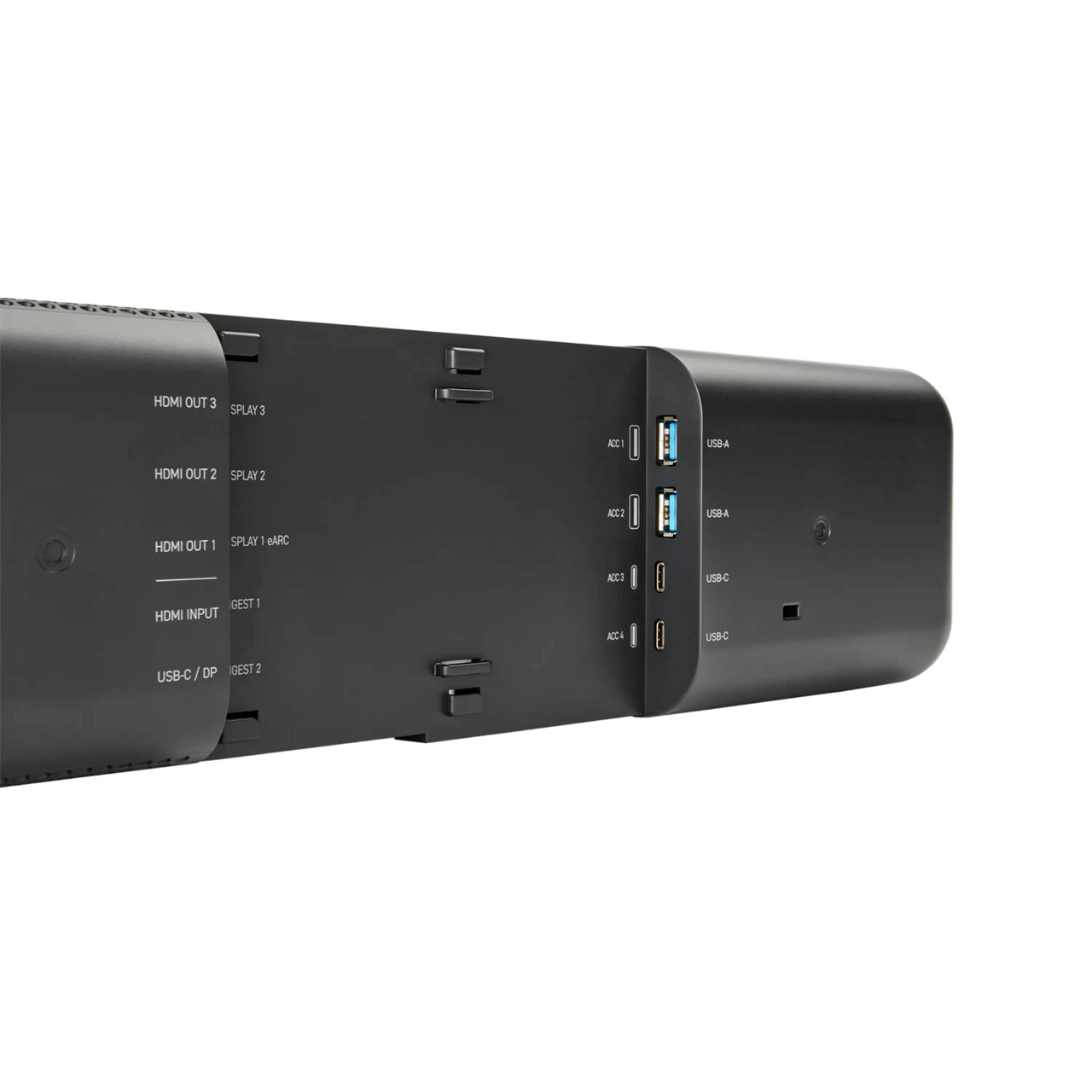

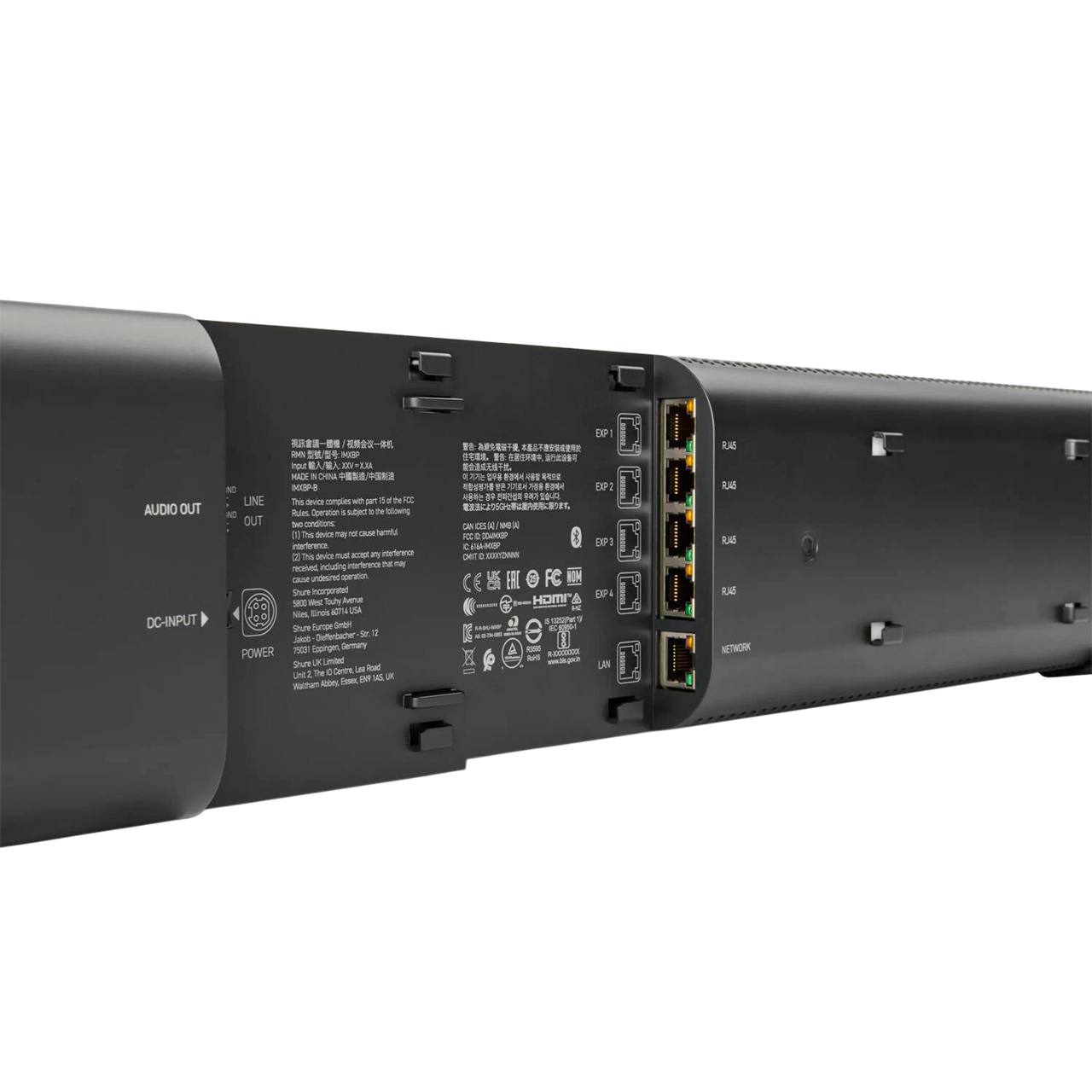

    • Connectors: BLOCK, DC In (Power), HDMI In, HDMI Out, RJ45 (for Ethernet) , USB-A, USB-C

      IMXBP Integrated Camera
    • Camera Sensor: 8 Megapixels 1/1.8" CMOS
    • Camera Resolution: 4K (max)
    • Camera Zoom: 9x
    • Camera Field of View:
      - Horizontal Left/Right/Center: 74°, Wide-Angle: 112°
      - Vertical Left/Right/Center: 45°; Wide-Angle: 73°
      - Diagonal Left/Right/Center: 82°, Wide-Angle: 121°

      IMXBP Integrated Microphone & Speaker
    • Microphone Transducer Type: 24 Array Microphones
    • Microphone Polar Pattern: Array
    • Frequency Range: 27Hz - 20kHz
    • Speaker Frequency Range: 120Hz - 20kHz
    • Speaker Maximum Output Level: 83dB SPL (+9dBv, 1kHv sens.)

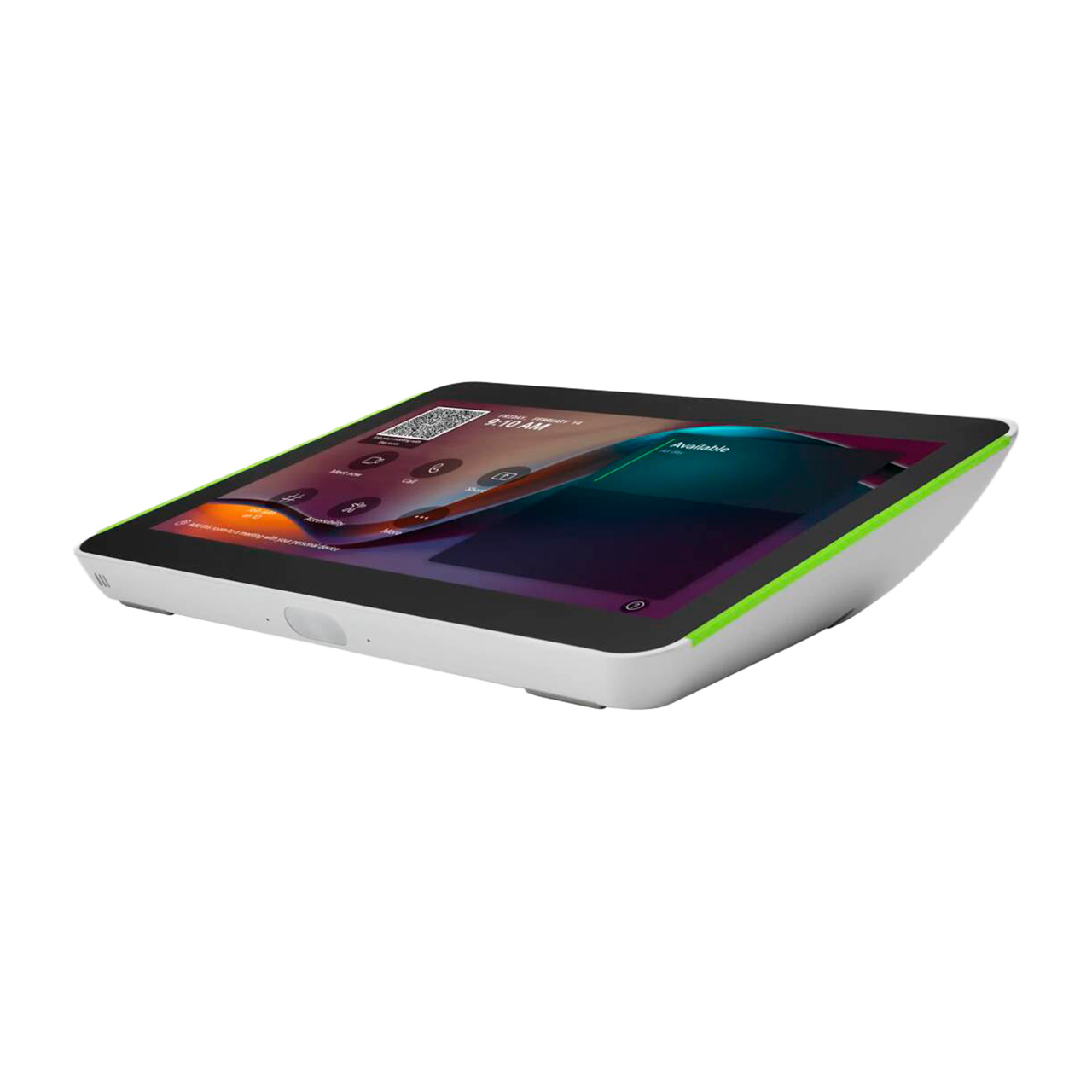

      IMXTP10 Touch Panel
    • Weight: 2.2lbs (998g)
    • Height: 2.39" (60.7mm)
    • Width: 9.732" (247.2mm)
    • Depth: 7.224" (183.5mm)
    • Touch Panel Resolution: 1920 x 1200
    • Touch Panel Screen Size: 10"
    • Power: PoE+
    • Power Consumption: < 25.5W max
    • Connectors: RJ45 (for Ethernet) , USB-C

  • Item Includes:

    • 1x IntelliMix Bar Pro
    • 1x IntelliMix 10" Touch Panel
    • 1x Wall mounting kit
    • 1x Power supply and attached 3ft (1m) DC cable
    • 1x 3ft (1m) AC power cord (multiple cables included for regional variants)
    • 1x 6ft (2m) content ingest USB-C cable
    • 1x 10ft (3m) Ethernet cable
    • 2x 6ft (2m) HDMI cables
    • 1x Camera cover set
    • 1x Lineout terminal block connector
    • 1x Cable covers and cable ties
    • 1x Allen wrench

  • Warranty:

    • 2 Year Extendable Warranty

  • GTIN:

    0042406935500
