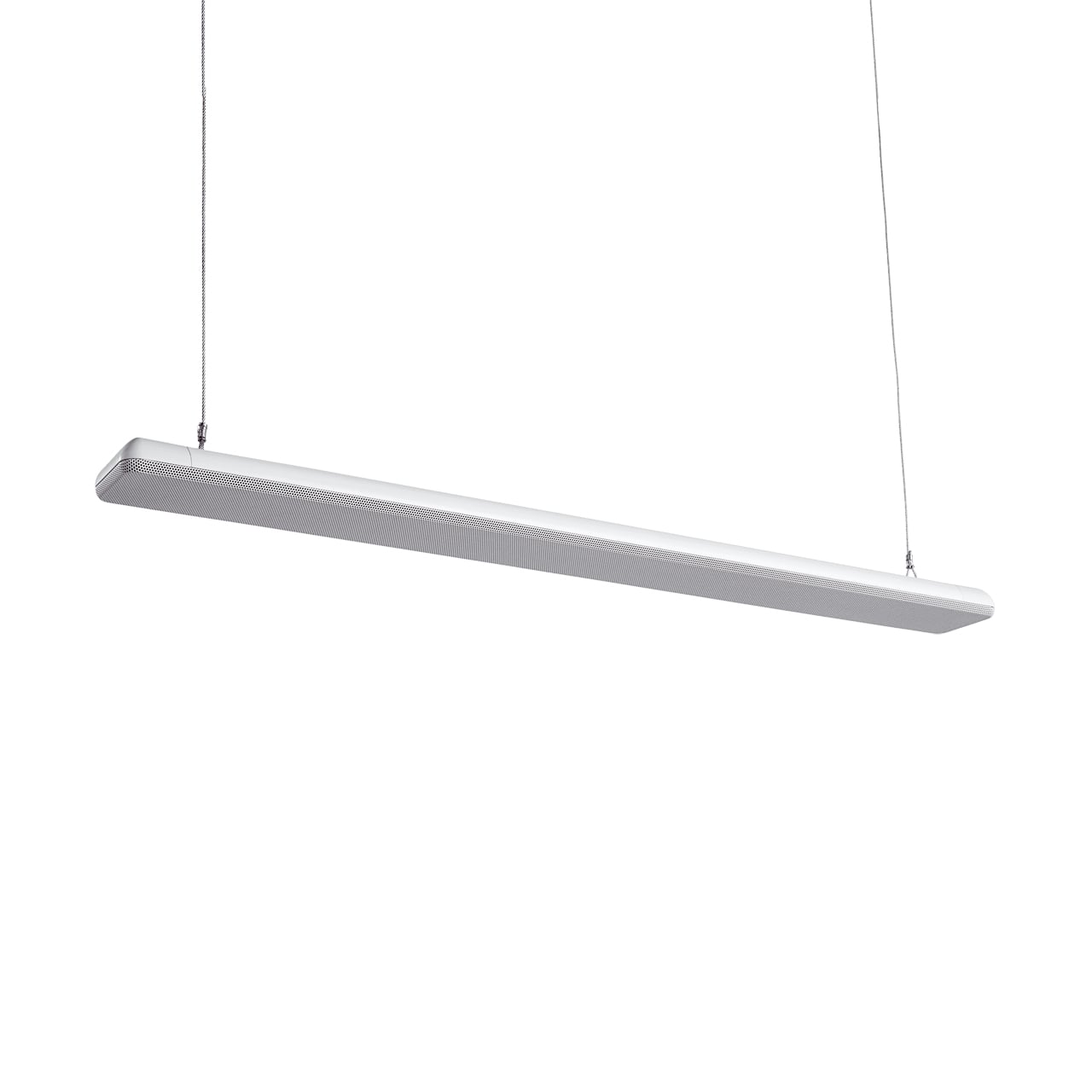

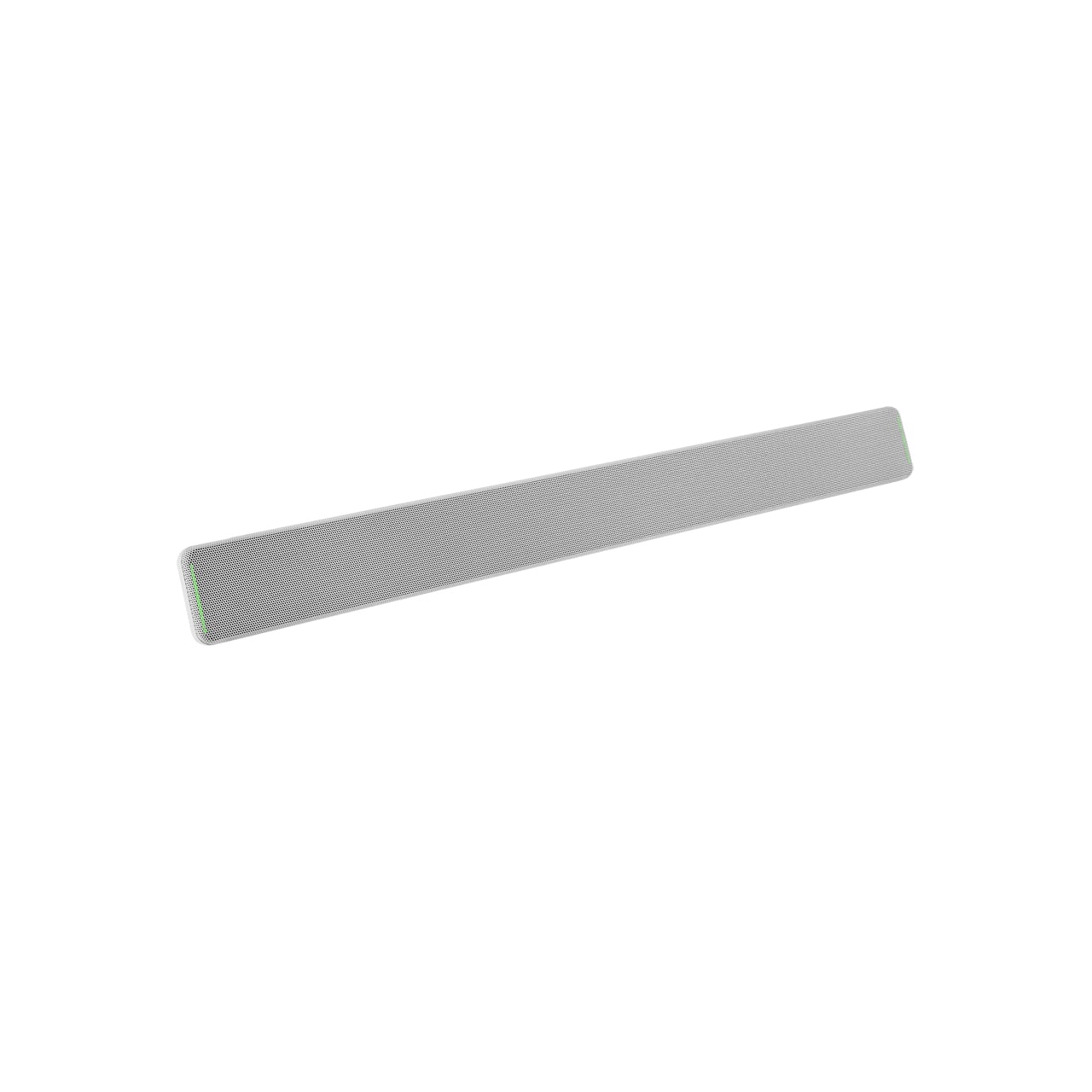

Shure MXA710 Microflex Advance Linear Array Mic with IntelliMix DSP & Autofocus - Dante Compatible - White - 4 Foot

MXA710W-4FT-TA - Overview

• Features:

  • Steerable Coverage technology to capture audio anywhere in the room (up to 8 lobes)
  • Autofocus technology fine-tunes each lobe position in real time, even if meeting participants lean back or stand up.
  • Default room coverage template enables quick and easy lobe optimization for wall, ceiling, or table installations.
  • IntelliMix DSP includes automatic mixing, acoustic echo cancellation, noise reduction, and automatic gain control.
  • Shure Designer System Configuration software for easy setup and configuration
  • SystemOn Audio Asset Management software for remote management and troubleshooting
  • PoE powered
  • LED status bars with configurable colors and brightness
  • Dante & AES67 audio networking protocols
  • Shure network audio encryption compatible
  • Multiple mounting accessories for wall, ceiling, or table installation


• Specifications:

  General
  • Lobe Width (adjustable): Narrow 30 degrees, Medium 40 degrees, Wide 70 degrees
  • Connector Type: RJ45
  • Power Requirements: Power over Ethernet (PoE), Class 0
  • Power Consumption: 10W maximum
  • Control Software: Shure Designer
  • Plenum Rating: UL2043 (Suitable for Air Handling Spaces)
  • Dust Protection: IEC 60529 IP5X Dust Protected
  • Weight: 3.7 lbs (1.67 kg)
  • Dimensions (HxWxL): 0.87" x 2.36" x 49.12" (22.09mm x 60mm x 1247.76mm)
  • Operating Temperature Range: 20°F - 104°F (-6.7°C - 40°C)
  • Storage Temperature Range: -20°F - 165°F (-29°C - 74°C)
  • Color: White

    Audio
  • Frequency Response: 100Hz - 20kHz
  • Channel Count: 10 total channels (8 independent transmit channels, 1 Automix output, 1 AEC reference in channel)
  • Sampling Rate: 48kHz
  • Bit Depth: 24
  • Sensitivity at 1 kHz: -7.4 dBFS/Pa-7.9 dBFS/P
  • Maximum SPL Relative to 0 dBFS overload: 101.9 dB SPL
  • Signal-To-Noise Ratio (Ref. 94 dB SPL at 1 kHz): 71.2 dB A-weighted
  • Latency (Does not include Dante latency):
    - Direct Outputs: 8.7ms
    - Automix output (Includes IntelliMix processing): 19.3 ms
  • Self Noise: 22.8 dB SPL-A
  • Dynamic Range: 79.1 dB
  • Built-in Digital Signal Processing: Automatic mixing, Acoustic Echo Cancellation (AEC), Noise Reduction, Automatic Gain Control, Compressor, Delay, Equalizer (4-band Parametric), Mute, Gain (140 dB range)

    Networking
  • Cable Requirements: Cat 5e or higher (shielded cable recommended)


• Item Includes:

  • 1x 4-foot linear array microphone
  • 1x Wall cover plate and screws
  • 2x Mounting eyelet screws
  • 2x Washers for eyelet screws
  • 2x Cable ties


• Warranty:

  • 1 Year Limited Warranty
