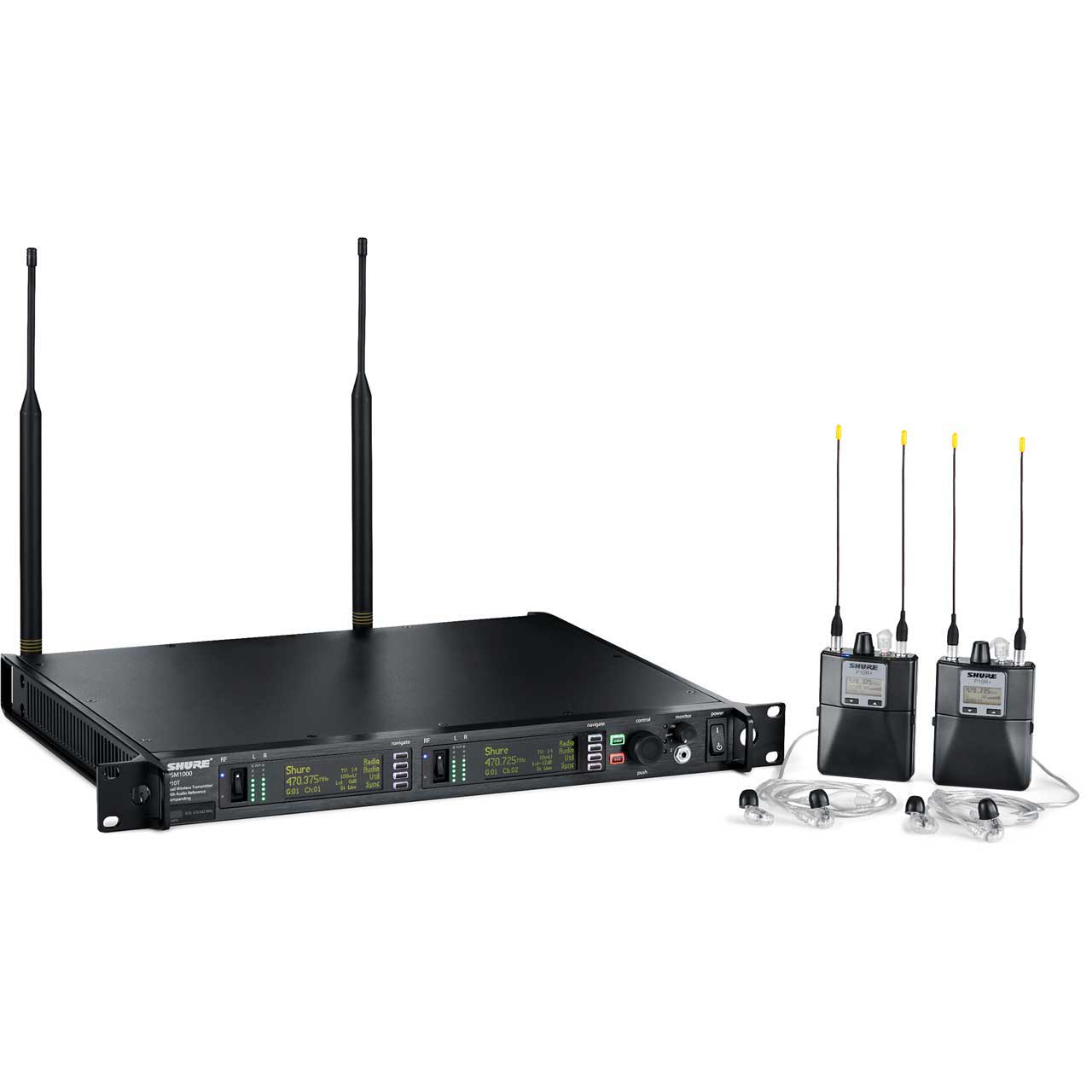

Shure P10TR+425CL-G PSM1000 Personal Monitor System w/Dual Transmitter/2 Diversity Bodypack Receivers & 2 SE425 Earphone

ITEM #: SH-P10TR-425CL-G MFG #: P10TR+425CL-G

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$6,700.00

Our Price:

$5,360.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    P10TR+425CL-G - Overview

    As a singer, musician, or audio professional, what you hear is fully half the battle in the largest arenas, biggest stages, and most crowded broadcasting events in the world. Shure P10TR+425CL PSM 1000 in-ear monitoring system delivers superb audio quality, pristine RF signal with more on-air channels, and a streamlined setup and use. PSM® 1000. Trust your ears.

    With a category-leading combination of the finest audio quality, robust RF performance, and touring-grade features, Shure's PSM 1000 Wireless Personal Monitor System is the choice of top-tier audio professionals for productions with zero room for error. More on-air channels, and breakthrough automation that makes setup and use simple, yet powerful. Add Shure professional Sound Isolating™ Earphones for total audio conviction, start to finish.

    The P10R+ is a low profile, diversity bodypack receiver for use with the PSM® 1000 Wireless Personal Monitor System. It offers premium features like full bandwidth RF scan and Automatic RF Gain Control for unparalleled signal stability and channel availability, all packed in the slimmest form factor available. CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels from one bodypack for quick and easy mix reference. Optional advanced rechargeability eliminates the need for disposable batteries and provides extended usage times with reliable battery life, cycle count, and health metering.

    • Features:

      • Up to 72 MHz Tuning Bandwidth (region dependent) provides flexibility in today's crowded and unpredictable RF environments.
      • P10T is a full-rack, dual-channel wireless transmitter housed in a touring-grade, all-metal chassis
      • P10R+ diversity analog/digital bodypack receiver offers advanced digital signal processing technology that delivers unparalleled audio quality with more headroom, better stereo separation, and higher fidelity
      • Networked control via Ethernet connection vastly simplifies setup for high channel counts and enables remote control via Wireless Workbench® software
      • Internal power supply with IEC in/out ports enables easy power chaining in the rack
      • Precision front-end RF filtering reduces RF interference for a cleaner, stronger RF signal, fewer dropouts, and less audible artifacts
      • CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels on one bodypack for quick and easy reference
      • Patented Audio Reference Companding

    • Specifications:

      • PSM1000 System Specs
      • RF Carrier Range 470-952 MHz (regionally dependent)
      • Compatible Frequencies 39 per band
      • Tuning Bandwidth 72 MHz - 80 MHz (regionally dependent)
      • Operating Range (environment dependent) 90m (300ft)
      • Audio Frequency Response 35Hz - 15kHz
      • Stereo Separation 60dB
      • Signal-To-Noise Ratio (A-Weighted) 90dB (typical)
      • Total Harmonic Distortion
      • (ref. ±34kHz deviation @1kHz)
      • <0.5% (typical)
      • Companding Patented Shure Audio Reference Companding
      • Spurious Rejection (ref. 12dB SINAD) >80dB (typical)
      • Frequency Stability ±2.5 ppm
      • MPX Pilot Tone 19kHz (±0.3kHz)
      • Modulation FM, MPX Stereo (±34kHz deviation, nominal)
      • Operating Temperature: -0.4° to 134.6°F (-18° to +57°C)

        P10R+ Receiver Specs
      • Tri-band RF Filtering: -3dB at 30.5 MHz from the center frequency of each band
      • Active RF Gain Control: 31dB (adjusts RF sensitivity to provide more RF dynamic range)
      • RF Sensitivity (20dB SINAD): 2.2 µV
      • Squelch Threshold: 22dB SINAD (±3dB), default setting
      • Adjacent Channel Rejection: >70dB
      • Intermodulation Attenuation: >70dB
      • Blocking: >80dB
      • Image Rejection: >90dB
      • Audio Output Power (1kHz @ <1% distortion, peak power, @16Ω): 100mW per output
      • Minimum Load Impedance: 4Ω
      • Output Impedance: <1Ω
      • 4-Band Parametric EQ
      • Low Shelf Selectable Gain: ±2dB, ±4dB, ±6dB @100Hz
      • Low Mid Selectable Gain: ±2dB, ±4dB, ±6dB @160Hz, 250Hz, 400Hz, 500Hz, 630Hz
      • Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
      • High Mid Selectable Gain: ±2dB, ±4dB, ±6dB @1kHz, 1.6kHz, 2.5kHz, 4kHz, 6.3kHz
      • Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
      • High Shelf Selectable Gain: ±2dB, ±4dB, ±6dB @10kHz
      • Volume Limiter Selectable: 0dB to -48dB in 3dB steps
      • Volume Lock - Limits volume adjustment knob. Selected value analogous to volume knob increment.
      • Selectable: 0dB to -70dB
      • Battery Life: 4-6 hours (continuous use) with AA batteries
      • Net Weight: 0.35Lbs (158g) without batteries
      • Dimensions (HxWxD): 3.9 x 2.6 x 0.9" (99 x 66 x 23mm)

        P10T Transmitter
      • RF Output Power
      • Selectable: 10, 50, 100mW (regionally dependent)
      • RF Output Impedance: 50Ω (typical)
      • Net Weight: 10.4Lbs (4.7kg)
      • Dimensions: 1.73 x 19.01 x 13.50" (44 X 483 X 343mm)
      • Power Requirement (RF on, 100mW power mode, no audio):
      • Input: 100-240V AC, 50/60Hz, 0.5A max (5.5 max outlet loaded)
      • Output: 100-240V AC, 5A max, unswitched
      • Audio Input
      • Connector Type Combination XLR and 6.35 mm (1/4") TRS
      • Polarity XLR: Non-inverting (pin 2 positive with respect to pin 3)
      • 6.35 mm (1/4") TRS: Tip positive with respect to ring
      • Configuration Electronically balanced
      • Impedance 70.2 kΩ (actual)
      • Nominal Input Level Switchable: +4dBu, -10dBV
      • Maximum Input Level +4dBu: +29.2dBu
      • -10dBV: +12.2dBu
      • Pin Assignments XLR: 1=ground, 2=hot, 3=cold
      • 6.35 mm (1/4") TRS: Tip=hot, Ring=cold, Sleeve=ground
      • Phantom Power Protection Up to 60 V DC
      • Audio Output
      • Connector Type 6.35 mm (1/4") TRS
      • Configuration Electronically balanced
      • Impedance Connected directly to inputs

    • Item Includes:

      • 1x P10T Rackmount Transmitter
      • 2x P10R+ Bodypack Receiver
      • 2x SE425 Sound Isolating In-Ear Headphones
      • 2x 1/2 Wave Antennas
      • 4x AA Batteries
      • 2x Antenna Cables
      • 1x IEC Power Cable and IEC Extension Cable
      • 1x Ethernet Network Cable
      • 1x Zippered Bag
      • 2x Antenna hole plugs
      • 4x rack mounting screws with washers

    • GTIN:

      0042406564816
