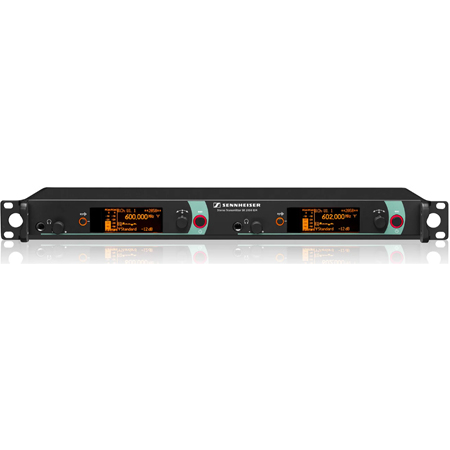

Sennheiser SR 2050XP IEM-AW+ 19-Inch 2-channel Stereo In-Ear System Transmitter - HDX / Ethernet (WSM) - 470-558 MHz

SR 2050XP IEM-AW+ - Overview

• Features:

  • Rugged 19" all-metal housing with integrated power supply unit
  • Up to 3000 frequencies in up to 75 MHz switching bandwidth
  • 20 fixed frequency banks with up to 32 compatible presets
  • 6 banks each with up to 32 tunable channels
  • Frequency setting in 25 kHz steps
  • Switchable RF output power for versatile use
  • Enhanced audio frequency response in the bass range
  • Receivers can be configured from the transmitter menu
  • Can be synchronized with the receiver using infrared interface
  • Monitoring and control using Sennheiser WSM PC software
  • User-friendly menu interface with two-color backlit graphic display (red as a warning)
  • Pilot tone transmission for interference-free operation
  • Adjustable headphone connections
  • For universal application due to extensive range of accessories


• Specifications:

  • Frequency Range: 470 - 558 MHz / SR 2050XP IEM-AW+
  • Dimensions: 17.16 x 8.46 x 1.73" (436 x 215 x 43mm)
  • Compander: HDX
  • Audio-XLR Connector: 4 x XLR, 4x 6.5 mm Jack
  • Presets: max. 32
  • Frequency Response: 25 - 15000 Hz
  • Weight: 6.39Lbs (2900g)
  • Signal-to-Noise Ratio: > 90 dB(A)
  • RF Output Power: 10, 30, 50 mW (XP: 100 mW) switchable
  • Peak Deviation: ±48 kHz
  • Nominal Deviation: ±24 kHz
  • Modulation: FM, MPX-stereo
  • Power Supply: 100 - 240 V AC, 50/60 Hz
  • Carrier Frequencies: max. 3000
  • Antenna Connector: 2 x BNC
  • Current Consumption: 0.2 A
  • Headphone Connector: 100 mW (32 Ω)
  • Input Voltage Range: + 22 dBu max


• Item Includes:

  • 1x SR 2050 IEM transmitter
  • 3x Mains cables (EU, UK, and US)
  • 2x Rod antennas
  • 1x Instruction manual
  • 1x Supplementary frequency sheet
  • 1x Supplementary RF license sheet
  • 4x Device feet


• GTIN:

  0615104331822
