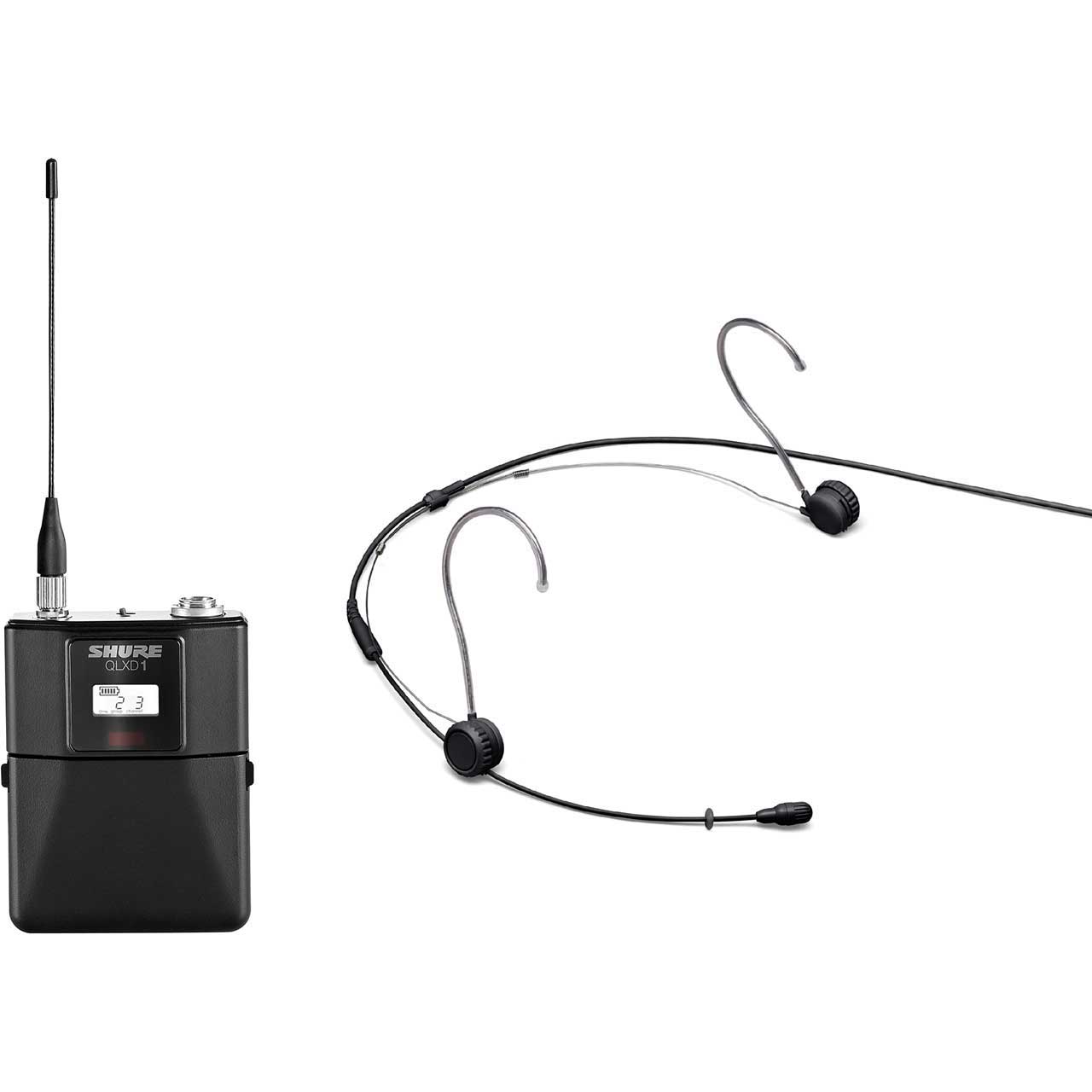

Shure QLXD1 Bodypack Transmitter and TwinPlex Black Headset Mic Kit with TA4F Connector - 470-534MHz

SH-QLXD1/TH53B-G50 - Overview

• Features:

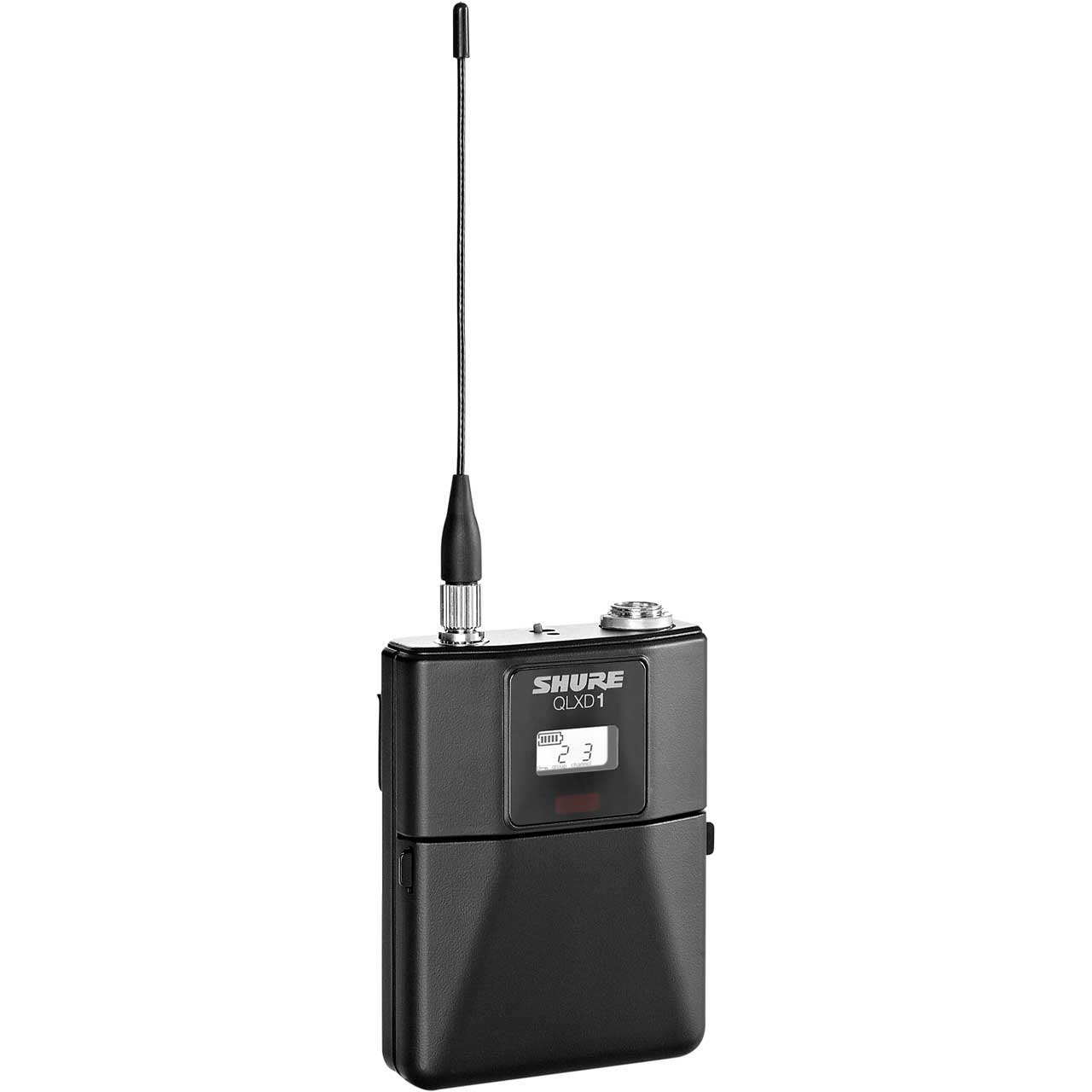

  • QLXD1 Wireless Bodypack Transmitter
  • Works with QLX-D Digital Wireless Systems
  • Offers up to 9 hours of continuous use with 2 AA alkaline batteries or up to 10 hours of continuous use with Shure lithium-ion rechargeable batteries
  • Over 120 dB of dynamic range: no transmitter gain adjustments needed
  • AES 256-bit encryption for secure transmission
  • External charging contacts for docked charging
  • Backlit LCD with easy to navigate menu and controls
  • Selectable display mode showing group/channel, frequency, or battery runtime
  • Rugged metal construction
  • Detachable 1/4 wave antenna
  • Frequency and power lockout

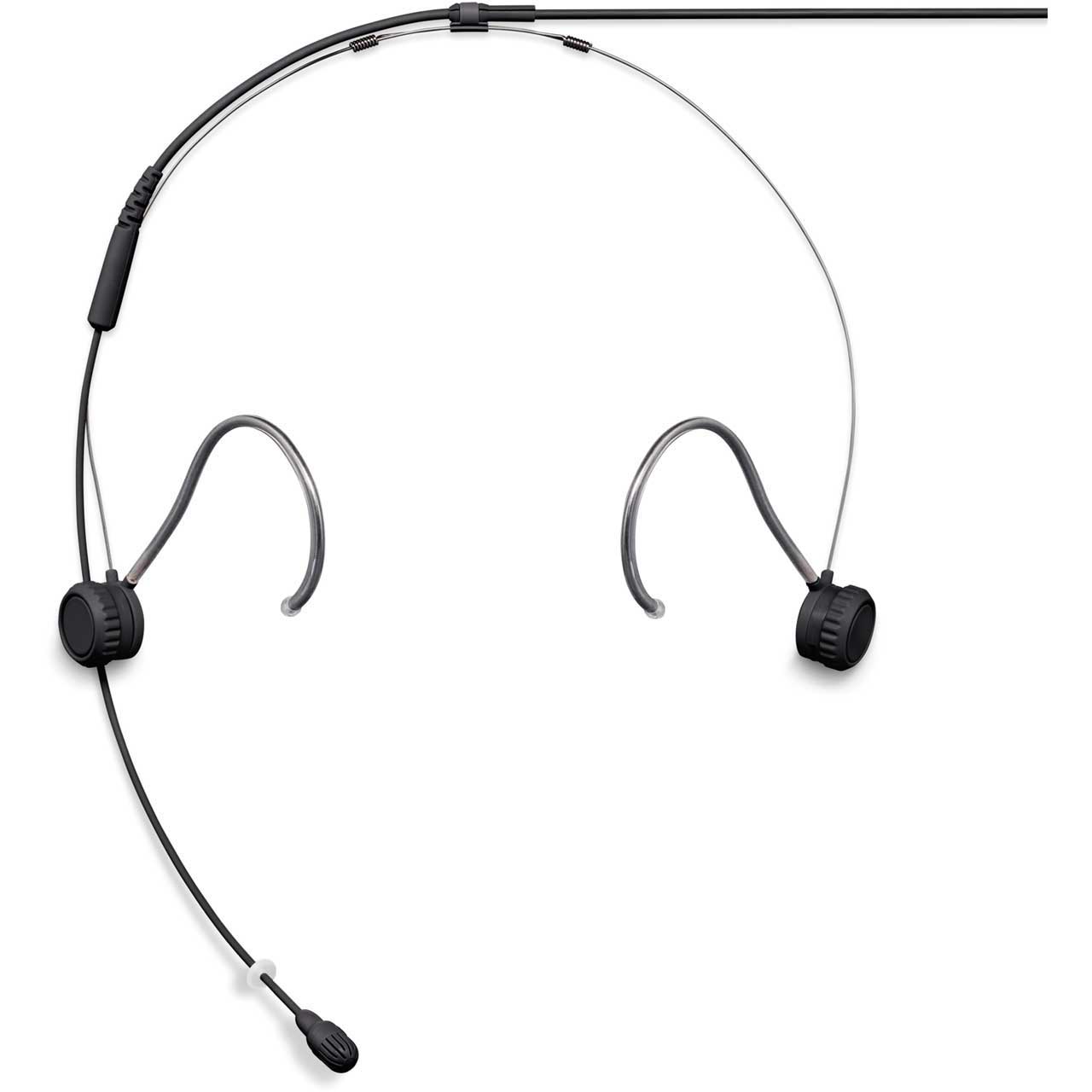

    Shure TwinPlex™
  • Comfortable, lightweight, and fully adjustable headset for use in theater, broadcast, and speech applications
  • Innovative clutch system allows for fast boom arm length and pitch adjustment
  • Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual-diaphragm design


• Specifications:

  • QLXD1 Wireless Bodypack Transmitter
  • Radio Frequency Range: 20 Hz-20 kHz
  • Rechargeable components? Yes

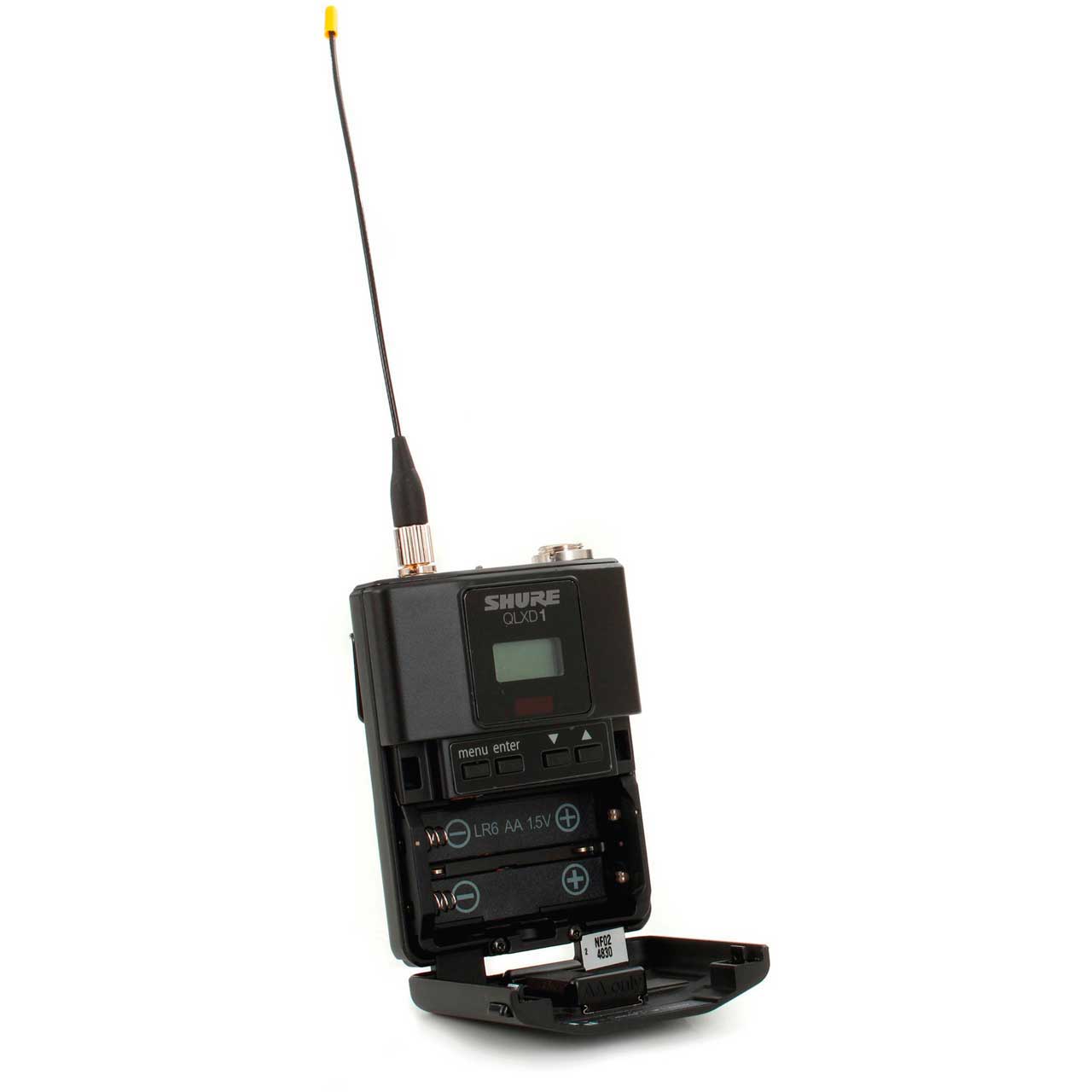

  • Battery Requirements: 2 AA alkaline batteries or SB900 Lithium-Ion Rechargeable Battery
  • Battery Life: Shure SB900: Up to 10 hours, Alkaline: Up to 9 hours
  • Typical Operating Distance: 100 m (330 ft) line of sight

    Shure TwinPlex™
  • Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
  • Polar Pattern: Omnidirectional
  • Frequency Response: 20Hz - 20kHz
  • Sensitivity @ 1kHz: -45.0dBV (5.62mV)
  • Self-Noise (A-Weighted, Equivalent Acoustical): 24.5dB SPL-A
  • Signal-To-Noise Ratio: 69.5dB
  • Output Clipping Level (@ 1% THD, typical): 3.0dBV, 1kHz
  • Maximum SPL (1kHz @ 1% THD, typical): 142.0dB SPL
  • Dynamic Range: 117.5dB, typical
  • Microphone Current Draw: 120 - 240 µA, typical
  • Bias Voltage (Recommended Operating Voltage): 5 VDC
  • Housing: Molded ABS
  • Polarity: MTQG, XLR connector: Positive pressure at diaphragm leads to positive voltage with respect to ground
  • Cable Diameter: 1.6mm
  • Cable Length: 66" (1.67m)
  • Microphone Length: 13.5mm
  • Microphone Diameter: 5.6mm


• Item Includes:

  • 1x Shure QLXD1 Bodypack Transmitter and TwinPlex Black Headset Mic Kit with TA4F Connector - 470-534MHz
