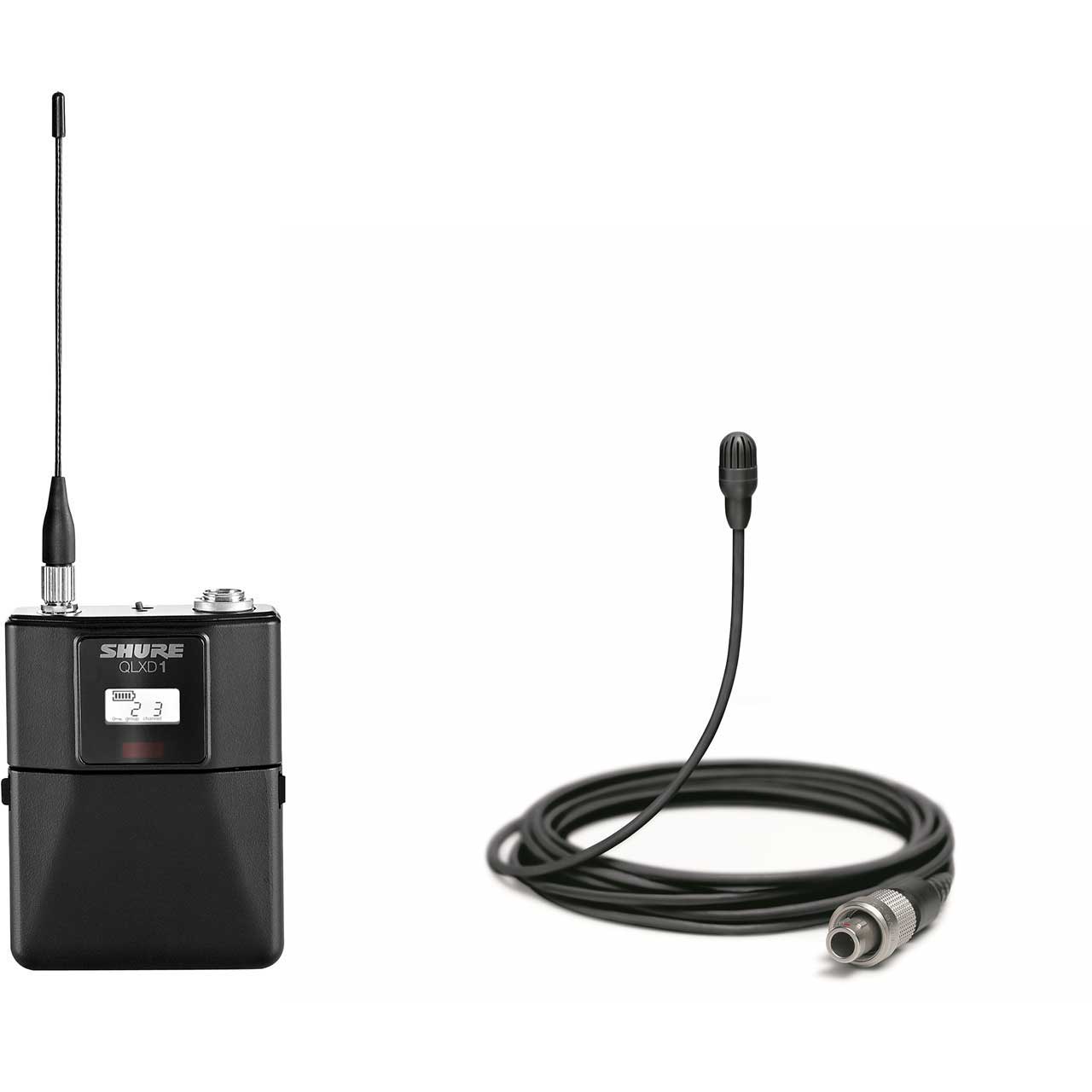

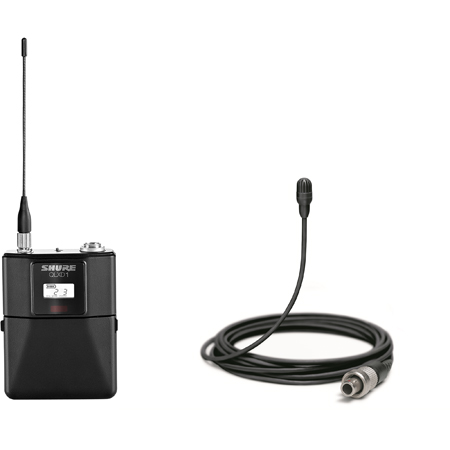

Shure QLXD1 Bodypack Transmitter and TwinPlex Low Sensitivity Black Lavalier Mic Kit - 470-534MHz

SH-QLXD1/TL47B-G50 - Overview

• Features:

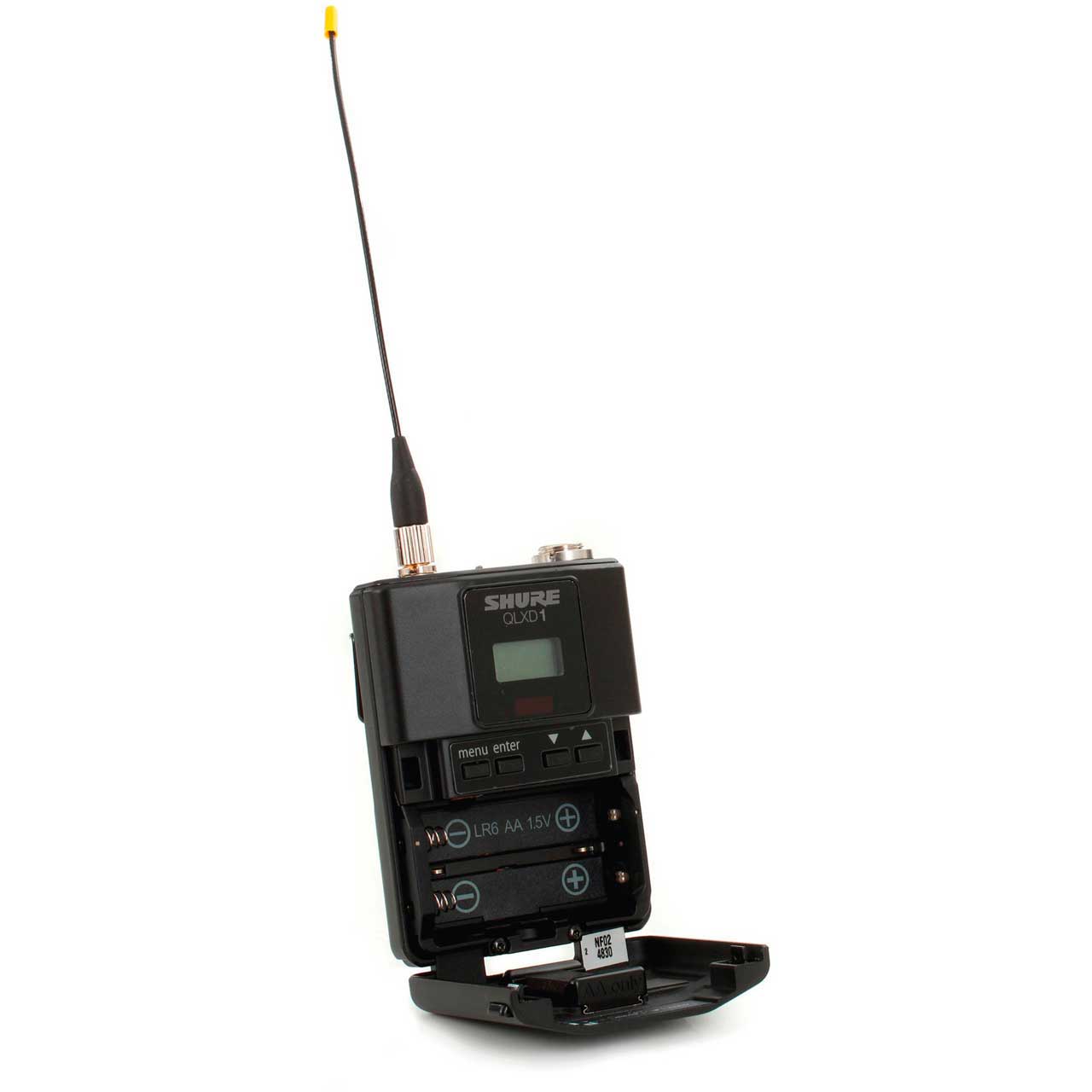

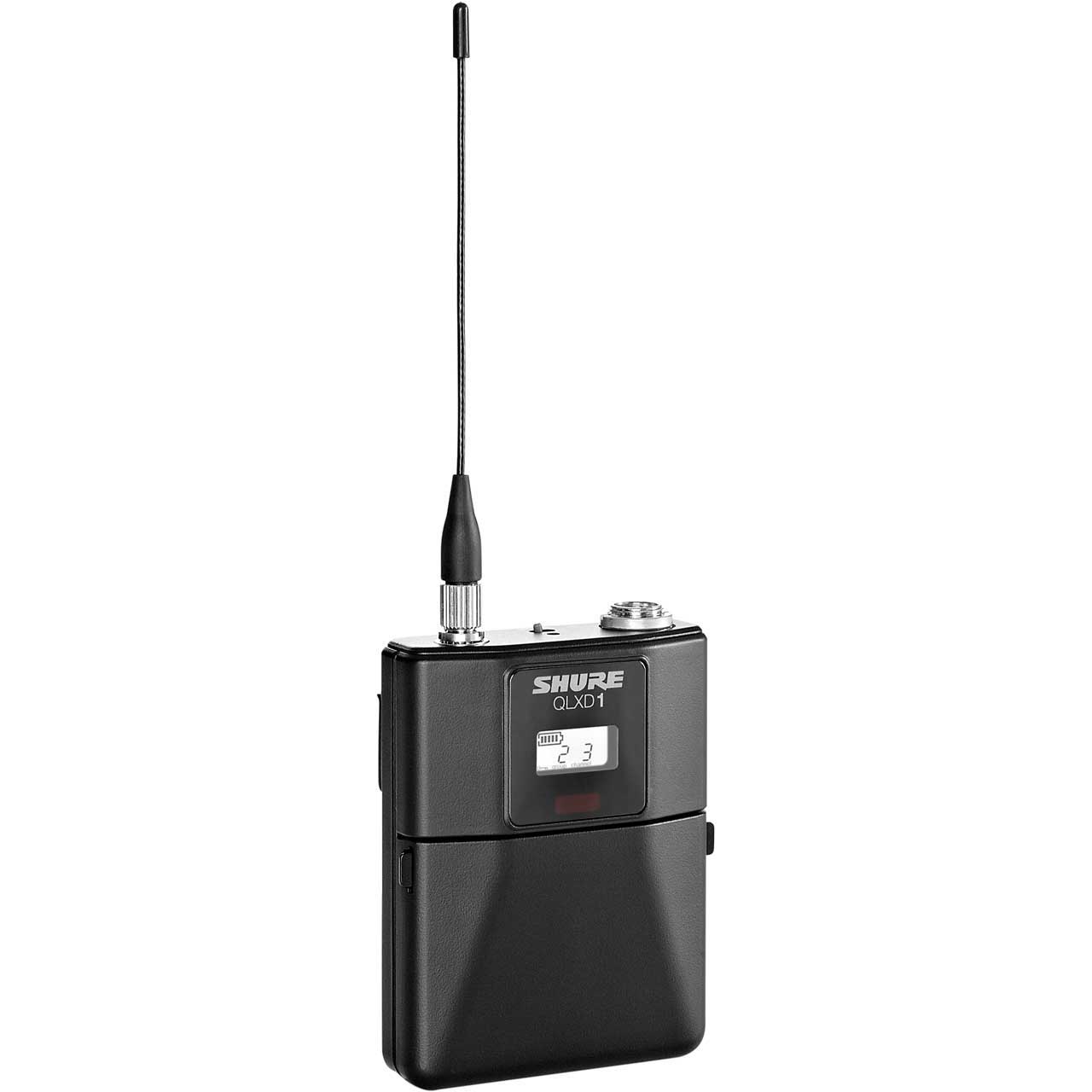

  • QLXD1 Wireless Bodypack Transmitter
  • Works with QLX-D Digital Wireless Systems
  • Offers up to 9 hours of continuous use with 2 AA alkaline batteries or up to 10 hours of continuous use with Shure lithium-ion rechargeable batteries
  • Over 120 dB of dynamic range: no transmitter gain adjustments needed
  • AES 256-bit encryption for secure transmission

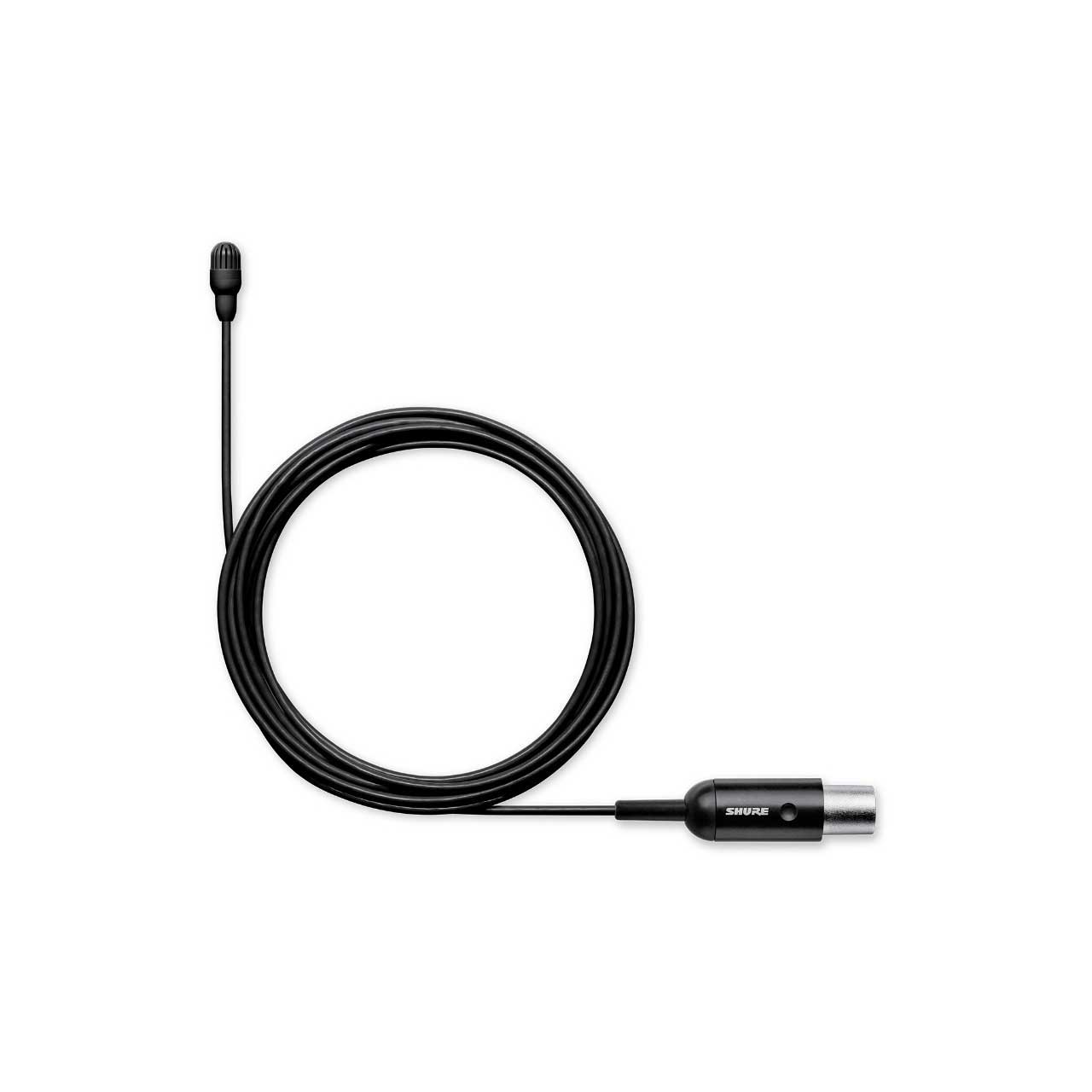

    Shure TwinPlex™ Subminiature Lavalier Mic
  • With a variety of colors and connectors, the TL47 is ideal for nearly any application
  • Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual-diaphragm design
  • Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
  • Best-in-class low self-noise and dynamic range for cleaner audio production


• Specifications:

  • QLXD1 Wireless Bodypack Transmitter
  • Radio Frequency Range: 20 Hz-20 kHz
  • Rechargeable components? Yes
  • Battery Requirements: 2 AA alkaline batteries or SB900 Lithium-Ion Rechargeable Battery
  • Battery Life: Shure SB900: Up to 10 hours, Alkaline: Up to 9 hours
  • Typical Operating Distance: 100 m (330 ft) line of sight


  • Shure TwinPlex™ Subminiature Lavalier Mic
  • Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
  • Polar Pattern: Omnidirectional
  • Frequency Response: 20 Hz to 20 kHz
  • Sensitivity: -45.0 dBV(5.62 mV) at 1 kHz
  • Self-Noise: 24.5 dB SPL-A
  • Signal-To-Noise Ratio: 69.5 dB
  • Output Clipping Level: 3.0 dBV,1 kHz
  • Maximum SPL: 142.0 dB SPL
  • Dynamic Range: 117.5 dB
  • Microphone Current Draw: 120 to 240 µA, typical
  • Bias Voltage: 5 VDC
  • Housing: Molded ABS
  • Polarity LEMO, NC, MDOT: Positive pressure at diaphragm leads to negative voltage with respect to ground voltage with respect to ground
  • Polarity MTQG, XLR connector: Positive pressure at diaphragm leads to positive voltage with respect to ground
  • Cable Diameter: 1.6 mm
  • Cable Length: 66 in. (1.67 m)
  • Microphone Length: 13.5 mm
  • Microphone Diameter: 5.6 mm
  • Net Weight with Cable: 12.0 g (0.42 oz.)


• Item Includes:

  • 1x Shure QLXD1 Bodypack Transmitter and TwinPlex Low Sensitivity Black Lavalier Mic Kit - 470-534MHz
