Shure BLX188/CVL-H10 Dual Channel Lavalier Wireless System - H10 Band 542 to 572 MHz

ITEM #: SH-BLX188CVL-H10 MFG #: BLX188/CVL-H10

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$875.00

Our Price:

$689.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


BLX188/CVL-H10 - Overview

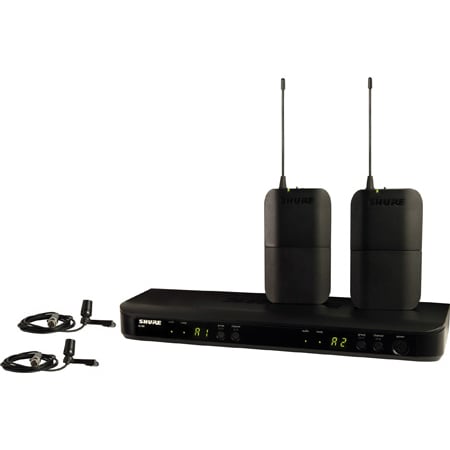

The BLX188/CVL Dual Channel Lavalier Wireless System is part of the BLX wireless systems family. Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage. The system includes the BLX88 dual-channel receiver, 2 BLX1 bodypack transmitters, 2 CVL lavalier microphones, lavalier clips, windscreens, and a user guide.

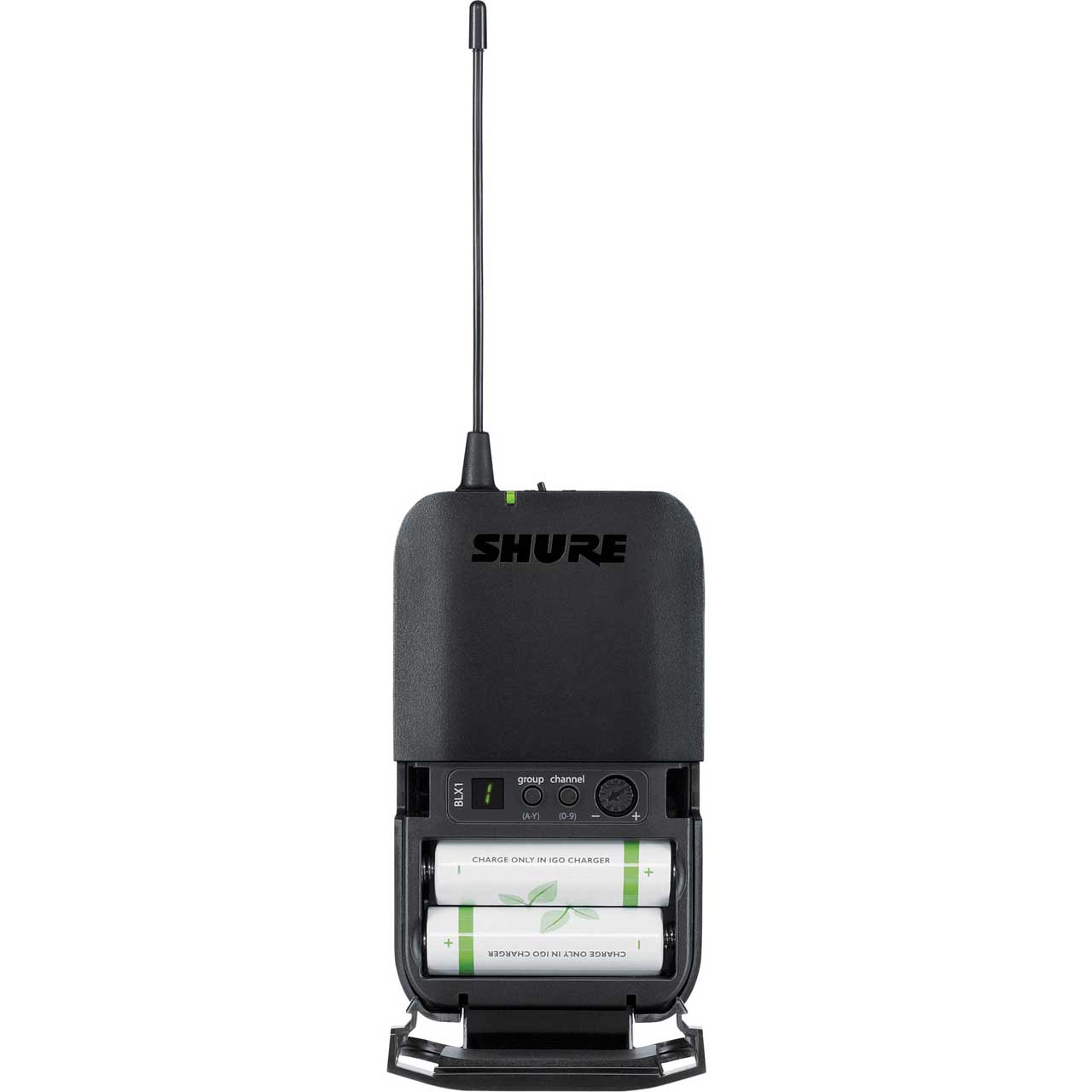

The durable BLX1 wireless transmitter features a lightweight, ergonomic design and adjustable gain control. The durable BLX88 wireless receiver offers simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. This system operates in the H10 Band (542 to 572 MHz).

  • Features:

    • BLX88
    • Up to 12 compatible systems per frequency band (region dependent)
    • Microprocessor-controlled internal antenna diversity
    • One-touch QuickScan frequency selection quickly locates the best frequency
    • 1/4" and XLR audio outputs
    • Two color audio status indicator LED

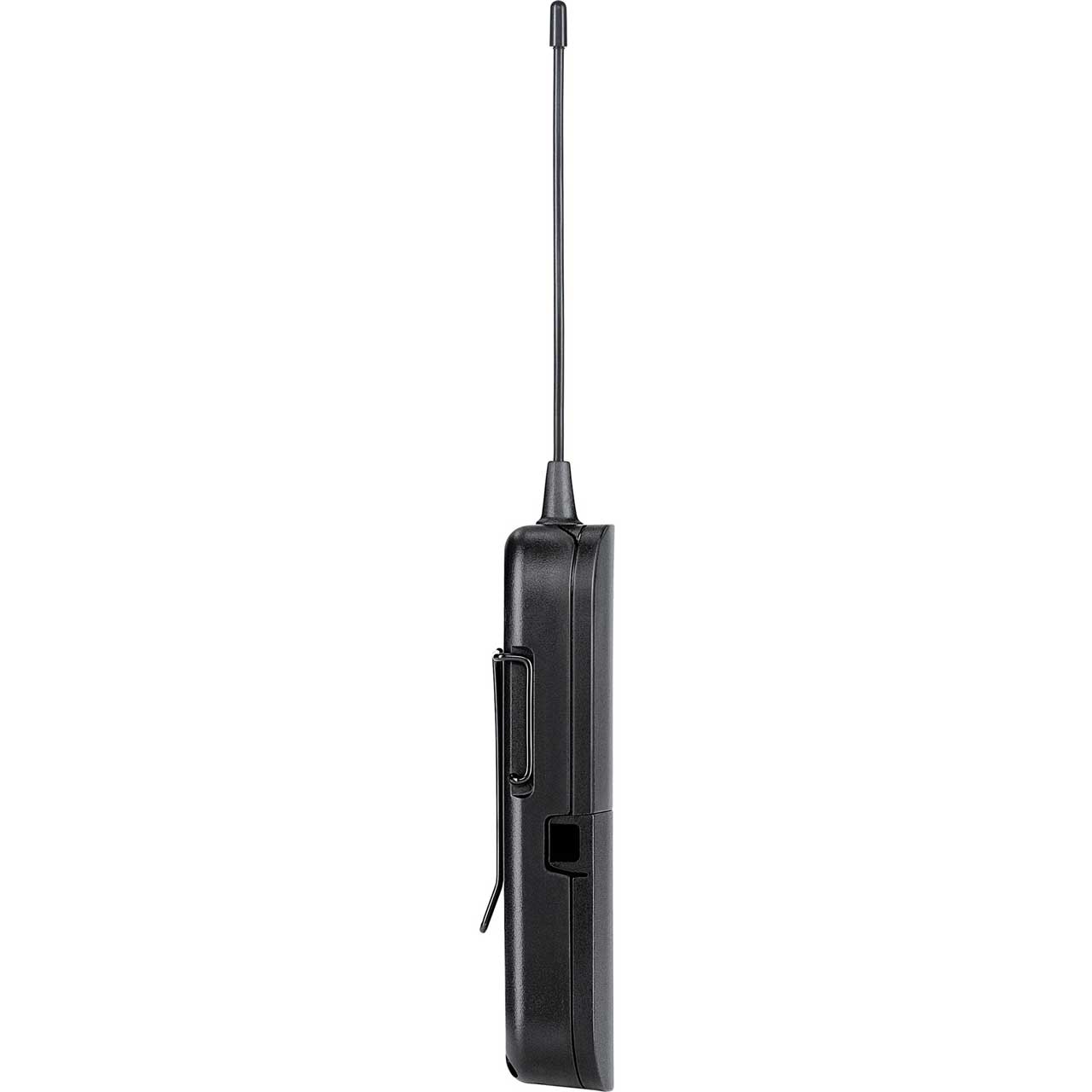

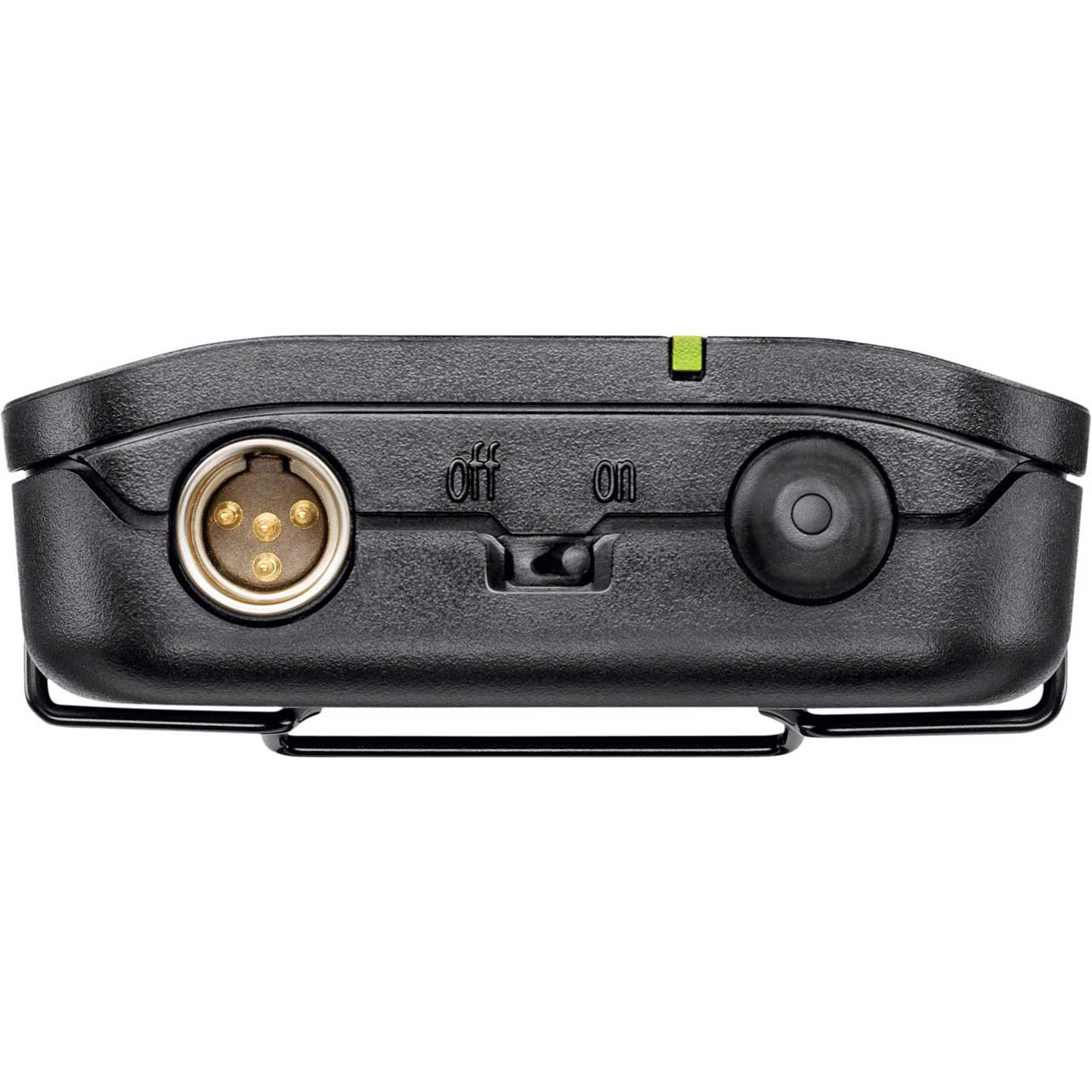

    • BLX1
    • Power and battery status LED
    • Adjustable gain control
    • Quick & easy frequency matching
    • 2 AA batteries (included) provide up to 14 hours of continuous use
    • 300 feet (91 m) operating range (line of sight)

  • Specifications:

    • System
    • Working Range: 91 m (300 ft) Line of Sight
    • Audio Frequency Response: 50 to 15,000 Hz
    • Total Harmonic Distortion: Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical
    • Dynamic Range: 100 dB, A-weighted, typical
    • Operating Temperature: 0° F to 135° F
    • Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.

      BLX1
    • Audio Input Level: gain maximum: -16 dBV maximum; gain minimum (0 dB): +10 dBV maximum
    • Gain Adjustment Range: 26 dB
    • Input Impedance: 1 MΩ
    • RF Transmitter Output: 10 mW, typical varies by region
    • Dimensions (H x W x D): 4.33" X 2.51" X 0.82"
    • Weight: 2.6 oz., without batteries
    • Housing: Molded ABS
    • Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
    • Battery Life: up to 14 hours (alkaline)

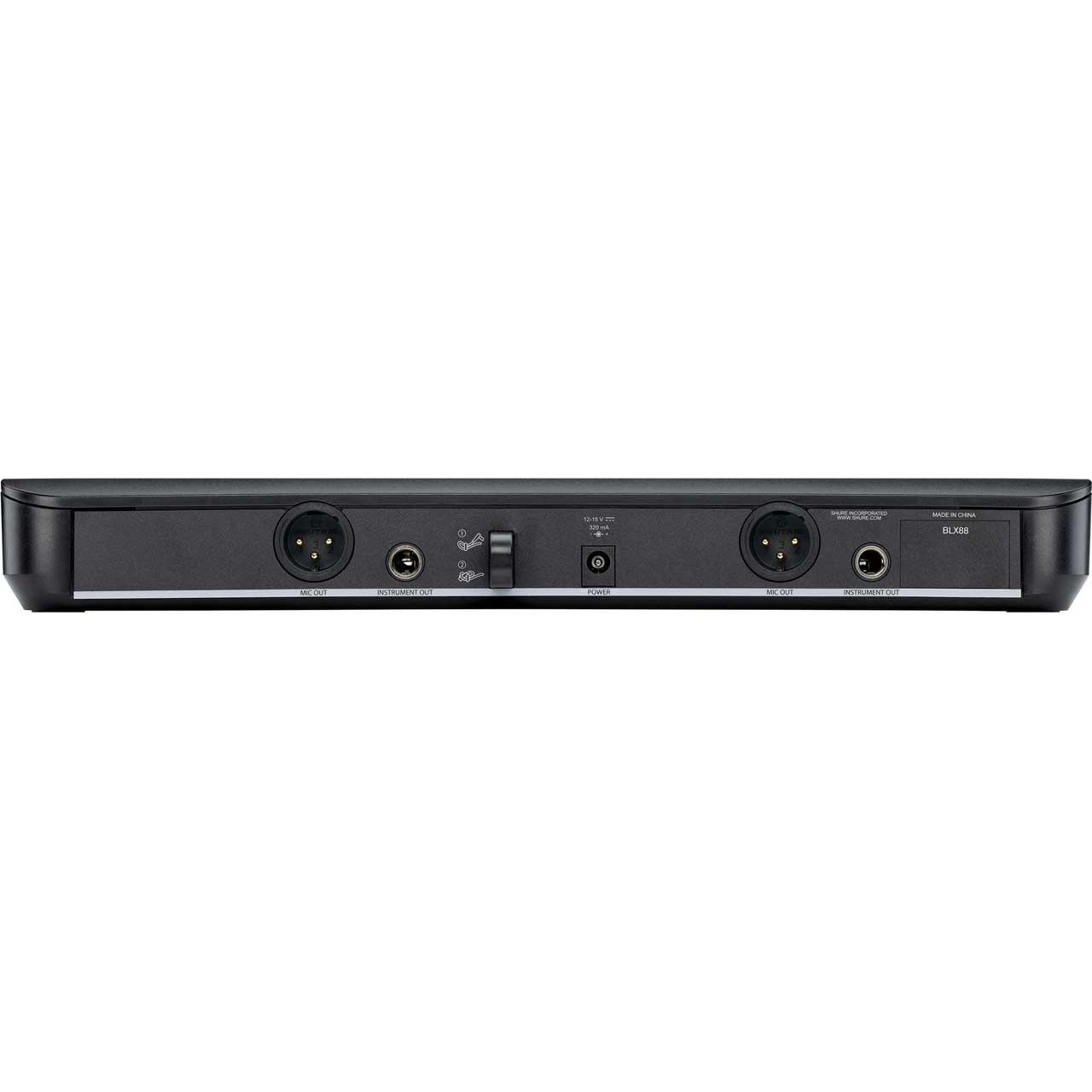

      BLX88
    • Output Impedance: XLR connector: 200 Ω; 6.35 mm (1/4") connector: 50 Ω
    • Audio Output Level: XLR connector: -27 dBV (into 100 kΩ load); 6.35 mm (1/4") connector: -13 dBV (into 100 kΩ load)
    • RF Sensitivity: -105 dBm for 12 dB SINAD, typical
    • Image Rejection: >50 dB, typical
    • Dimensions (H x W x D): 1.57" X 15.27" X 4.56"
    • Weight: 15.1 oz.
    • Housing: Molded ABS
    • Power Requirements: 12-15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive)

  • Item Includes:

    • 1 - PS24 Power Supply
    • 2 - windscreens
    • 2 - lavalier clips

  • GTIN:

    0042406470629
