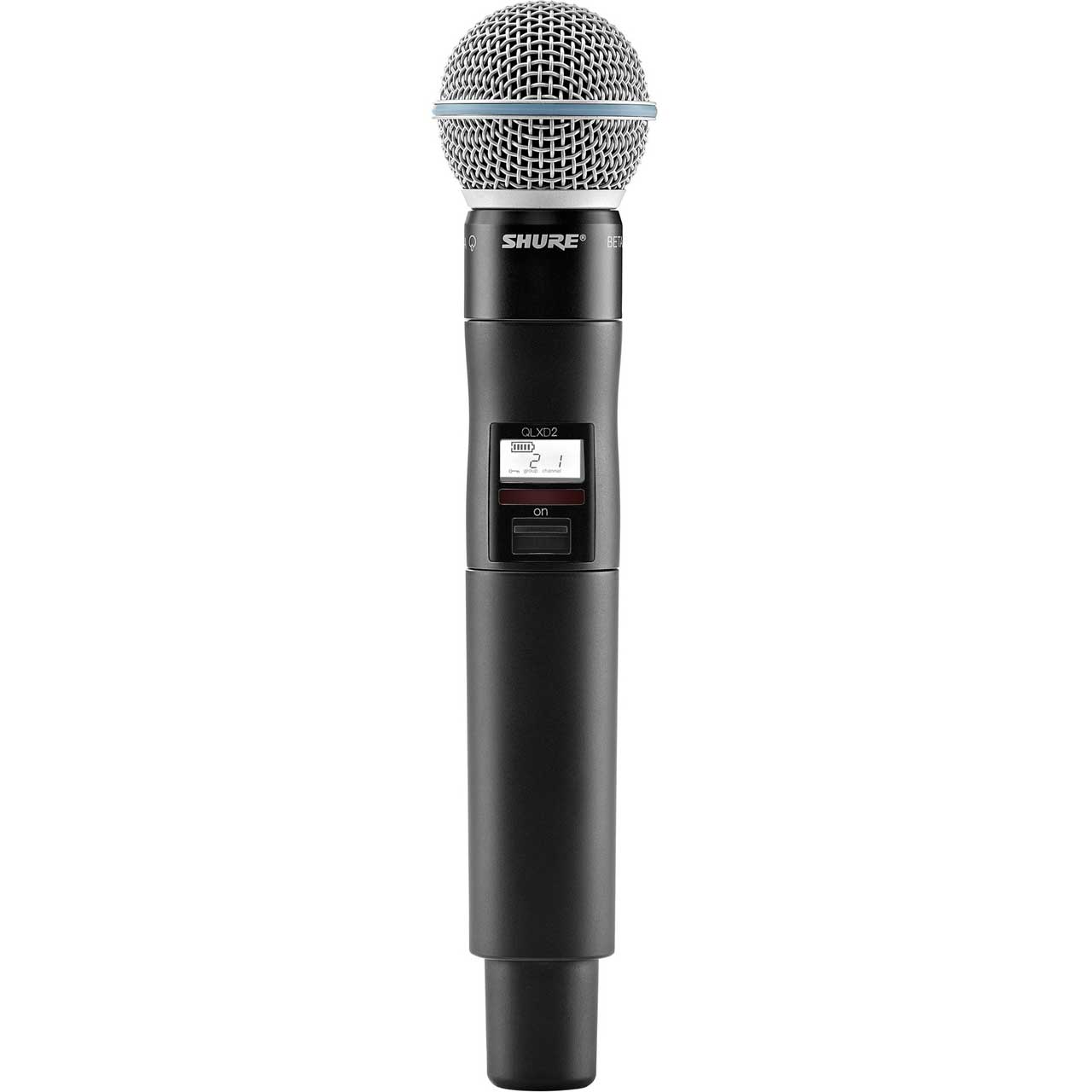

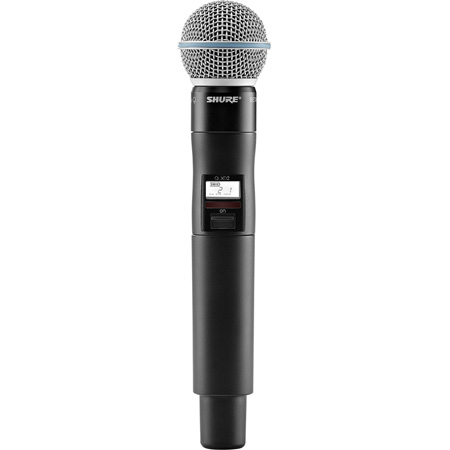

Shure QLXD2/B58-J50A Handheld Transmitter with Beta58A Microphone - 572 to 608 & 614 to 616 MHz

ITEM #: SH-QLXD2-B58J50A MFG #: QLXD2/B58-J50A

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$560.00

Our Price:

$479.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    QLXD2/B58-J50A - Overview

    QLX-D® Digital Wireless delivers defined, streamlined performance with transparent 24-bit digital audio. Combining professional features with simplified setup and operation, QLX-D offers outstanding wireless functionality for demanding live sound events and installations.

    Shure digital wireless technology enables QLX-D to transmit clearly detailed audio with extended, virtually flat frequency response. Designed to be highly RF spectrum efficient, QLX-D can operate more than 60 compatible channels simultaneously in a single frequency band. Automatic channel scan and IR sync make finding and assigning an open frequency quick and easy. Ethernet connection provides networked channel scanning across multiple receivers and Shure Wireless Workbench® control software compatibility for advanced frequency coordination. AES-256 encryption comes standard and can be easily enabled for secure wireless transmission.

    QLX-D also adds Shure rechargeable power options to provide dramatic long-term cost savings and extended transmitter battery life over alkaline batteries, and battery metering that reports remaining runtime in hours and minutes. With clearly defined performance and innovation, QLX-D delivers the very latest in digital wireless technology from Shure.

    • Features:

      • Transparent 24-bit digital audio
      • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
      • 120 dB dynamic range
      • Digital predictive switching diversity
      • 64 MHz tuning bandwidth (region dependent)
      • More than 60 available channels per frequency band (region dependent)
      • Up to 17 compatible systems per 6MHz TV band; 22 systems per 8 MHz band
      • Easy pairing of transmitters and receivers over IR scan and sync
      • Automatic channel scan
      • Ethernet networking for multiple receiver systems
      • Network channel scanning configures open frequencies for networked receivers
      • Compatible with Shure Wireless Workbench 6 control software
      • Remote control from a mobile device or tablet via ShurePlusT Channels app
      • AES-256 encryption for secure wireless transmission
      • Elegant and easy-to-use interface with high-contrast LCD menu
      • Compatible with external control systems such as AMX or Crestron
      • Professional-grade all-metal construction
      • Transmitters use 2 AA batteries or Shure SB900 rechargeable battery

    • Specifications:

      • RF Carrier Frequency Range: 572-608 & 614-616 MHz
      • Working Range: 100 m (328 ft)
      • RF Tuning Step Size: 25 kHz, varies by region
      • Image Rejection: >70 dB, typical
      • RF Sensitivity: -97 dBm at 10-5 BER
      • Latency: <2.9 ms
      • Audio Dynamic Range: System Gain @ +10 >120 dB, A-weighted, typical
      • Total Harmonic Distortion: -12 dBFS input, System Gain @ +10 <0.1%
      • System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
      • Operating Temperature Range: -18°C (0°F) to 50°C (122°F)
      • Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
      • Mic Offset Range: 0 to 21 dB (in 3 dB steps)
      • Battery Type: Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V
      • Dimensions: 269 mm x 51 mm (10.6 in. x 2.0 in.) L x Dia.
      • Weight: 307 g (12.1 oz.), without batteries
      • Housing: Machined aluminum
      • Configuration: Unbalanced
      • Maximum Input Level: 1 kHz at 1% THD
      • Antenna Type: Integrated Single Band Helical
      • Occupied Bandwidth: <200 kHz
      • Modulation Type: Shure proprietary digital
      • Power: 1 mW or 10 mW

    • Item Includes:

      • 1x QLXD24/B58-J50A Wireless System
      • 2x AA batteries
      • 2x 1/2 wave antennas
      • 2x 2 BNC cables
      • 1x zipper bag
      • 2x BNC bulkhead Adapters
      • 1x rackmount kit
      • 1x user guide
      • 1x power supply

    • GTIN:

      0042406540414
